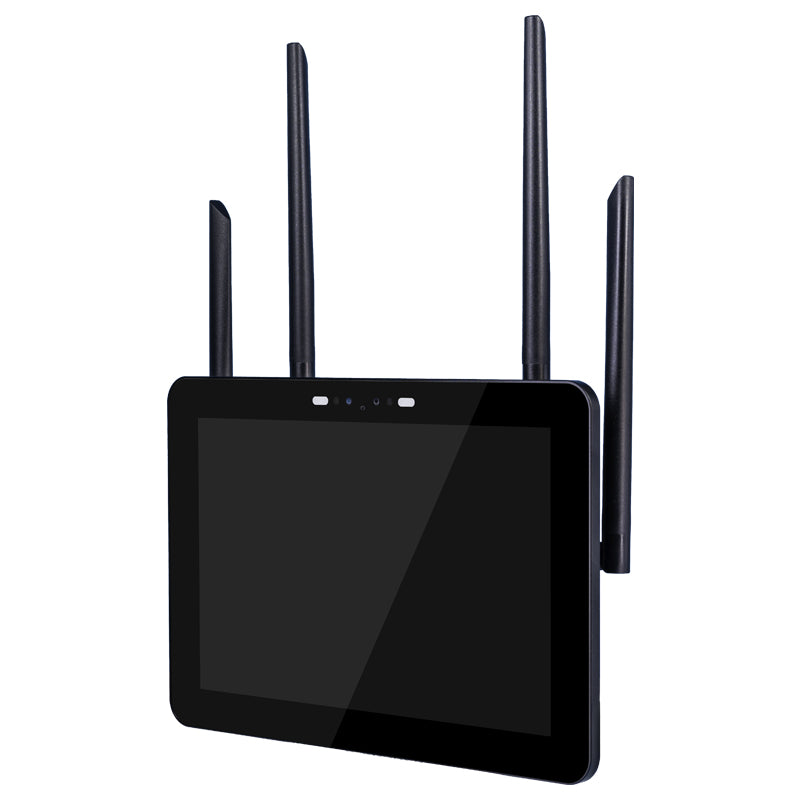

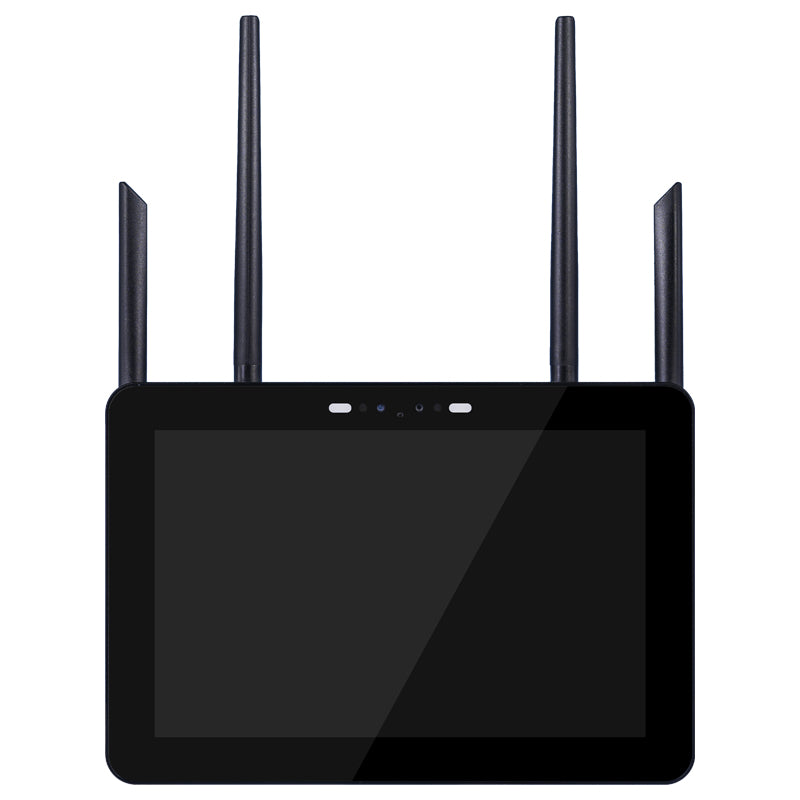

The IPC-M10R800-A3568J tablet features a 10-point IPS touchscreen, dual 2-megapixel WDR cameras, and M.2 and SATA 3.0 interfaces for large-capacity hard drive expansion. It also supports dual Gigabit Ethernet ports and WiFi 6, making it suitable for a wide range of applications in healthcare, industrial automation, commercial advertising, express delivery lockers, and food ordering systems.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• High-performance Processor: The RK3568 quad-core 64-bit Cortex-A55 processor, clocked at up to 2.0GHz, offers low power consumption and high performance. It integrates a GPU, VPU, and NPU coprocessors, with the VPU enabling 4K video decoding. It can be configured with up to 8GB of RAM and supports full-link ECC.

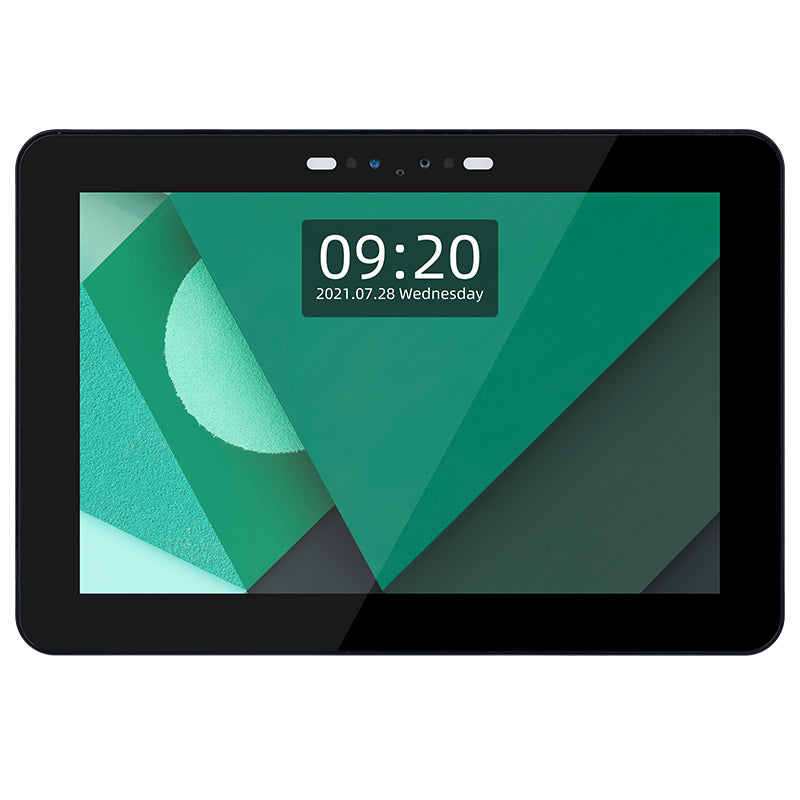

• 10.1-inch IPS LCD Screen: 1280×800 resolution, full-view HD display, delicate and saturated colors, provide high-quality display effects. 10-point touch screen provides a precise and sensitive touch experience.
• 2M WDR Dual-lens Camera: Equipped with a 2-megapixel dual-lens (RGB+IR) WDR camera, it has a highly sensitive image sensor and a wide dynamic range, making it highly adaptable to changes in light and color temperature.

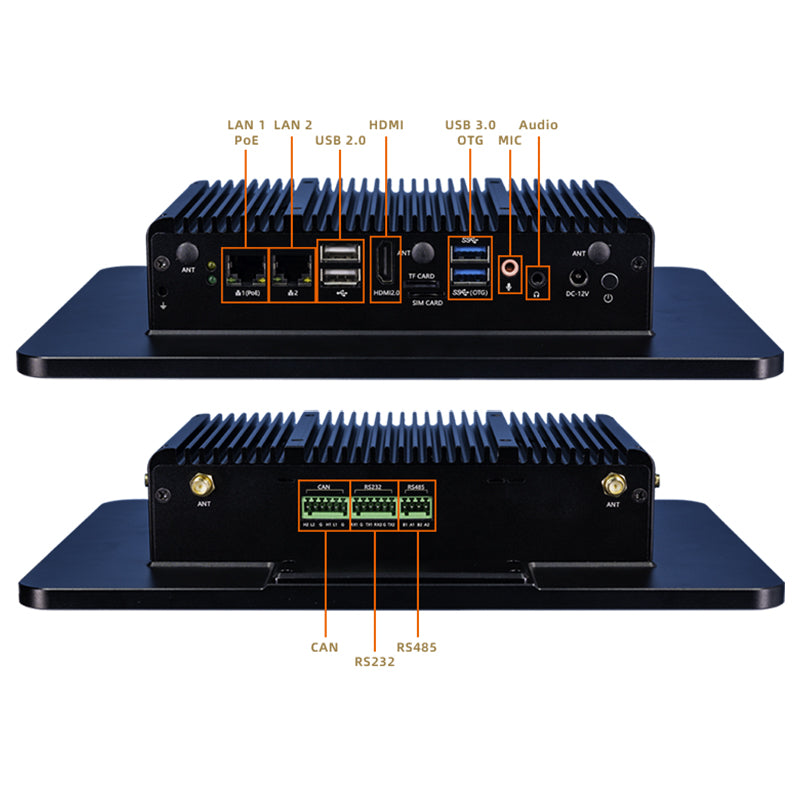

• Dual GbE, Supports POE+: Equipped with dual adaptive RJ45 Gigabit Ethernet ports, it can access and transmit data from both internal and external networks, improving network transmission efficiency. The LAN (PoE) port supports PoE+ (802.3AT, 30W output power), which can power devices while transmitting network data, ensuring normal operation.

Hardware Overview
