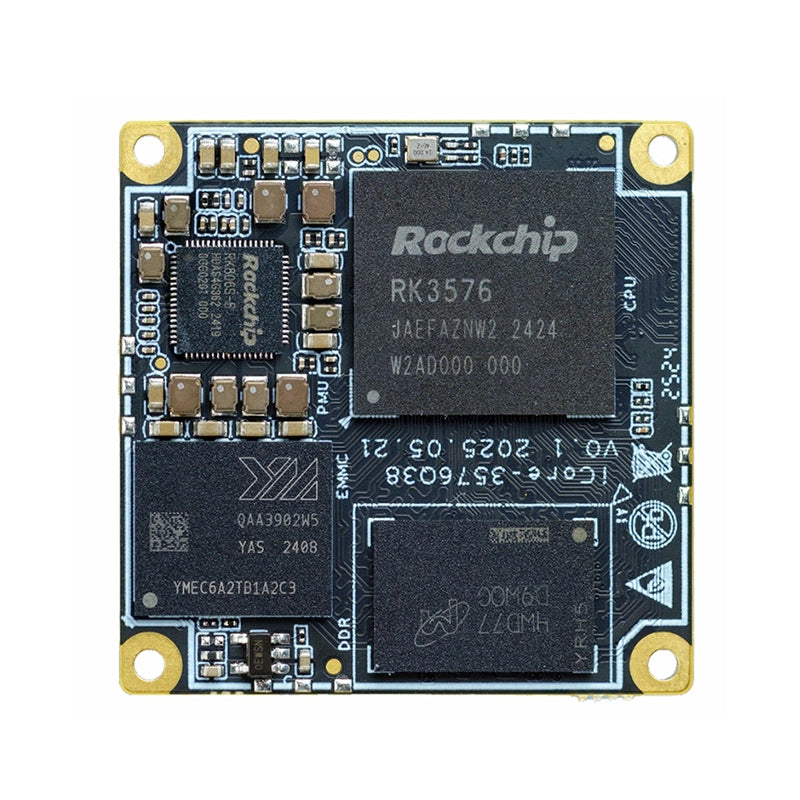

ICORE-3576Q38 Mini SoM: A compact 38×38mm powerhouse delivering 6 TOPS edge AI performance, enabling private large-model deployment with industrial-grade reliability for intelligent edge solutions. Especially suitable for IPC Camera and drone applications.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

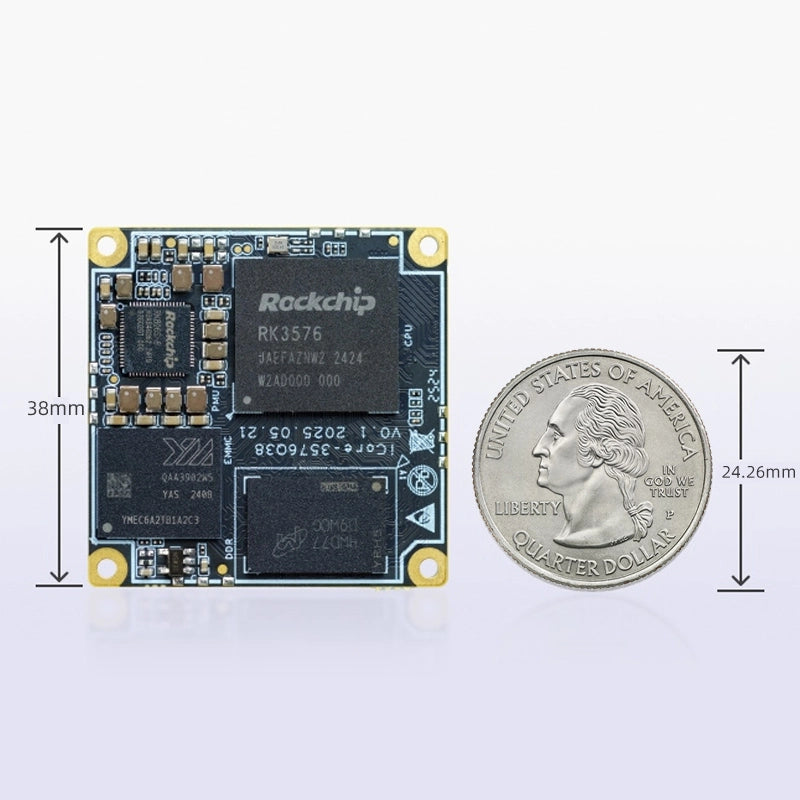

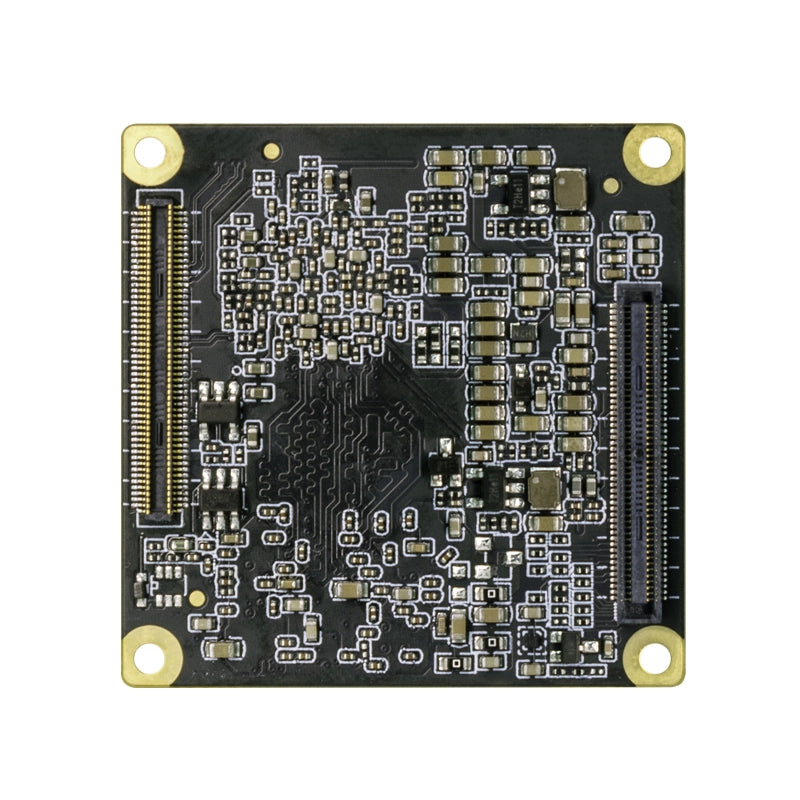

• 38mm × 38mm Mini Size: The SoM utilizes a BTB interface design and features a high-speed, industrial-grade connector. This design offers superior transmission capabilities, high-frequency stability, and solder-free operation. Measuring just 38 x 38 mm, the SoM saves valuable space.
• AIoT Processor RK3576: The RK3576 utilizes the big.LITTLE architecture (4x A72 + 4x A53) with a clock speed of up to 2.2GHz, providing strong support for high-performance computing and multi-tasking. Equipped with a Mali-G52 MC3 GPU with 145G FLOPS of GPU performance, it enables efficient heterogeneous computing and meets the needs of graphics-intensive applications.
• 6 TOPS Edge Computing Power: Built-in 6TOPS NPU, supports INT4/INT8/INT16/FP16/BF16/TF32 operations, dual-core collaborative or independent operation, and supports parallel multi-tasking and multi-scenario processing.
• Deployment of Large AI Models: Supports private deployment of large-parameter models based on the Transformer architecture, such as the Gemma series, ChatGLM series, and other large language models.
• 8K/4K High-Frame-Rate Video Decoding: Supports 8K@30fps/4K@120fps (VP9, AVS2, AV1) and 4K@60fps video decoding (H.264/AVC), as well as 4K@60fps video encoding (H.264/AVC).

Hardware Overview
