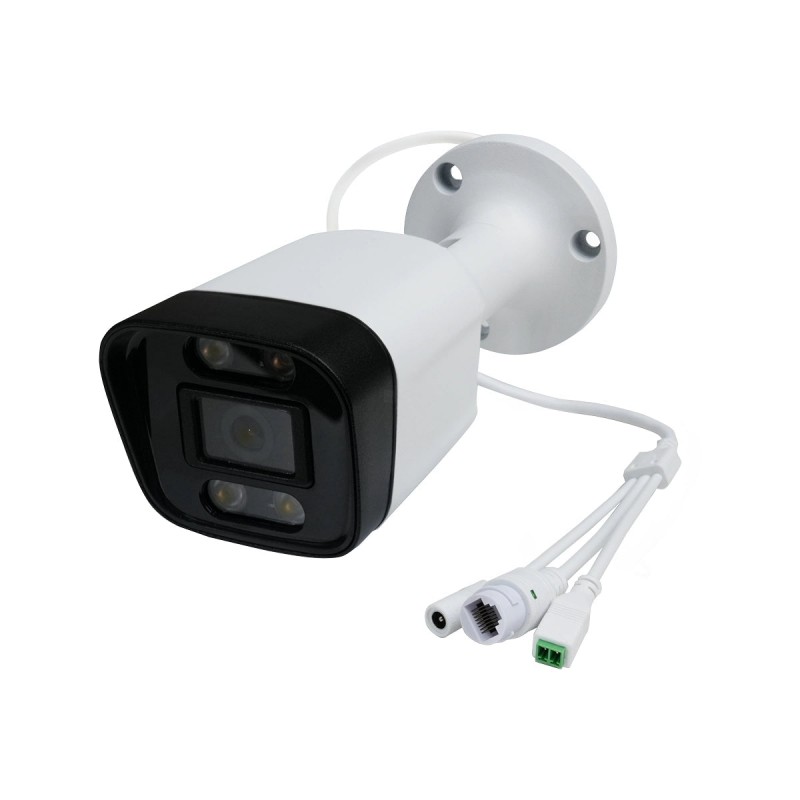

The CQ38W-1126B AI camera uses the Rockchip RV1126B quad-core AI vision processor, equipped with a 3-top-PS NPU. It supports 12MP encoding and 4K decoding. It features a built-in 12MP ISP / 8MP AI-ISP with low power consumption. The hardware AI mosaic function supports adaptive day/night switching and features 6-axis digital image stabilization and multi-light source fusion. It is equipped with a 5MP high-definition camera and supports an adaptive 100M Ethernet port. It is characterized by low power consumption and high integration.
Feature
- AI Vision Processor RV1126
- Supports Multimodal Models
- Built-in 8-Megapixel AI-ISP
- AI Video Stabilization ＆ Multi-Light Fusion
- Intelligent Encoding Engine
- Optional 5MP / 3MP Cameras
- Supports Adaptive 100M Ethernet Port
- IP67-Rated Waterproof Aluminum Alloy Enclosure
Specifications
| SoC |
Rockchip RV1126B |
| CPU |
Quad-core 64-bit ARM Cortex-A53, integrated with NEON and FPU, maximum main frequency of 1.6GHz |
| NPU |
3TOPS NPU, supporting INT4/INT8/INT16/FP16 mixed-precision computing |
| ISP |
Built-in 12MP ISP with multiple algorithm accelerators including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, gamma correction and feature point detection. Integrated 8MP AI-ISP enables day-night dual-mode adaptation with AI Remosaic technology; supports 6-DOF digital image stabilization. |
| Decoding/ Encoding |
Encoding: 12M@30fps H.265/H.264
Decoding: 4K@30fps H.265/H.264 |
| RAM |
LPDDR4/LPDDR4X (1GB/2GB/4GB Optional) |
| Storage |
eMMC (8GB/16GB/64GB Optional) |
| OS |
Supports Debian 12 and Linux systems built with Buildroot+QT GUI |
| Size |
69.72mm × 69.72mm × 174.21mm |
| Power |
DC 12V (5.5mm × 2.1mm) |
| Protection rating |
IP67 waterproof and dustproof design |
| Weight |
≈336g |
| Environment |
Operating temperature: -20℃～50℃, Operating humidity: 15%～90%RH (non-condensing) |
| Image sensor |
3MP: SONY SC3336
5MP: SONY IMX335 |
| CMOS size |
1/2.8" |
| Pixel |
3-megapixel (2304×1296) / 5-megapixel (2592×1944) |
| Aperture |
3MP: F2.0
5MP: F2.56 |
| Field of view |
3MP: 98.3°
5MP: 95° |
| Focal length |
3MP: 3.95mm
5MP: 4mm |
| Distortion |
3MP: < 33%
5MP: ≤ -9.5% |
| Maximum frame rate |
3MP: 2304×1296@30fps
5MP: 2592×1944@30fps |
| Focusing method |
3MP: Manual focus
5MP: Fixed focal length |
| Camera type |
Color |
| Ethernet |
One 10/100M Ethernet (RJ45) |
| RS485 |
1 × RS485 (Led out via 2Pin-3.5mm Phoenix terminal block) |
