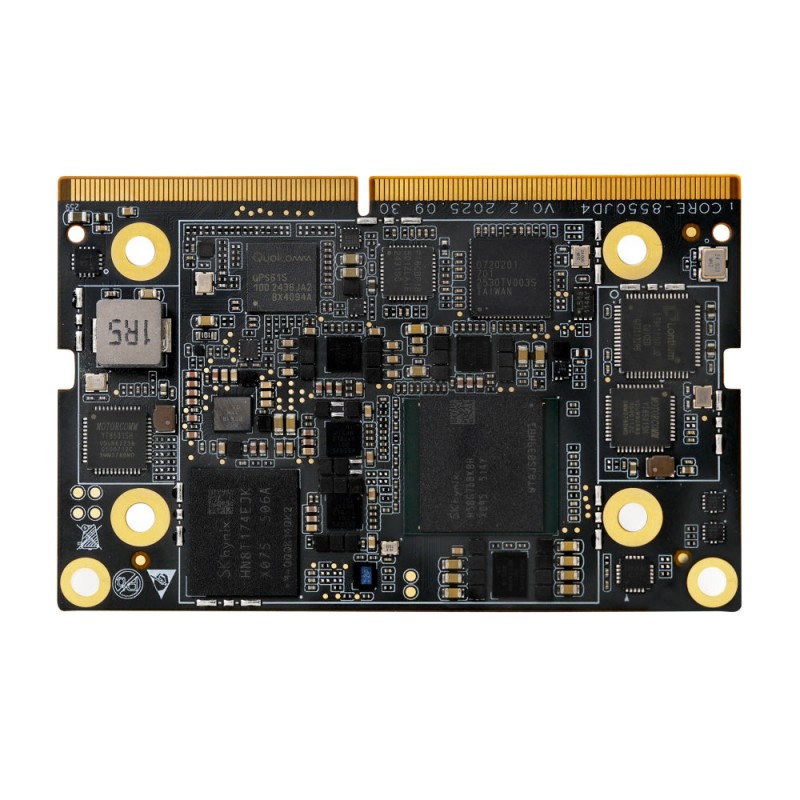

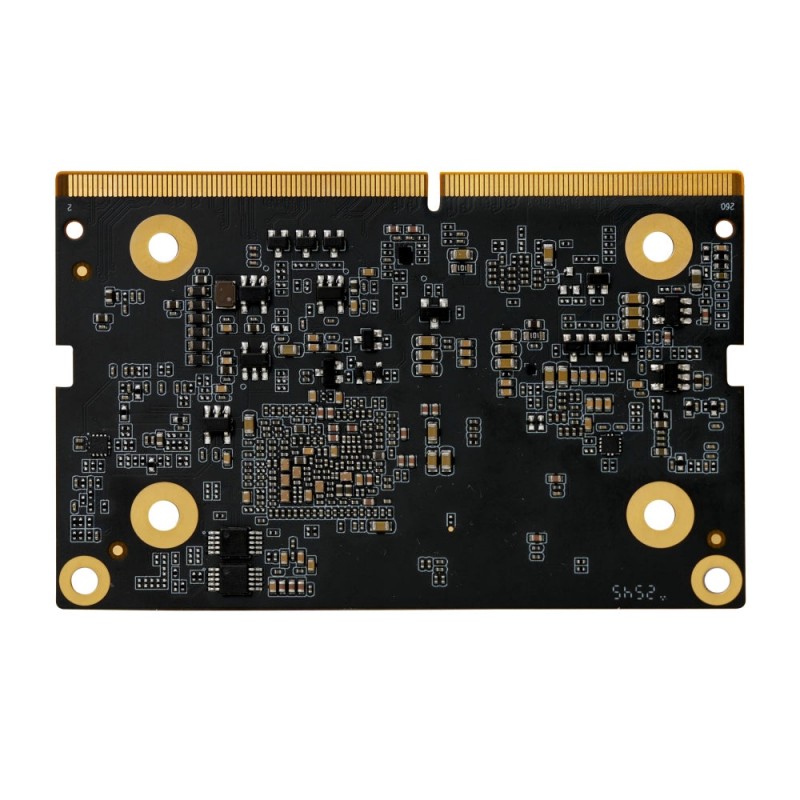

The CORE-8550JD4 is powered by a Qualcomm QCS8550 AI processor with a 48-tops NPU, supporting mainstream AI models. It also utilizes an Adreno 740 GPU for ray tracing and 8K video processing. The cognitive ISP supports up to 100MP single cameras or 36MP triple cameras. All components are integrated into a compact design and feature a 260-pin edge connector.

• Product Datasheet: Click Here

Feature

• AI Processor QCS8550: The QCS8550 uses an octa-core Kryo CPU based on the ARM architecture, with a clock speed of up to 3.36 GHz.
• Ray Tracing: Equipped with an Adreno 740 GPU, it provides full ray tracing support and is compatible with OpenGL ES 3.2, Vulkan 1.2, and OpenCL 3.0, and incorporates Hexagon Neural Processing technology.
• 8K Video Encoding & Decoding: Supports advanced video processing for 8K@60fps/4K@240fps decoding and 8K@30fps/4K@120fps encoding.
• Cognitive ISP with 36MP Triple Camera: Equipped with Qualcomm Spectra Cognitive ISP, featuring three 18-bit ISPs and two DPHY 1.2/CPHY 2.0 interfaces, it supports flexible camera configurations, up to three 36MP, two 64MP+36MP, or a single 108MP setup for multi-stream vision systems.
• 4nm Low-Power Design: Manufactured using a 4nm process, it boasts high efficiency and stable performance. It is compatible with the NVIDIA Jetson Orin NX/Nano hardware interface.

Product Overview
