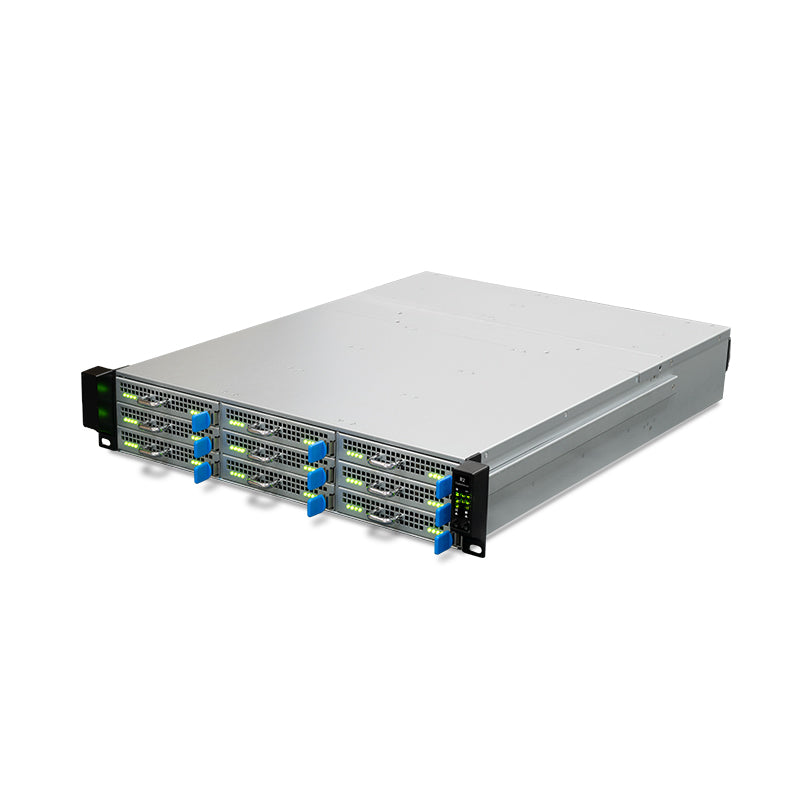

This standard 2U rack cluster server can be configured with up to 72 SoM modules, providing excellent computing power. High-density hot-swappable design allows easy replacement of components without downtime. The server supports a variety of systems and is equipped with a BMC remote management system to support customized development. It can be used for virtual desktops, cloud phones, blockchain, cloud games, face recognition servers, application cloning, etc.

• Product Wiki: Click Here
• Product Datasheet: Click Here

Feature

• High-density and Powerful: The server can be equipped with up to 72 6-core 64-bit RK3399 boards, offering edge computing power of up to 432 cores and a single-core board frequency of up to 1.8 GHz. When fully configured, it can become 72 real Linux cloud computers or 72 Android cloud phones; it also supports Android virtualization and can virtualize a large number of Android phones.
• Flexible Hardware Configuration: Any number and model of Firefly JD4 series core boards can be configured, and customized system on modules are available. Each SoM can be equipped with an AI acceleration module featuring up to 2.8 T of computing power. Two 3.5-inch hard drives can be optionally configured for expansion.
• Safe and High-speed Networking: The server has two 10GbE ports that can connect to the broadband of two different operators, support network isolation, link aggregation, network load balancing and flow control, and ensure the security and reliability of network communications.
• Convenient and Efficient Modular Design: The power supply, fan, network, and storage modules adopt a modular design and support hot plugging, making server operation and maintenance simpler and more efficient.

• BMC Remote Management System: Combined with the BMC remote management system, it realizes real-time monitoring, software configuration, hardware management, fault handling, system upgrade and other functions, and supports customized development.

Hardware Overview
