Z7-A Autonomous Driving Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU7EV

Z7-A Autonomous Driving Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU7EV
Z7-A Autonomous Driving Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU7EV
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: Z7-A V2.0
  • SKU: Z7-A V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$5,990.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

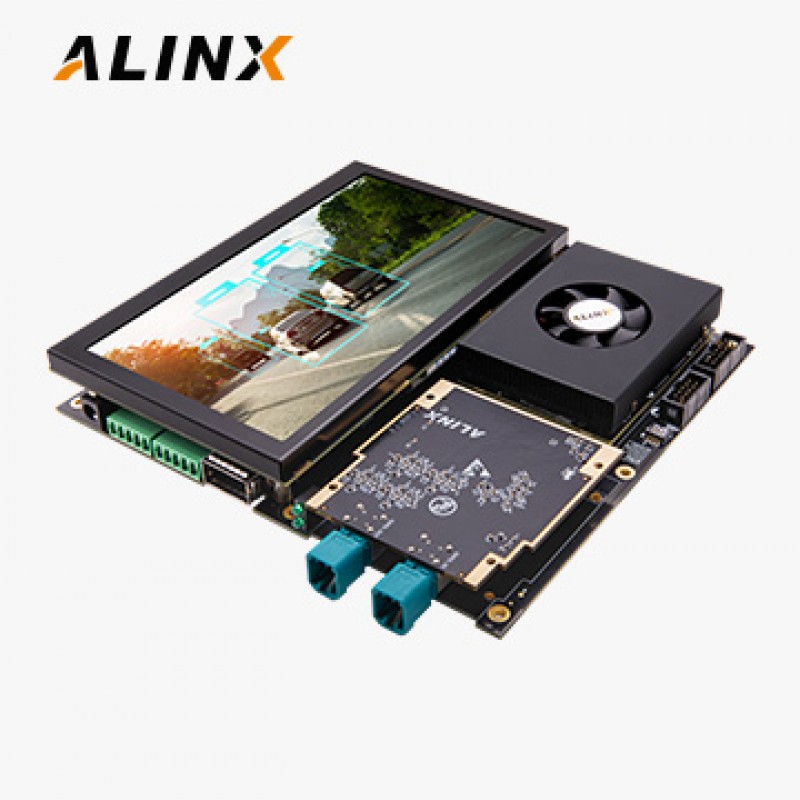

The Z7-A development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, In response to the development needs of the autonomous driving industry, verification of functions such as electronic rearview mirror CMS, multi-channel video capture, multi-channel video injection, and multi-channel video streaming can be achieved.


4-channel GMSL video input/output, 1-channel 1000M Base-T1 interface, 2-channel CAN, can achieve gPTP timestamp synchronization function, ensuring the synchronization of multi-channel data.

Applications

  • ● Verification of video capture scheme

  • ● Verification of video injection scheme

  • ● Electronic rearview mirror CMS

  • ● Verification of video capture and bypass output schemes



Key Features

  • System-on-Module

    ● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
    ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
    ◆ ARM® dual-core Cortex™-R5F up to 533 MHz
    ◆ Mali-400 MP2 GPU
    ◆ H.264 / H.265 Video Codec
    ◆ 16nm FinFET+ FPGA fabric
    ● Pluggable module with 4 x Panasonic board-to-board connectors
    ● 4 GByte (64-bit) DDR4 SDRAM on PS
    ● 4 GByte (64-bit) DDR4 SDRAM on PL
    ● 64 MB QSPI Flash
    ● 32 GB eMMC Flash

  • Base Board

    ● 1 x FMC HPC Connectors (FMC1 has 55 pairs lvds io and 8 pairs GTH)
    ● 1 x M.2 (PCIE Gen2 x4)
    ● 1 x DP Interface on PS
    ● 1 x USB3.0 on PS
    ● 1 x 1000BASE_T1
    ● 1 x Gigabit Ethernet (1 x PS)
    ● 1 x UART on PS (USB to UART)
    ● 1 x QSFP+fiber optic
    ● 2 x CANFD
    ● 1x 14-pin Expansion Port (14 pin 2.54mm spacing, Used to connect various modules of ALINX or external circuits designed by users themselves.)
    ● 1x 40-pin FPC (Connected to the ALINX 7-inch screen AN7000.)
    ● 1 x JTAG
    ● 1 x Micro SD
    ● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
    ● 8 x LED (1 x PWR + 1 x DONE + 1 x PS + 1 x PL+ 4 x User indicator light)
    ●  KEY (1 x RESET + 2 x User buttons)
    ● 12V single supply
    ● Dimensions: 183.41 x 171.18 mm form factor

Product Information

  • Specifications
  • What's Inside
Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU7EV-2FFVC1156I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.



* The Z7-A development board consists of a Zynq™ UltraScale+ ™ MPSoC module and base board. If you want to purchase Zynq™ UltraScale+ ™ MPSoC module (ACU7EV) separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU7EV development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module1Base Board1
7-inch car size LCD screen AN70001Car mounted camera C22111
40pin FPC ribbon cable1Serial decoupling FMC  card FL92951
12V power supply1AL321 downloader1
4-in-1 Amphenol Z code Fakra connector coaxial RF cable1SD Card1
4-in-1 Fakra SMB Automotive ECU Injection Reinjection Connection Line1USB cable2


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCDDR4 SDRAM (PS)DDR4 SDRAM (PL)QSPI FlasheMMC FlashGTRGTYUSD Price
Z7-A√XCZU7EV-2FFVC1156I4 GB4 GB64 MB32 GB4165990


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • Z7-A User Manual

    2023-11-16
    Download
