Z19-M Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU19EG

Z19-M Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU19EG
Z19-M Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU19EG
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: Z19-M V1.0
  • SKU: Z19-M V1.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$11,981.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

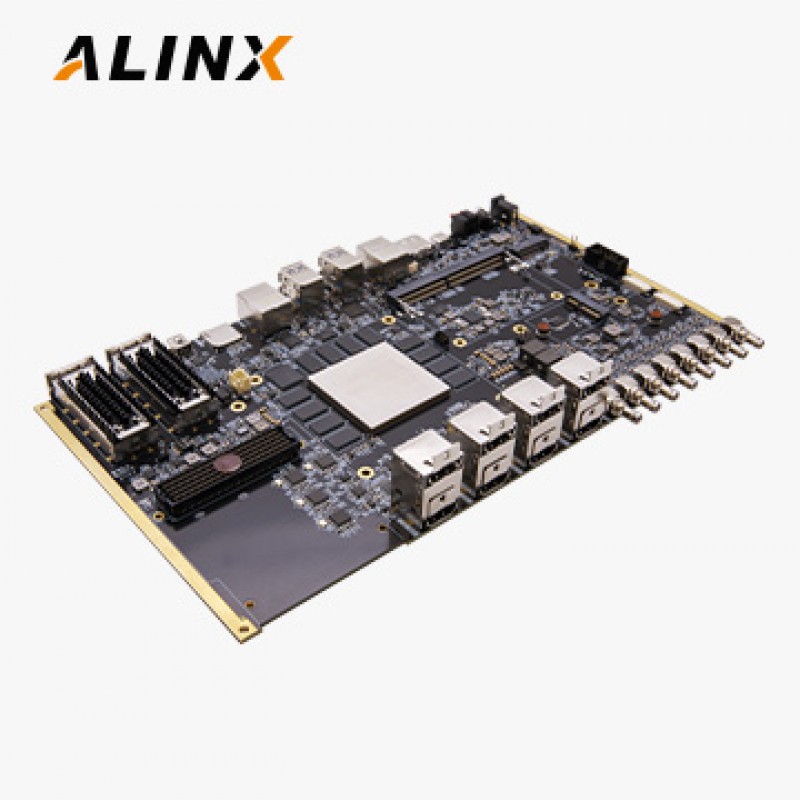

Z19-M development board equipped with AMD/Xilinx Zynq ™ UltraScale+ MPSoC series XCZU19EG device + NVIDIA Jetson Orin NX module, FPGA + GPU heterogeneous computing video image processing development platform. Equipped with fast DDR4 SDRAM, eMMC flash memory and QSPI flash memory, it provides excellent performance, realizes AI edge computing, and professional high-definition 8K video image acquisition and processing.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), provide high-speed communication interface (100G QSFP28+), high-speed storage (M.2) and video applications (DP, 12G-SDI, 8K HDMI2.1).

Applications

  • ● Industrial Manufacturing

    ● Semiconductor Optical Testing

  • ● Surgical Robot

    ● Medical Endoscope

  • ● Collaborative Robots

  • ● Intelligent Transportation and Electricity



Key Features

  • Zynq Ultrascale+ MPSoC System

    ● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
    ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
    ◆ ARM® dual-core Cortex™-R5F up to 533 MHz
    ◆ Mali-400 MP2 GPU
    ◆ 16nm FinFET+ FPGA fabric
     ● 8 GByte (64-bit) DDR4 SDRAM on PS
    ● 16 GByte (64-bit) DDR4 SDRAM on PL
    ● 2 x 64 MB QSPI Flash
    ● 32 GB eMMC Flash
    ● 1 x NVIDIA Jetson Orin NX Modules Interface
    ● 4 x HDMI2.1 input + 4 x HDMI2.1 output (Support 8K/60Hz video)
    ● 8 x 12G SDI Interface (Supports 4K/60Hz video input or output)
    ● 2 x 100Gbps QSFP28 connectors
    ● 1 x Gigabit Ethernet on PS
    ● 1 x FMC HPC connectors (FMC has 36 pairs lvds io and 8 pairs GTH)
    ● 1 x UART
    ● 1 x JTAG
    ● 1 x Micro SD
    ● 1 x EEPROM + Temperature sensor (LM75)
    ● 1 x RTC (Real-time clock)
    ● 4 x LEDs
    ● 1 x power switch button
    ● 12V single supply
    ● Dimensions: 280 x 163 mm form factor

  • NVIDIA Jetson Orin NX System

    ● NVIDIA Jetson Orin NX Modules:
    ◆ Jetson Orin NX 16GB: Up to 100 TOPs
    ◆ Jetson Orin NX 8GB: Up to 70 TOPs
    ( *Above Jetson modules are add-on options which need to be purchased separately. Please contact sales.online@alinx.com for more details.)
    ● 1 x DP
    ● 1 x Gigabit Ethernet
    ● 1 x M.2 SSD interface
    ● 1 x M.2 WIFI/BT interface
    ● 4 x USB3.0 Type-A
    ● 1 x USB3.0 Type-C
    ● 1 x EEPROM: 24AA04 I/SN, 4-Kbit

Product Information

  • Specifications
  • What's Inside
Board Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU19EG development board and Some accessories

The FAN8080 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC devices – it is low-profile and covers the whole XCZU19EG device surface.

Development Board1Heatsink Kit (preinstalled)1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1Acrylic Plate1
TF Card1Card Reader1

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCNVIDIA Jetson Orin NXSSDDDR4 SDRAM (PS)DDR4 SDRAM (PL)QSPI FlasheMMC FlashUSD Price







Z19-M√XCZU19EG-2FFVC1760Ix x8 GB16 GB2 x 64 MB32GB11981







Z19-M√XCZU19EG-2FFVC1760I8G512G8 GB16 GB2 x 64 MB32GB12729







Z19-M√XCZU19EG-2FFVC1760I16G512G8 GB16 GB2 x 64 MB32GB12939








1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
