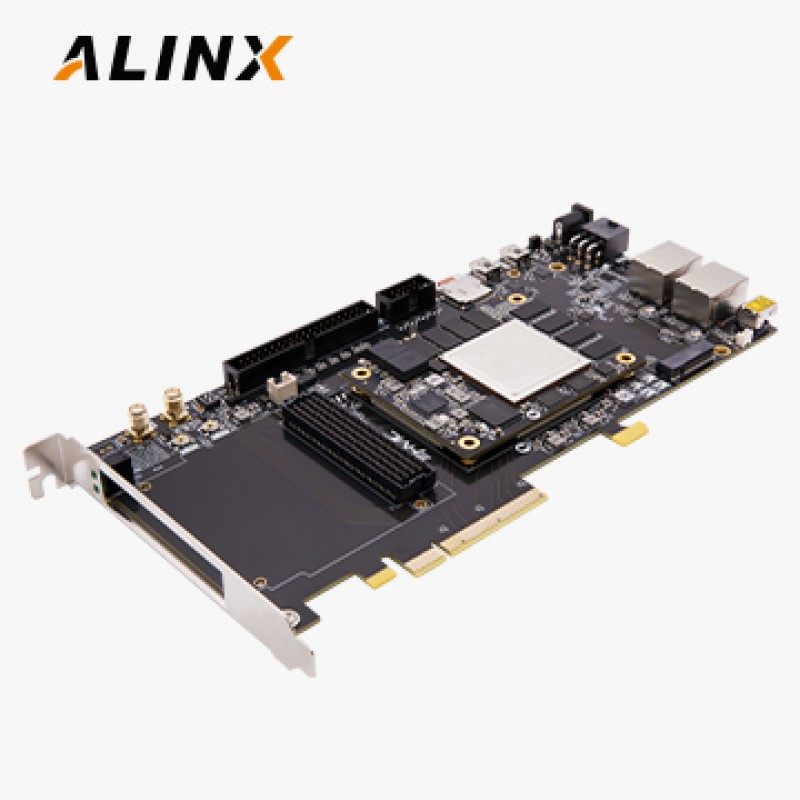

Z11-P Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG

Z11-P Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
Z11-P Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: Z11-P V2.0
  • SKU: Z11-P V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$2,396.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The Z7-P/Z11-P development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, DP, M.2.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe), high-speed storage (M.2) and video applications (DP).

Applications

  • ● Artificial Intelligence

    ● Automotive

    ● AV Broadcasting

  • ● Deep learning

    ● Digital Signal Processing

    ● 5G Wireless and Wire Communication

  • ● Data Centers

    ● Drive / Motion Control

    ● Industrial Internet of Thing

  • ● Cloud Computing Security

    ● Machine Vision

  • ● Medical Endoscop

    ● Video and Image Processing



Key Features

  • System-on-Module

    ● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
    ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
    ◆ ARM® dual-core Cortex™-R5F up to 533 MHz
    ◆ Mali-400 MP2 GPU
    ◆ H.264 / H.265 Video Codec (only for ZU7EV)
    ◆ 16nm FinFET+ FPGA fabric
    ● Pluggable module with 4 x Panasonic board-to-board connectors
    ● 4 GByte (64-bit) DDR4 SDRAM on PS
    ● 4 GByte (64-bit) DDR4 SDRAM on PL
    ● 64 MB QSPI Flash
    ● 32 GB eMMC Flash

  • Base Board

    ● 1 x FMC HPC connector (59 pairs lvds ios + 8 pairs GTH)
    ● 1 x PCIe® Gen3 ×8
    ● 1 x M.2 Card slot on PS
    ● 1 x DP Interface on PS
    ● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
    ● 2 x UART (1 x PS + 1 x PL)(USB to UART)
    ● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
    ● LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
    ● 12V single supply
    ● Dimensions: 222 x 106.7 mm form factor

Product Information

  • Specifications
  • What's Inside
Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU11EG-2FFVC1156I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.


* The Z11-P development board consists of a ACU11EG SoM and    base board. If you want to purchase ACU11EG SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU11EG development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module1Base Board1
Heatsink Kit (preinstalled)1USB Downloader Cable / set1
12V Power Adapter1PCle Fence1
Mini USB Cable1Card Reader1
TF Card1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCDDR4 ECC SDRAM (PS)DDR4 SDRAM (PL)QSPI FlasheMMC FlashGTRGTHUSD Price
Z7-P√XCZU7EV-2FFVC1156I4 GB4 GB64 MB32 GB4162097
Z11-P√XCZU11EG-2FFVC1156I4 GB4 GB64 MB32 GB4162396


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • Z11-P V2.0 User Manual
