Product Description

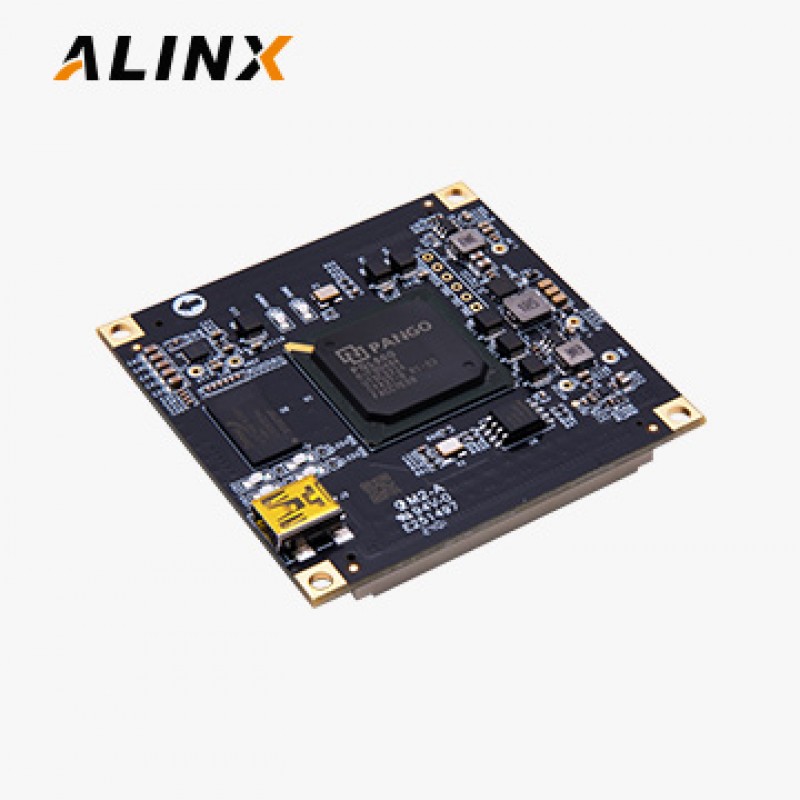

The P50G System-on-Module (SoM) combines high-performance Pango Logos-series PGL50G-6FBG484 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Applications
● communication
● Image and video processing
● Data analysis
● medical care
● Industrial control
● Network Information Security
Key Features
- ● PANGO Logos PGL50G:◆ 40 nm FPGA fabric

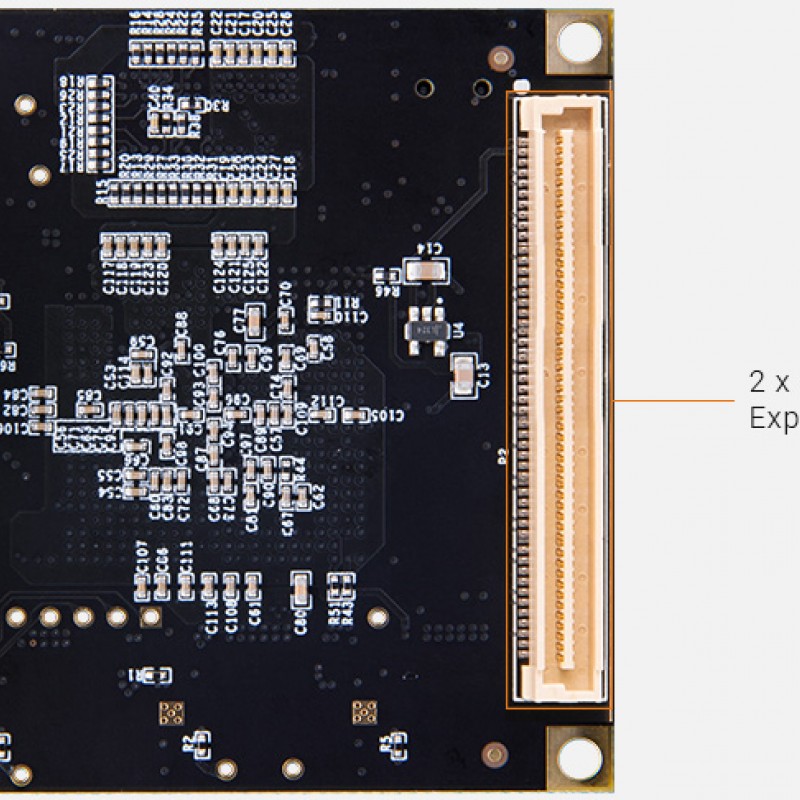

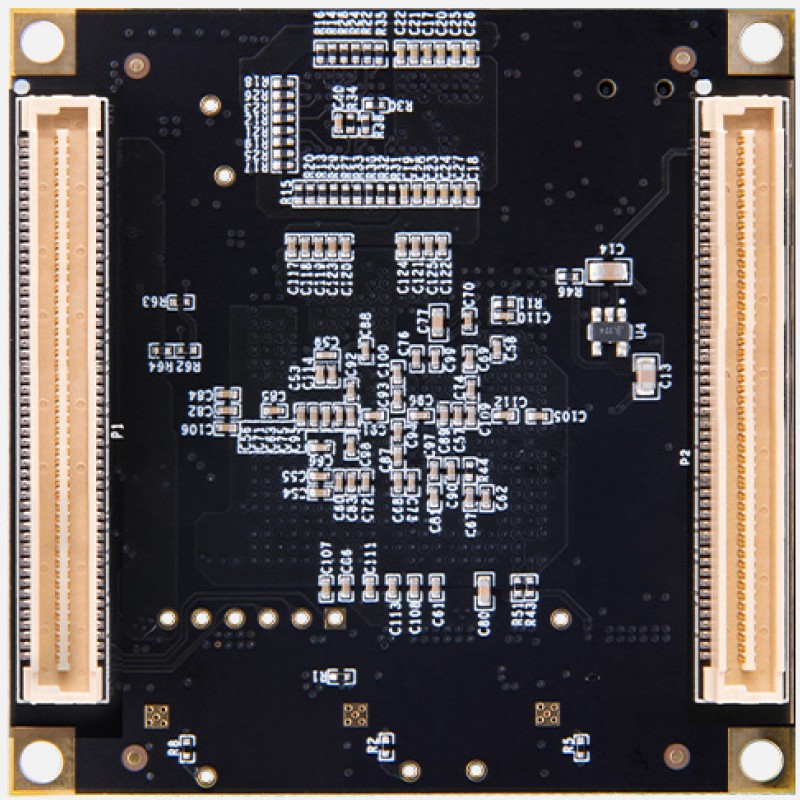

● Pluggable module with 4 x board-to-board connectors
● 256 MByte (16-bit) DDR3 SDRAM
● 8 MB QSPI Flash
● USB TO UART
● LED (1 x LED) + KEY(1 x RESET) - ● User I/Os
◆ 172 FPGA I/Os (3.3V)● Work temperature range of -40°C to 85°C
● 5V single supply
● Dimensions: 60 x 60 mm form factor
- Specifications
- What's Inside

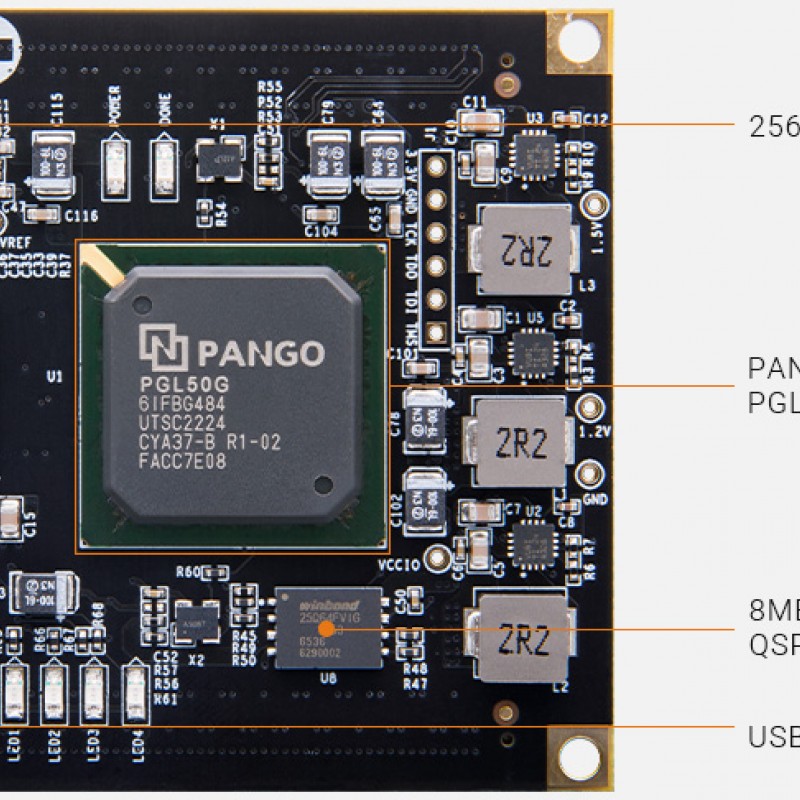

Module Features

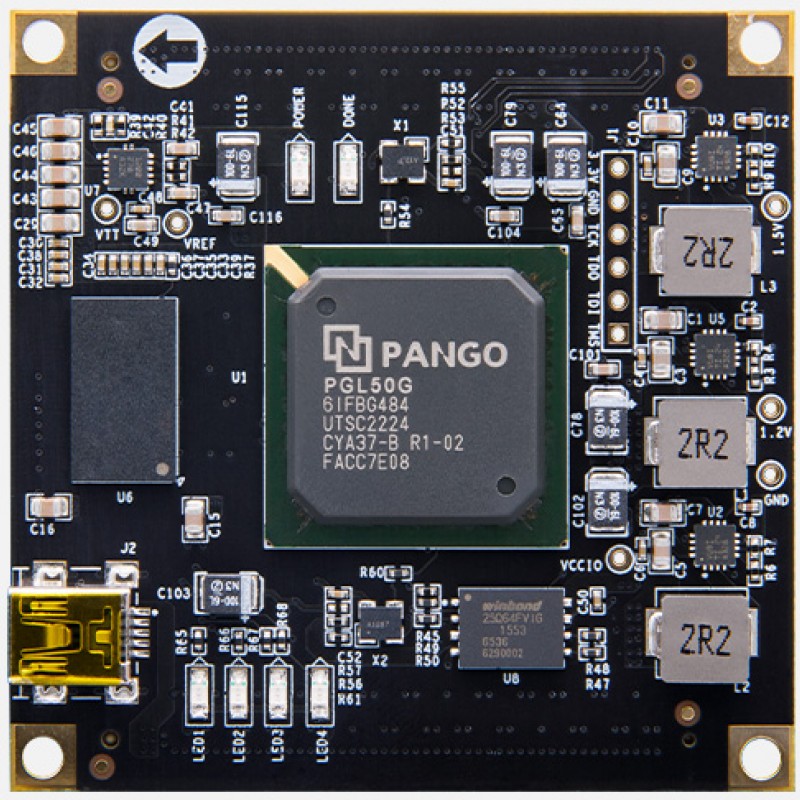

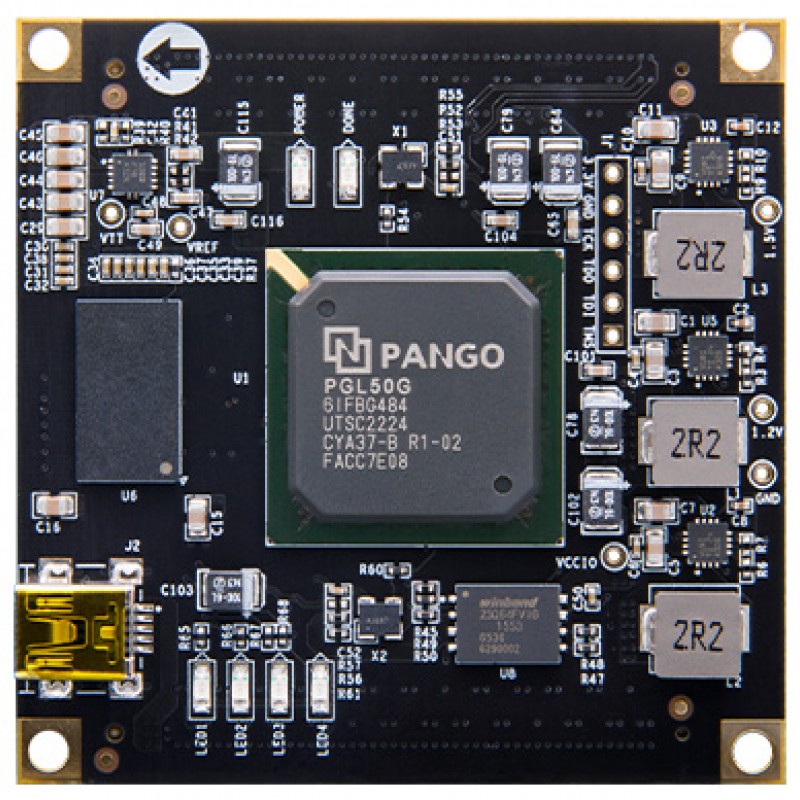

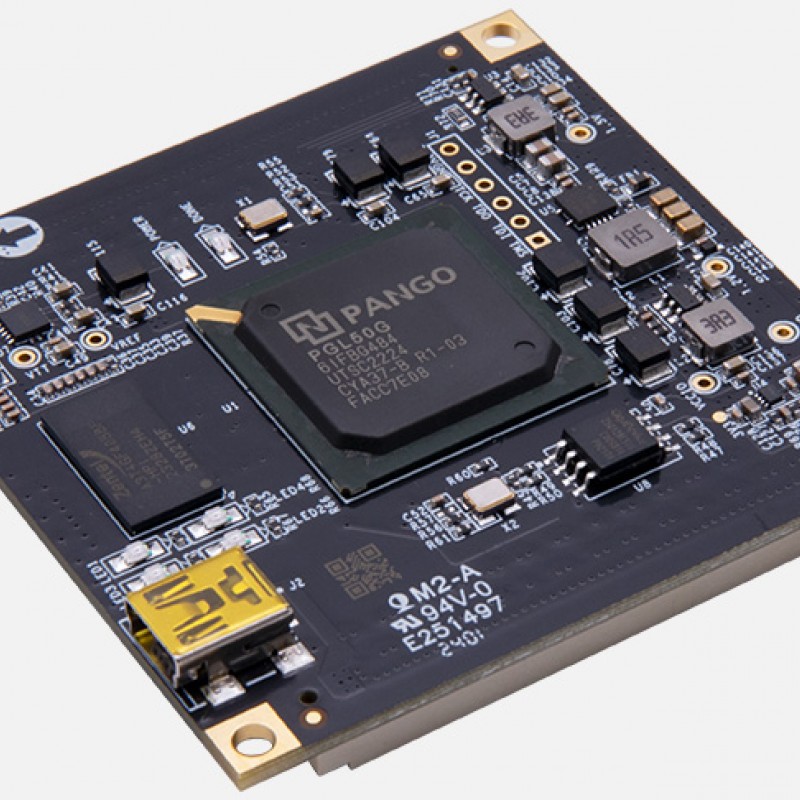

Featuring the Pango Logos PGL50G-6IFBG484
* We have Logos development boards AVP50G that uses this Logos module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX Pango Logos PGL50G System-on-Module/SoM
| SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 | QSPI Flash | Temp. Range | USD Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P50G | √ | PGL50G-6IFBG484 | 256MB | 16MB | -40°C-85°C | 105 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
