This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: P50
  • SKU: P50
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$150.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

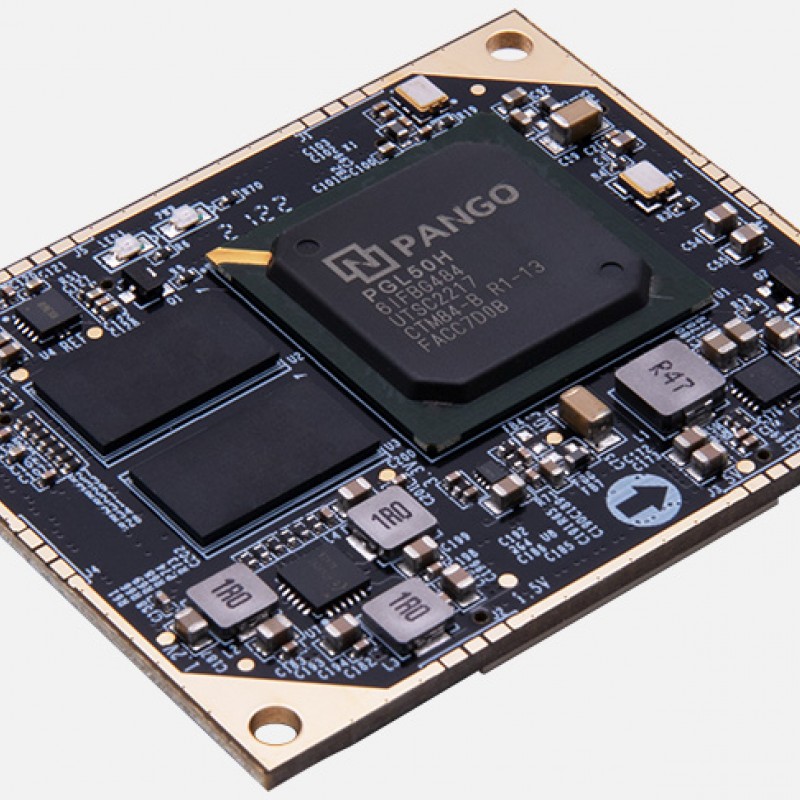

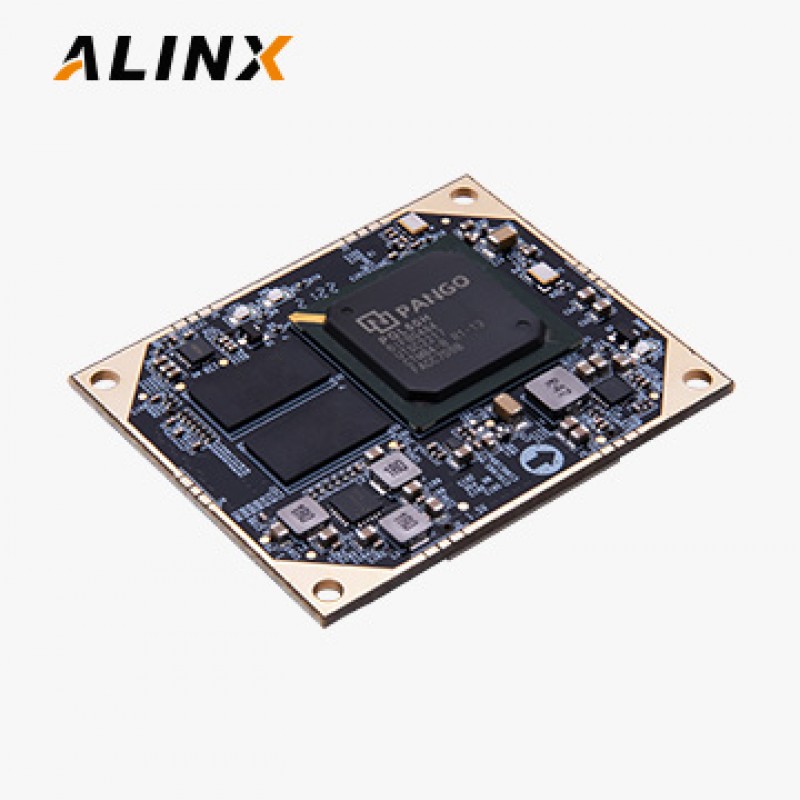

The P50 System-on-Module (SoM) combines high-performance Pango Logos-series PGL50H-6IFBG484 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • ● communication

  • ● Image and video processing

  • ● Data analysis

  • ● medical care

  • ● Industrial control

  • ● Network Information Security



Key Features

  • ● PANGO Logos PGL50H:◆ 40 nm FPGA fabric

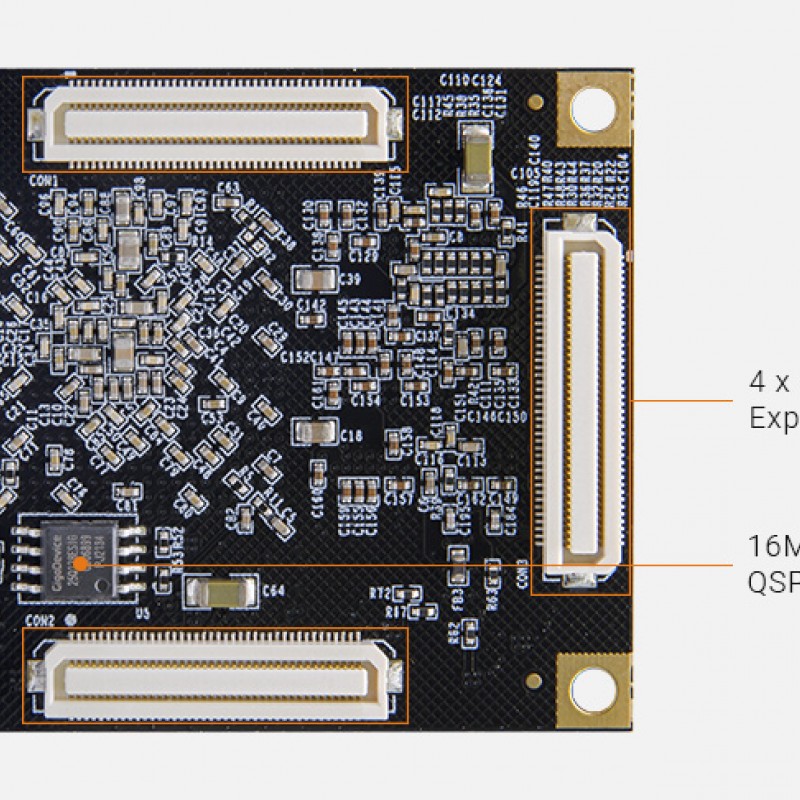

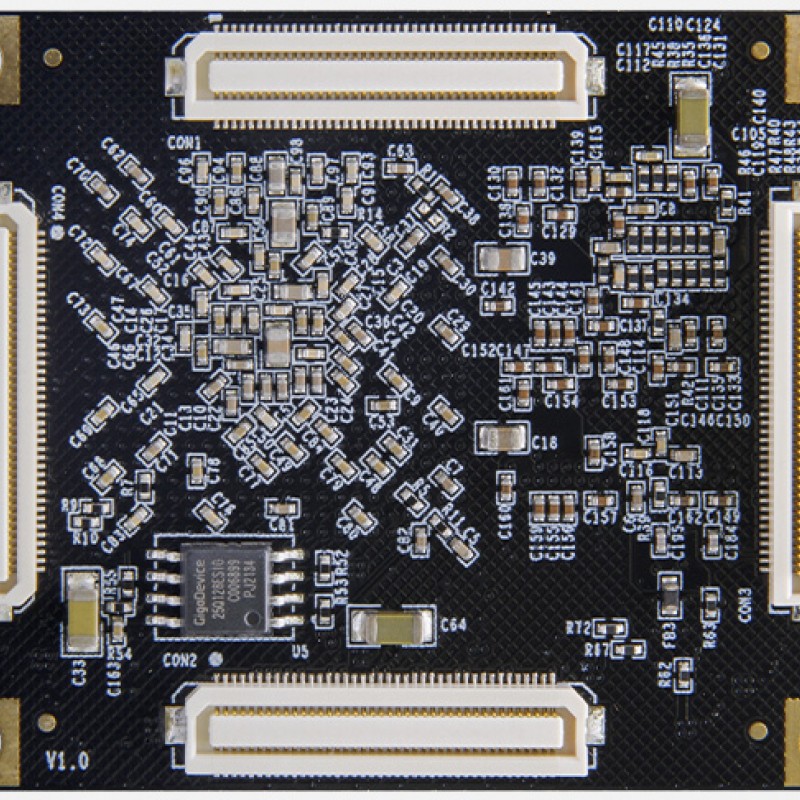

    ● Pluggable module with 4 x board-to-board connectors
    ● 1 GByte (32-bit) DDR3 SDRAM
    ● 16 MB QSPI Flash
    ● Gigabit transceivers
    ◆ 4 x HSSTLP, up to 6.375 Gbps
  • ● User I/Os
    ◆ 195 FPGA I/Os● Work temperature range of -40°C to 85°C
    ● 5V single supply
    ● Dimensions: 55 x 45 mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features

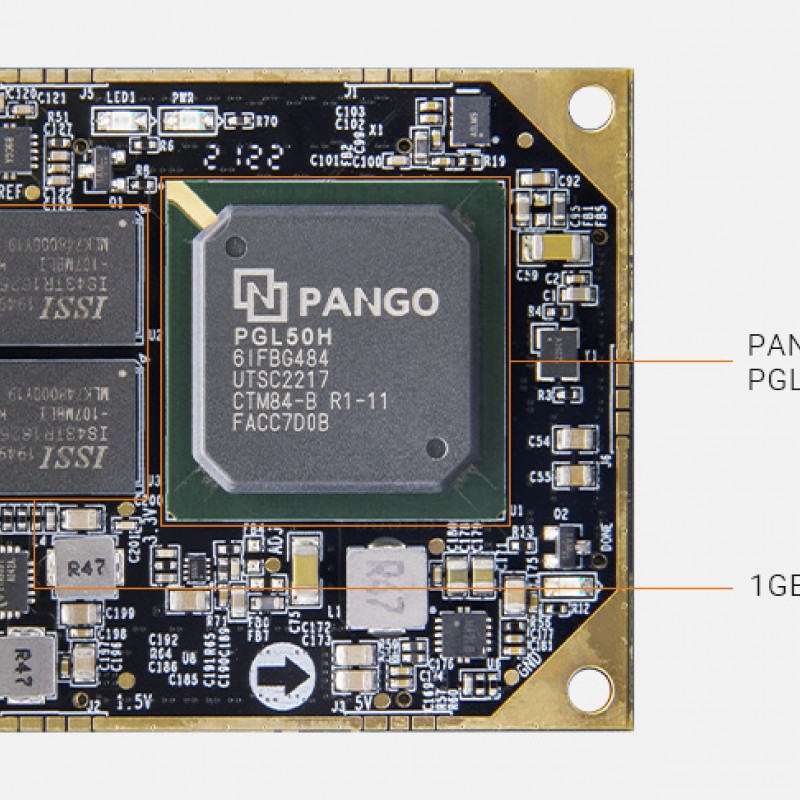

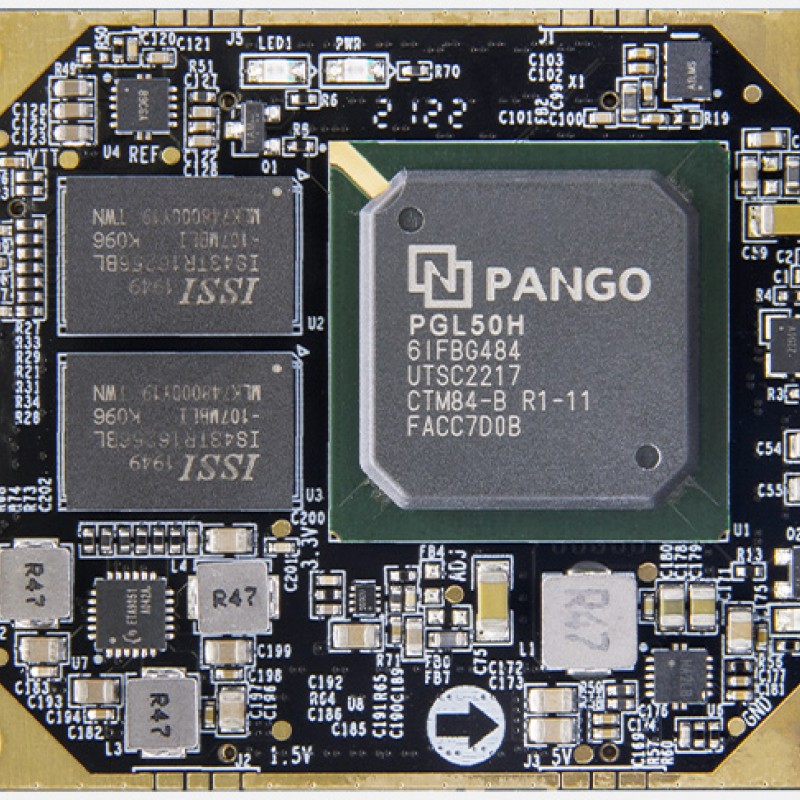

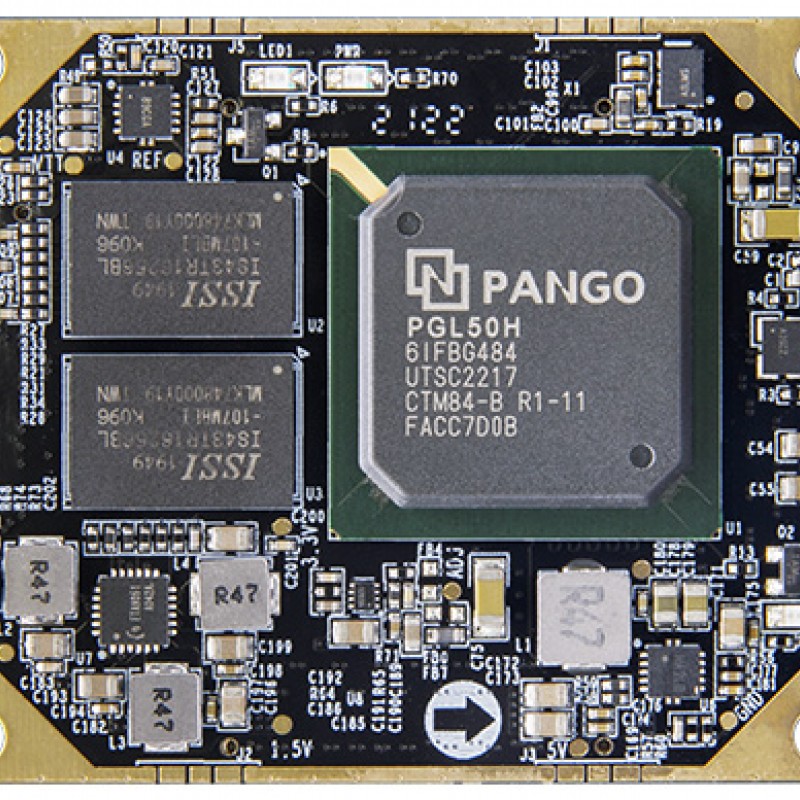

Featuring the Pango Logos PGL50H-6IFBG484


* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Logos development boards AXPGL50H and AXP50 that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Pango Logos PGL50H System-on-Module/SoM

SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3QSPI FlashTemp. RangeUSD Price
P50√PGL50H-6IFBG484256MB16MB-40°C-85°C150


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations
