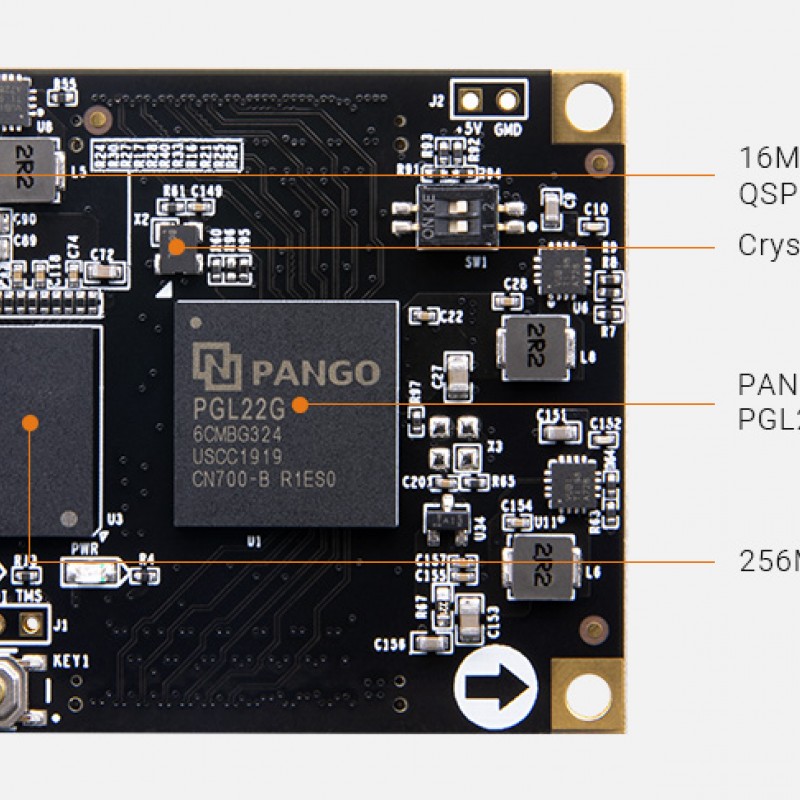

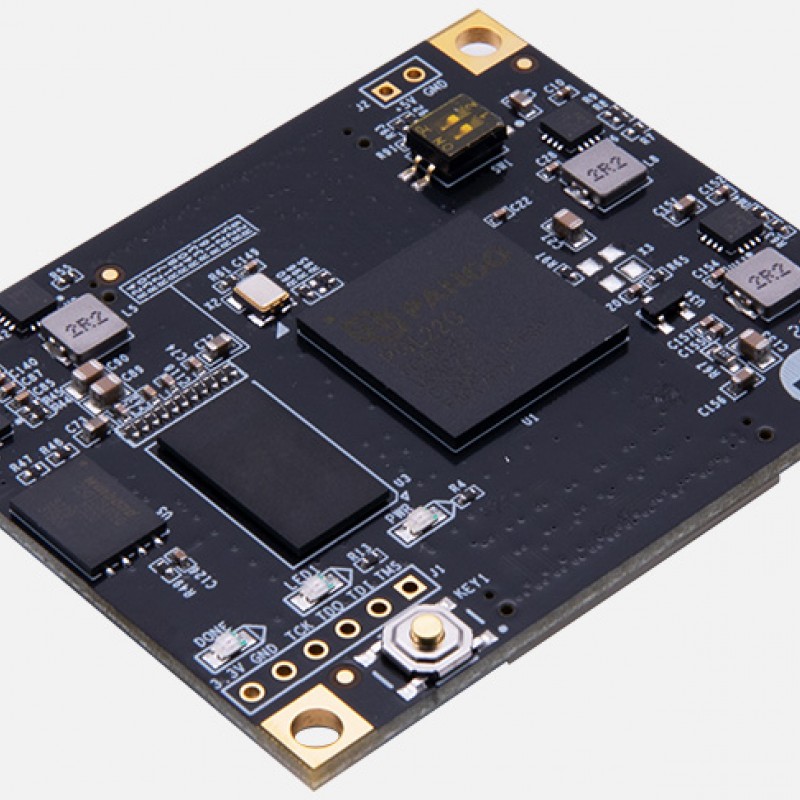

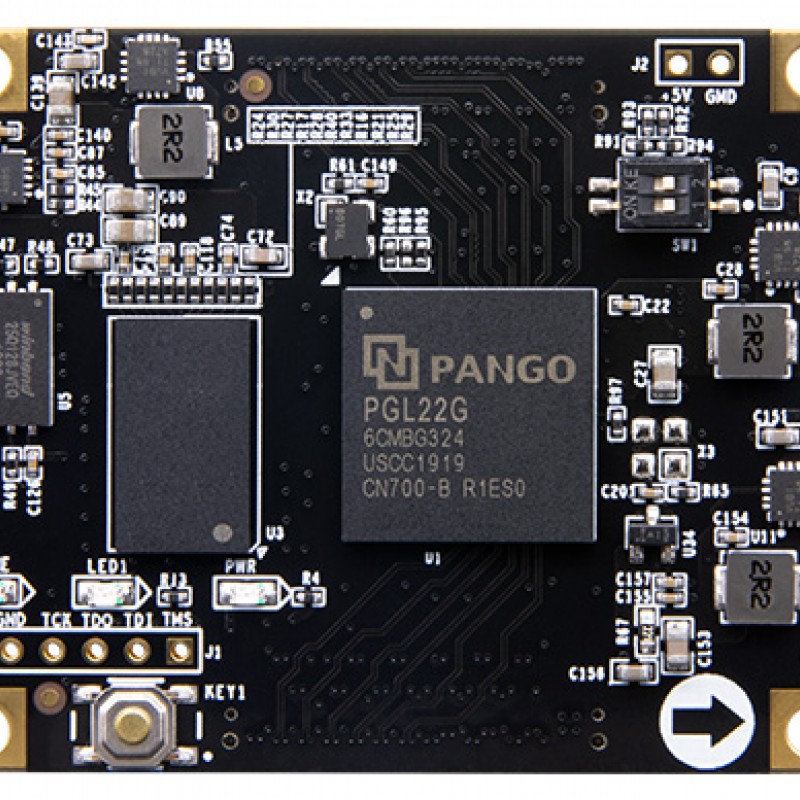

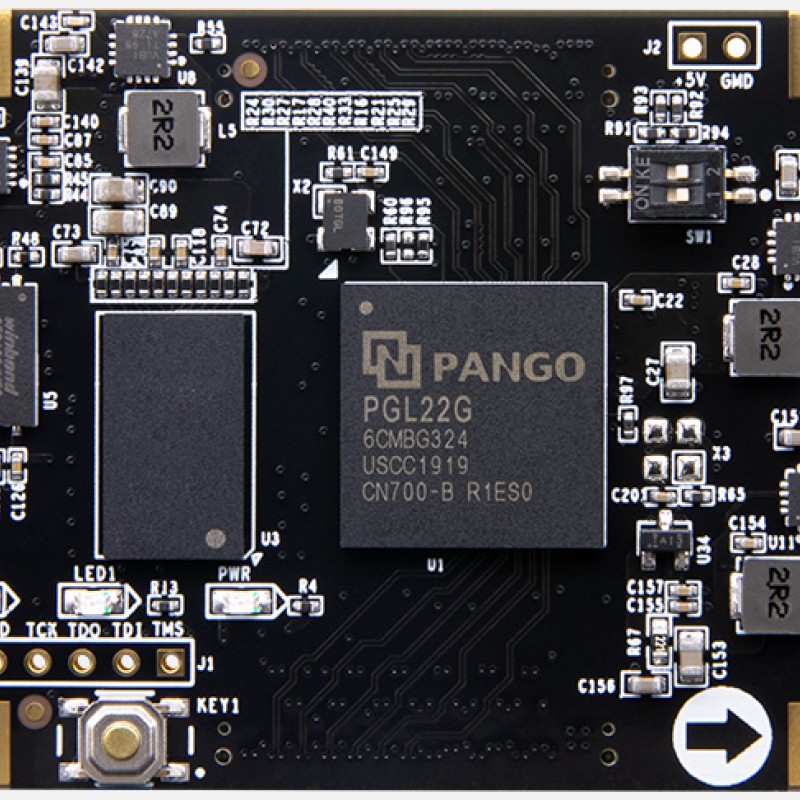

The P22 System-on-Module (SoM) combines high-performance Pango Logos-series PGL22G -6CMBG324 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
● Work temperature range of 0°C to 70°C ● 5V single supply ● Dimensions: 55 x 45 mm form factor
Product Information
Specifications
What's Inside
Module Features
Featuring the Pango Logos PGL22G-6CMBG324

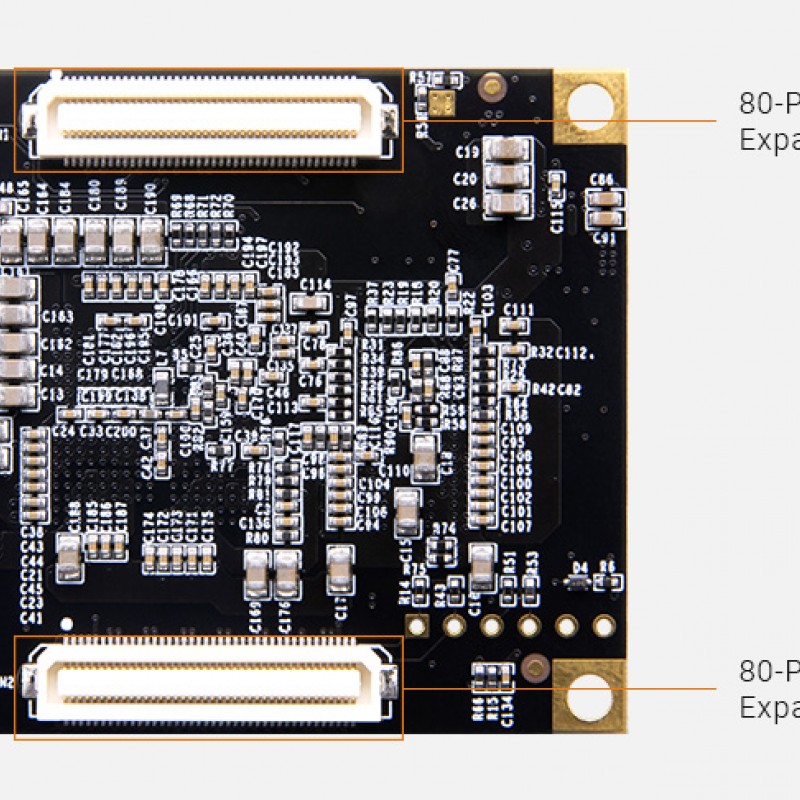

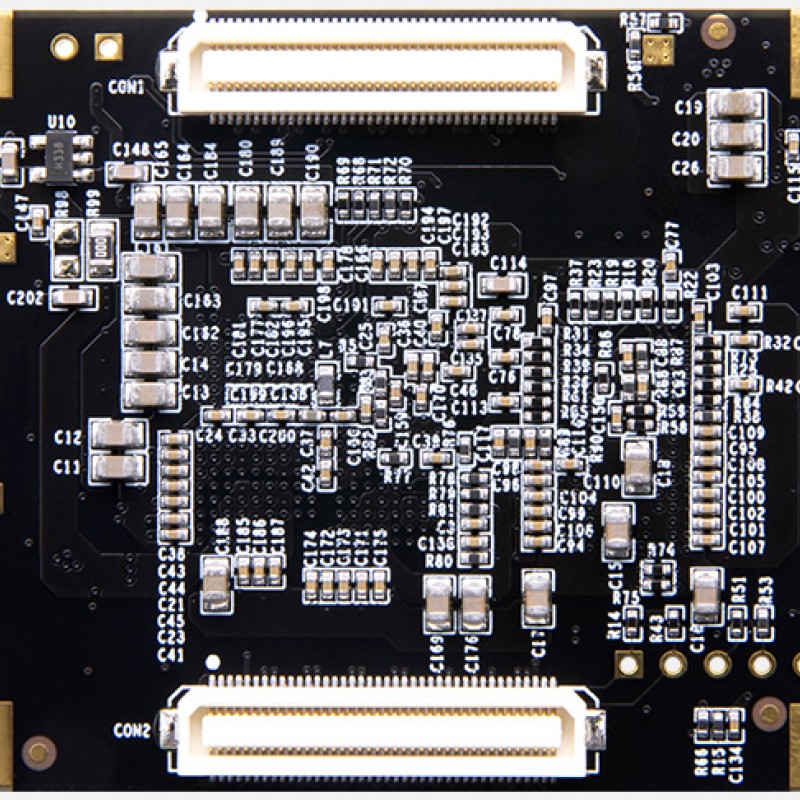

* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.
* We have Logos development boards PGL22G that uses this Logos module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

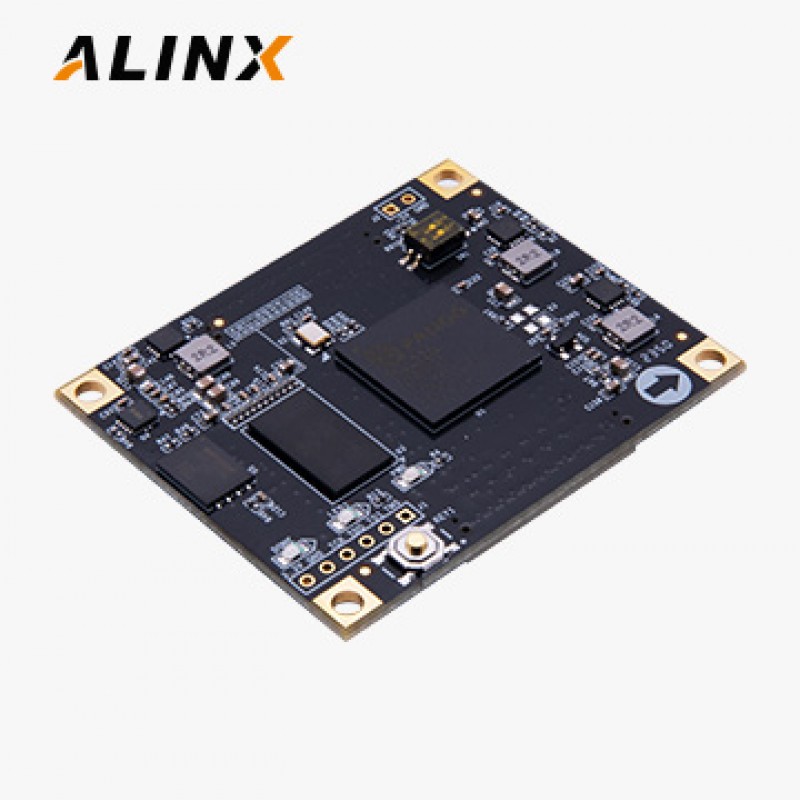

ALINX Pango Logos PGL22G System-on-Module/SoM
SoM
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
FPGA Devices
DDR3
QSPI Flash
Temp. Range
USD Price
P22
√
PGL22G-6CMBG324
256MB
16MB
0°C~ 70°C
49
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
