  • Stock: In Stock
  • Model: P12
  • SKU: P12
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$0.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The P12 System-on-Module (SoM) combines high-performance Pango Logos-series PGL12G -6CFBG256 device with fast  SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • ● communication

  • ● Image and videoprocessing

  • ● medical care

  • ● Industrial control



Key Features

  • ● PANGO Logos PGL12G:◆ 40 nm FPGA fabric

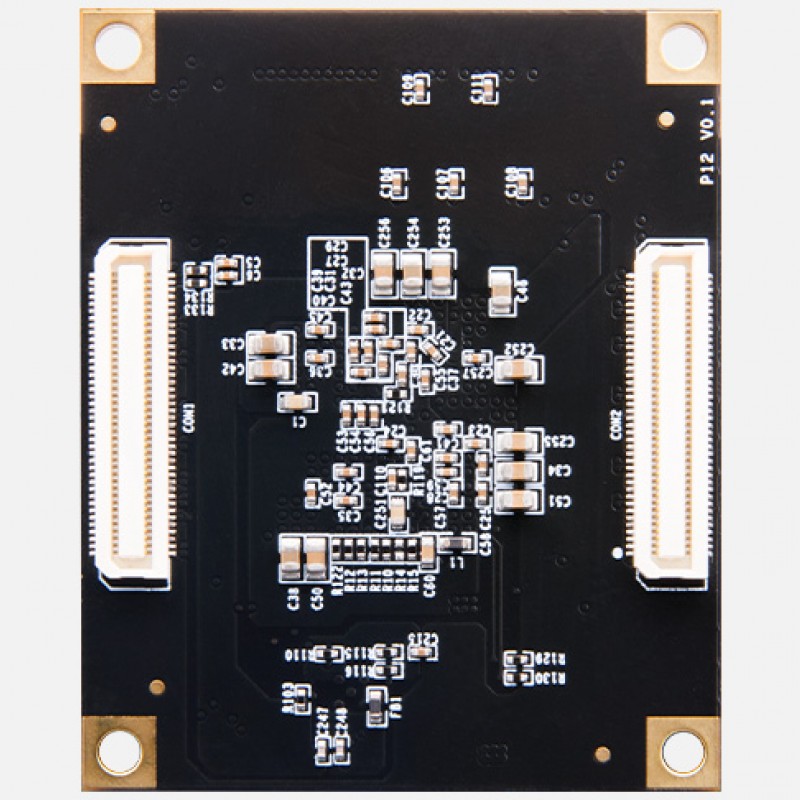

    ● Pluggable module with 2 x Panasonic board-to-board connectors
    ● 32 MByte (16-bit)  SDRAM
    ● 8 MB QSPI Flash
    ● USB TO UART
    ● LED (1 x LED) + KEY(1 x RESET)
  • ● User I/Os
    ◆ 106 FPGA I/Os (106 3.3v)● Work temperature range of -40°C to 85°C
    ● 5V single supply
    ● Dimensions: 55 x 45 mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features

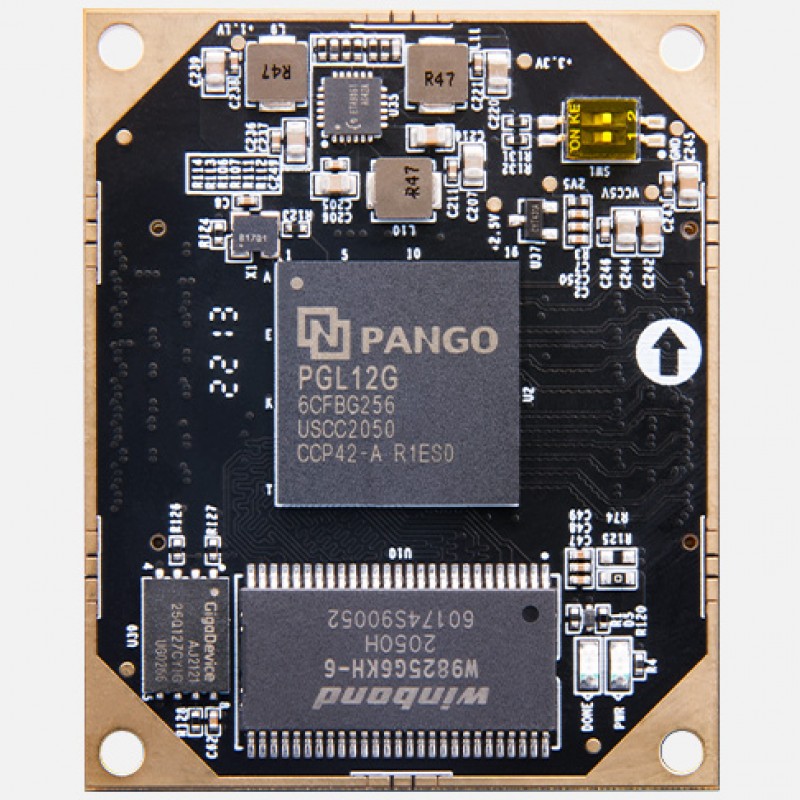

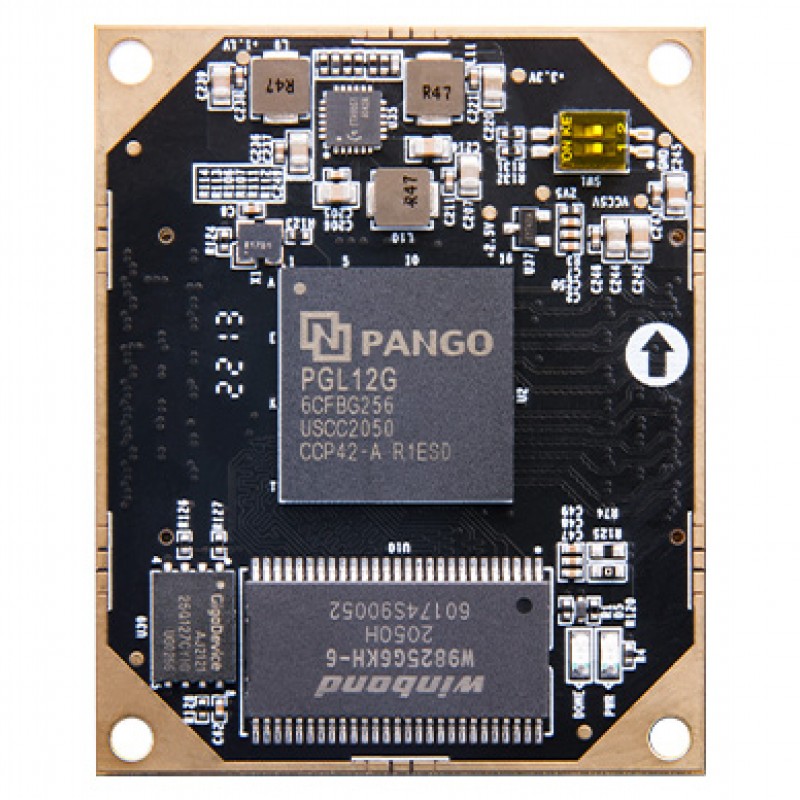

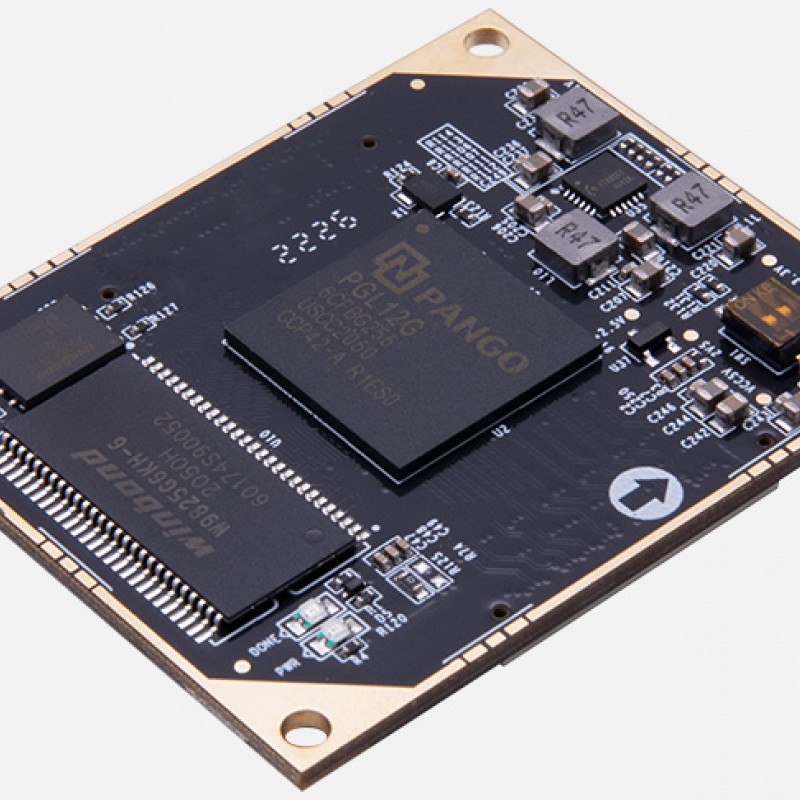

Featuring the Pango Logos PGL12G -6CFBG256


* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Logos development boards AXP12 that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

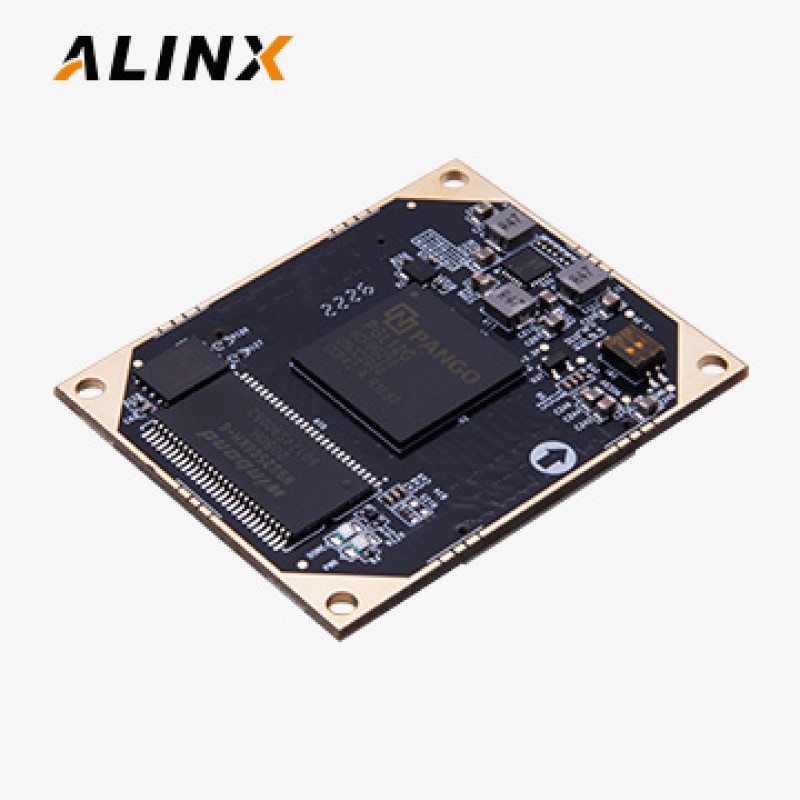

ALINX Pango Logos PGL12G System-on-Module/SoM

SoM1


Product Selection Matrix

Product Matrix

 Product ModelPreferred ModelFPGA DevicesDDR3QSPI FlashTemp. RangeUSD Price
P12√PGL12G -6CFBG25632MB8MB0°C~ 70°C45


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
