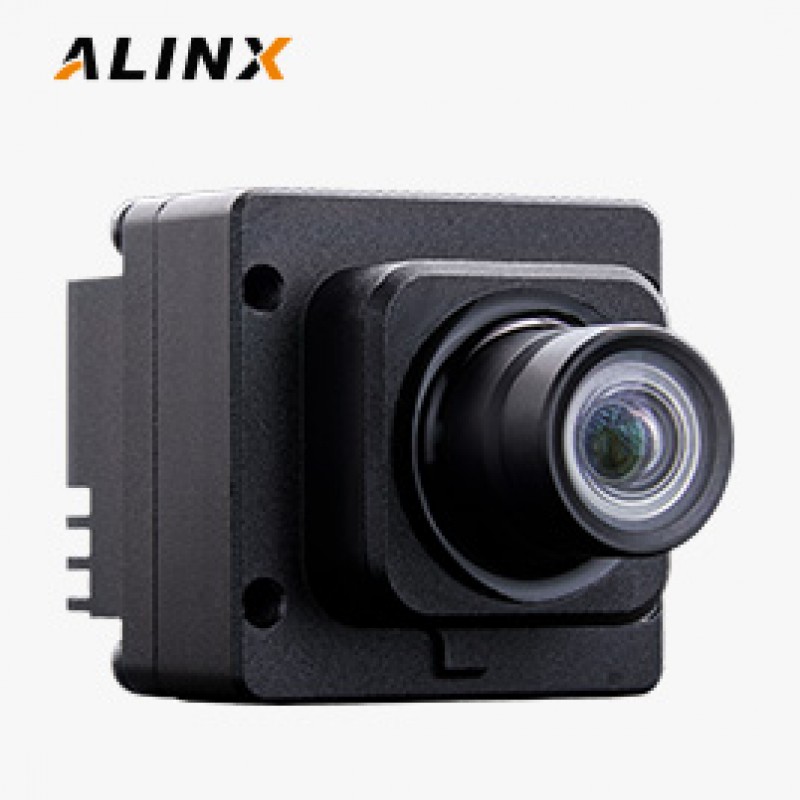

C8201 8M in car GMSL camera module OX08B40

C8201 8M in car GMSL camera module OX08B40
C8201 8M in car GMSL camera module OX08B40
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: C8201
  • SKU: C8201
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$509.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The C8201 camera module is developed and designed using OV CMOS image sensor OX08B40, and Maxim GMSL2 serializer MAX9295A. It meets the standards of vehicle performance and has high-quality image effects that have undergone professional image debugging; And equipped with M12 car mounted lenses, the overall module can achieve IP67 protection level

Product Information

  • Specifications
  • What's Inside

Parameter Description

  • ● Photosensitive chip: OX08B40
    ● ISP chip: OAX4000
    ● Frame rate: 3840x2160 @30fps
    ● Exposure mode: Rolling Shutter
    ● Color Mode: RGB
    ● Dynamic Range: 120dB
    ● Output format: YUV422
    ● Serializer: MAX9295A
    ● communication protocol: GMSL2.0
    ● connector: mini FAKRA
    ● Fov: 120 ° (determined by the lens)
    ● operation temperature: -40℃ ~ 85℃
    ● working voltage: 4V~17V
    ● Current: <200mA@12VDC
  • ● Vertical field of view: 55°
    ● Horizontal field of view: 120.2°
    ● Diagonal field of view: 126.5°
    ● Aperture: 1.6
    ● Focal length: 8.3mm
    ● Maximum optical distortion: 54.7%
    ● Waterproof level: IP67
    ● Process specifications: M12

What's Inside the Box
C82111


Product Selection Matrix

Product Matrix

Product Model

USD Price

C8211509
