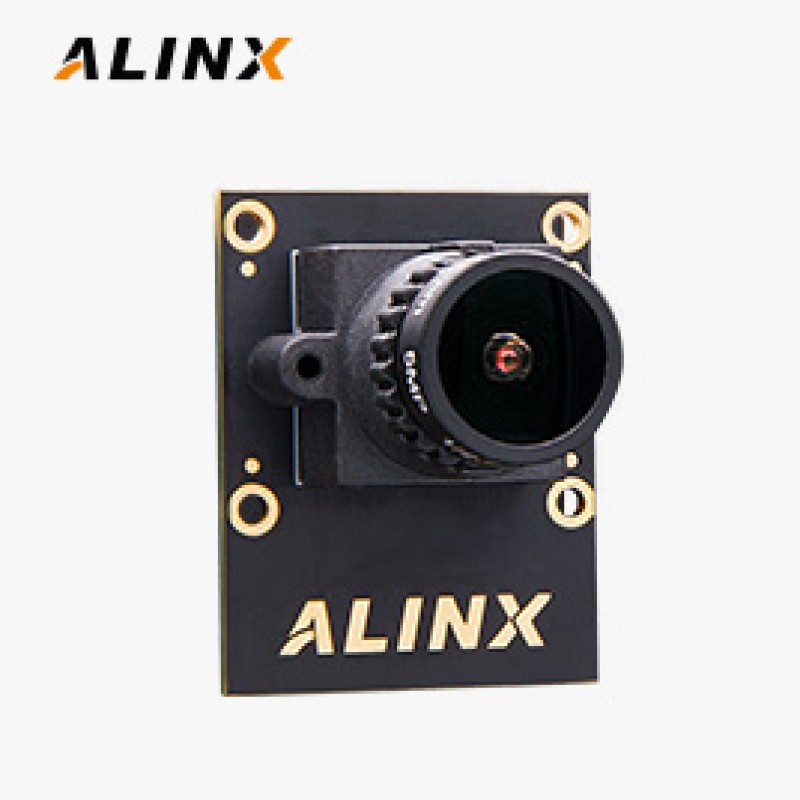

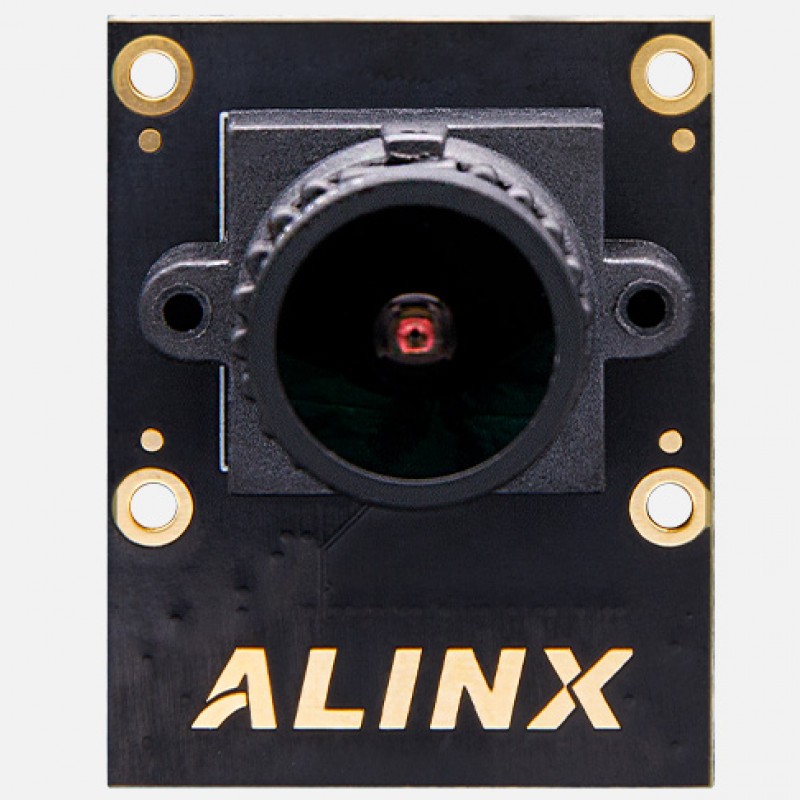

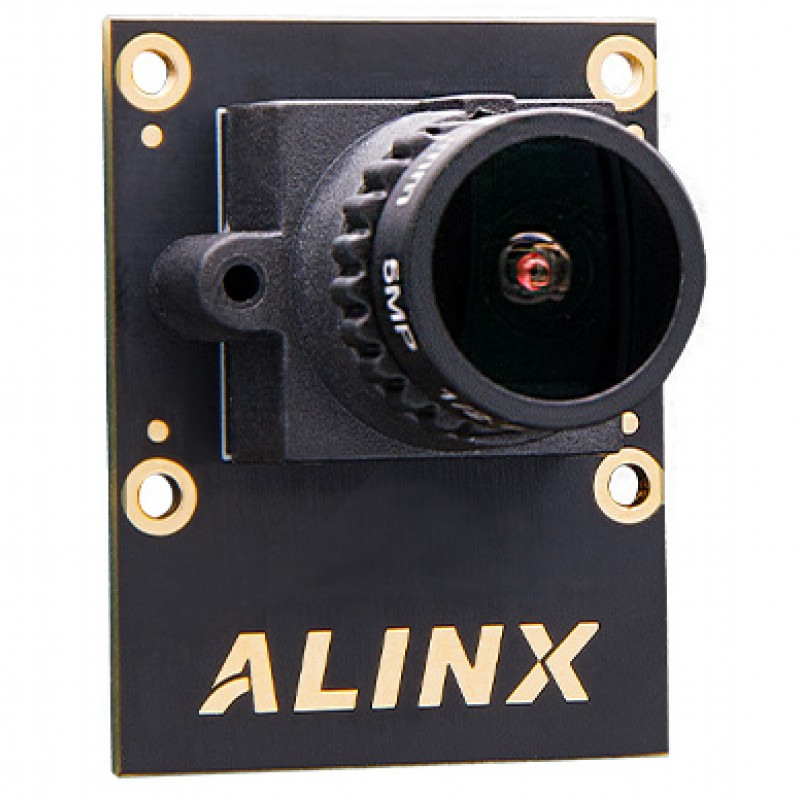

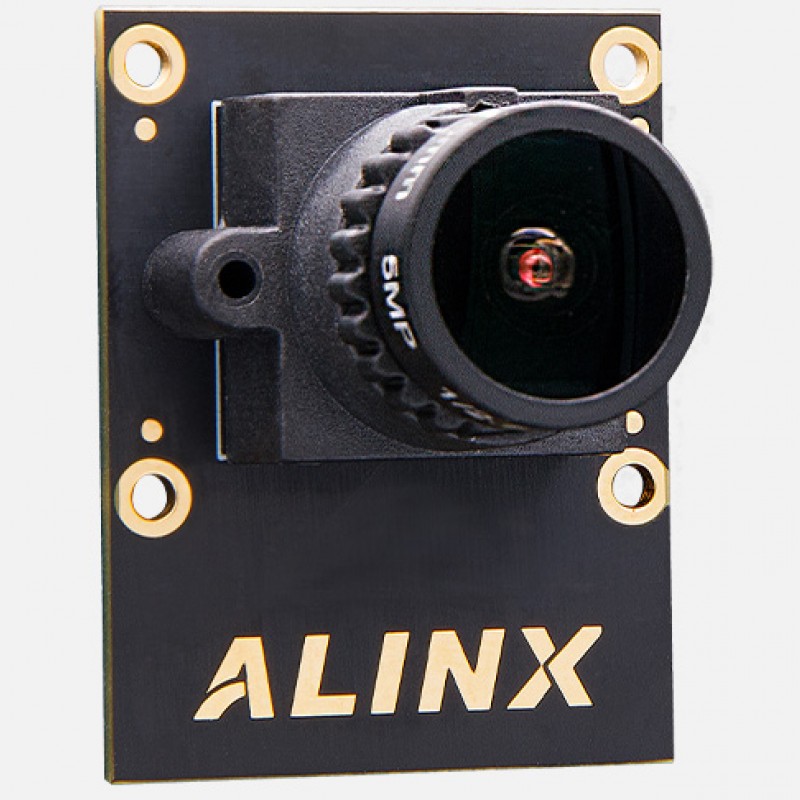

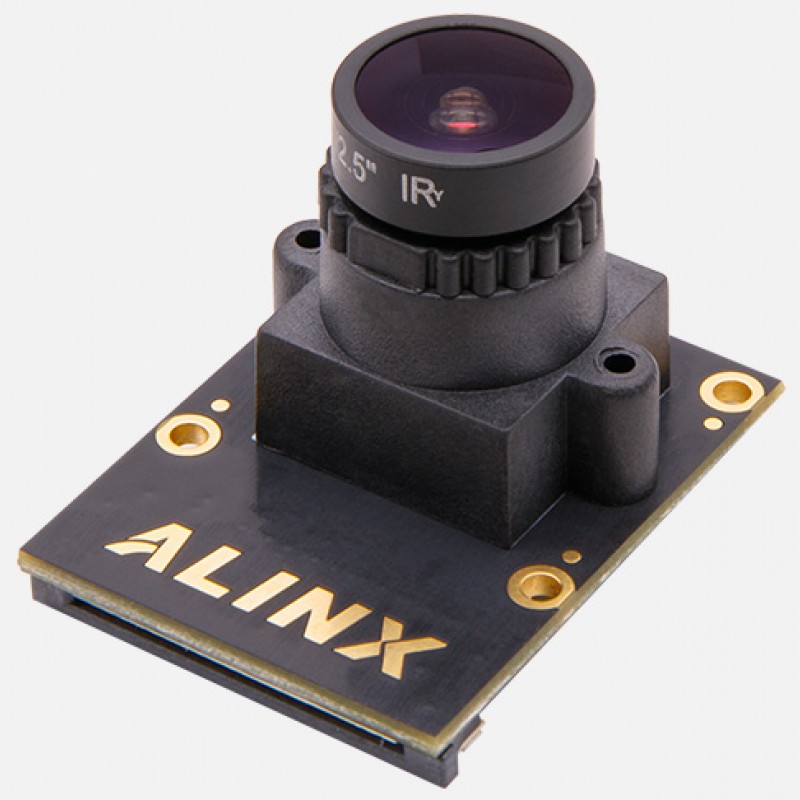

AN5020 5MP 4LANE MIPI Camera OS05A2 Module
$33.00
Product Description
The AN5020 camera module uses the OmniVision CMOS chip image sensor OS05A20. Supports MIPI * 4LANE interface, which enables image processing on the AN5020 module through MIPI * 4LANE interface and FPGA connection Transmission.
- Specifications
- What's Inside
Parameter Description
- ● Photosensitive chip: OS05A20
● Sensitivity size: 1/2.7 "
● Supported pixels: 2688x1944, 1080p (1920x1080), 720p (1280x720)
● Image format: 12-/10 bit RAW RGB
● Capture images: QSXGA (2592x1944), 1080p, 1280x960, VGA (640x480), QVGA (320x240)

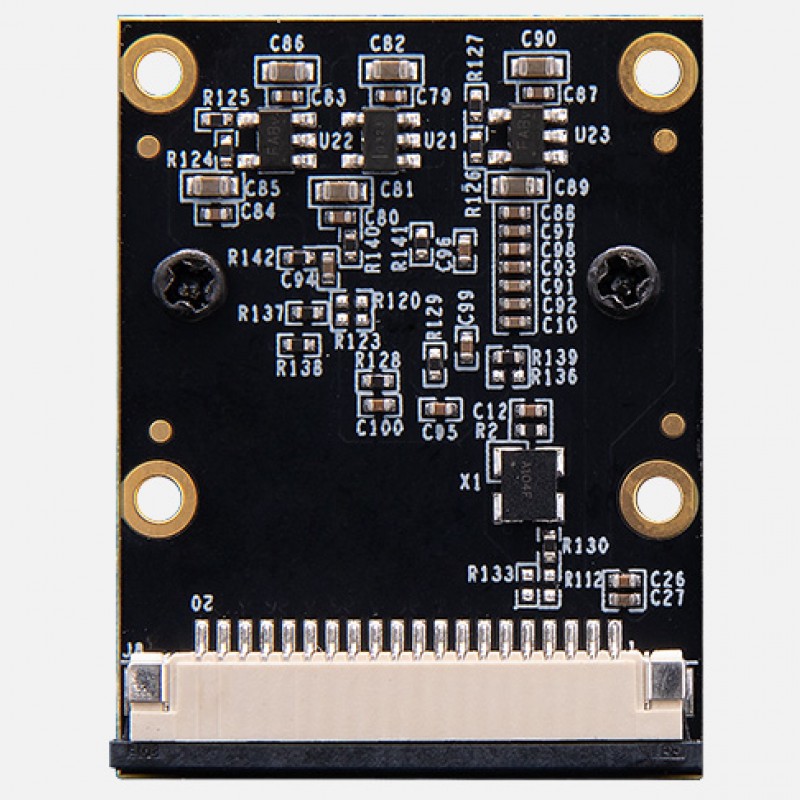

● Module content: including OS05A20 power circuit and clock - ● Function support: manual focusing, automatic exposure control (AEC), automatic white balance (AWB)
● Interface: FPC interface with a 20pin spacing of 1.0mm, MIPI interface communication with 4LANE
● Working temperature: -30~85 ℃, stable working temperature is 0~60 ℃
● Dimensions: 35 x 27 mm form factor
What's Inside the Box
| AN5020 | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| AN5020 | 33 |
- Download
AN5020 User Manual
2024-02-29
