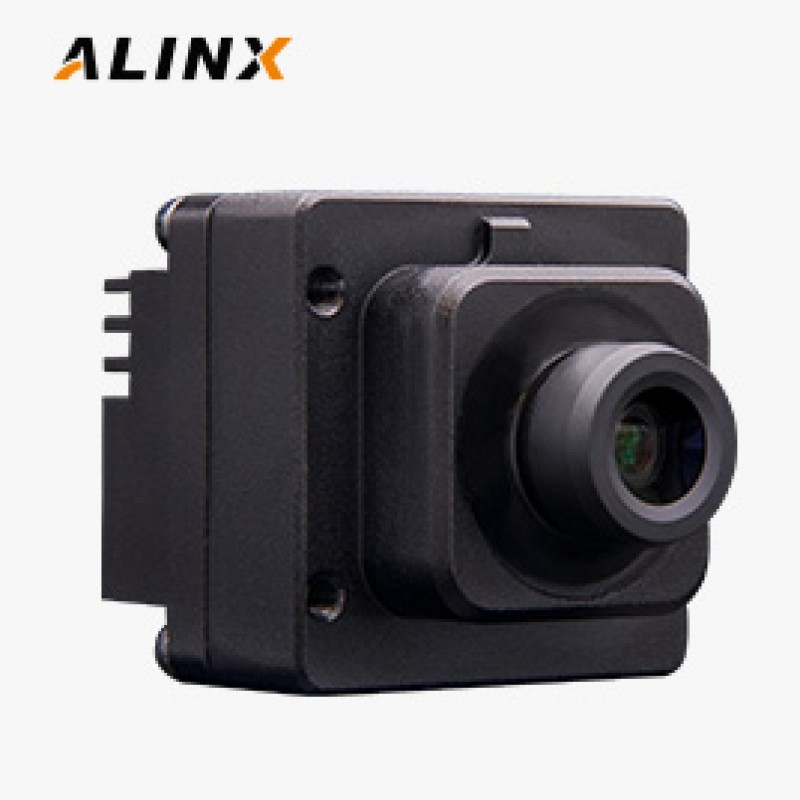

C2212 2M in car GMSL camera module OX03C10

C2212 2M in car GMSL camera module OX03C10
C2212 2M in car GMSL camera module OX03C10
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: C2212
  • SKU: C2212
190 samples sold
$299.00
Product Description

The C2212 camera module is developed and designed using OV CMOS image sensor (OX03C10), image processor (OAX4000), and Maxim GMSL2 serializer (MAX9295A). It meets the standards of vehicle performance and has high-quality image effects that have undergone professional image debugging; And equipped with M12 car mounted lenses, the overall module can achieve IP67 protection level

Product Information

  • Specifications
  • What's Inside

Parameter Description

  • ● Photosensitive chip: OX03C10
    ● ISP chip: OAX4000
    ● Frame rate: 1920*1280@30fps
    ● Exposure mode: Rolling Shutter
    ●Color Mode: YUV422
    ● Serializer: MAX9295A
    ● connector: mini FAKRA
    ● operation temperature: -40℃ ~ 85℃
    ● working voltage: 4V~17V
    ● Current: <200mA@12VDC
  • ● Vertical field of view: 63°
    ● Horizontal field of view: 117°
    ● Diagonal field of view: 137°
    ● Aperture: 1.4
    ● Focal length: 2.9mm
    ● Maximum optical distortion: -58%
    ● Waterproof level: IP67
    ● Process specifications: M12

What's Inside the Box
C22121


Product Selection Matrix

Product Matrix

Product Model

USD Price

C2212299
