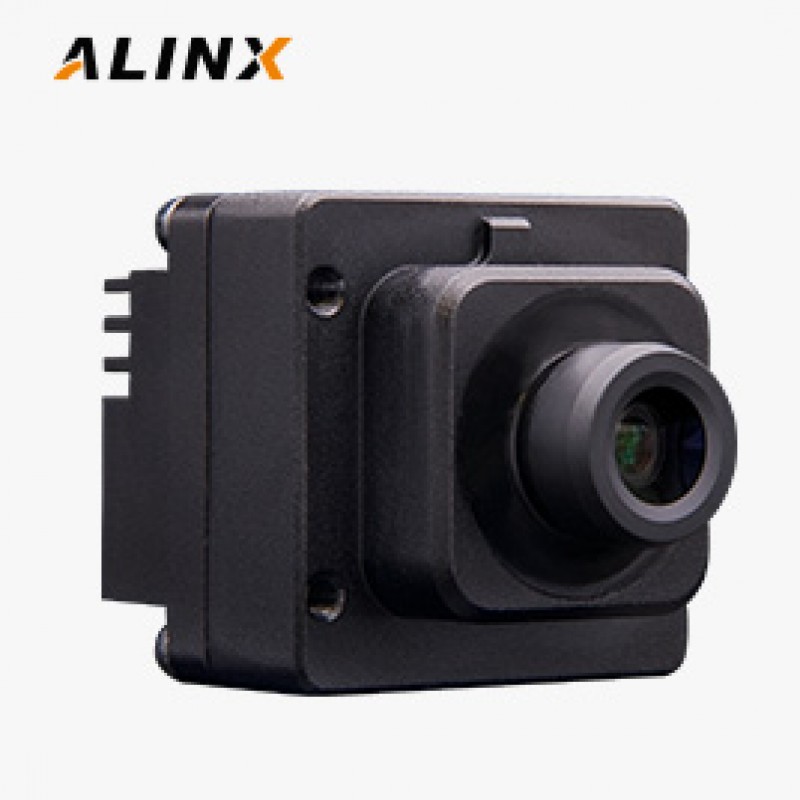

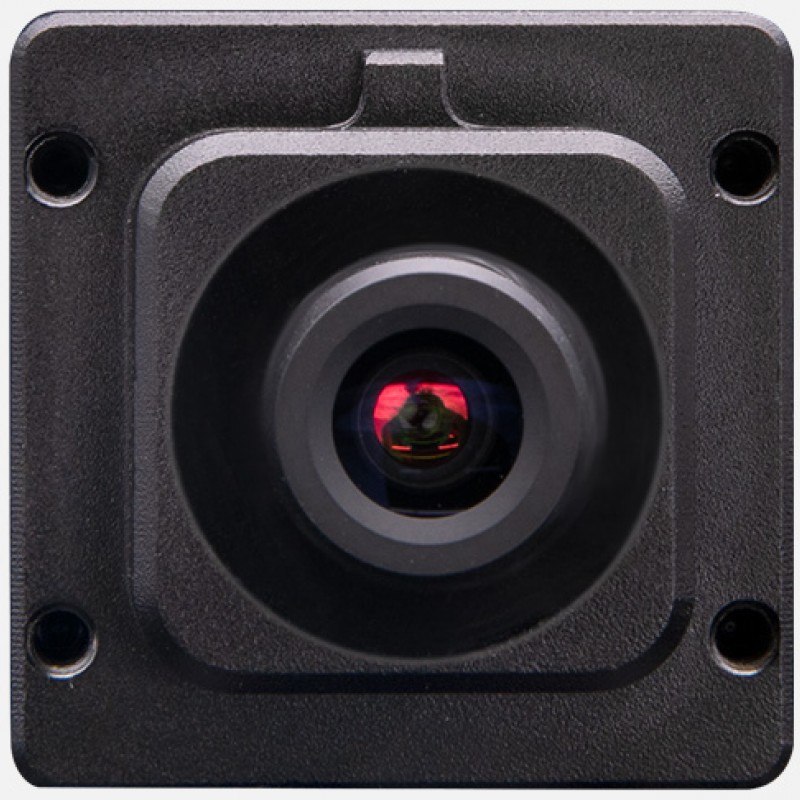

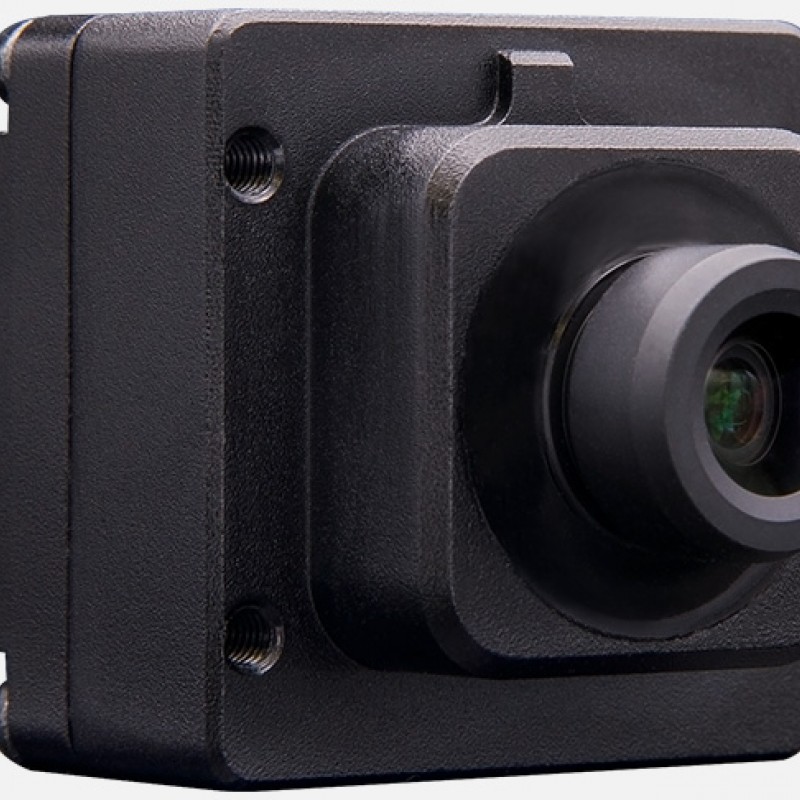

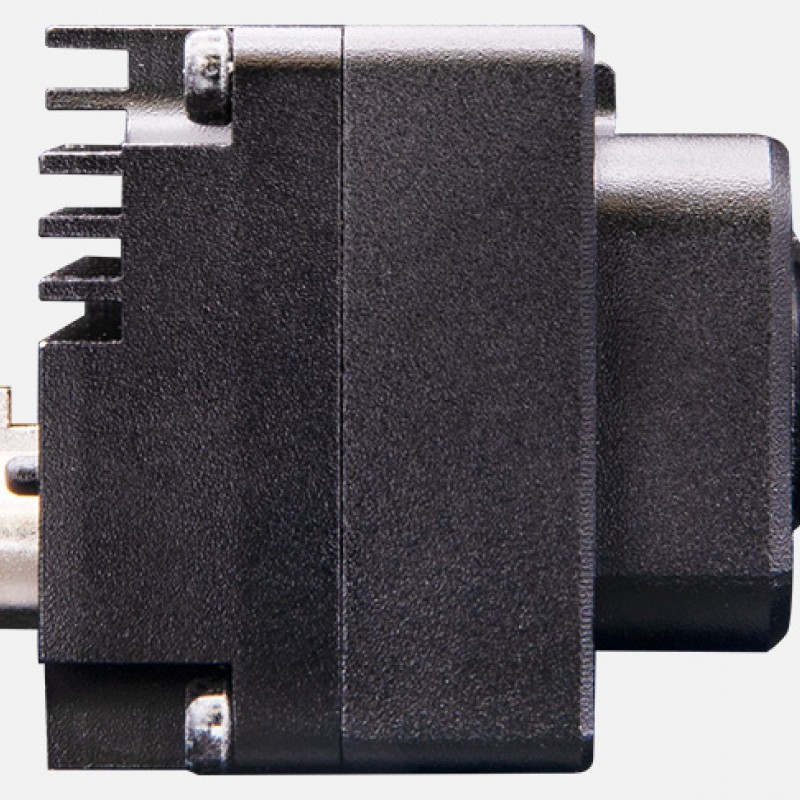

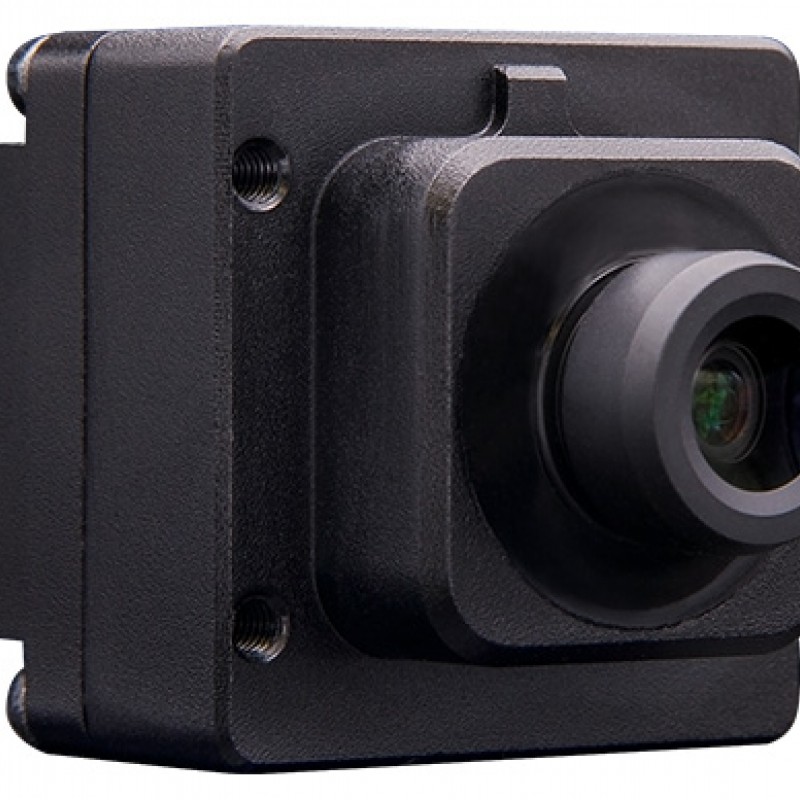

C2211 2M in car GMSL camera module OX03C10
$299.00
Product Description
The C2211 camera module is developed and designed using OV CMOS image sensor (OX03C10), image processor (OAX4000), and Maxim GMSL2 serializer (MAX9295A). It meets the standards of vehicle performance and has high-quality image effects that have undergone professional image debugging; And equipped with M12 car mounted lenses, the overall module can achieve IP67 protection level
- Specifications
- What's Inside
Parameter Description
- ● Photosensitive chip: OX03C10
● ISP chip: OAX4000
● Frame rate: 1920*1280@30fps
● Exposure mode: Rolling Shutter
●Color Mode: YUV422
● Serializer: MAX9295A

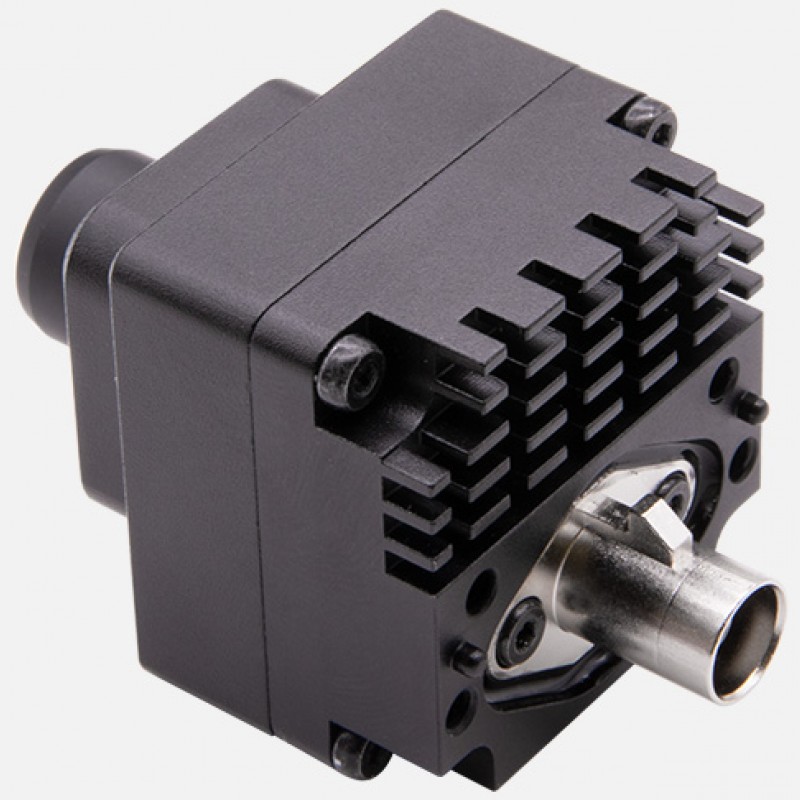

● connector: mini FAKRA
● operation temperature: -40℃ ~ 85℃
● working voltage: 4V~17V
● Current: <200mA@12VDC - ● Vertical field of view: 32.4°
● Horizontal field of view: 60.6°
● Diagonal field of view: 72°
● Aperture: 1.6
● Focal length: 5.8mm
● Maximum optical distortion: -11.5%
● Waterproof level: IP67
● Process specifications: M12
● Dimensions: 30 x 20 x 32 mm form factor
What's Inside the Box
| C2211 | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| C2211 | 299 |
