BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG

BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
Free
BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
BZ11 Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU11EG
  • Stock: In Stock
  • Model: BZ11
  • SKU: BZ11
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$0.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

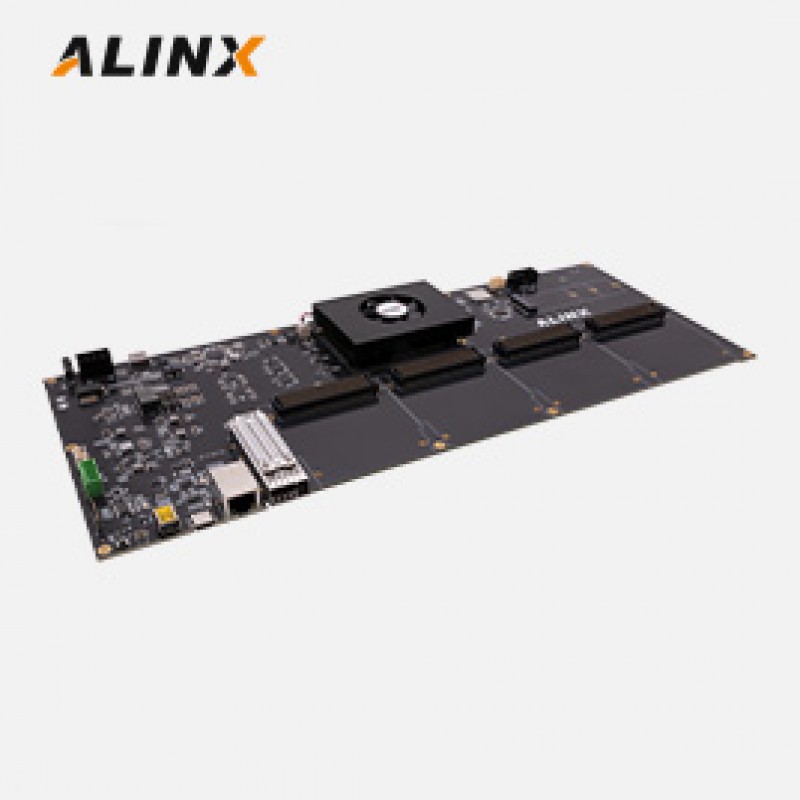

The BZ11 development board, equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC (XCZU11EG), delivers high-performance capabilities including 4GB DDR4 SDRAM (2400Mbps), 32GB eMMC Flash, and 512Mb QSPI Flash. It features extensive interfaces: 4× FMC HPC connectors , PCIe Gen2×1 via M.2 (5Gbps for SSD storage), DisplayPort (4K@30Hz video output), QSFP+ fiber optic (40Gbps), USB 3.0 Type-C, Gigabit Ethernet, and Micro SD support.




Applications

  • ● Artificial Intelligence

    ● Automotive

    ● AV Broadcasting

  • ● Deep learning

    ● Digital Signal Processing

    ● 5G Wireless and Wire Communication

  • ● Data Centers

    ● Drive / Motion Control

    ● Industrial Internet of Things

  • ● Cloud Computing Security

    ● Machine Vision

  • ● Medical Endoscopy

    ● Hardware Security Acceleration

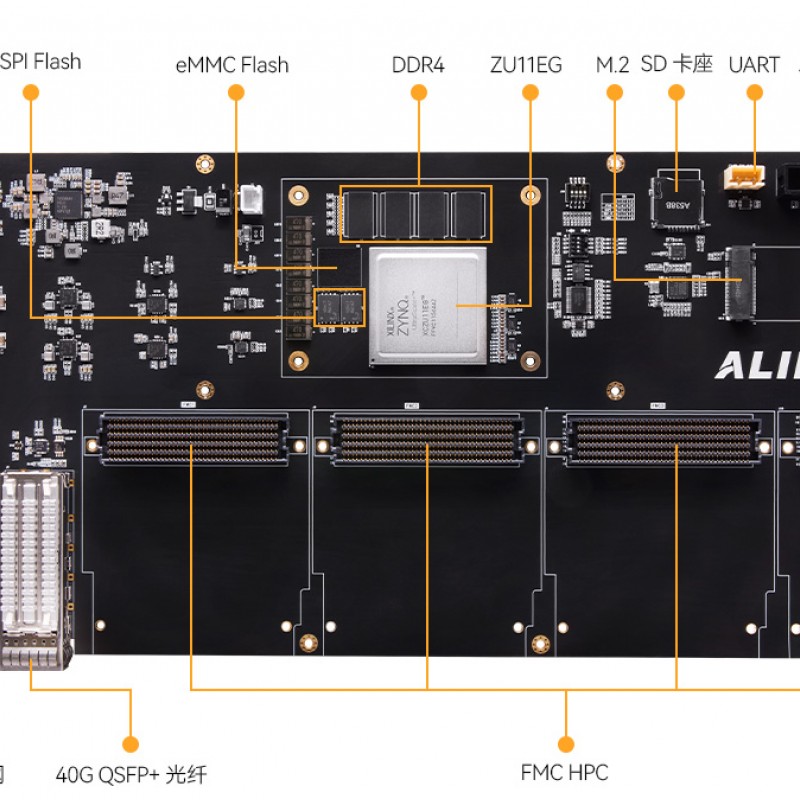

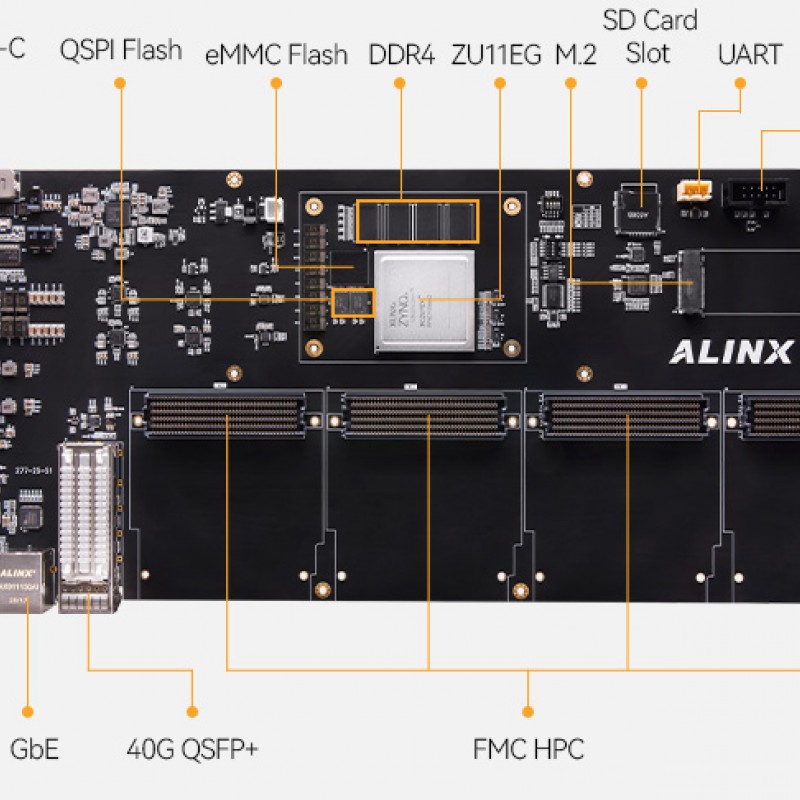

Key Features

  • ● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC ZU11EG :
    ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
    ◆ ARM® dual-core Cortex™-R5F up to 533 MHz
    ◆ Mali-400 MP2 GPU
    ◆ 16nm FinFET+ FPGA fabric
    ● 4 GByte (64-bit) DDR4 SDRAM on PS
    ● 64 MB QSPI Flash
    ● 32 GB eMMC Flash
  • ● 4 x FMC HPC
    ● 1 x Display Port (4K 30Hz/1080P 60Hz video)
    ● 1 x 40G QSFP+
    ● 1 x NVMe M.2 (PCIE Gen2 x1)
    ● 1 x PS Gigabit Ethernet
    ● 1 x USB 3.0 Type-C
    ● 1 x UART (USB to UART)
    ● 1 x JTAG
    ● 1 x EEPROM 24LC04
    ● 1 x Micro SD
    ● LED (1 x pwr + 1 x done + 2 x USER) + KEY (1 x RST)
    ● 12V single supply
    ● Dimensions: 385 x 155 mm form factor

Product Information

  • Specifications
  • What's Inside
Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU11EG-2FFVC1156I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.


Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU11EG development board and Some accessories

The  Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

Development Board1Heatsink Kit (preinstalled)1
12V Power Adapter1TF Card1
Mini USB Cable1Card Reader1
USB Downloader Cable / set1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCDDR4  SDRAM (PS)QSPI FlasheMMC FlashGTRGTHUSD Price
BZ10√XCZU7EV-2FFVC1156I4 GB64 MB32 GB4162995
BZ11XCZU11EG-2FFVC1156I4 GB64 MB32 GB4163295


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • BZ11_User Manual_V1.0

    2026-07-13
    Download
