Product Description

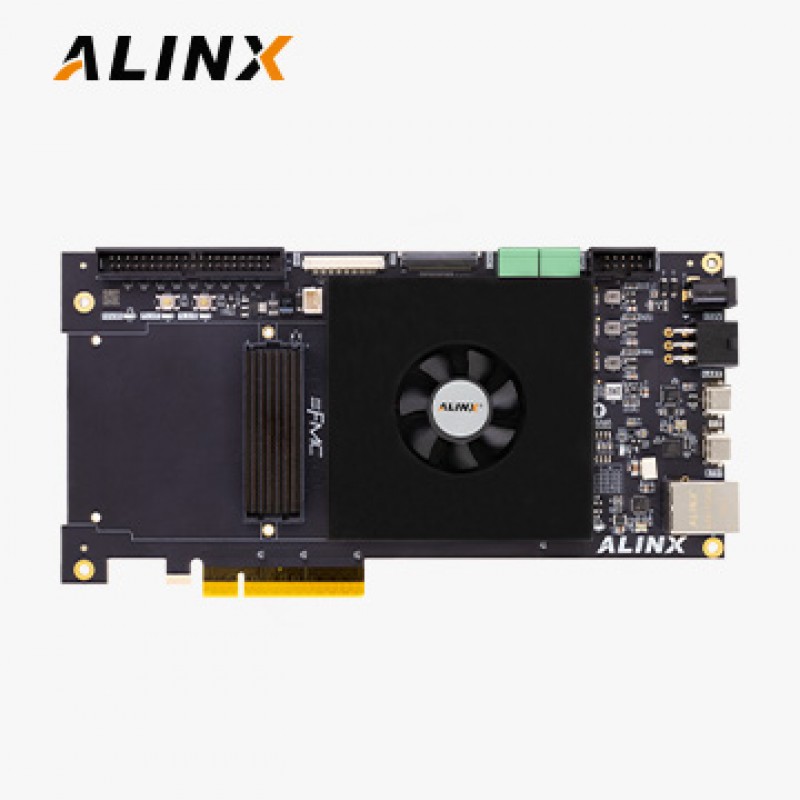

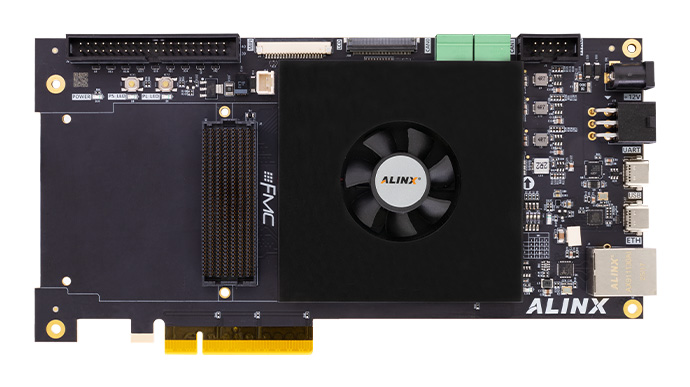

The AXVM2152 is a high‑performance development platform based on the AMD Versal™ Prime XCVM2152 adaptive compute acceleration platform. Adopting a flexible System‑on‑Module (SoM) plus carrier board architecture, it enables easy secondary development and mass production. With powerful computing capability, a rich set of high‑speed interfaces, and large storage capacity, the AXVM2152 accelerates applications in data centers, video/image processing, high‑speed data acquisition, and industrial control. As an adaptive compute acceleration platform, it integrates high‑performance FPGA fabric, dual‑core Arm® Cortex®‑A72 processors, dual‑core Cortex‑R5F processors, and numerous DSP engines, delivering outstanding performance and efficiency for complex workloads in edge and data center applications.
Applications
● Data Center & Compute Acceleration
● Video & Image Processing
● Industrial & Communications
● Automotive & Aerospace
Key Features
System-on-Module
● AMD Versal™ AI Edge SoC:
◆ Dual-core Arm® Cortex-A72
◆ Dual-core Arm Cortex-R5F
◆ 7nm FinFET+ FPGA fabric
◆ 757K Logic Cells, 1704 DSP Slices● Pluggable module with 3 x 240 pin Samtec board-to-board connectors
● 4 GByte (64-bit) LPDDR5 SDRAM
● 128 MB QSPI Flash
● 32 GB eMMC FlashBase Board
● PCIE x8
● 1 x FMC+ (LA/HA/HB and 8 GTM transceiver pairs)
● 1 x 4‑lane MIPI camera
● 1 x Gigabit Ethernet
● 1 x LVDS
● 2 x CAN/CAN FD bus
● 1 x USB 2.0 on PS
● 1 x UART
● 1 x JTAG
● 1 x 40‑pin Expansion Header
● 1 x Micro SD Card Slot
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 2 x buttons+ 4 x LEDs
● 12V single supply
● Dimensions: 210 x 106.5 mm form factor
- Specifications
- What's Inside
Product Matrix
- Download
AXVM2152 V1.0 User Manual
2026-05-15
