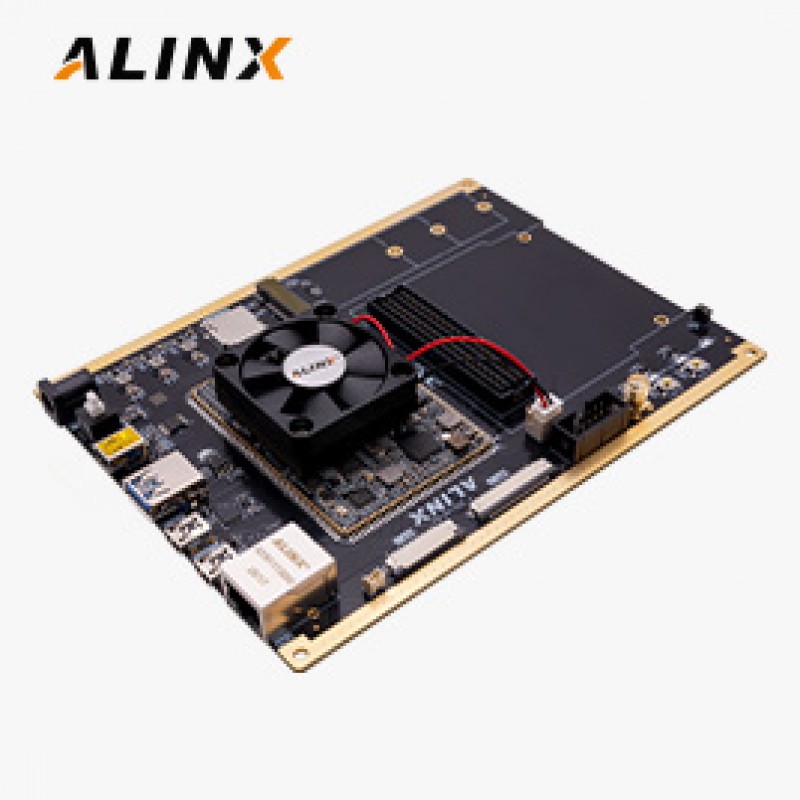

AXU3EG-F Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU3EG

AXU3EG-F Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU3EG
AXU3EG-F Dev Board & Kit with AMD Zynq™ US+ MPSoC XCZU3EG
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AXU3EG-F V1.0
  • SKU: AXU3EG-F V1.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$809.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AXU3EG-F development board, equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC (XCZU3EG) and integrated quad-core Cortex-A53 + dual-core Cortex-R5 processors, delivers high-performance capabilities including 4GB DDR4 SDRAM (PS side, supporting up to 2400Mbps data rates) , 8GB eMMC Flash, and 256Mbit QSPI Flash. It features extensive interfaces: 1× FMC LPC connector (for high-speed peripheral expansion, 36 differential pairs), PCIe Gen2×1 via M.2 (5Gbps for SSD storage), DisplayPort (4K@30Hz video output), USB 3.0 Type-A, Gigabit Ethernet, Micro SD card slot, and 4-configuration boot mode switches. Active cooling is provided by a programmable fan.




Applications

  • AI and Video

    ● Deep Learning

    ● Machine Vision

    ● Video Processing

  • Industry and Automotive

    ● Industrial Control

    ● Industrial Internet of Things

    ● Automotive

  • Communication and Signal

    ● 5G Wireless and Wire Communication

    ● Digital Signal Processing

  • Edge and High Performance

    ● Edge Computing

    ● Edge Data Center

    ● High-Performance Computing,



Key Features

  • ● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC ZU3EG :
    ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
    ◆ ARM® dual-core Cortex™-R5F up to 533 MHz
    ◆ Mali-400 MP2 GPU
    ◆ 16nm FinFET+ FPGA fabric
    ◆ 154K Logic Cells
    ● 4 GByte (64-bit) DDR4 SDRAM on PS
    ● 32 MB QSPI Flash
    ● 8 GB eMMC Flash
  • ● 1 x FMC LPC
    ● 1 x DisplayPort (4K 30Hz/1080P 60Hz video)
    ● 1 x M.2 (PCIE Gen2 x1)
    ● 1 x PS Gigabit Ethernet
    ● 1 x USB 3.0 Type-A
    ● 2 x MIPI CSI (4-Lane + 2-Lane)
    ● 2 x UART (USB to UART)
    ● 1 x JTAG
    ● 1 x EEPROM 24LC04
    ● 1 x Micro SD
    ● 2 x LED +2  x KEY
    ● 12V single supply
    ● Dimensions: 165 x 125 mm form factor

Product Information

  • Specifications
  • What's Inside
Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU3EG-2SFVC784I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.


Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU3EG development board and Some accessories

The  Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

Development Board1Heatsink Kit (preinstalled)1
12V Power Adapter1TF Card1
Mini USB Cable1Card Reader1
USB Downloader Cable / set1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCDDR4  SDRAM (PS)QSPI FlasheMMC FlashGTHUSD Price
AXU2CG-F√XCZU2CG-1SFVC784E4 GB32 MB8 GB//
AXU3EG-F√XCZU3EG-2SFVC784I4 GB32 MB8 GB//
AXU4EV-F√XCZU4EV-2SFVC784I4 GB32 MB8 GB16/
AXU5EV-F√XCZU5EV-2SFVC784I4 GB32 MB8 GB16/


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AXU2CG-F_AXU3EG-F_AXU4EV-F_AXU5EV-F_User Manual_V1.0

    2026-05-22
    Download
