Product Description

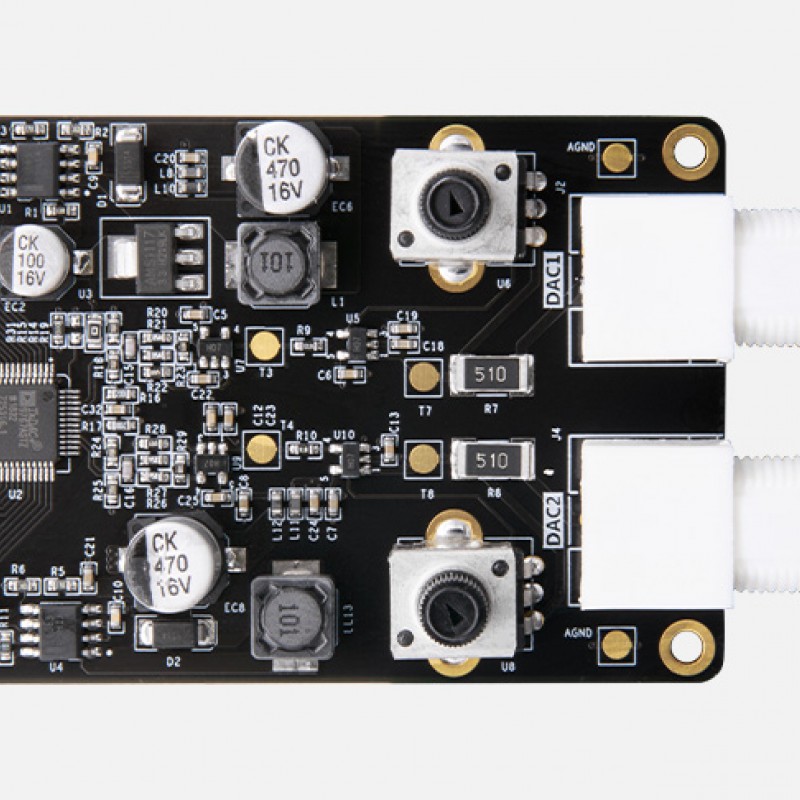

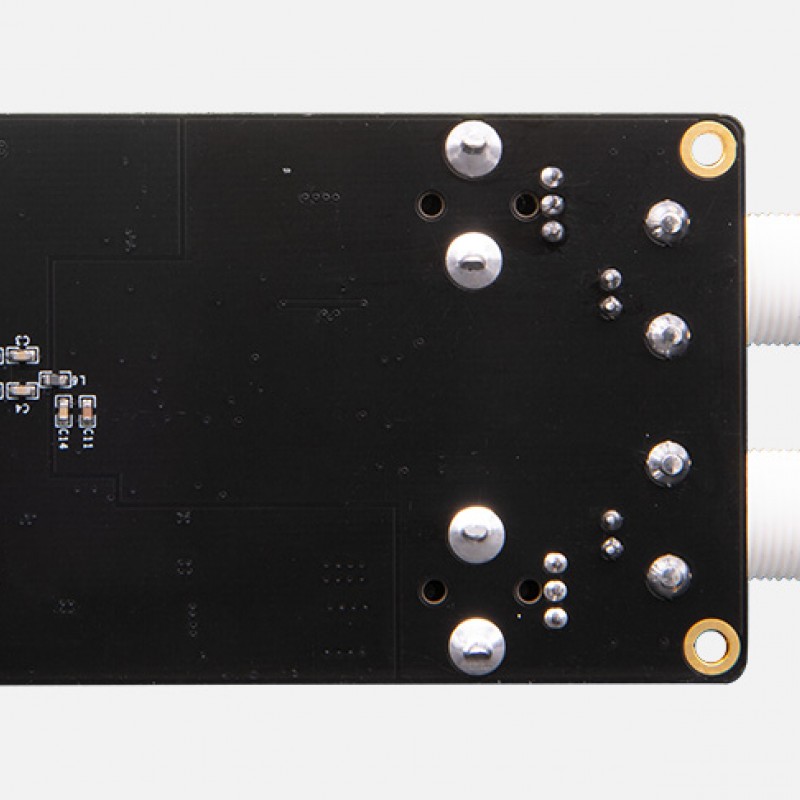

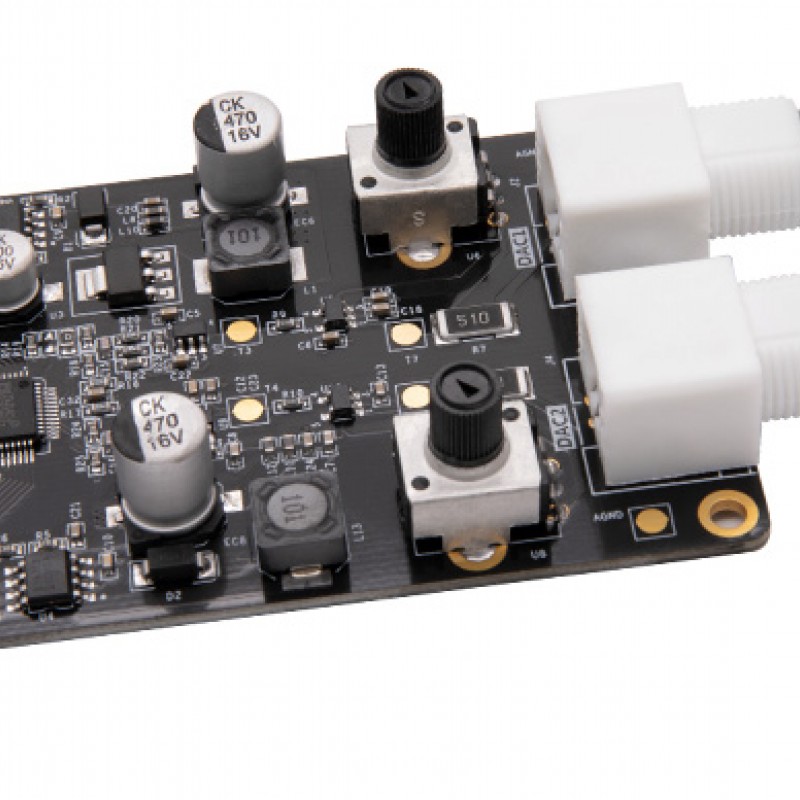

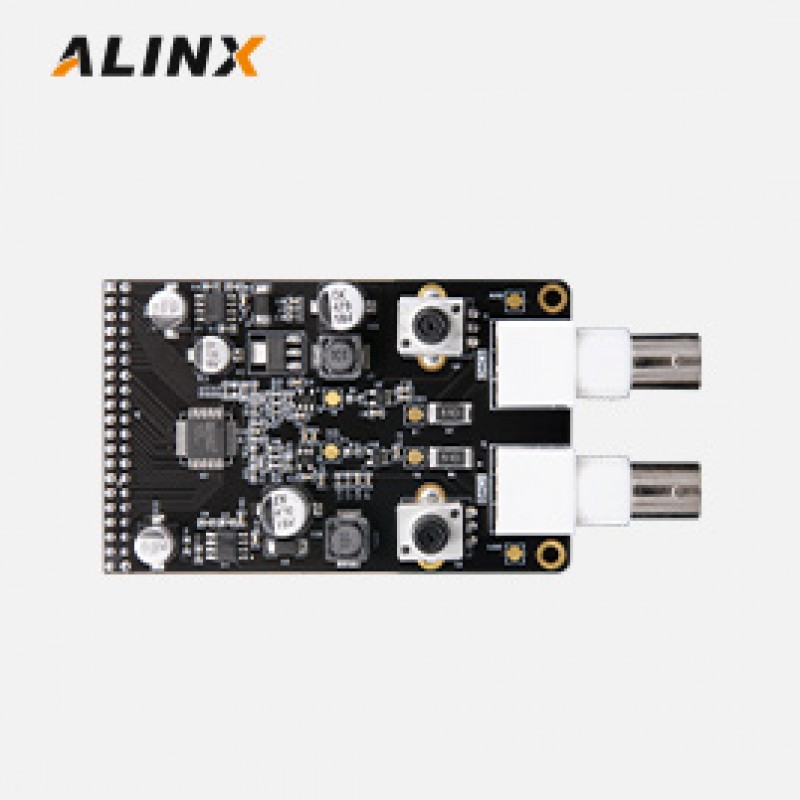

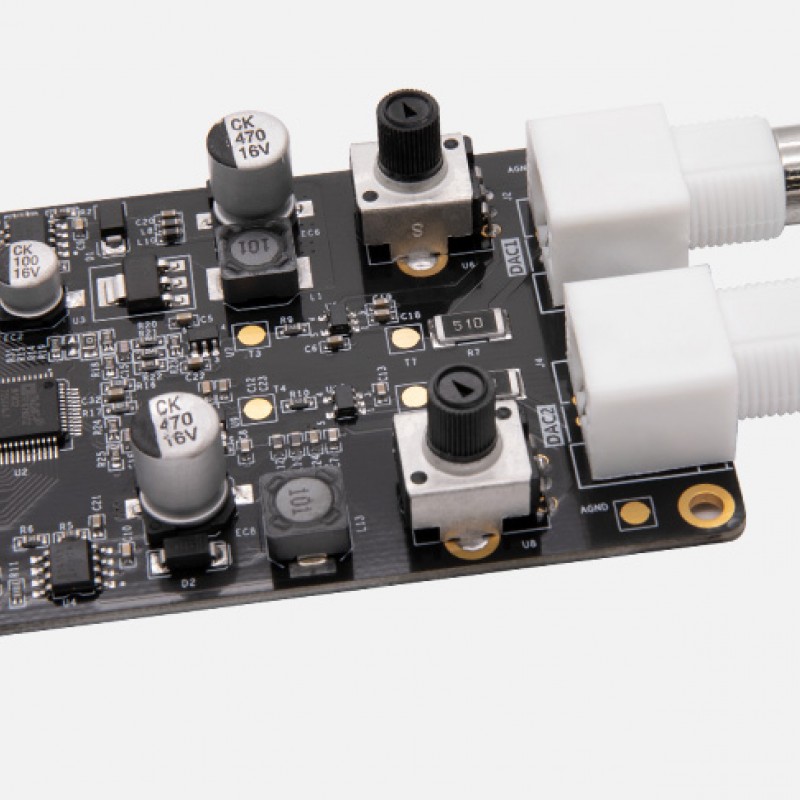

The AN9767 dual channel 14 bit DA output module adopts the ADA9767 chip from ANALOG DEVICES company, supporting independent dual channel, 14 bit, and 125MSPS digital to analog conversion. The module has a 40 pin busbar for connecting to the FPGA development board, and 2 BNC connectors for analog signal output.

Product Information

  • Specifications
  • What's Inside

Parameter Description

  • ● Chip Model: AD9767
    ● Number of Bits: 14bit
    ● Number of Channels: 2 Channels
    ● Sampling Rate: Up to 125MSPS
    ● PCB layers: 4 layers, independent power layer and GND layer
  • ● Input Range: -4V to 4V
    ● Input interface: 2 x BNC interface
    ● Module interface: 40 pin 2.54mm spacing row seat
    ● Working Temperature: -40°C to 85°C
    ● Dimensions: 81 x 51mm form factor

What's Inside the Box
AN97671


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN976733

Documentations

  • AN9767 User Manual

    2023-04-26
    Download
