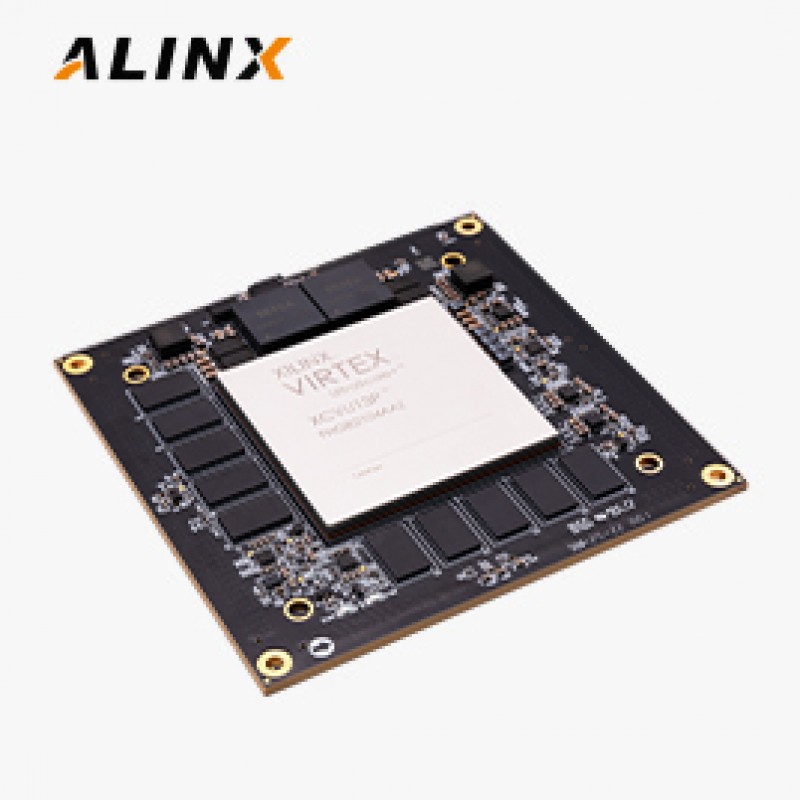

The ACVU13 Core Board, featuring a Virtex UltraScale+™ FPGA（ XCVU13P） and high-speed DDR4, is engineered for high-performance data acceleration and network processing.
● 2 x 10GB (80bit) DDR4 SDRAM ● 256MB QSPI Flash ● PCIe® Gen3 ×16 ● transceivers ◆ 76 x GTY, up to 28.21 Gbps● User I/Os ◆ 377 FPGA HP IO● Work temperature range of -40°C to +85°C ● 12V single supply ● Dimension: 106 x 106mm form factor
Product Information
Specifications
What's Inside
Module Features
Featuring the AMD/Xilinx Virtex Ultrascale+™ XCVU13P-2FHGB2104I
* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase Heatsink Kit, the Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Virtex Ultrascale+™ development boards AXVU13G that uses this Virtex Ultrascale+™ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
