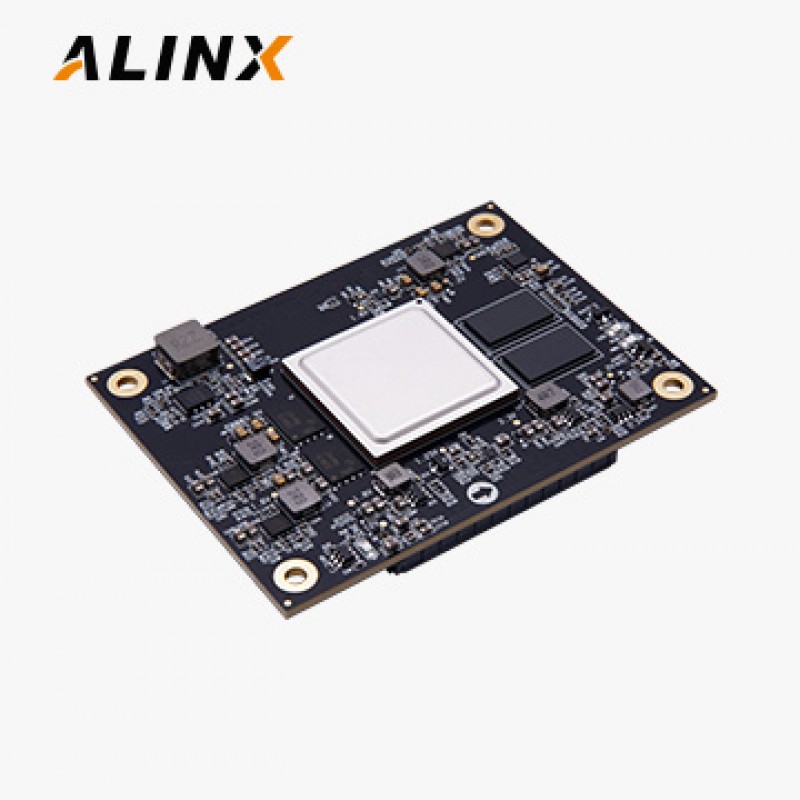

The ACKU3/ACKU5 FPGA System-on-Module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
Applications
Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Backhaul
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Radio
● Basebandn
Key Features
● AMD/Xilinx Kintex Ultrascale+™ : ◆ 16nm FinFET FPGA fabric ◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs ◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs● Pluggable module with 2 x Samtec board-to-board connectors ● 2 GByte (32-bit) DDR4 SDRAM ● 2 x 32 MB QSPI Flash ● 1 x PCIe® Gen3 ×16
● Gigabit transceivers ◆ 16 x GTY, up to 28.21 Gbps● User I/Os ◆ 179 FPGA I/Os● Work temperature range of -40°C to +85°C ● 12V single supply ● Dimensions: 80 x 60 mm form factor
Product Information
Specifications
What's Inside
Module Features
Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU5P-2FFVB676I
* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Kintex Ultrascale+™ development boards AXKU5 that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
