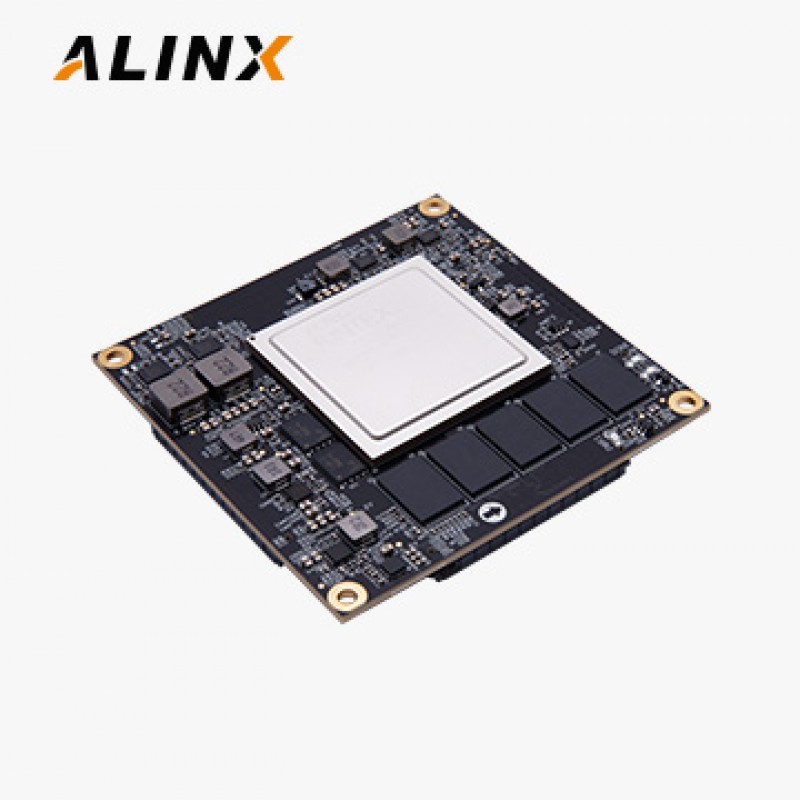

ACKU15 FPGA SoM with AMD Kintex Ultrascale+™ XCKU15P

ACKU15 FPGA SoM with AMD Kintex Ultrascale+™ XCKU15P
Free
ACKU15 FPGA SoM with AMD Kintex Ultrascale+™ XCKU15P
  • Stock: In Stock
  • Model: ACKU15 V2.0
  • SKU: ACKU15 V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$0.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The ACKU15 FPGA System-on-Module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series XCKU15P device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

  • Data Center

    ● Network Acceleration

    ● Storage Acceleration

  • Industrial, Science, Medical

    ● Medical Imaging Backhaul

    ● Machine Vision

  • Wired Communications

    ● PON Access

    ● Optical Transport Network

  • Wireless Communications

    ● Radio

    ● Basebandn


Key Features

  • ● AMD/Xilinx Kintex Ultrascale+™ :
    ◆ 16nm FinFET FPGA fabric
    ◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
    ◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs    ● Pluggable module with 4 x Samtec board-to-board connectors
    ● 10 GByte (80-bit) DDR4 SDRAM
    ● 2 x 64MB QSPI Flash
    ● 1 x PCIe® Gen3 ×16
  • ● Gigabit transceivers
    ◆ 32 x GTH, up to 16.3 Gbps
    ◆ 24 x GTY, up to 28.21 Gbps    ● User I/Os
    ◆ 344 FPGA I/Os (88 HD + 256 HP)● Work temperature range of -40°C to +85°C
    ● 12V single supply
    ● Dimension: 80 x 80mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU15P-2FFVE1517I


* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8080 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.

* We have Kintex Ultrascale+™ development boards AXKU15 that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU15P FPGA System-on-Module/SoM

Kintex Ultrascale+™ SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTHGTY

Temp. Range

USD Price

ACKU15-D√XCKU15P-2FFVE1517I10 GB2 x 64 MB3224-40°C~+85°C3145
ACKU15 XCKU15P-2FFVE1517I10 GB2 x 64 MB3224-40°C~+85°C3894
ACKU15S√XCKU15P-2FFVE1517I5 GB2 x 64 MB3224-40°C~+85°C2995
ACKU11XCKU11P-2FFVE1517I4 GB2 x 64 MB3220-40°C~+85°CTBD


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • ACKU15 V1.0 User Manual

    2026-05-08
    Download

  • ACKU15 V2.0 User Manual

    2025-09-28
    Download
