The ACKU095 FPGA System-on-Module (SoM) combines high-end AMD Xilinx Kintex UltraScale™ series device with fast DDR4 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Applications
Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Backhaul
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Radio
● Basebandn
Key Features
● AMD/Xilinx Kintex Ultrascale : ◆ 20nm FPGA fabric ◆ Up to 1.5M system logic units with Gen2 3D ICsc ◆ 8.2 TeraMAC DSP Compute Performance ◆ Enhanced system logic unit packaging reduces dynamic power consumption● Pluggable module with 6 x Panasonic board-to-board connectors ● 4 GByte (64-bit) DDR4 SDRAM ● 2 x 32 MB QSPI Flash ● PCIe® Gen3 x8
● Gigabit transceivers ◆ 20 x GTH, up to 16.3 Gbps● User I/Os ◆ 52 HR IOs ◆ 302 HP IOs● Work temperature range of -40°C to +85°C ● 12V single supply ● Dimensions: 80 x 60 mm form factor
Product Information
Specifications
What's Inside
Module Features

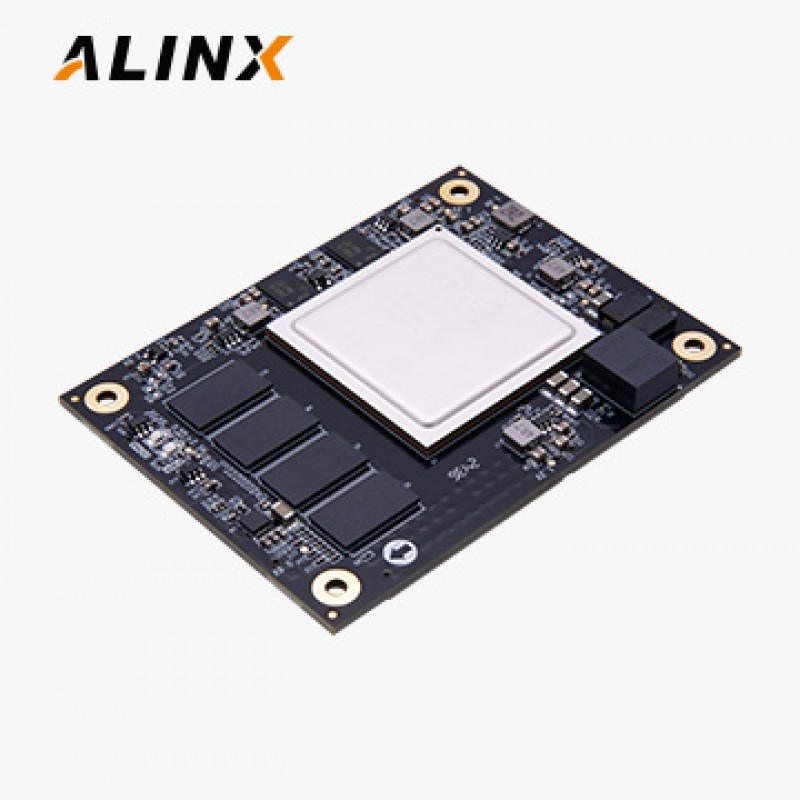

Featuring the AMD/Xilinx Kintex Ultrascale XCKU095-1FFVA1156I
* If you want to design a base board based on this Kintex Ultrascale FPGA System-on-Module, you need to purchase AXK680337YG and AXK6A2337YG high-speed Board to Board Connectors, 80 Pins and 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Kintex Ultrascale development boards AXKU095 that uses this Kintex Ultrascale module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
