Product Description

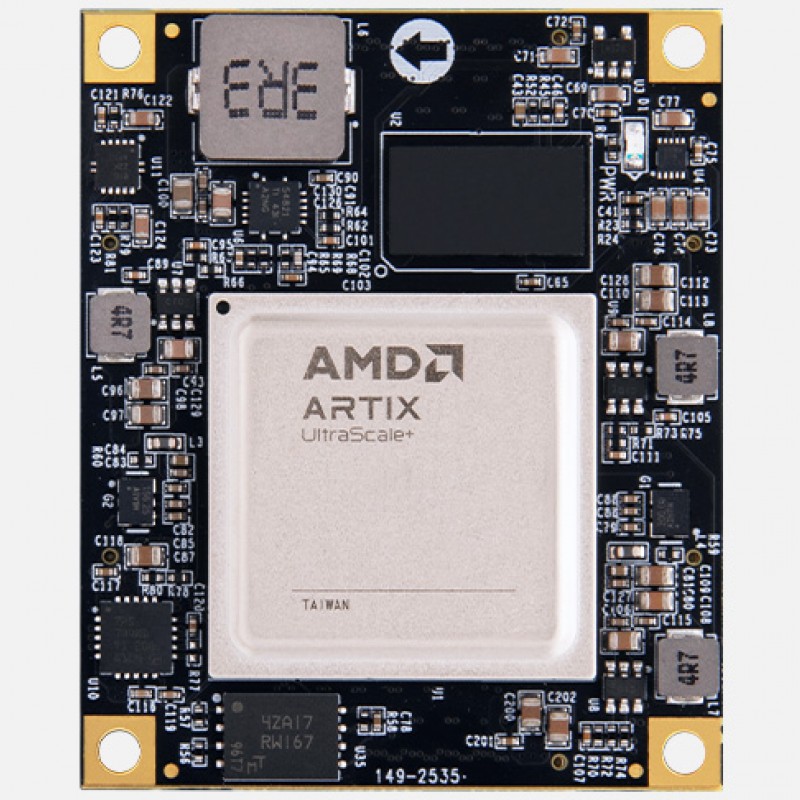

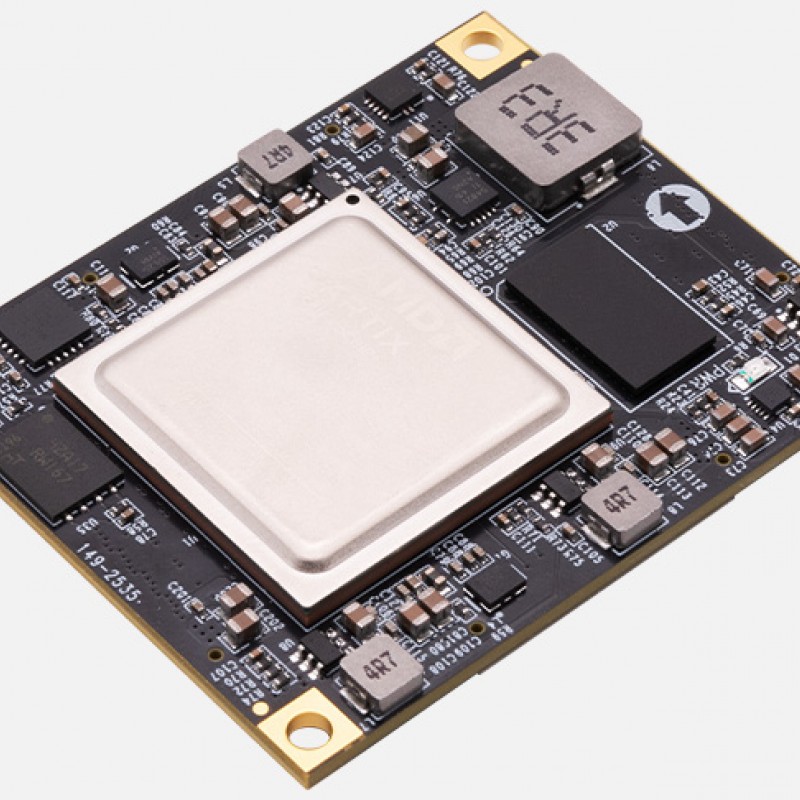

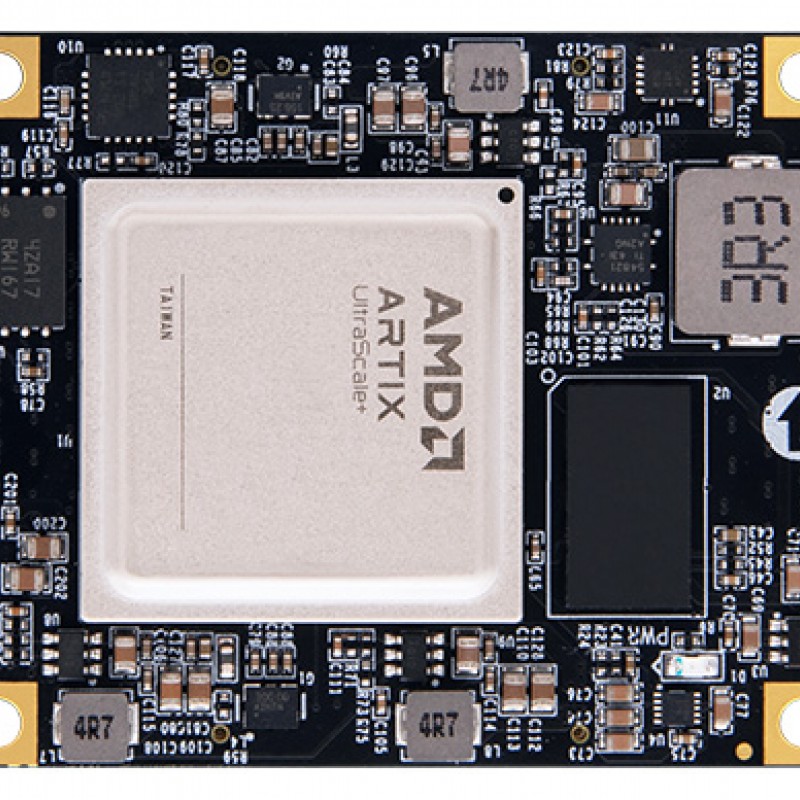

The ACAU25 FPGA System-on-Module (SoM) is a complete embedded solution that features a high-end AMD Xilinx Artix UltraScale+™ FPGA, DDR4 SDRAM, and Quad-SPI Flash.
Applications
Industrial
● Machine Vision
● Industrial Networking
● Industrial Controllers
Medical
● Portable and Desktop Ultrasound
● Surgical Vision
● Endoscopy
Networking
● Nx10 G and 25 G Networking
● Nx100 G Systems
AV Broadcasting
● LED Video Walls
● Digital Signage
● KVM Switch
● 4K Video Converters
Aerospace & Defense
● MILCOM Radio
● Missiles & Munitions
Key Features
- ● AMD/Xilinx Artix Ultrascale+™: ◆ 16nm FinFET FPGA fabric

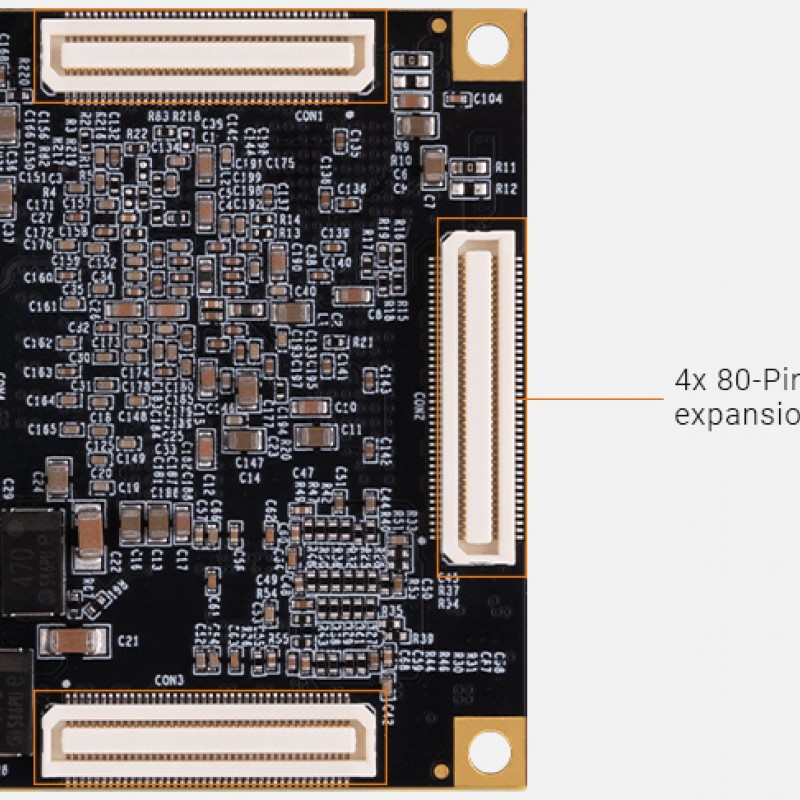

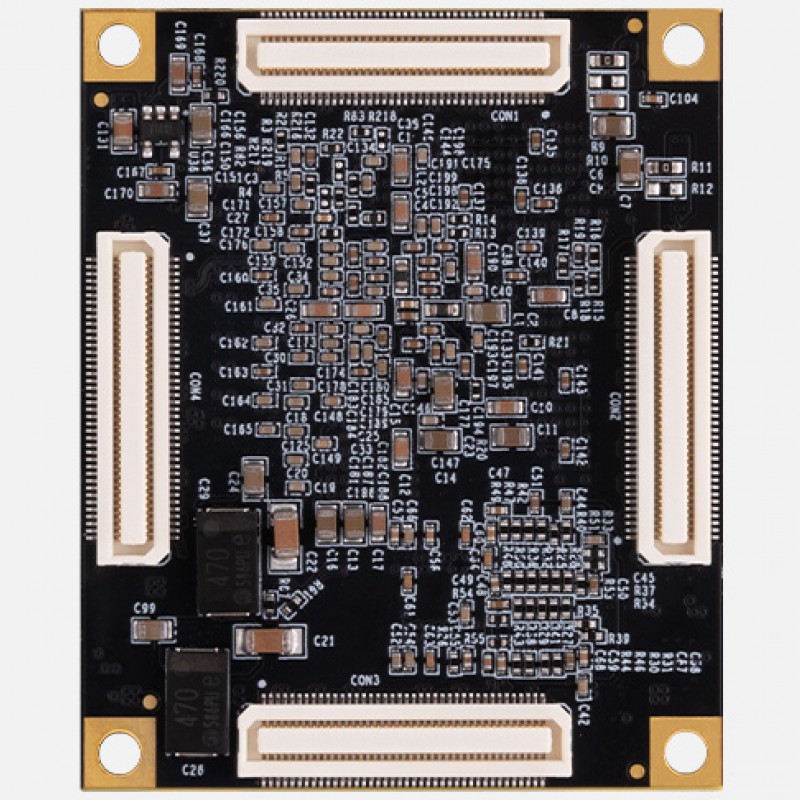

◆ Advanced FPGA DSP architecture, optimized for fixed-point and floating-point calculations● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (16-bit) DDR4 SDRAM
● 32 MB QSPI Flash
● Gigabit transceivers
◆ 12 x GTY, up to 16.3 Gbps - ● User I/O
◆ 174 User I/Os (102 HP @1.8V + 72 HD @3.3V)● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 55 x 45 mm form factor
- Specifications
- What's Inside

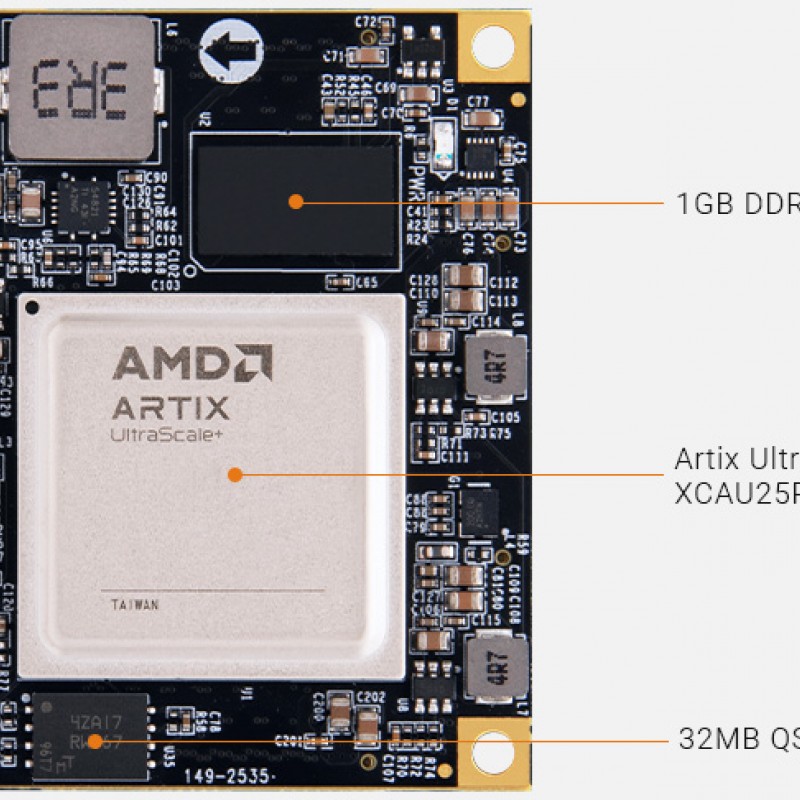

Module Features
Featuring the AMD/Xilinx Artix Ultrascale+™ XCAU25P-2FFVB676I
* If you want to design a base board based on this Artix Ultrascale+™ FPGA System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.
* We have Artix Ultrascale+™ development boards AXAU25 that uses this Artix Ultrascale+™ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

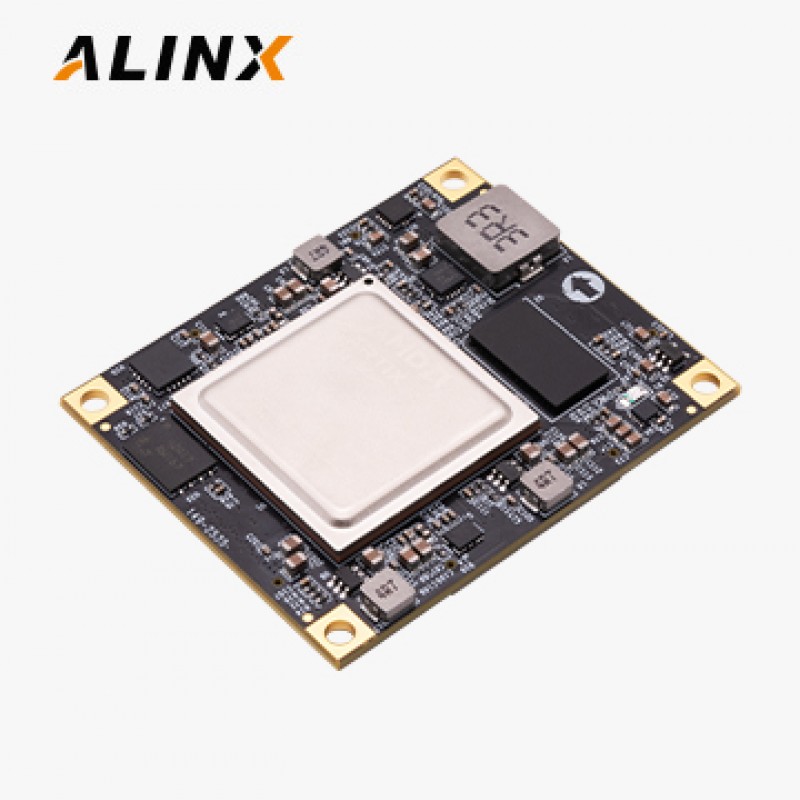

ALINX AMD Xilinx Artix Ultrascale+™ XCAU25P FPGA System-on-Module/SoM
| Artix Ultrascale+™ SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | GTH | GTY | Temp. Range | USD Price |
|---|---|---|---|---|---|---|---|---|
| ACAU25 | √ | XCAU25P-2FFVB676I | 1 GB | 32 MB | 12 | -40°C~+85°C | 584 | |
| ACAU20 | XCAU20P-2FFVB676I | 1 GB | 32 MB | 12 | -40°C~+85°C | TBD | ||
| ACAU15 | √ | XCAU15P-2FFVB676I | 1 GB | 32 MB | 12 | -40°C~+85°C | 449 | |
| ACAU10 | XCAU10P-2FFVB676I | 1 GB | 32 MB | 12 | -40°C~+85°C | TBD |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
- Download
ACAU25 V1.0 User Manual
2026-05-08
