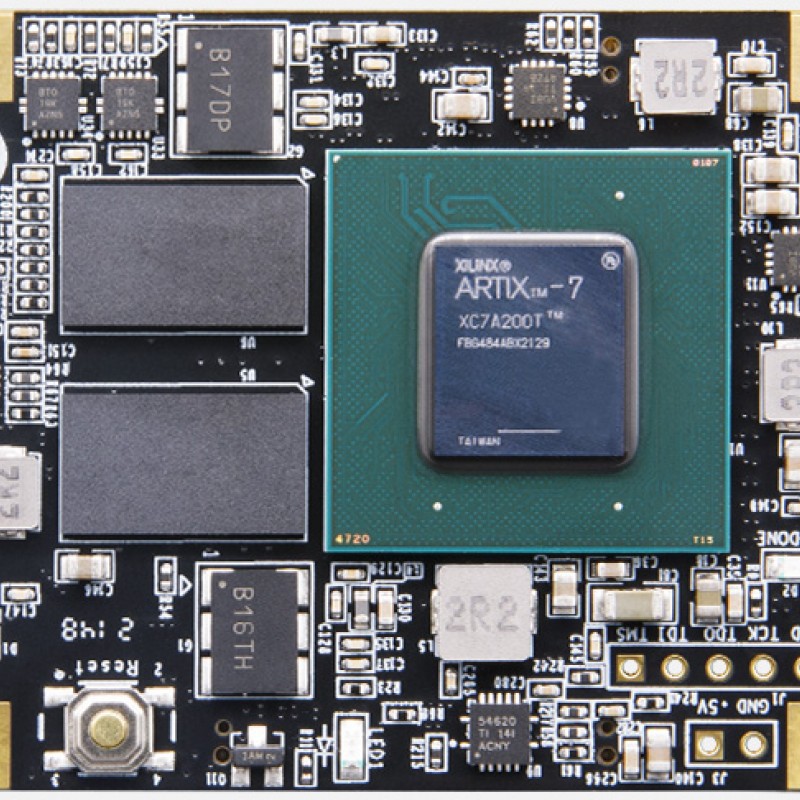

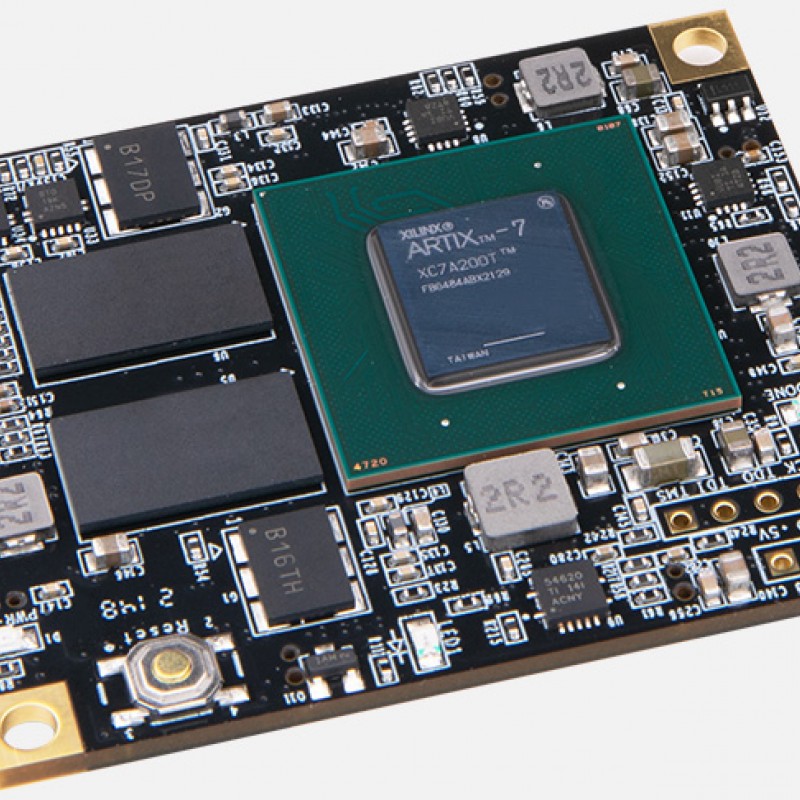

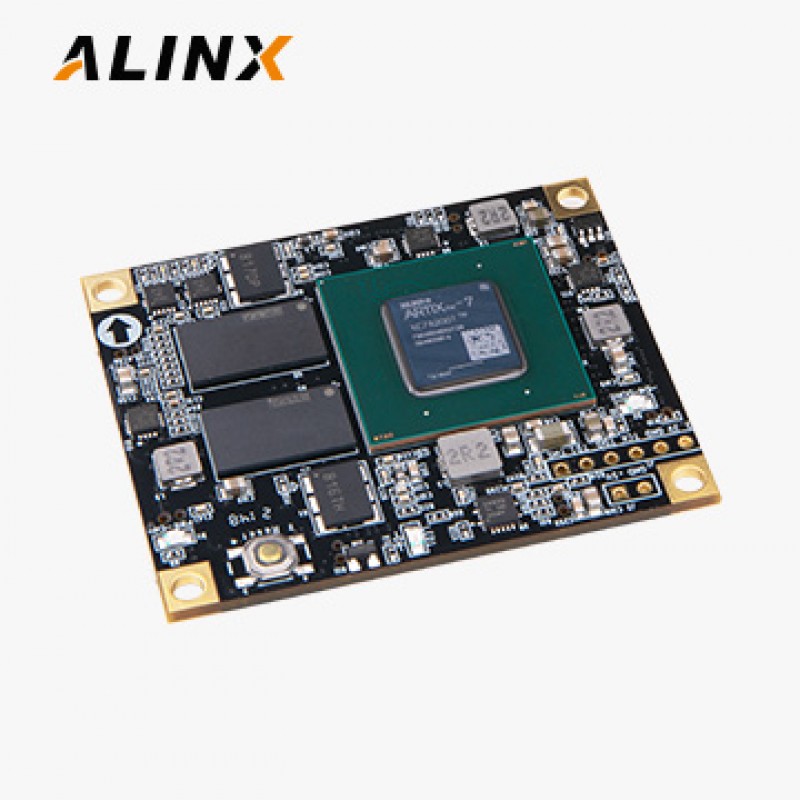

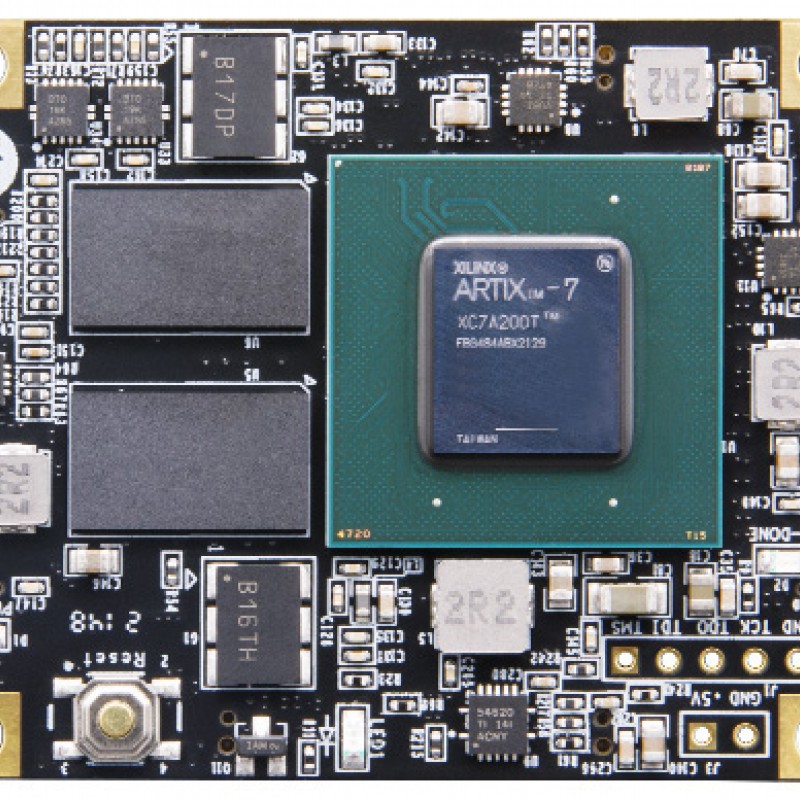

AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T

AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AC7200
  • SKU: AC7200
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$299.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AC7100B/AC7200 FPGA System-on-Module(SoM) combines high-end AMD Xilinx Artix-7 series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • ● communication

  • ● Image and video processing

  • ● Data analysis

  • ● medical care

  • ● Industrial control

  • ● Network Information Security


Key Features

  • ● AMD/Xilinx Artix 7 :
    ◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA

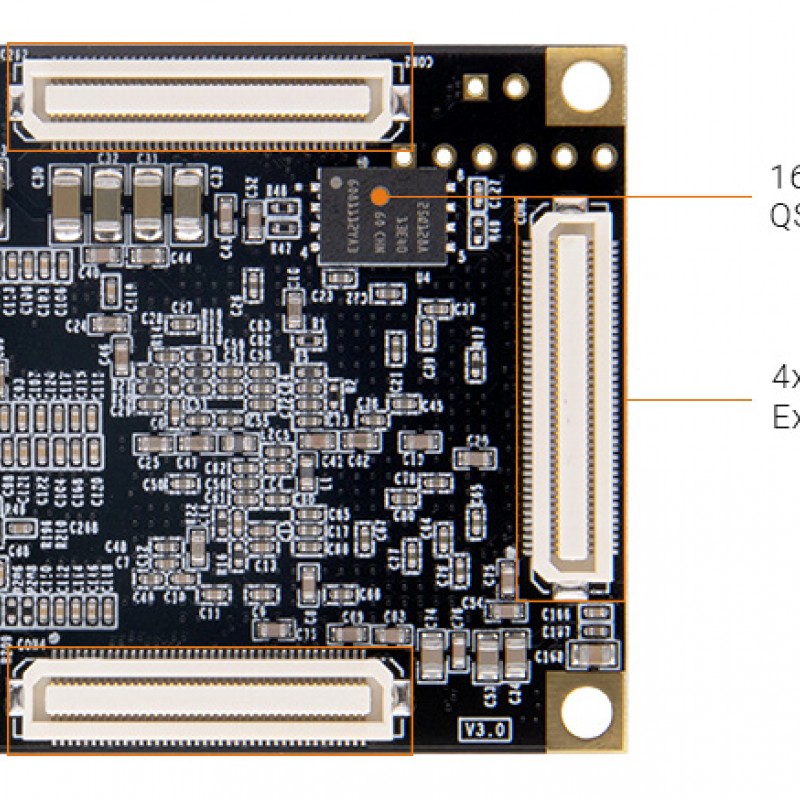

    ◆ The 28nm node achieves an excellent cost/performance/power balance    ● Pluggable module with 4 x Panasonic board-to-board connectors
    ● 1 GByte (32-bit) DDR3 SDRAM
    ● 16 MB QSPI Flash
    ● 1 x PCIe® Gen2
  • ● Gigabit transceivers
    ◆ 4 x GTP, up to 6.6 Gbps● User I/Os
    ◆ 195 FPGA I/Os(180 3.3V+15 1.5V) ● Work temperature range of -40°C to +85°C
    ● 5V single supply
    ● Dimensions: 45 x 55 mm form factor

Product Information

  • Specifications
  • What's Inside

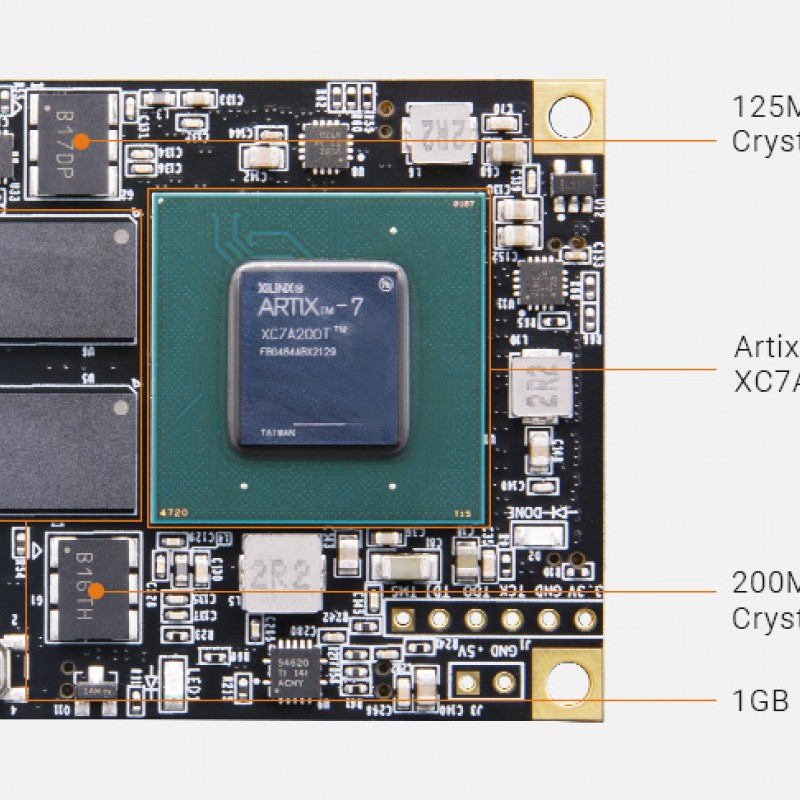

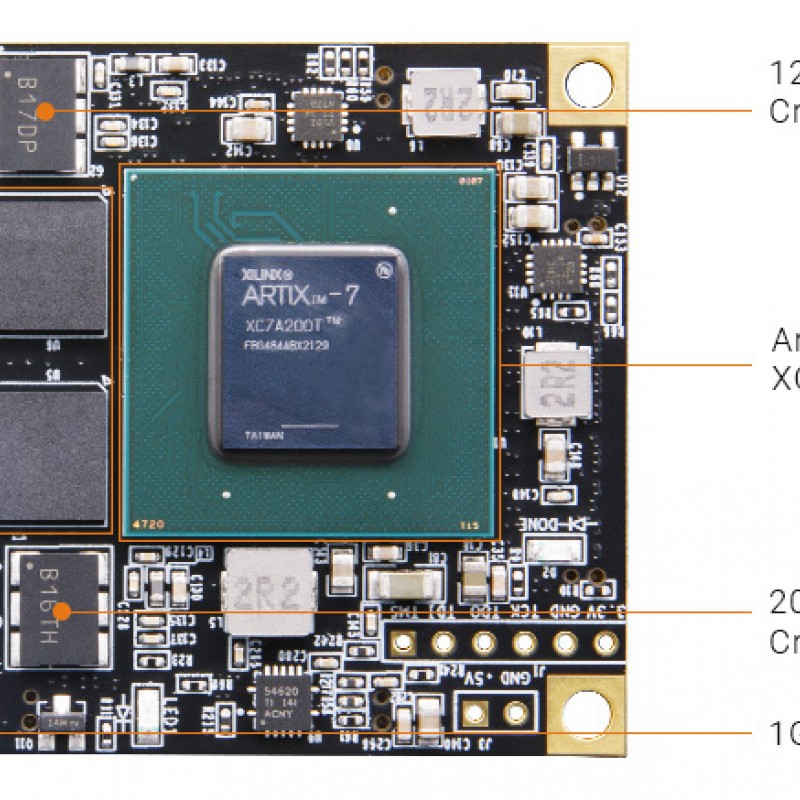

Module Features

Featuring the AMD/Xilinx Artix 7 XC7A200T-2FBG484I


* If you want to design a base board based on this Artix 7 System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Artix 7 development boards AX7201、AX7202 and AX7203 that uses this Artix 7 module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Artix 7 XC7A200T System-on-Module/SoM

Artix 7 SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 SDRAMQSPI FlashGTP

Temp. Range

USD Price

AC7035 XC7A35T-2FGG484I1 GB16 MB4-40°C~+85°CTBD
AC7050XC7A50T-2FGG484I1 GB16 MB4-40°C~+85°CTBD
AC7075 XC7A75T-2FGG484I1 GB16 MB4-40°C~+85°CTBD
AC7100B√XC7A100T-2FGG484I1 GB16 MB4-40°C~+85°C239
AC7200√XC7A200T-2FBG484I1 GB16 MB4-40°C~+85°C299


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AC7200 User Manual

    2025-09-17
    Download

  • AC7200 3D STEP

    2022-09-07
    Download

  • AC7200 PCB Reference Design

    2022-09-07
    Download

  • AC7200 Schematic

    2022-09-07
    Download
