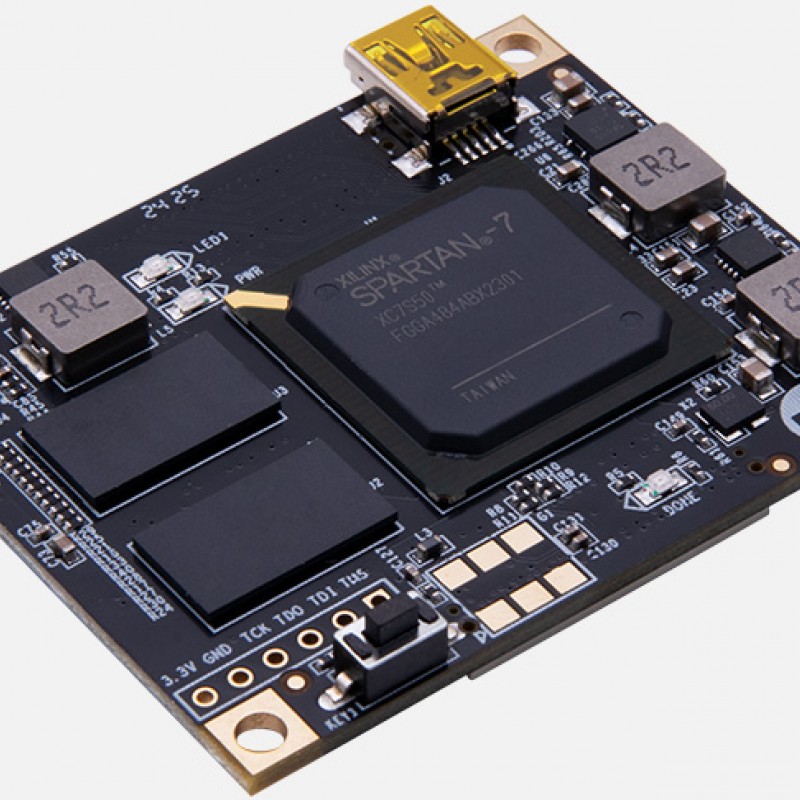

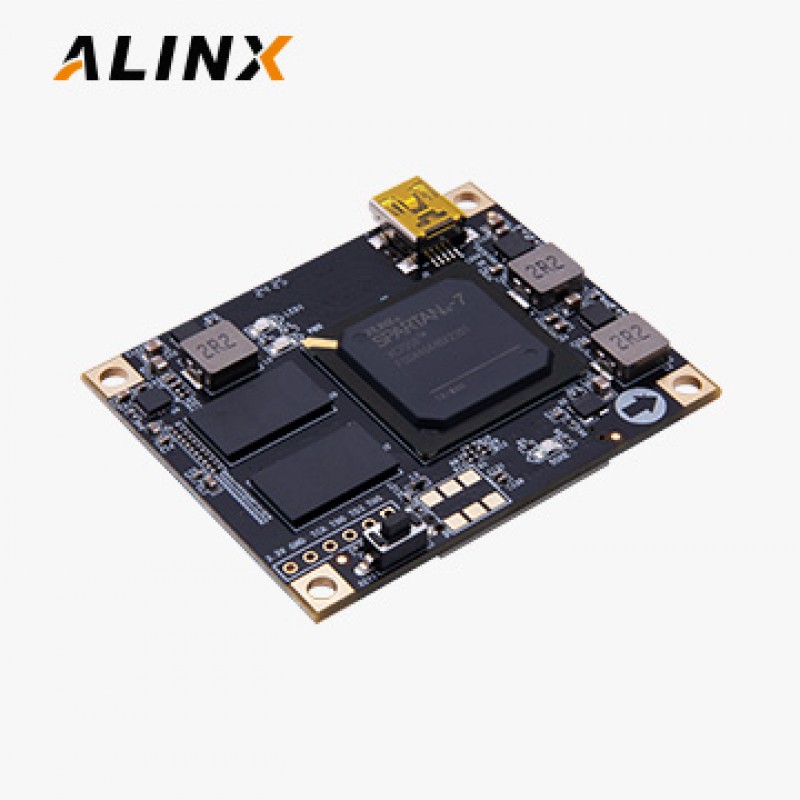

AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50

AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AC7050B
  • SKU: AC7050B
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$165.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AC7050B FPGA System-on-Module(SoM) combines high-end AMD Xilinx Spartan 7 series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • ● communication

  • ● Image and video processing

  • ● Data analysis

  • ● medical care

  • ● Industrial control

  • ● Network Information Security


Key Features

  • ● AMD/Xilinx Spartan 7 :
    ◆ More than 50% lower dynamic power vs. Spartan-6 devices
    ◆  Ultra-low standby power, leveraging the 28nm HPL process

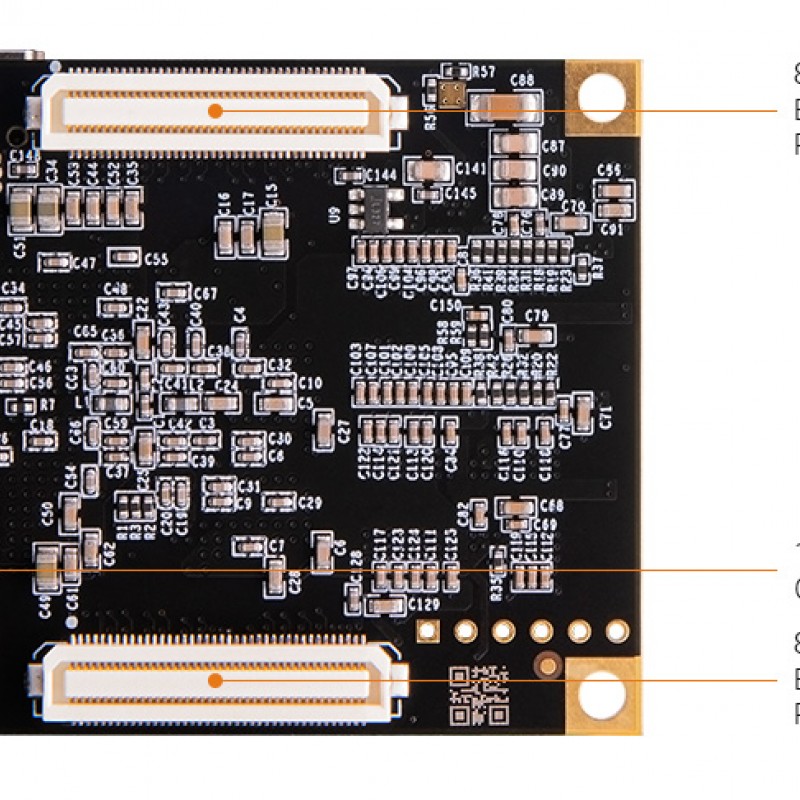

    ◆  Highly accurate power estimation tools to improve power optimization strategies    ● Pluggable module with 2 x Panasonic board-to-board connectors
    ● 1 GByte (32-bit) DDR3 SDRAM
  • ● 16 MB QSPI Flash
    ● User I/Os
    ◆ 114 FPGA I/Os(114 3.3V) ● Work temperature range of -40°C-85°C
    ● 5V single supply
    ● Dimensions: 45 x 55 mm form factor

Product Information

  • Specifications
  • What's Inside

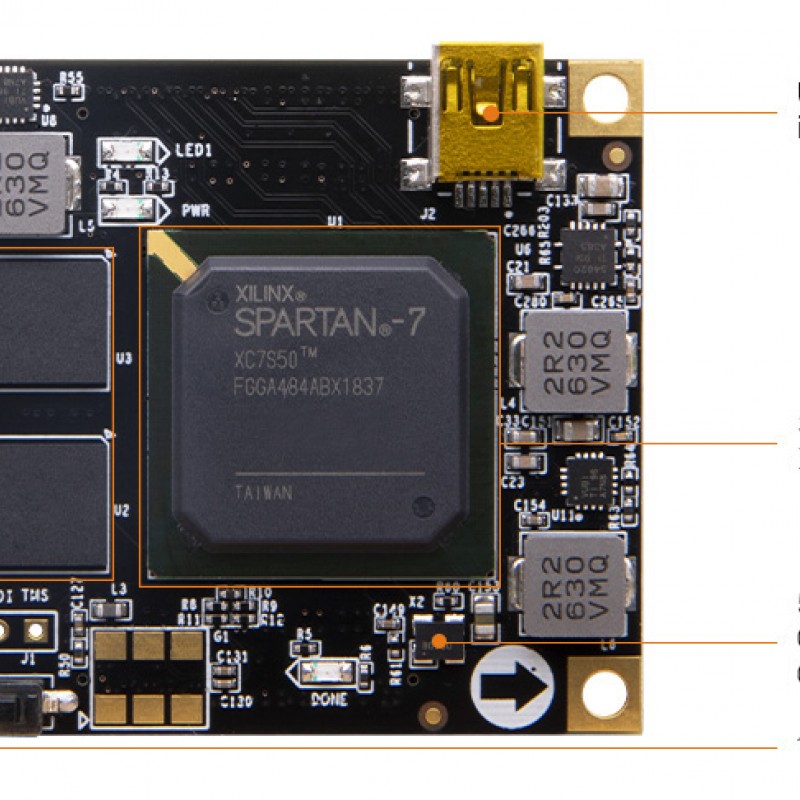

Module Features

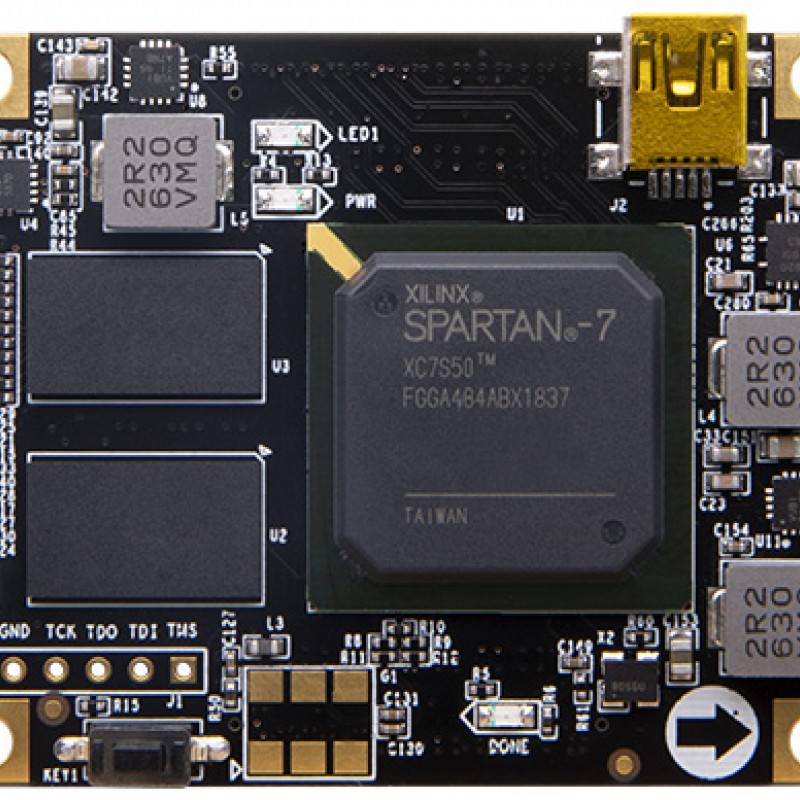

Featuring the AMD/Xilinx Spartan 7 XC7S50T-1FGGA484I


* If you want to design a base board based on this Spartan 7 FPGA System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Spartan 7 development boards AX7050 that uses this Spartan 7 module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Spartan 7 XC7S50T FPGA System-on-Module/SoM

Spartan 7 SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 SDRAMQSPI Flash

Temp. Range

USD Price

AC7050B√XC7S50T-1FGGA484I1 GB16 MB-40°C~+85°C165
AC7075 XC7A75T-2FGGA484I1 GB16 MB-40°C~+85°CTBD
AC7S100XC7A100T-2FGGA484I1 GB16 MB-40°C~+85°CTBD


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AC7050B User Manual

    2023-07-24
    Download

  • AC7050B Schematic Diagram

    2023-07-24
    Download

  • AC7050B 3D STEP

    2022-09-06
    Download
