The AIO-3566JD4 motherboard is equipped with RK3566 quad-core 64-bit processor, integrated dual-core GPU and high-efficiency NPU, and supports 8G large memory. The onboard M.2 interface and SATA3.0 interface can support large-capacity hard disk expansion storage. The rich interfaces make it suitable for entertainment PC, smart NVR, cloud terminal, IoT gateway and other scenarios.

• Product Wiki: Click Here
• Product Datasheet: Click Here

Feature

• RK3566 Quad-core 64-bit Processor: The RK3566 quad-core 64-bit Cortex-A55 processor has a main frequency of up to 1.8GHz and adopts a 22nm lithography process, with the characteristics of low power consumption and high performance.
• Integrated Coprocessor: It integrates a dual-core ARM G52 GPU, a high-performance VPU, and an efficient NPU. The GPU supports OpenGL ES 3.2/2.0/1.1 and Vulkan 1.1. The VPU can decode 4K H.264/VP9 videos at 60fps and encode 1080P H.264 videos at 60fps. The NPU boasts 1 TOPs of computing power and supports one-click switching between mainstream frameworks such as Caffe and TensorFlow.
• Powerful Network Communication: The motherboard supports 1000Mbps Ethernet, 2.4G/5G dual-band WiFi, 4G LTE/3G network communication, and a variety of high-speed, low-latency network communication methods.
• Multiple Display Interfaces: Equipped with MIPI-DSI×2, HDMI2.0, and EDP display interfaces. Supports MIPI-CSI (4-channel) camera interface, built-in 8M ISP image signal processor, and can connect to single-channel 8M camera or dual-channel 2M camera.

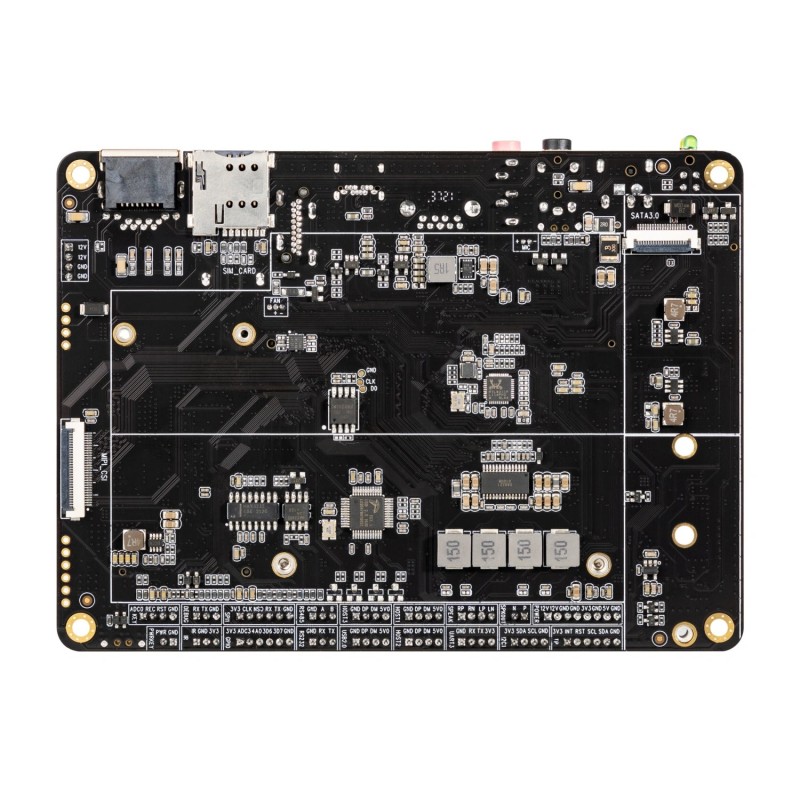

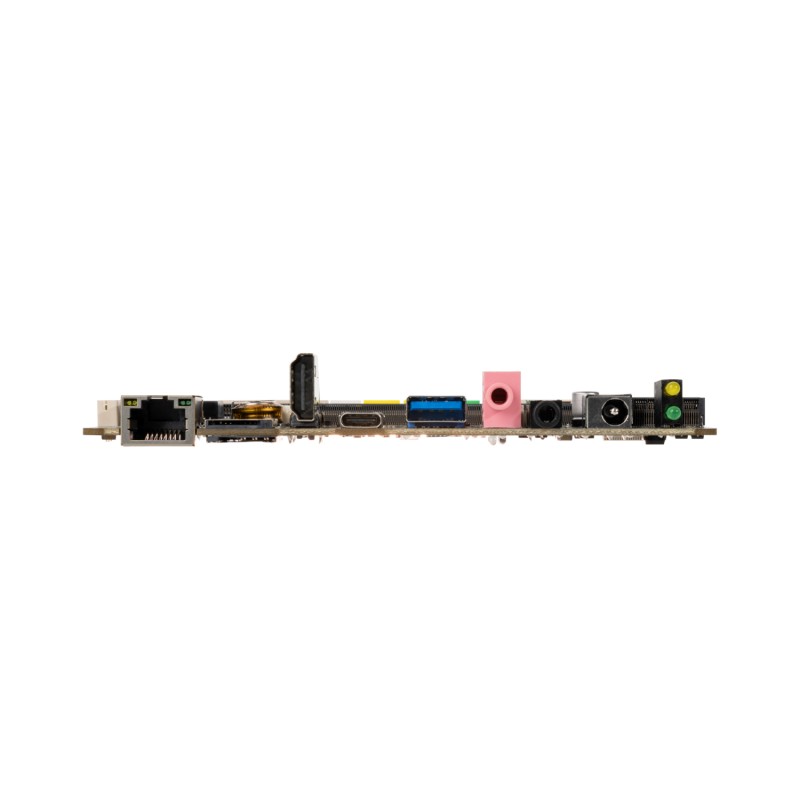

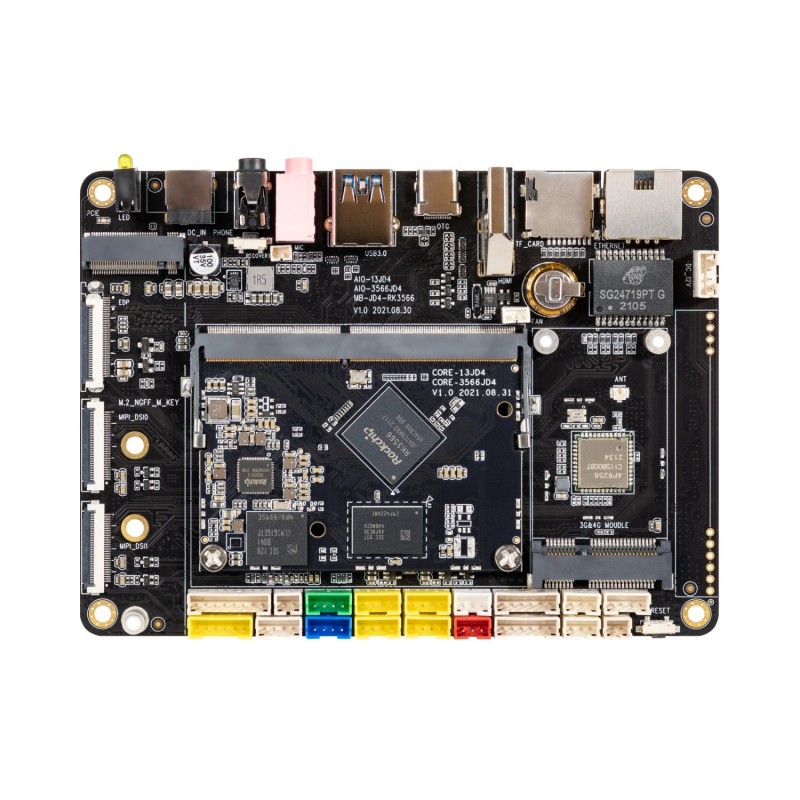

Hardware Overview
