This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: P390
  • SKU: P390
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$599.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

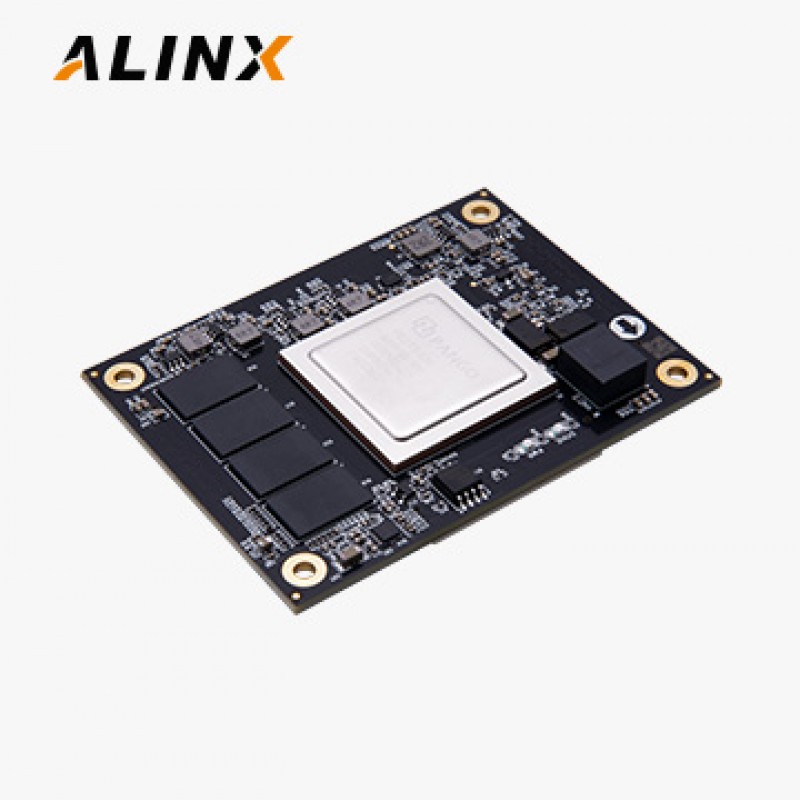

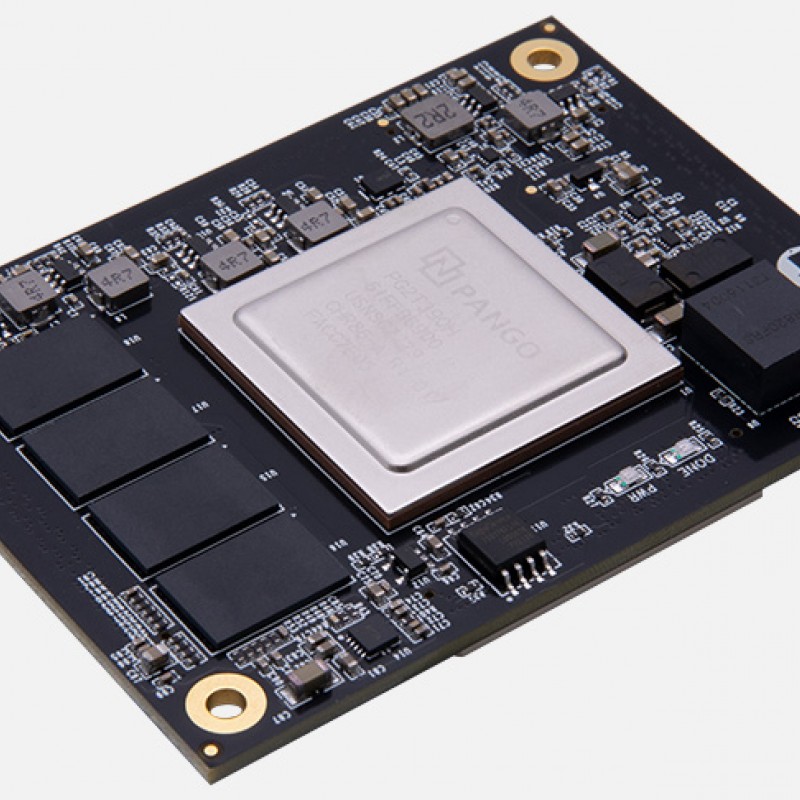

The P390 System-on-Module (SoM) combines high-performance Pango Titan2-series PG2T390H-6IFFBG900 device with fast DDR4 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • ● communication

  • ● Image and video processing

  • ● Data analysis

  • ● medical care

  • ● Industrial control

  • ● Network Information Security



Key Features

  • ● PANGO Titan-2 PG2T390H:◆ 28 nm FPGA fabric

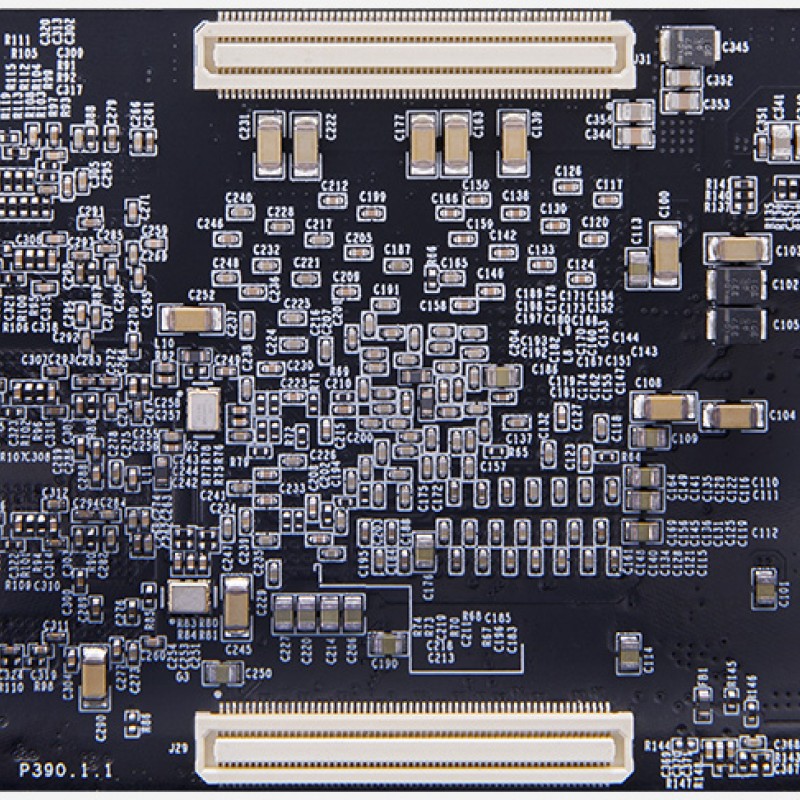

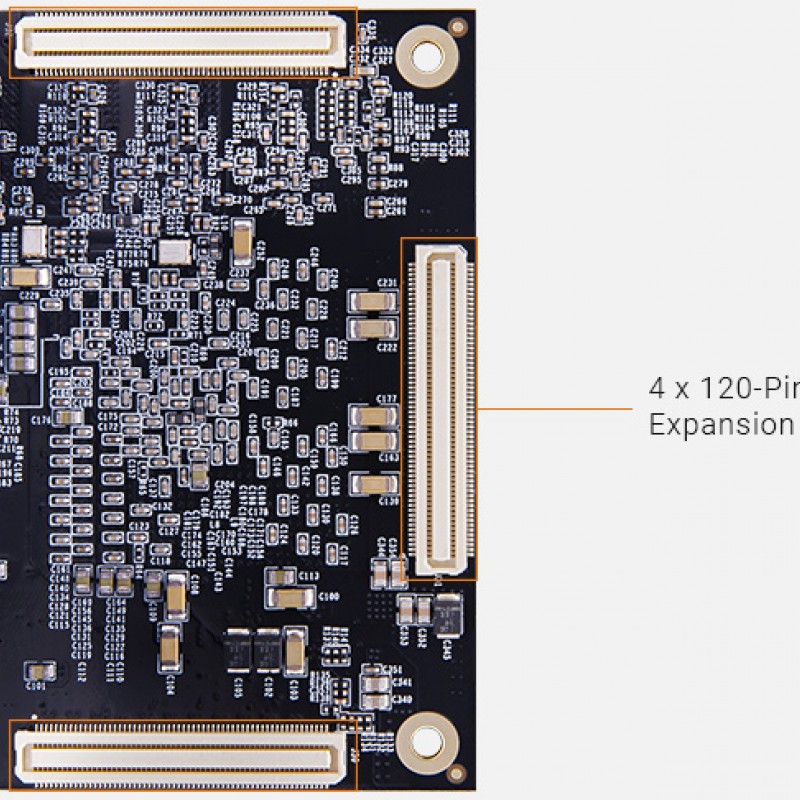

    ● Pluggable module with 4 x board-to-board connectors
    ● 4 GByte (32-bit) DDR4 SDRAM
    ● 16 MB QSPI Flash
    ● Gigabit transceivers◆ 16 x HSSTHP, up to 13.125 Gbps
  • ● user I/Os◆ 276 FPGA I/Os ● Work temperature range of -40°C to 85°C
    ● 5V single supply
    ● Dimensions: 80 x 60mm form factor

Product Information

  • Specifications
  • What's Inside

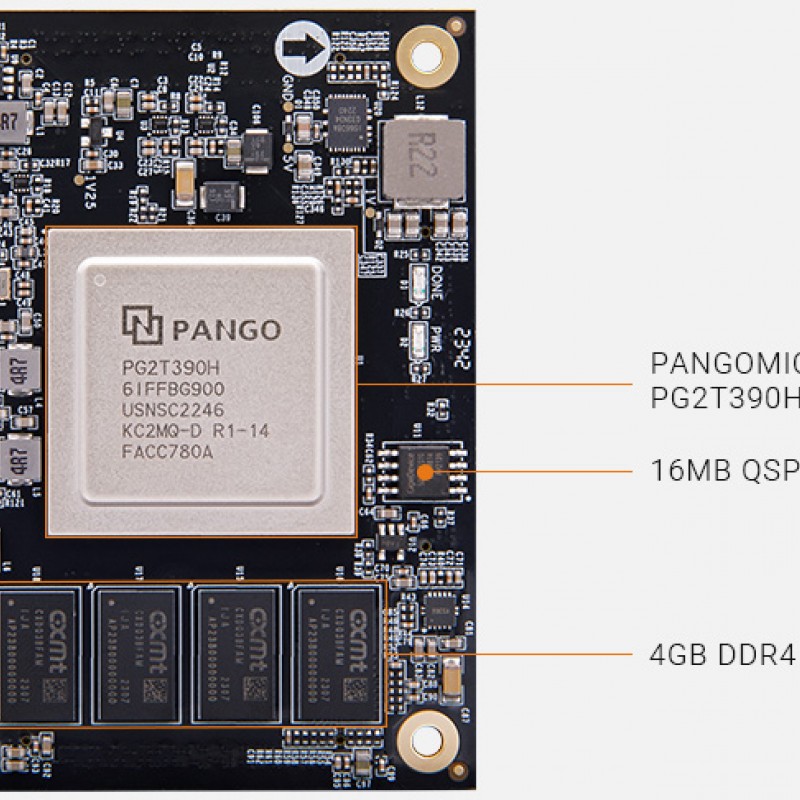

Module Features

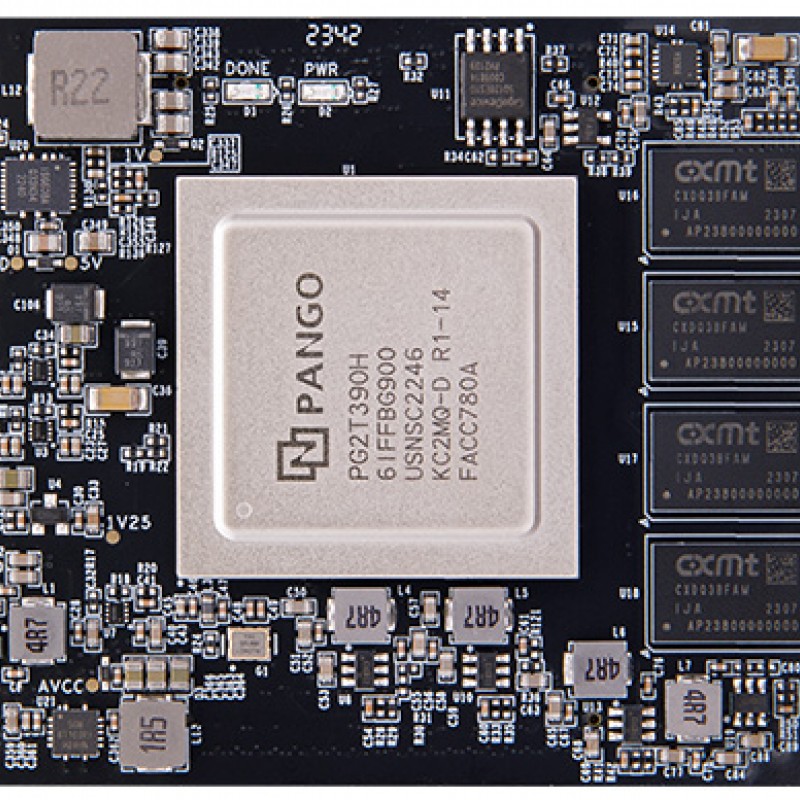

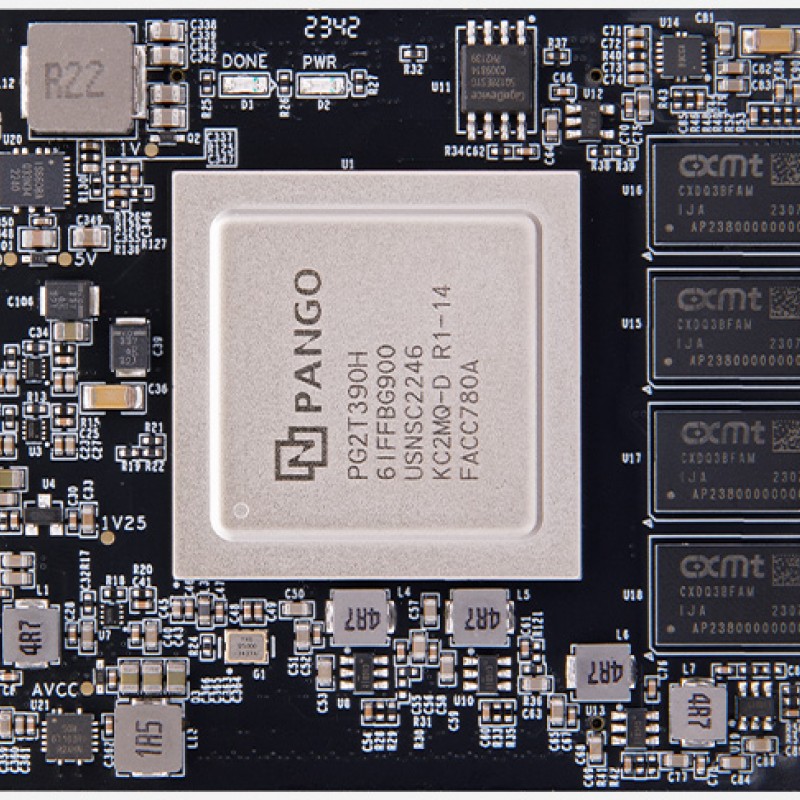

Featuring the Pango Titan2 PG2T390H -6IFFBG900


If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Cooling FAN is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Titan2 development boards AXP391 and AXP392 that uses this Titan2 module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Pango Titan2 PG2T390H System-on-Module/SoM

SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4QSPI FlashTemp. RangeUSD Price
P390√PG2T390H -6IFFBG9004GB16MB-40°C~ 85°C599


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
