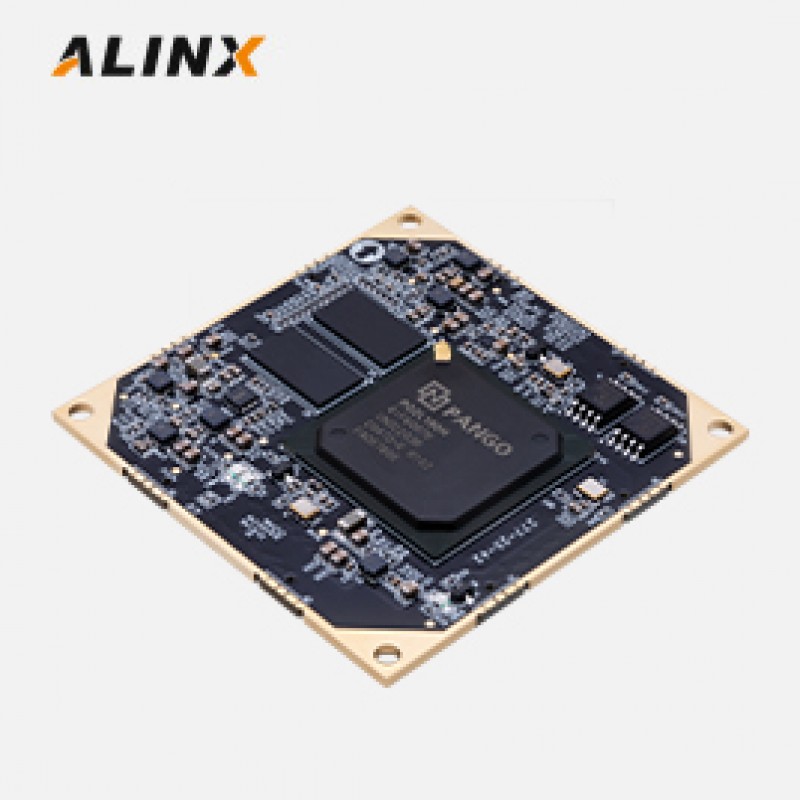

P100 FPGA SoM with Pango Logos2 PG2L100H

P100 FPGA SoM with Pango Logos2 PG2L100H
P100 FPGA SoM with Pango Logos2 PG2L100H
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: P100 V2.0
  • SKU: P100 V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$165.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The P100 System-on-Module (SoM) combines high-performance Pango Logos2-series PG2L100H device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • ● communication

  • ● Image and video processing

  • ● Data analysis

  • ● medical care

  • ● Industrial control

  • ● Network Information Security



Key Features

  • ● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
    ● Pluggable module with 4 x board-to-board connectors
    ● 1 GByte (32-bit) DDR3  SDRAM
    ● 32 MB QSPI Flash
    ● Gigabit transceivers◆ 8 x HSSTLP, up to 6.6 Gbps
  • ● user I/Os◆ 190 FPGA I/Os ● Work temperature range of -40°C to 85°C
    ● 5V single supply
    ● Dimensions: 60 x 60mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features

Featuring the Pango Logos2 PG2L100H-6IFBG676


* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Logos development boards AXP100B that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Pango Logos PG2L100H System-on-Module/SoM

System-on-Module1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3QSPI FlashTemp. RangeUSD Price
P100√PG2L100H-6IFBG6761GB32MB-40°C~ 85°C165


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
