Product Description
The M7010/M7020 System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI
Key Features
- ● AMD/Xilinx Zynq™ 7000 SoC:
◆ ARM® dual-core Cortex™-A9 up to 767 MHz(667MHz for M7010)
◆ Xilinx Artix™ 7 28nm FPGA fabric● Castellated-hole form factor
● 1 GByte (32-bit) DDR3 SDRAM on PS(M7010 is 512MByte (32-bit) DDR3 )
● 32 MB QSPI Flash
● 8GB eMMC FLASH - ● User I/Os
◆ 7 PS MIOs
◆ 100 FPGA I/Os (PL)● Work temperature range of -40°C to +85°C
● 5V single supply
● Dimensions: 53.8 x 53.8 mm form factor
- Specifications
- What's Inside
Module Features

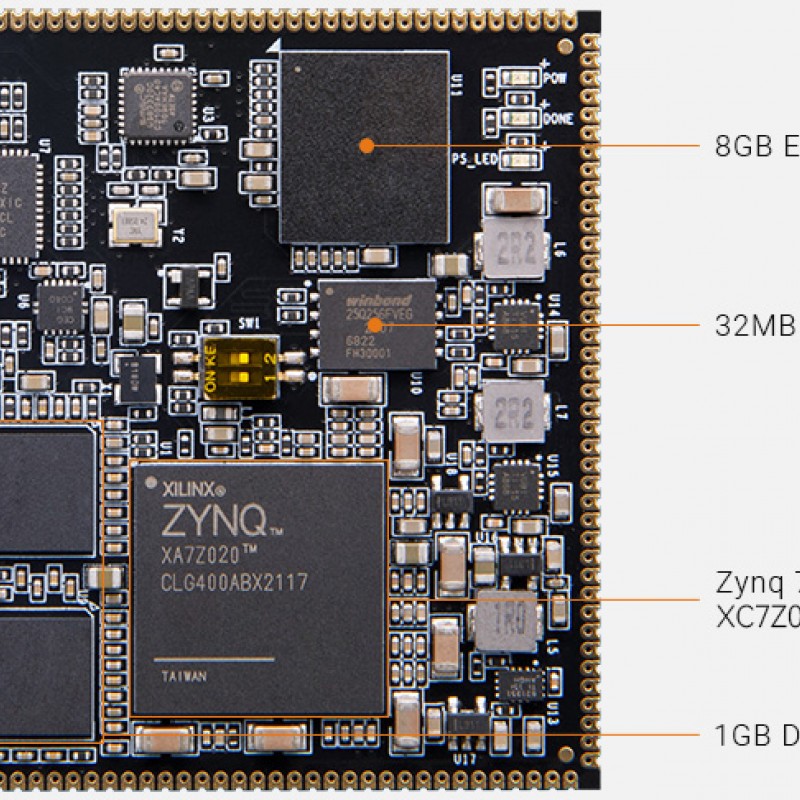

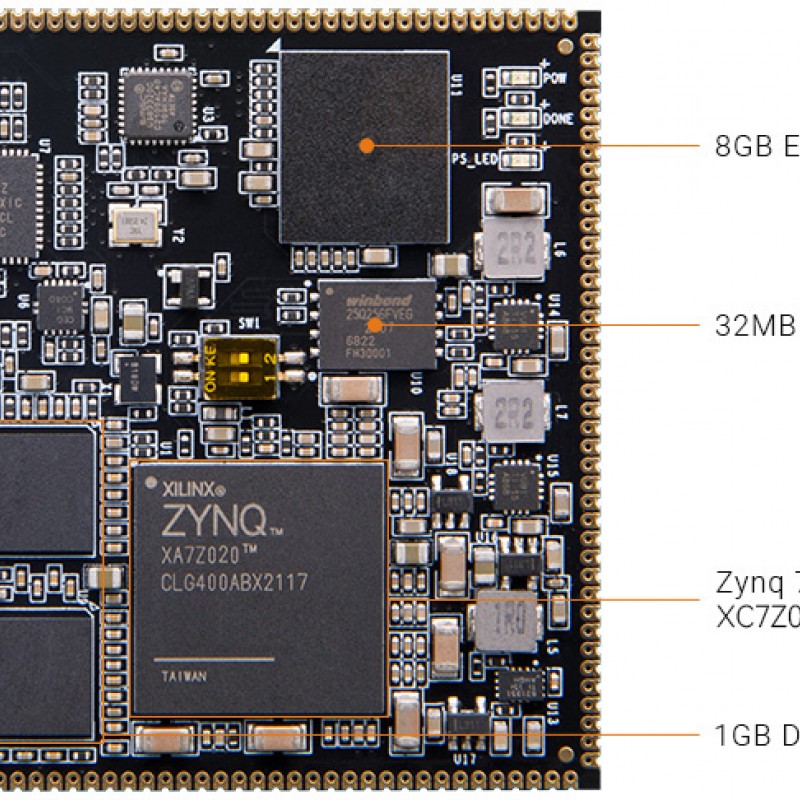

Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z020-2CLG400I
What's Inside the Box

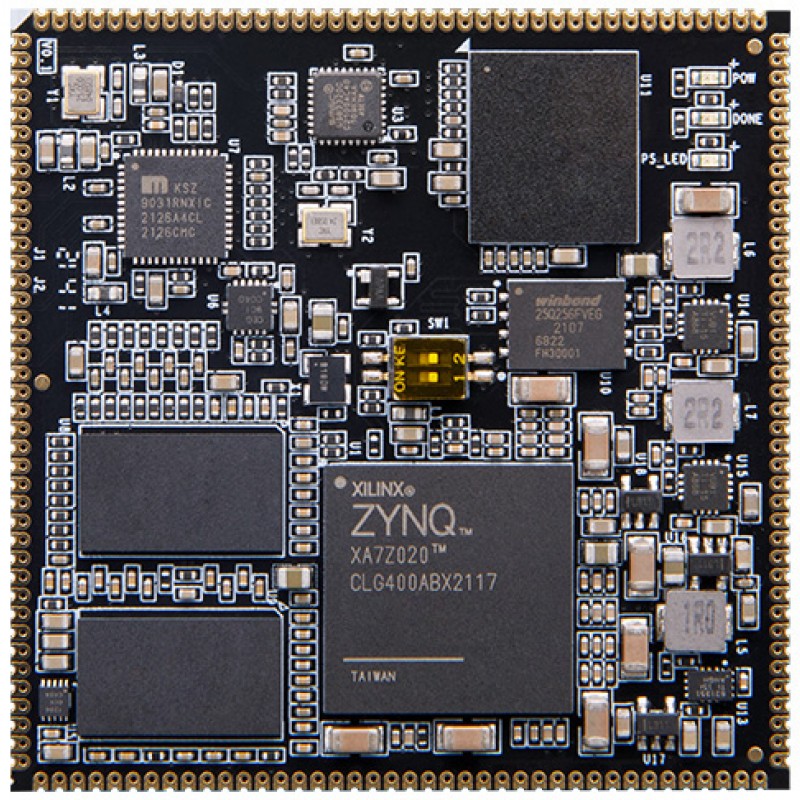

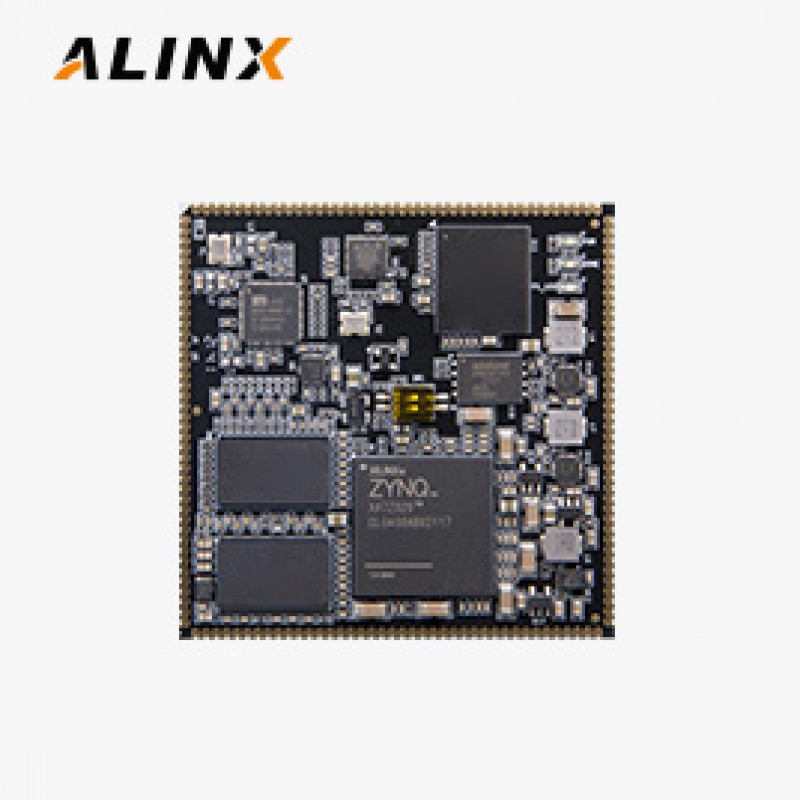

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z020 System-on-Module/SoM
| Zynq 7000 SoC SoM | 1 |
|---|
Product Matrix
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
