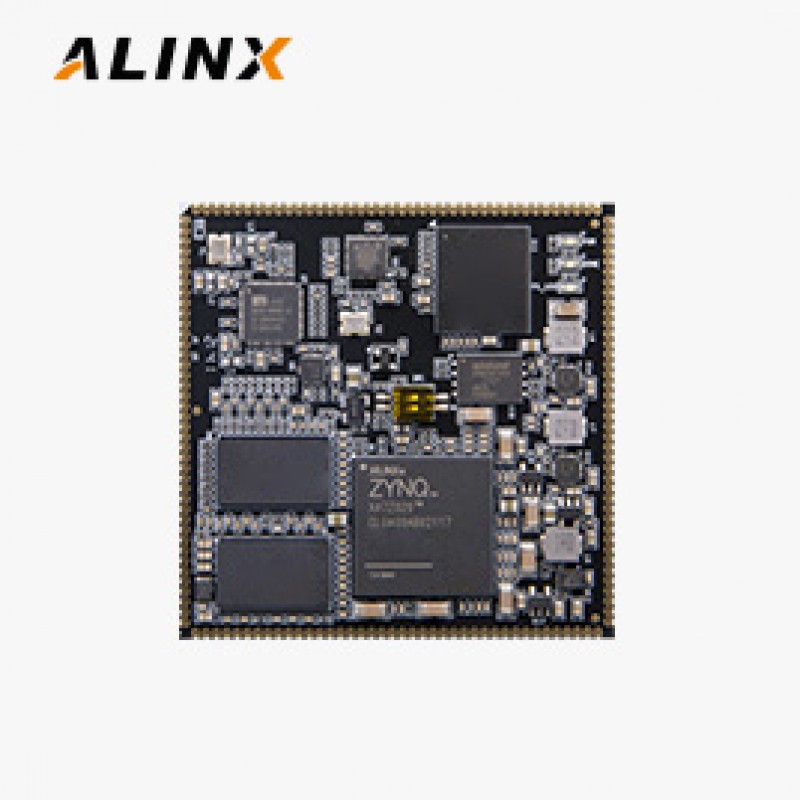

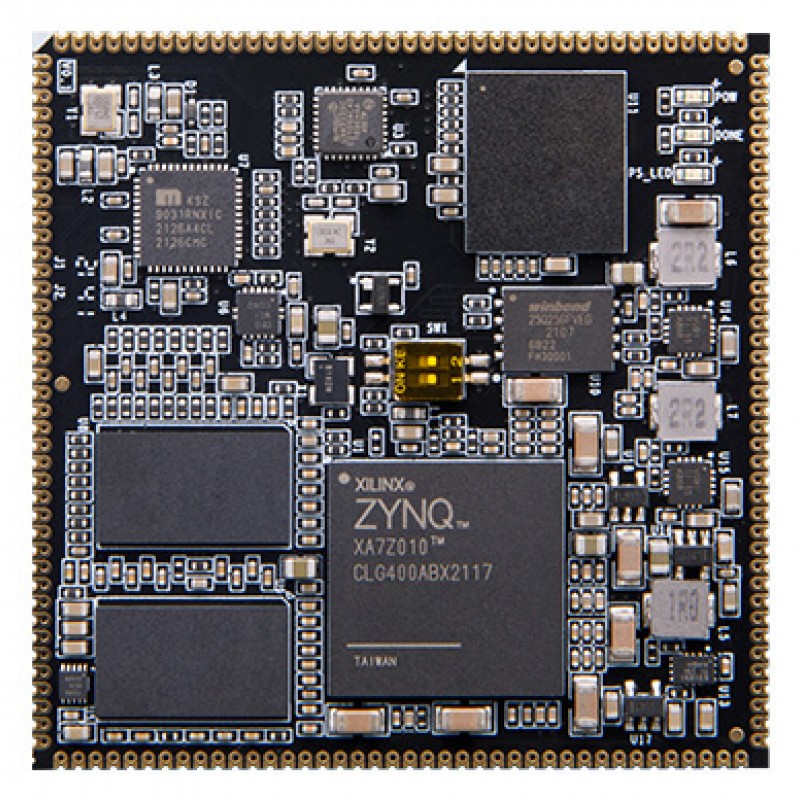

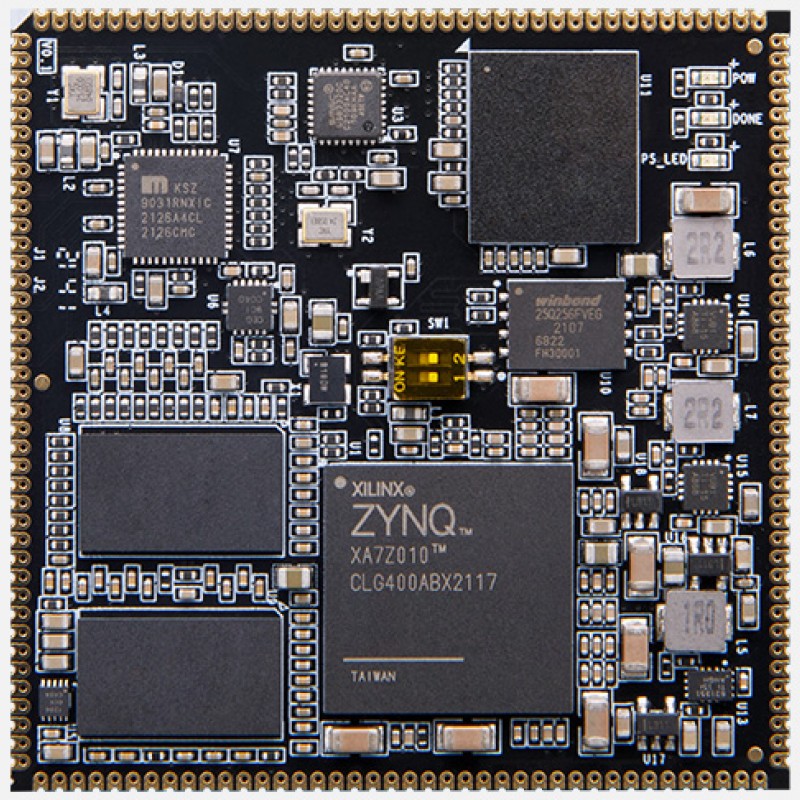

Name: M7010 SoM with AMD Zynq™ 7000 SoC XC7Z010
Brand: ALINX
SKU: M7010

Overview Product Information Product Selection Matrix Documentations Related Products

Product Description

The M7010/M7020 System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI

Key Features

● AMD/Xilinx Zynq™ 7000 SoC:
◆ ARM® dual-core Cortex™-A9 up to 767 MHz(667MHz for M7010)

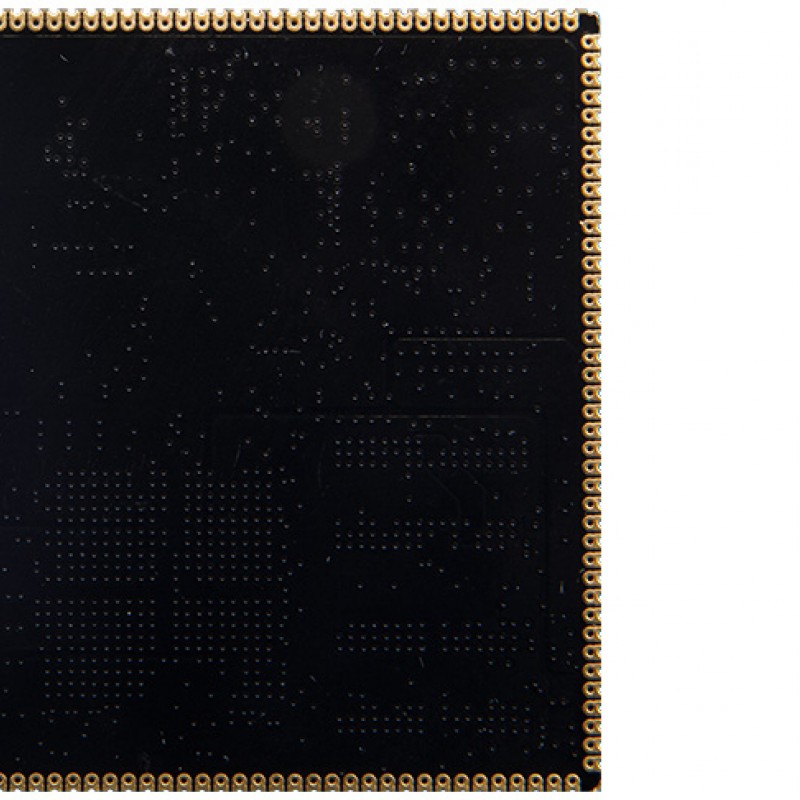

◆ Xilinx Artix™ 7 28nm FPGA fabric● Castellated-hole form factor
● 1 GByte (32-bit) DDR3 SDRAM on PS(M7010 is 512MByte (32-bit) DDR3 )
● 32 MB QSPI Flash
● 8GB eMMC FLASH
● User I/Os
◆ 7 PS MIOs
◆ 100 FPGA I/Os (PL)● Work temperature range of -40°C to +85°C
● 5V single supply
● Dimensions: 53.8 x 53.8 mm form factor

Specifications
What's Inside

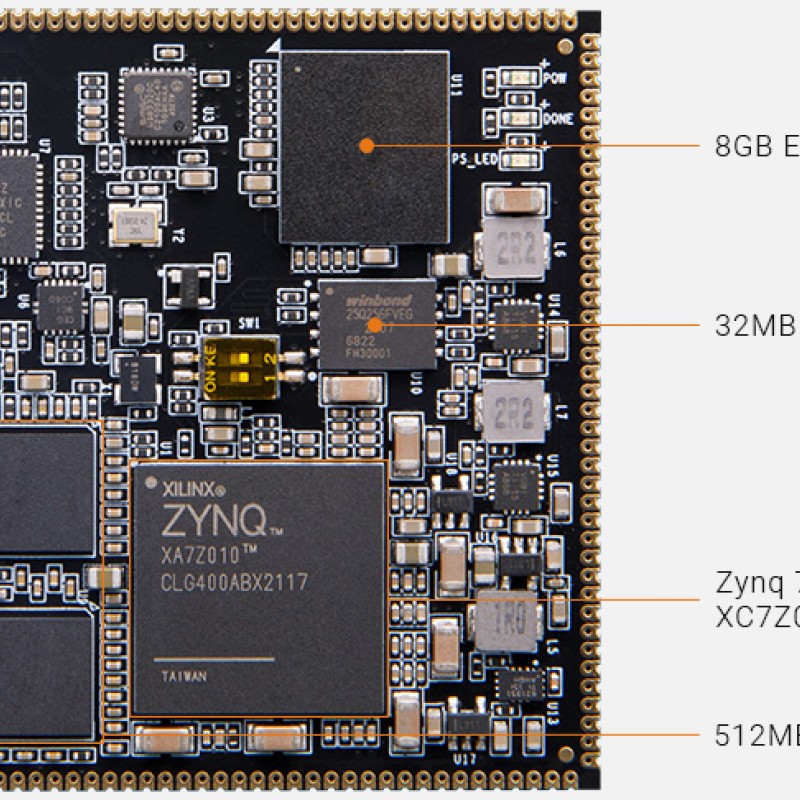

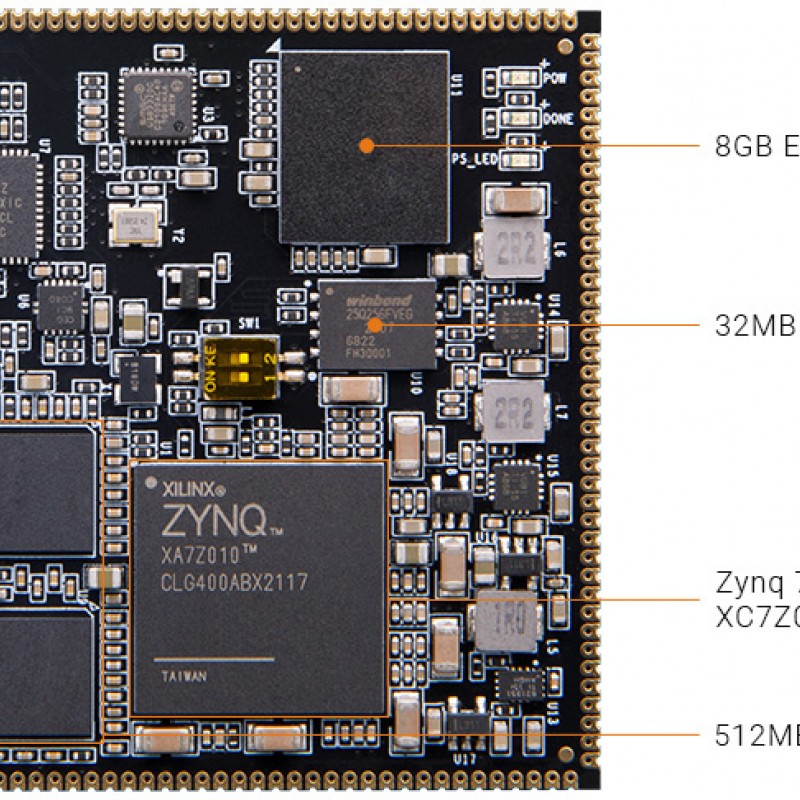

Module Features

Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z010-1CLG400I

What's Inside the Box

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z010 System-on-Module/SoM

Zynq 7000 SoC SoM	1

Product Matrix

Product Model	Preferred Model	Zynq 7000 SoC	DDR3 SDRAM (PS)	QSPI Flash	Temp. Range	USD Price
M7010		XC7Z010-1CLG400I	512 MB	32 MB	-40°C~+85°C	TBD
M7020		XC7Z020-2CLG400I	1 GB	32 MB	-40°C~+85°C	TBD

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
