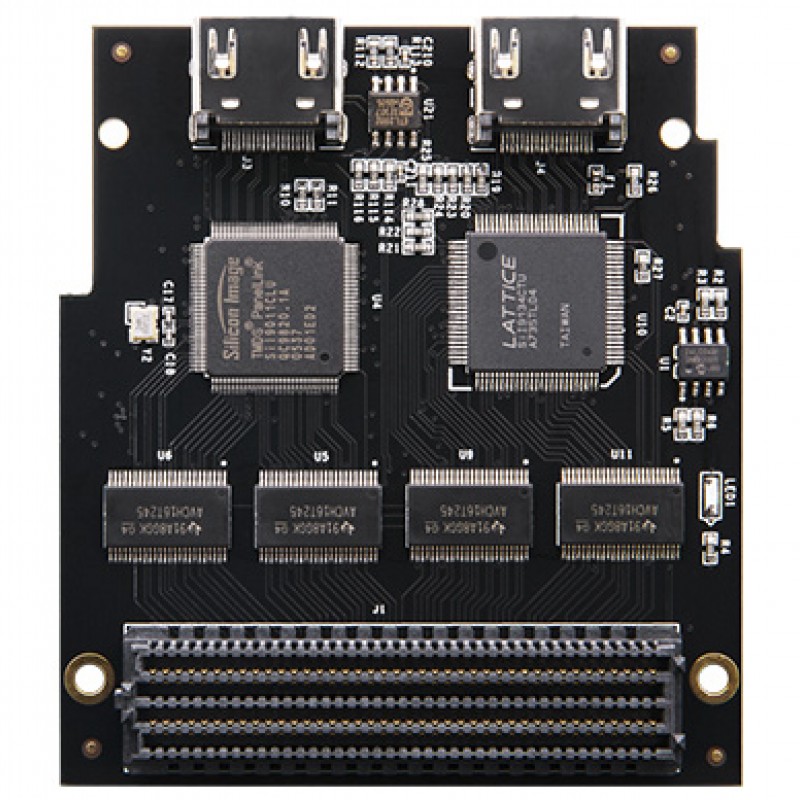

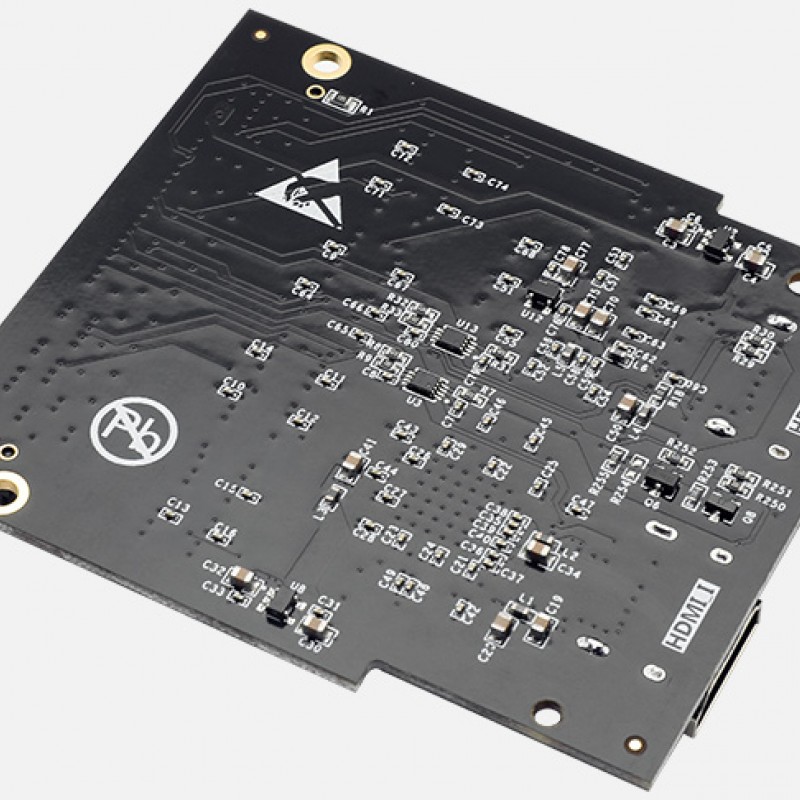

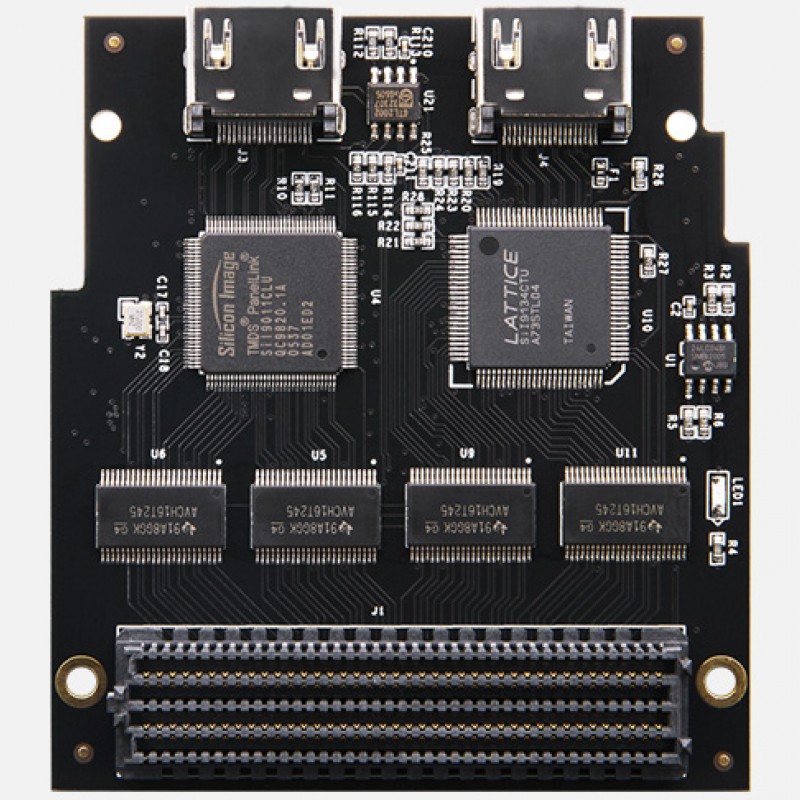

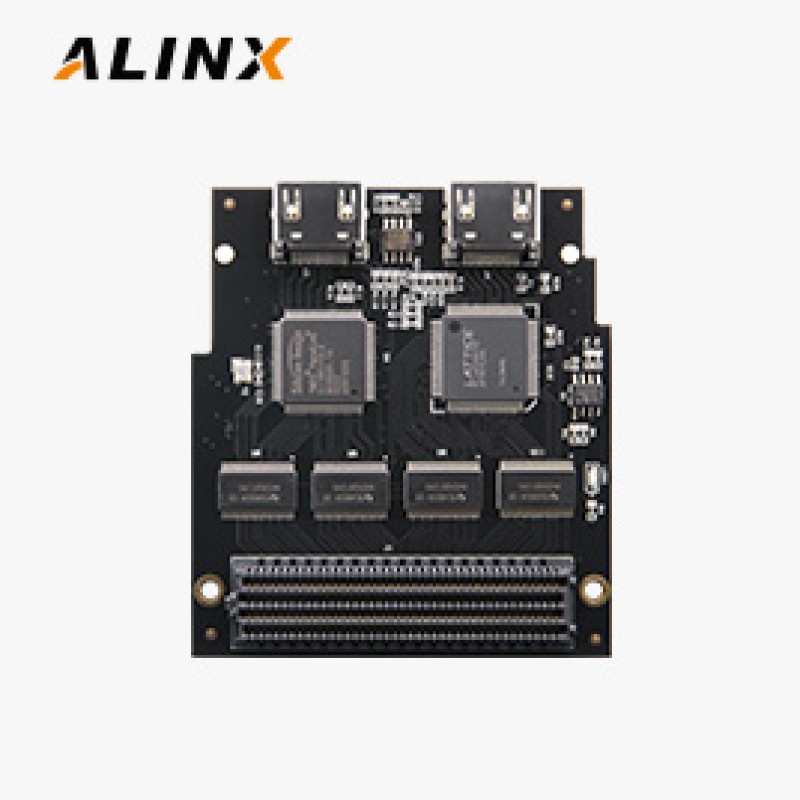

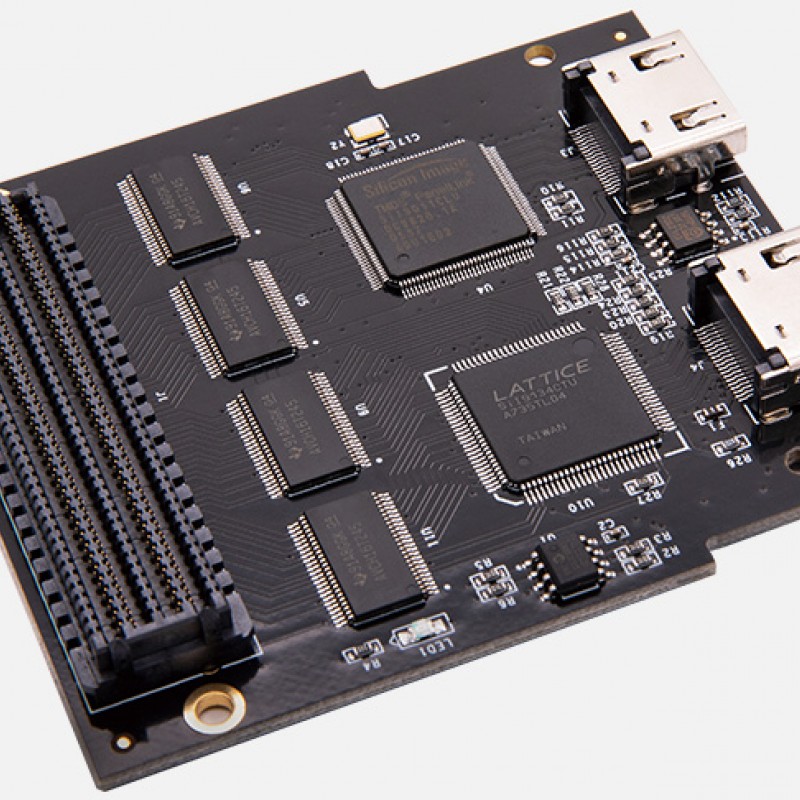

FL9134 1080P HDMI Input/Output Module LPC FMC Card

FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
FL9134 1080P HDMI Input/Output Module LPC FMC Card
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FL9134
  • SKU: FL9134
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$165.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

FL9134 includes one HDMI video input and one HDMI video output. HDMI adopts SIL9013 HDMI decoding chip and SIL9134 HDMI (DVI) encoding chip, supporting up to 1080P@60Hz Input and output, supporting data input and 3D output in different formats.


FL9134 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.


Key Features

  • ● Chip model: input SiI9134, output SiI9013
    ● HDMI input/output: 1 input, 1 output
    ● Resolution: Input up to 1920 support* 1080@60fps , Output up to 1920* 1080@60fps
    ● Data width: 24bit RGB/YCbCr 4:4:4:4
  • ● Parameter configuration: I2C interface configuration
    ● Working temperature: 0 ℃~70 ℃
    ● FMC LPC connector
    ● Dimensions: 76.5 x 69 mm form factor


Product Information

  • Specifications
  • What's Inside
Module Features


Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FL9134165

Documentations

  • FL9134 User Manual

    2023-04-26
    Download
