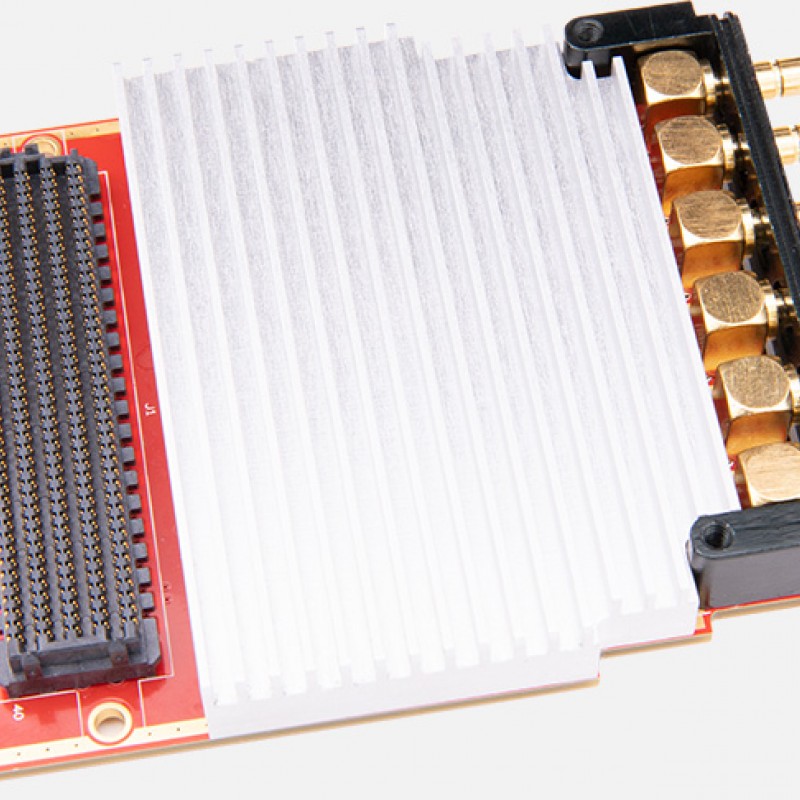

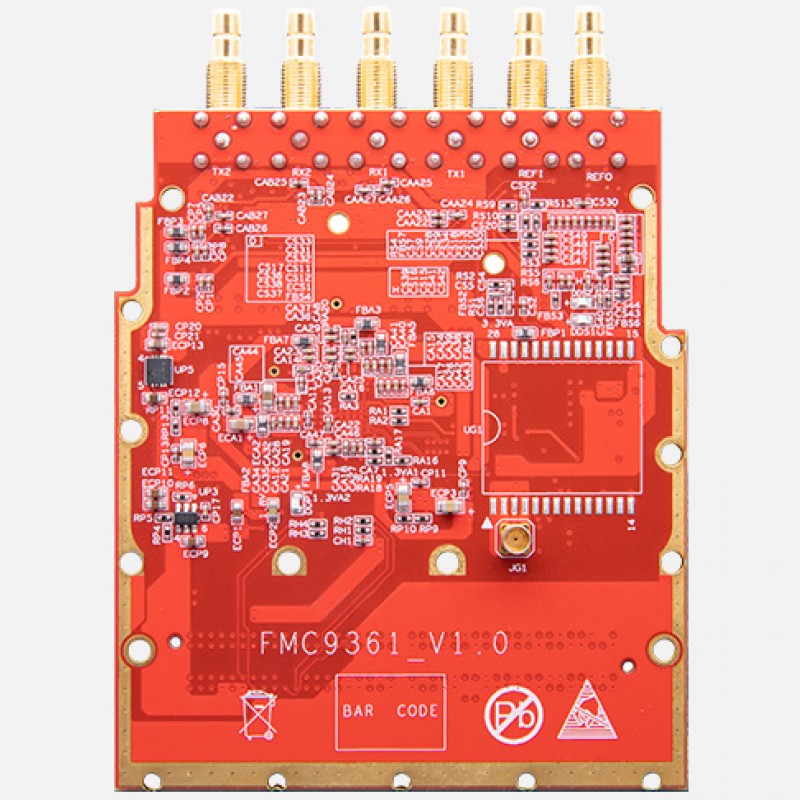

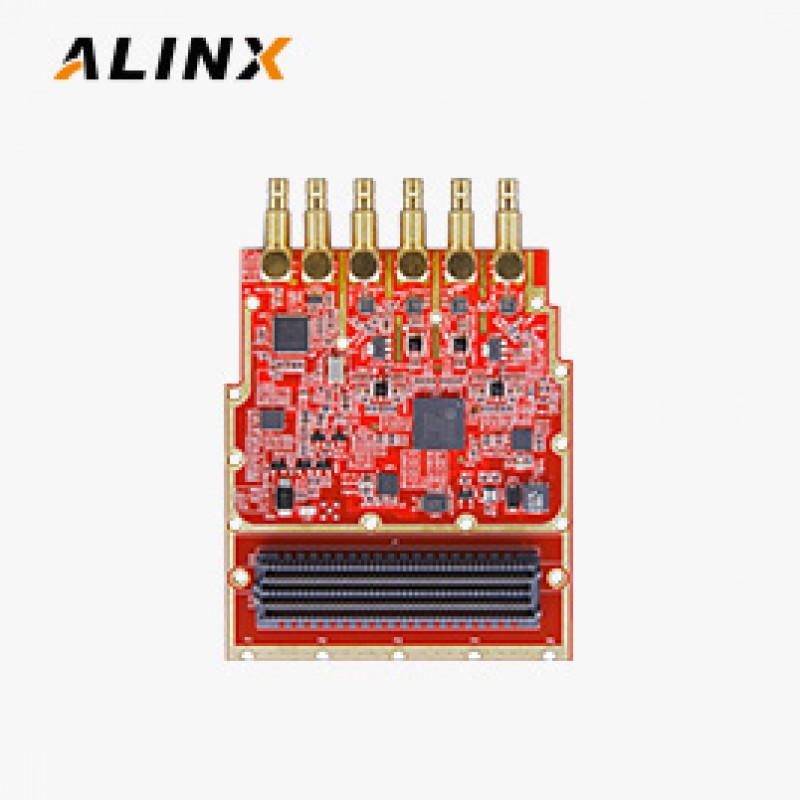

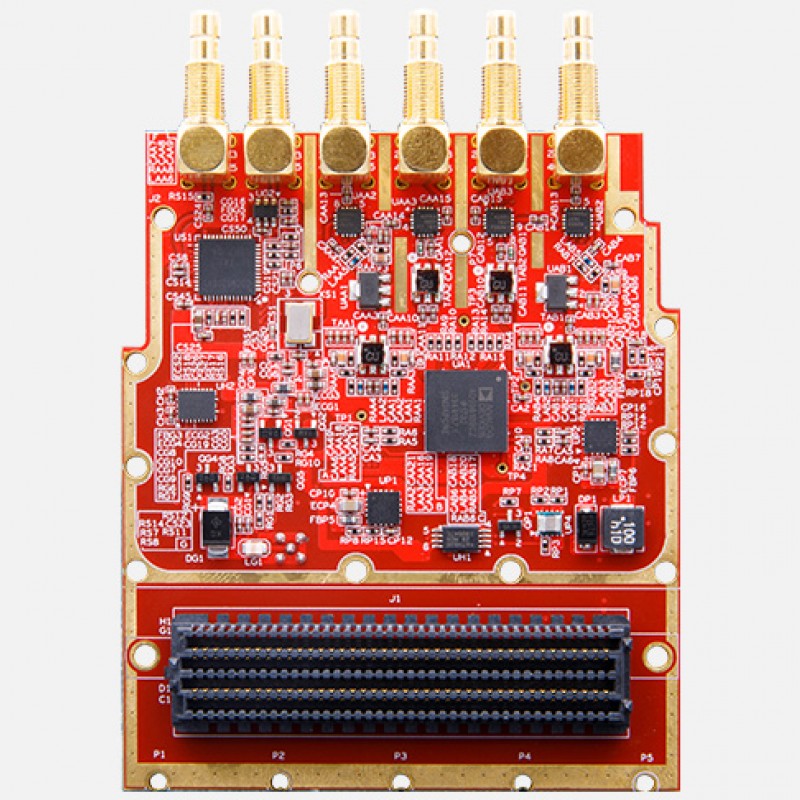

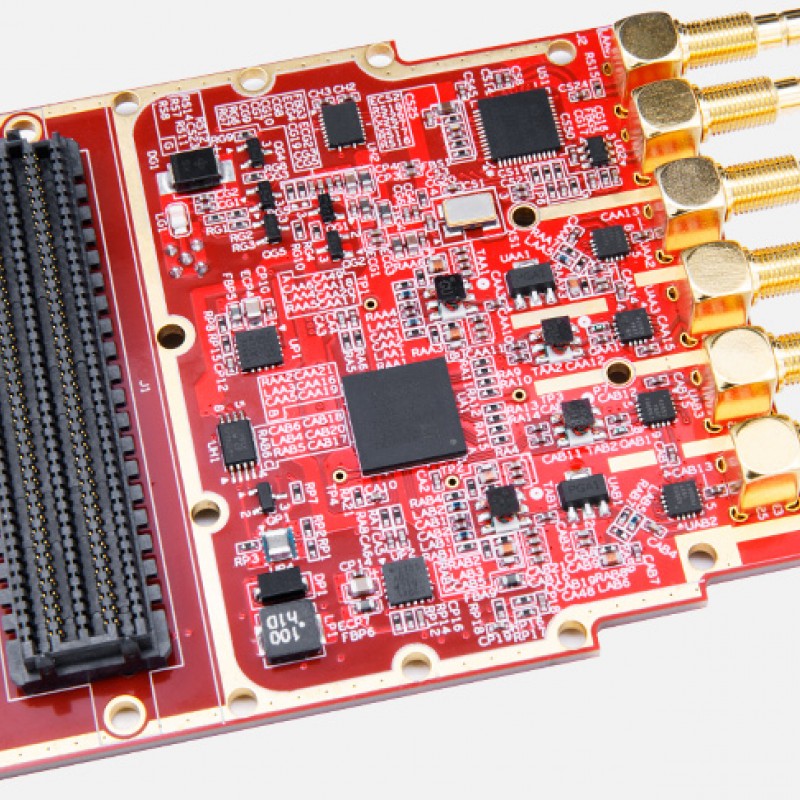

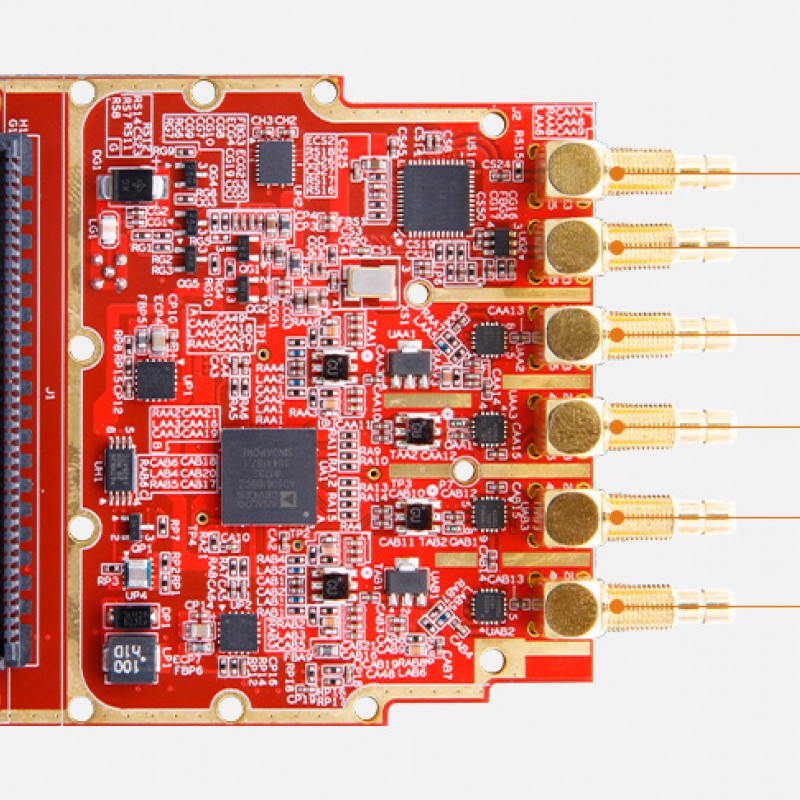

FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card

FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FL6000
  • SKU: FL6000
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$988.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The FL6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. Compared with traditional RF front-end, AD9361 can achieve advantages such as low power consumption and small size, while ensuring sensitivity and dynamic range performance. FL6000 is more suitable for application on general software defined radio platforms.


FL6000 has a standard  FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.

Applications

  • ● 3G/4G micro and macro base stations (BTS)

  • ● FDD and TDD active antenna systems

  • ● Portable test equipment



Key Features

  • ● Chip Model: AD9361
    ● Overlay Band: 70MHz~6GHz
    ● 12bit ADC & 12bit DAC
    ● Supports half duplex, full duplex, TDD/FDD mode
    ● RF impedance matching 50 Ω
    ● RX maximum 56MHz real-time bandwidth
  • ● TX maximum 56MHz real-time bandwidth
    ● Integrated power amplifier（ 14dB@2GHz ）, supporting a maximum transmission power of 10dBm output
    ● Supports internal or external reference clocks
    ● Parallel digital port
    ● Optional GPS module, providing reference clock and pulse synchronization signal through GPS
    ● FMC LPC connector
    ● Dimensions: 76.5 x 69 mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features

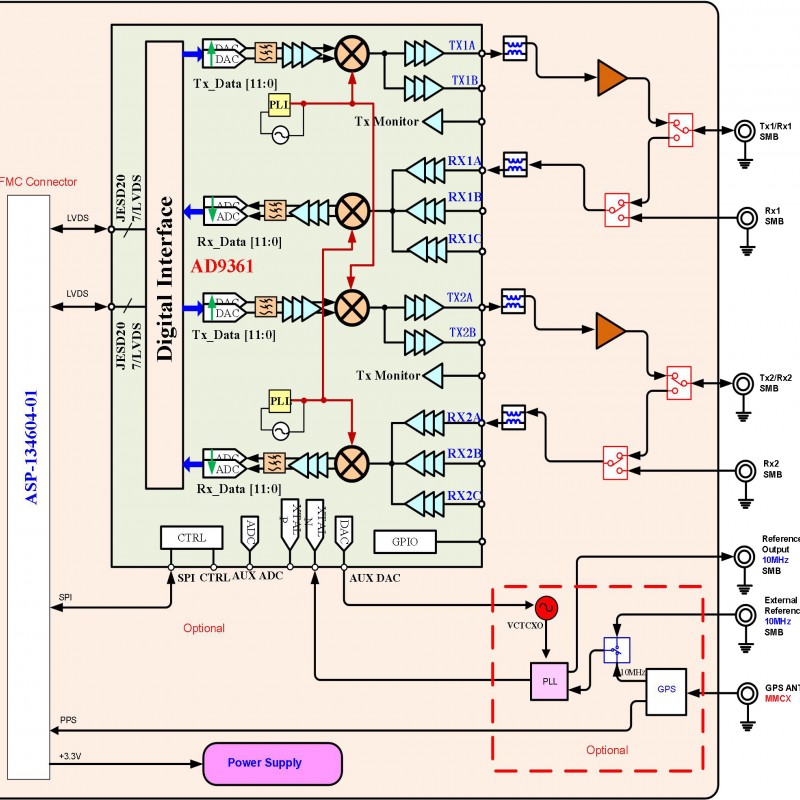

Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FL6000988

Documentations

  • FL6000 User Manual

    2024-02-29
    Download

Write a review

Note: HTML is not translated!
Bad Good
