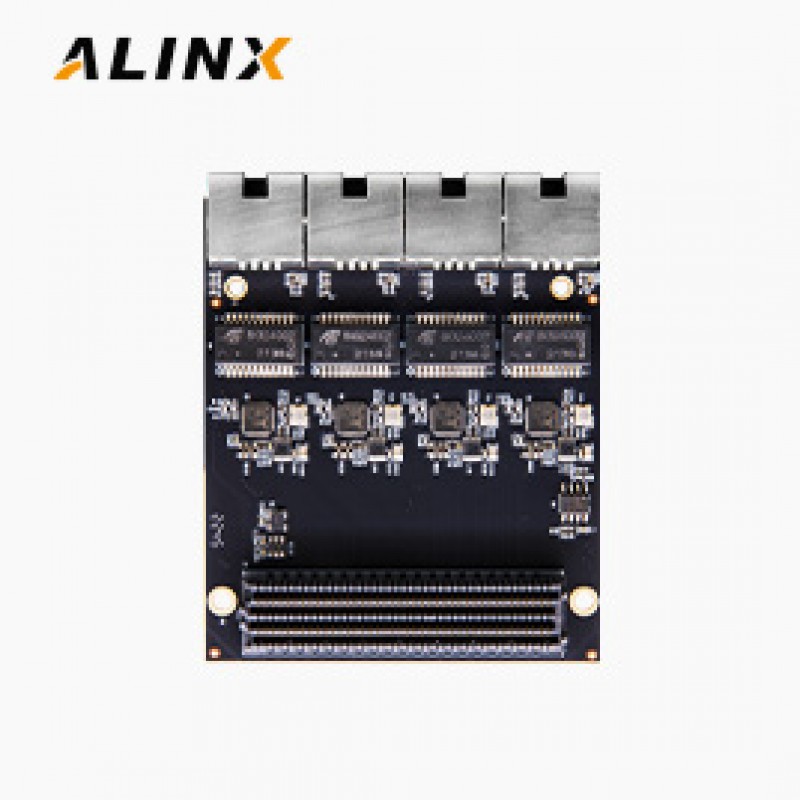

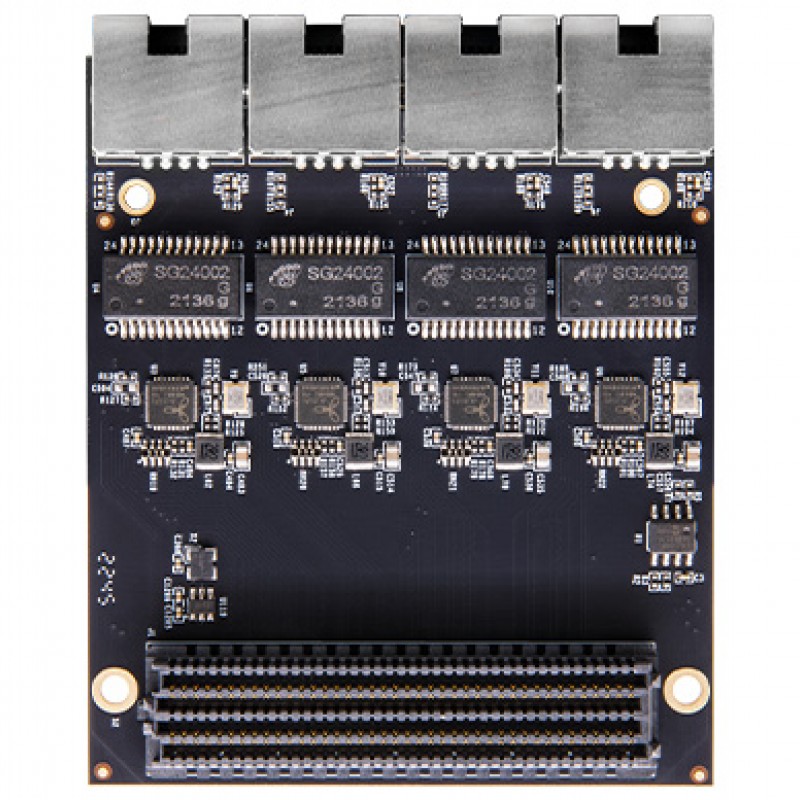

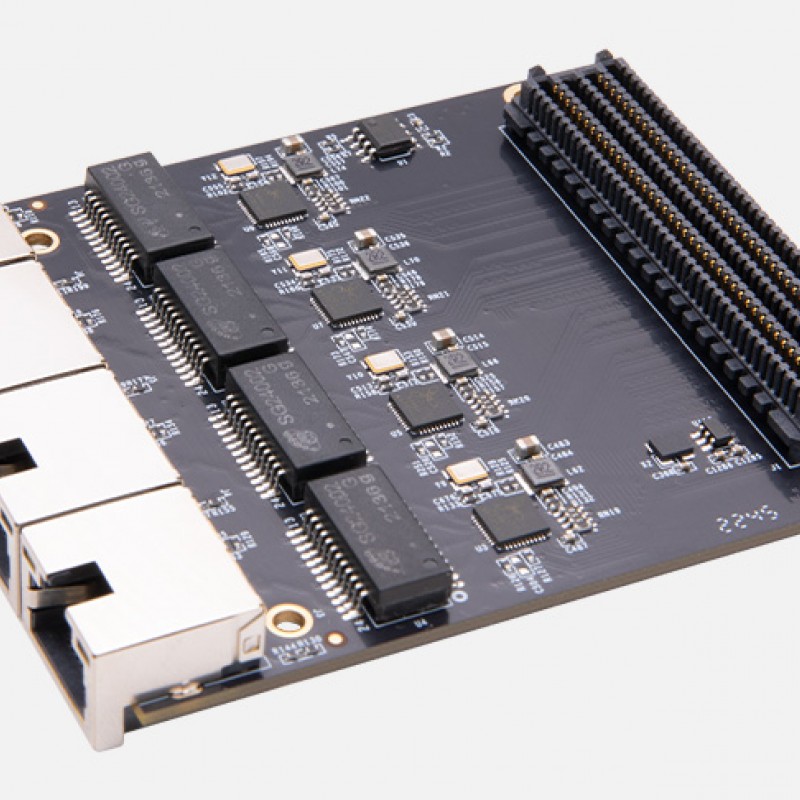

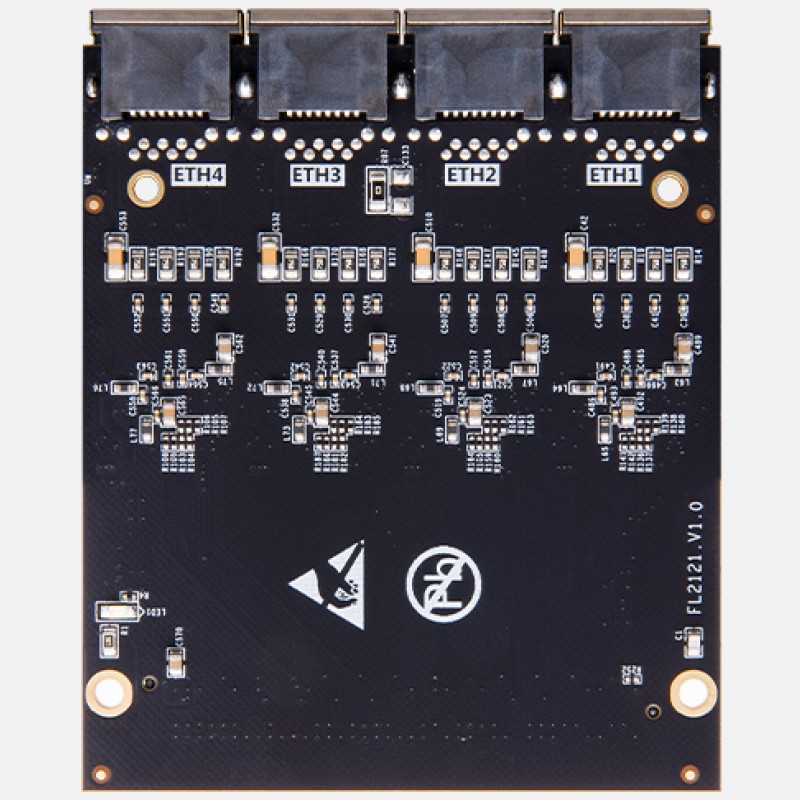

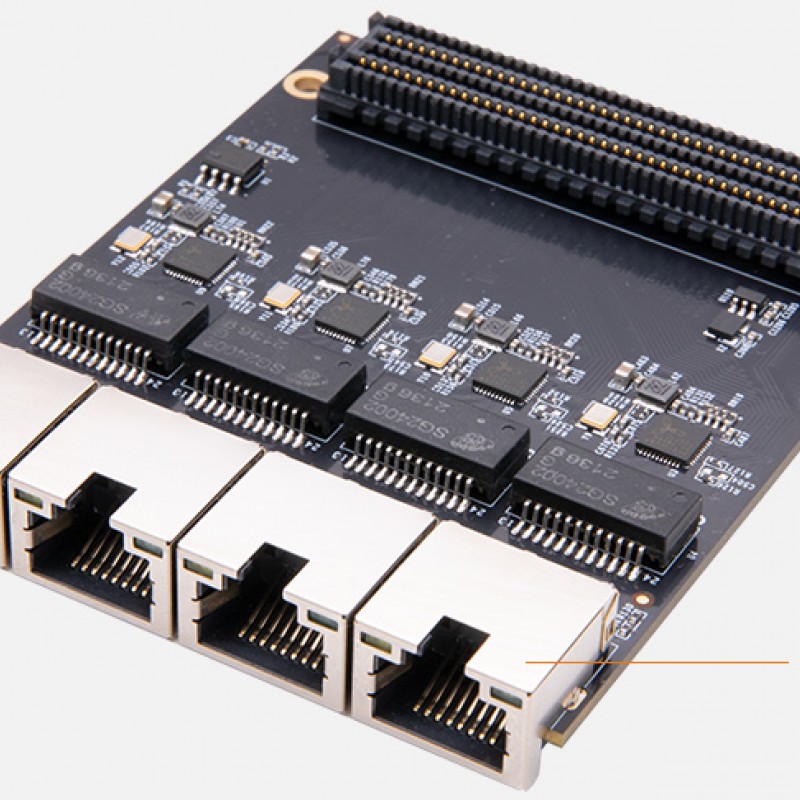

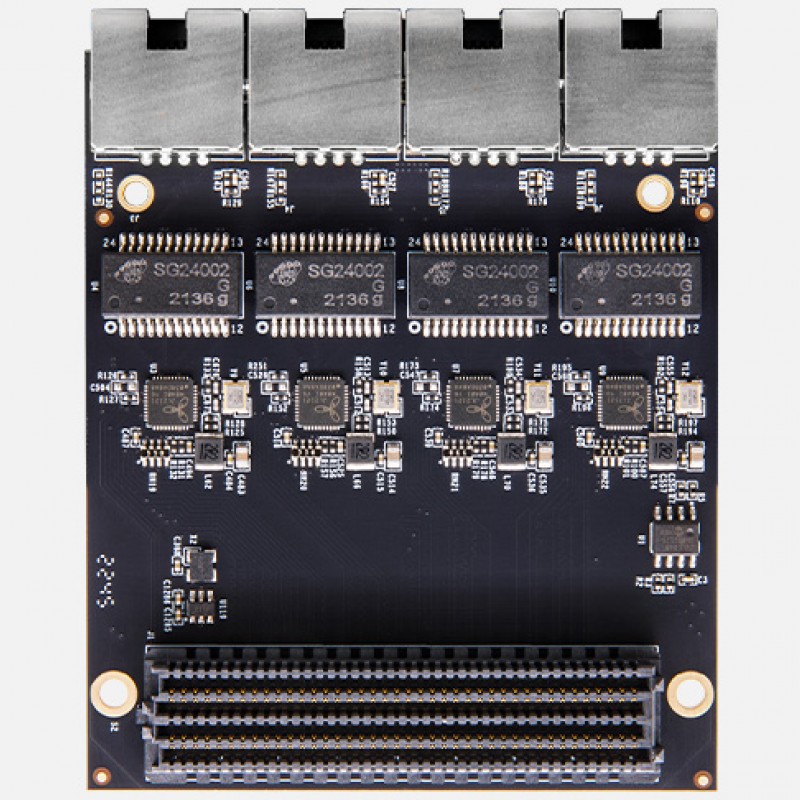

FL2121 is a 4-way 10/100/1000Mbps adaptive Ethernet communication interface module. The FMC module adopts the JL2121 Ethernet PHY chip, which supports 10/100/1000 Mbps network transmission rate. interface is RJ45.
FL2121 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
● Chip Model: JL2121 ● Number of Ports: 4 ● Working Mode: RGMII ● Working Rate: 10/100/1000Mbps Adaptive
● Working temperature: -40 ℃~85 ℃ ● FMC LPC connector ● Dimensions: 76.5 x 69 mm form factor
Product Information
Specifications
What's Inside
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
