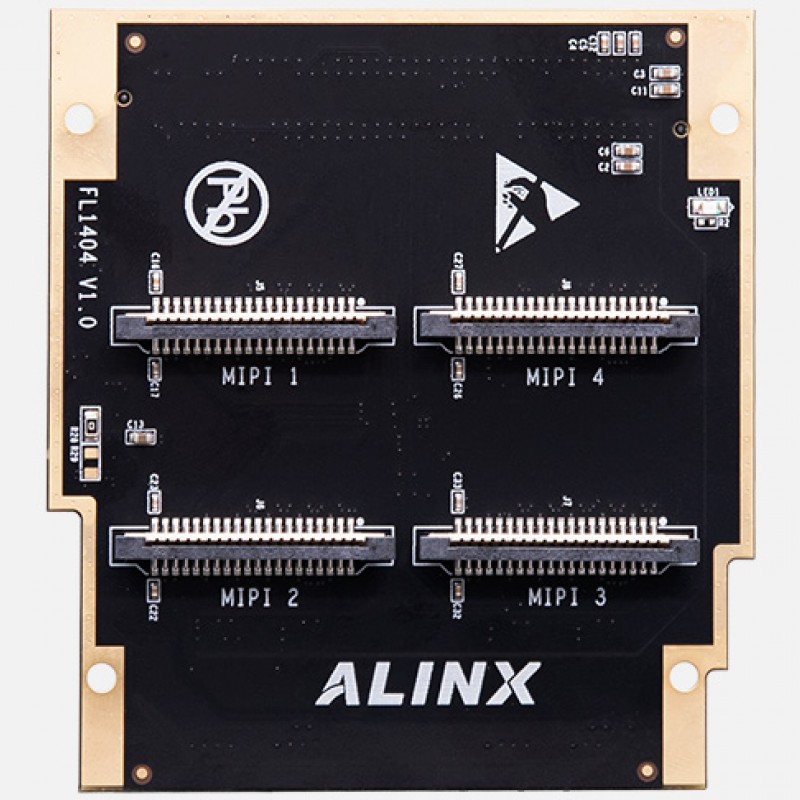

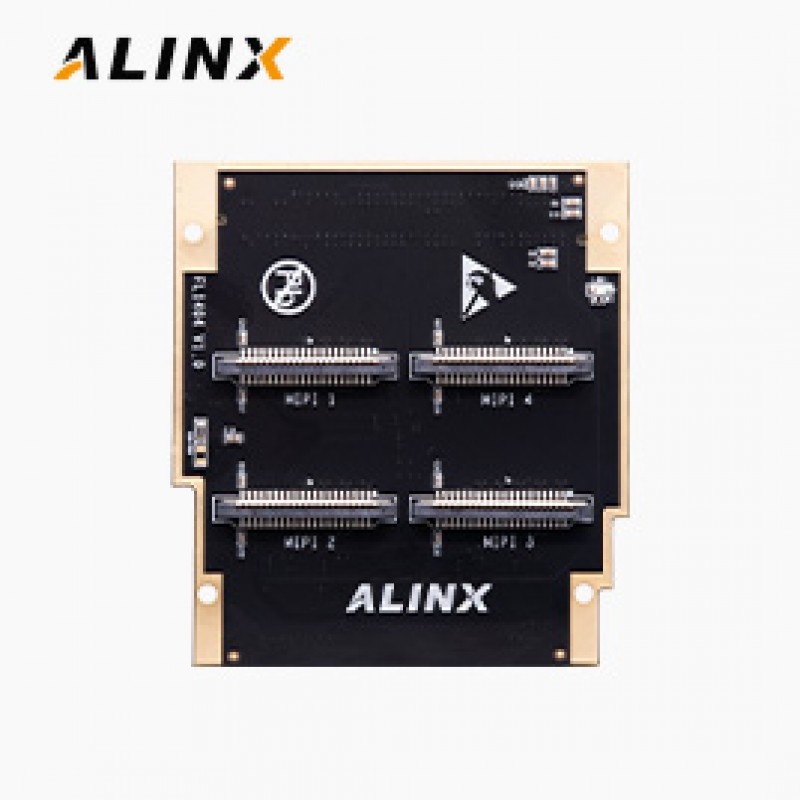

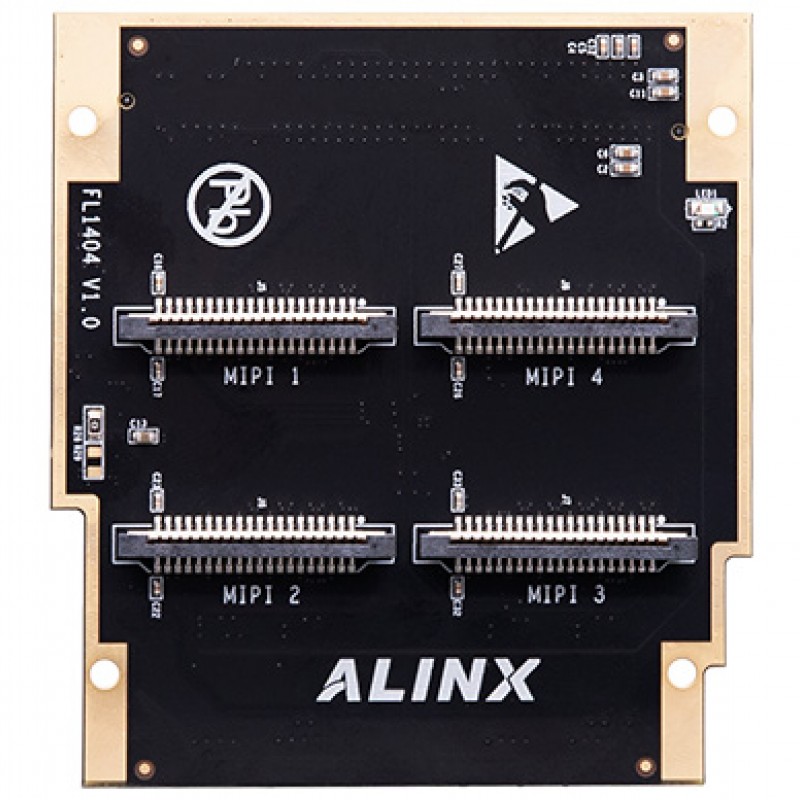

FL1404 4-channel LANE*4 MIPI Camera Interface LPC FMC Card
$150.00
Product Description
FL1404 is an FMC to 4-way MIPI module that solves the problem of users expanding 4-way MIPI on FMC connectors, making it convenient for users to connect MIPI cameras or MIPI LCD screens through FPC ribbon cables. Each MIPI is an LANEx 4 interface, with a speed of up to 2.5Gbps.
FL1404 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features

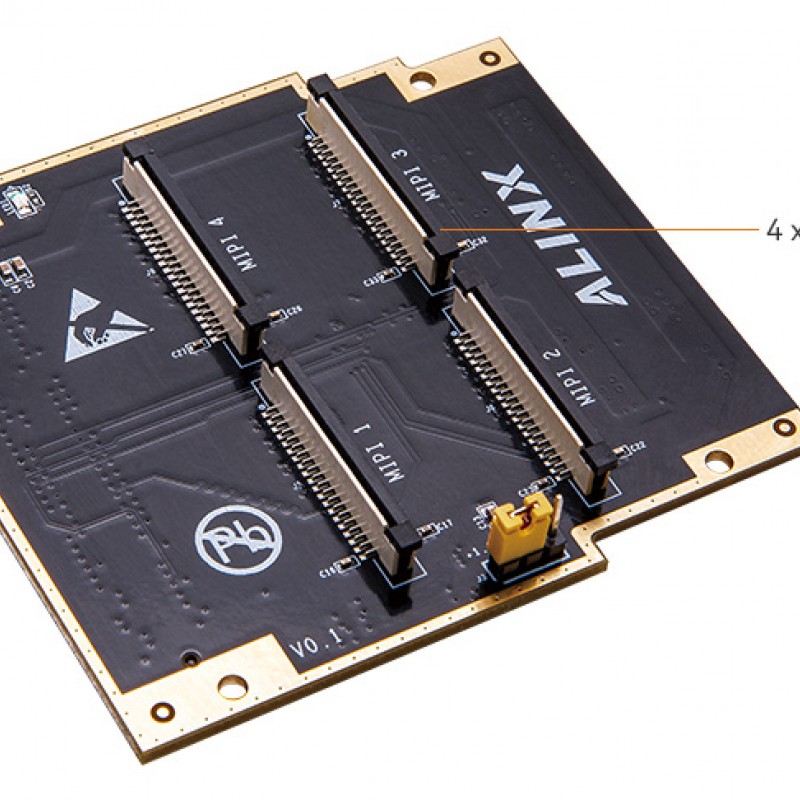

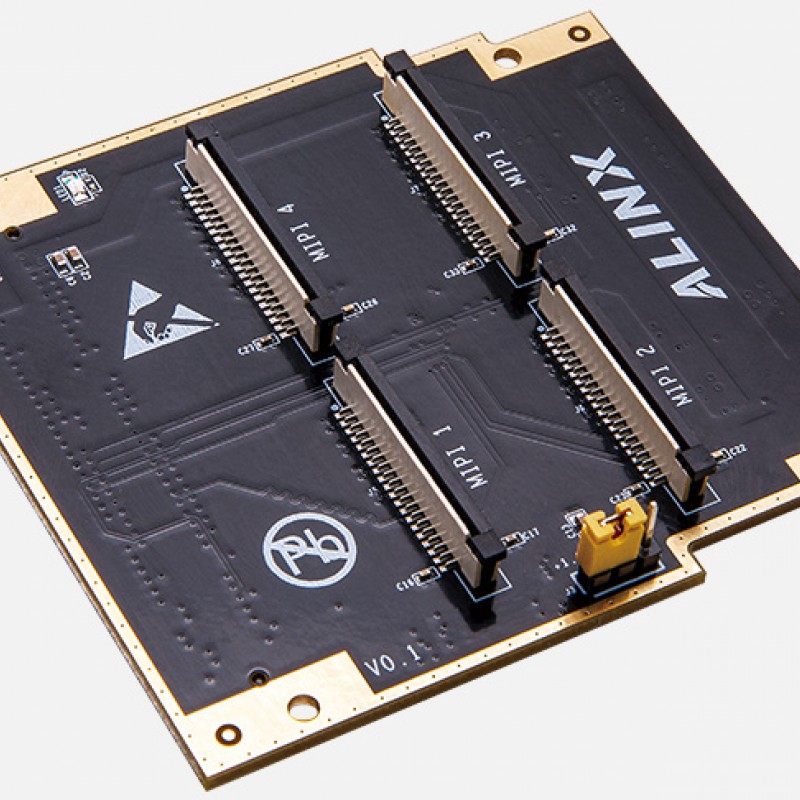

- ● MIPI Interface: 4 LANE*4 FPC interface

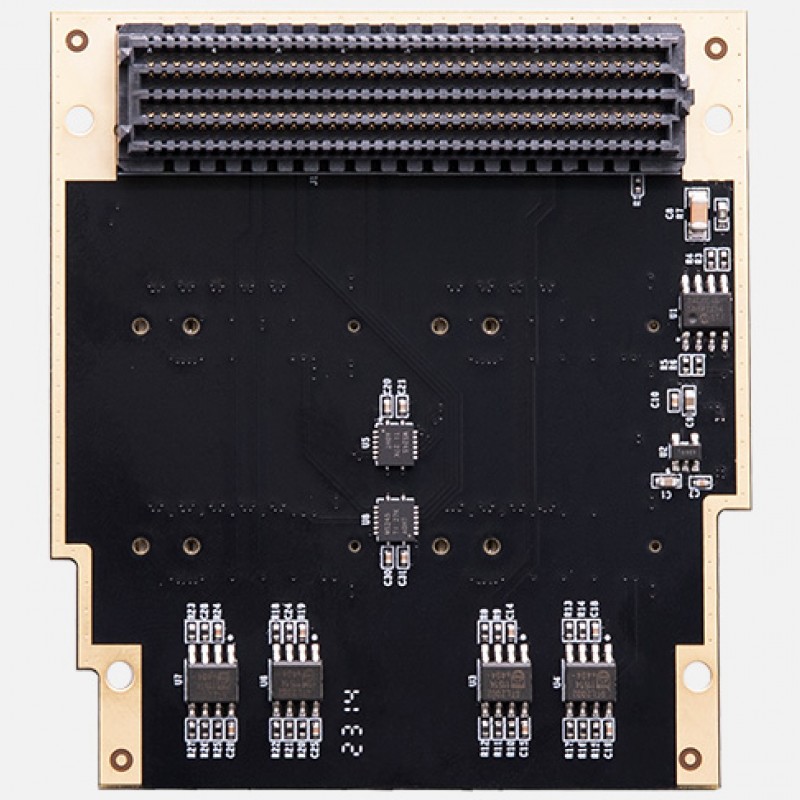

● Transfer Rate: Up to 2.5Gbps. - ● FMC LPC connector
● Dimensions: 76.5 x 69 mm form factor.
- Specifications
- What's Inside
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FL1404 | 150 |
- Download
FL1404 User Manual
2024-02-29
