Product Description

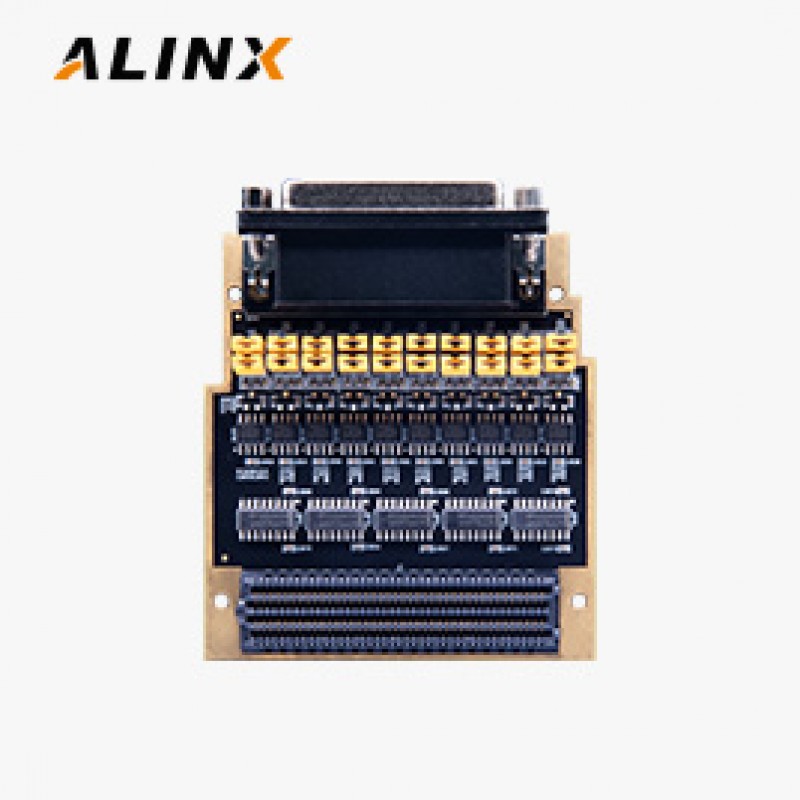

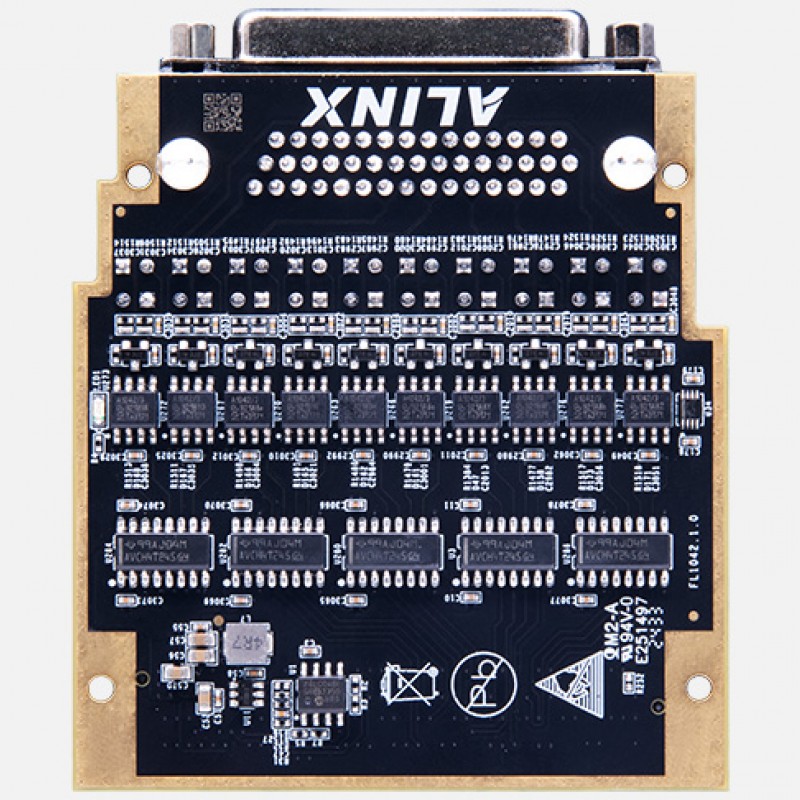

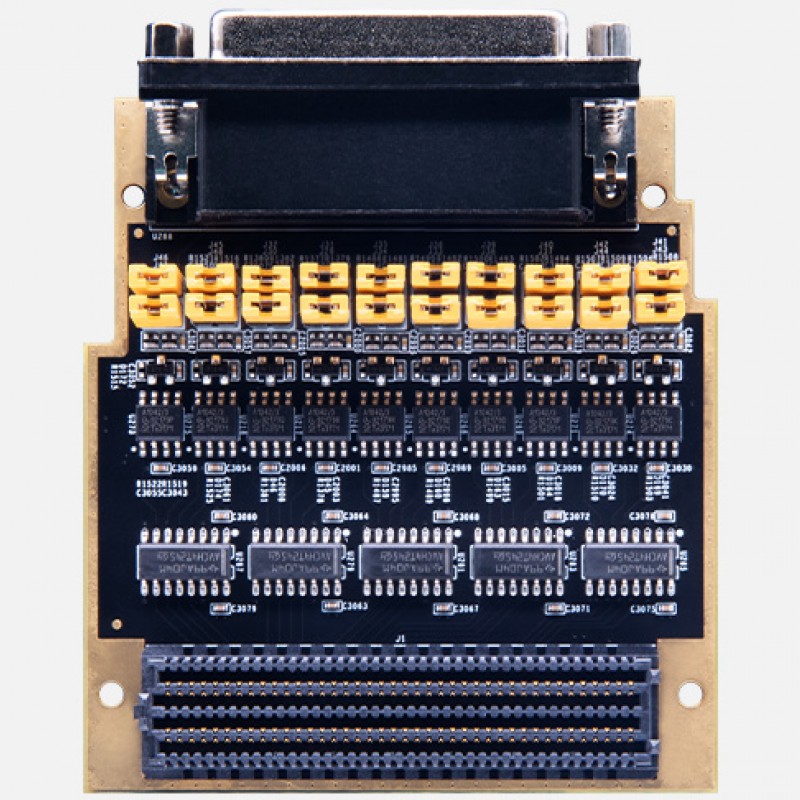

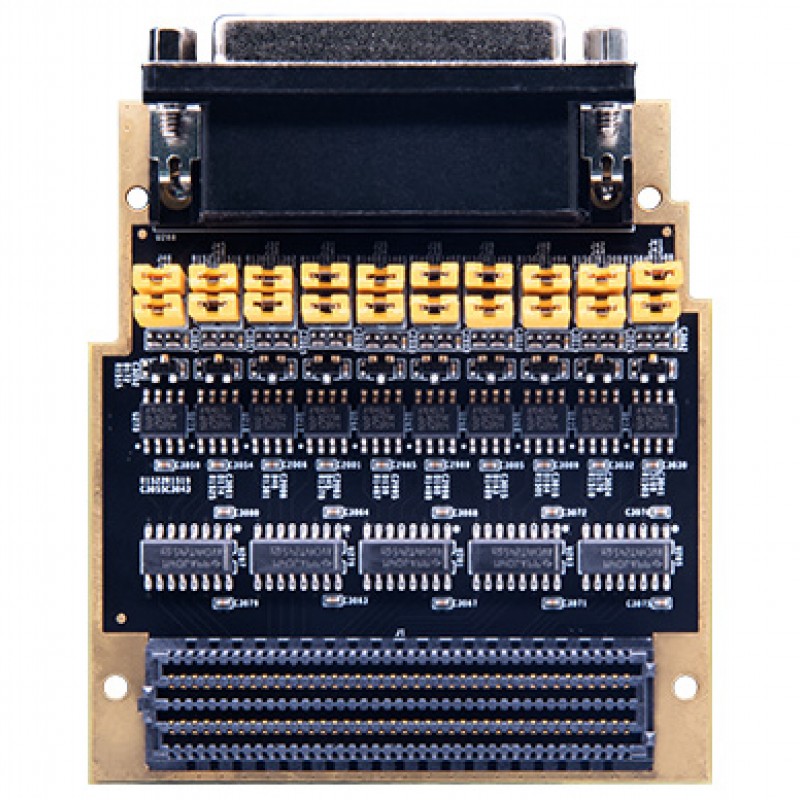

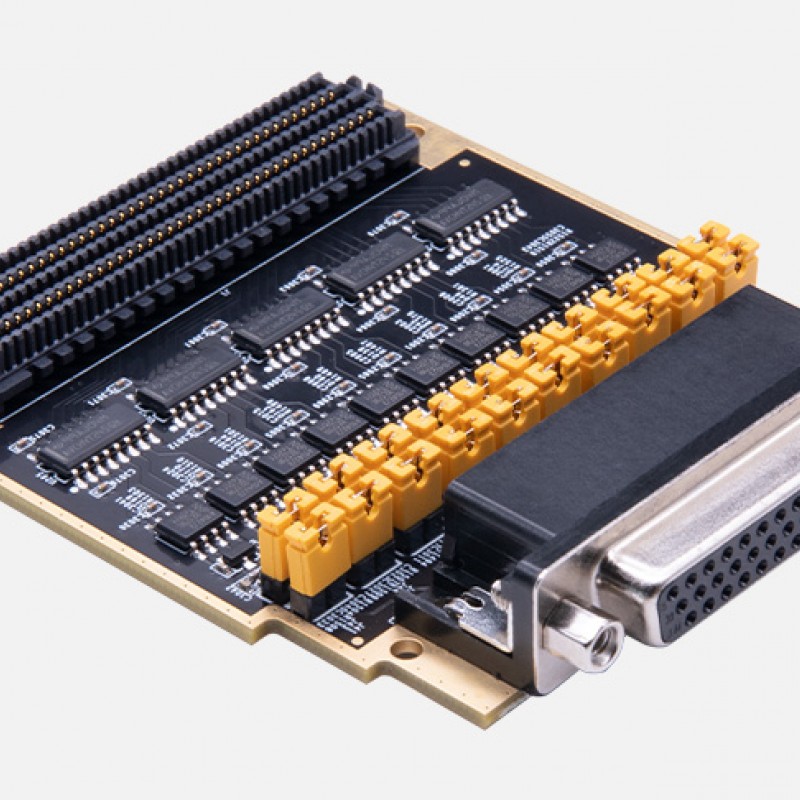

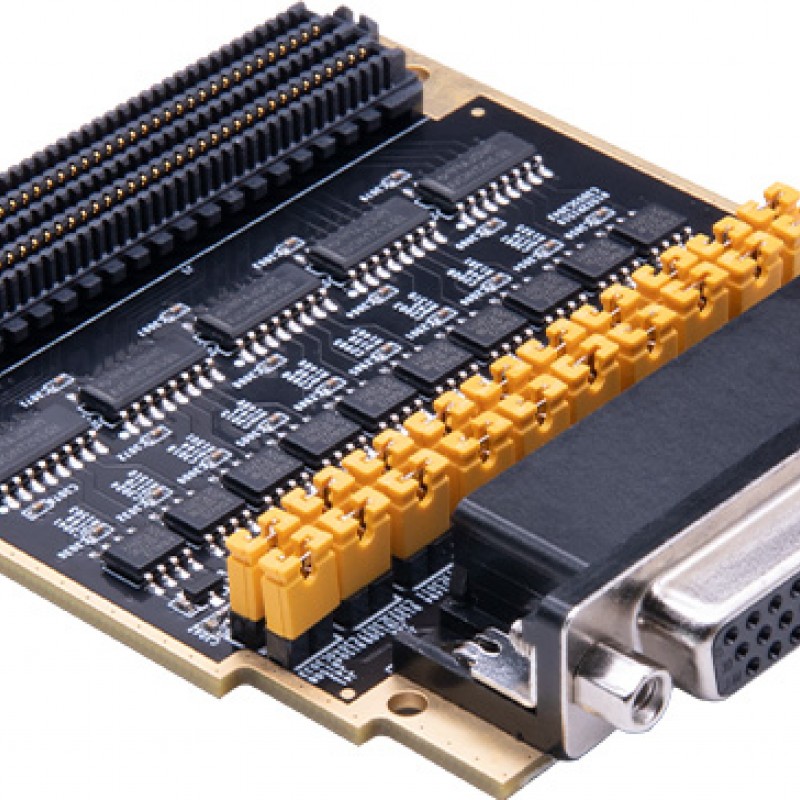

The FL1042 is a 20-channel CAN FD (Controller Area Network with Flexible Data-Rate) communication module designed for high-speed, high-reliability data transmission. It connects to external signals via a DB44 female header connector and supports jumper-configurable termination resistors for CAN FD buses
FL1042 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
● FMC LPC connector
● Channels: 20 CAN FD
● Connector: DB44 female header● Chipset: NXP TJA1042T/3/1J
● Dimensions: 76.5x 69 mm form factor
- Specifications
- What's Inside
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FL1042 | 749 |
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
