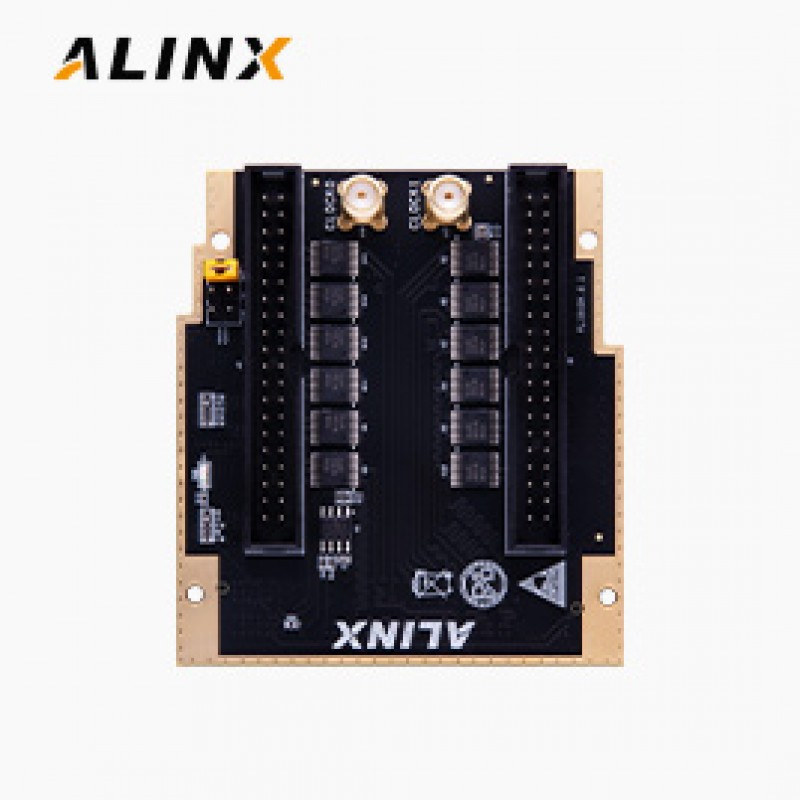

FL1010V Level-Shifting Dual-Row FMC LPC Card

FL1010V Level-Shifting Dual-Row FMC LPC Card
FL1010V Level-Shifting Dual-Row FMC LPC Card
  • Stock: In Stock
  • Model: FL1010V
  • SKU: FL1010V
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$90.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The FL1010V is a flexible FMC mezzanine card for FPGA development, featuring 68 user I/Os with selectable 1.8V/3.3V/5V levels, dual SMA clock inputs, and VITA57.1 compliance.


FL1010V has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.


Applications

  • ● FPGA Prototyping & Verification

  • ● Industrial Control & Automation

  • ● Communication & Signal Processing

  • ● Test & Measurement Instrumentation


Key Features

  • ● FMC Interface: LPC standard, VITA57.1 compliant
    ● Connector Model: ASP_134604_01
    ● Expansion Interface: 2×40-pin standard headers (2.54mm pitch)
    ● User I/Os: 68 channels
  • ● I/O Level Standards: 1.8V, 3.3V, 5V (selectable via jumpers J13/J14/J15)
    ● Level Shifter IC: TXB0106PW (bidirectional)
    ● Clock Input: 2×SMA connectors (default input level 3.3V)
    ● Dimensions: 76.5 x 69mm form factor

Product Information

  • Specifications
  • What's Inside
Level adjustment function

Select the IO voltage level standard through the three jumper caps J13, J14, and J15 on the module





Functional Block Diagram

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FL1010V1
