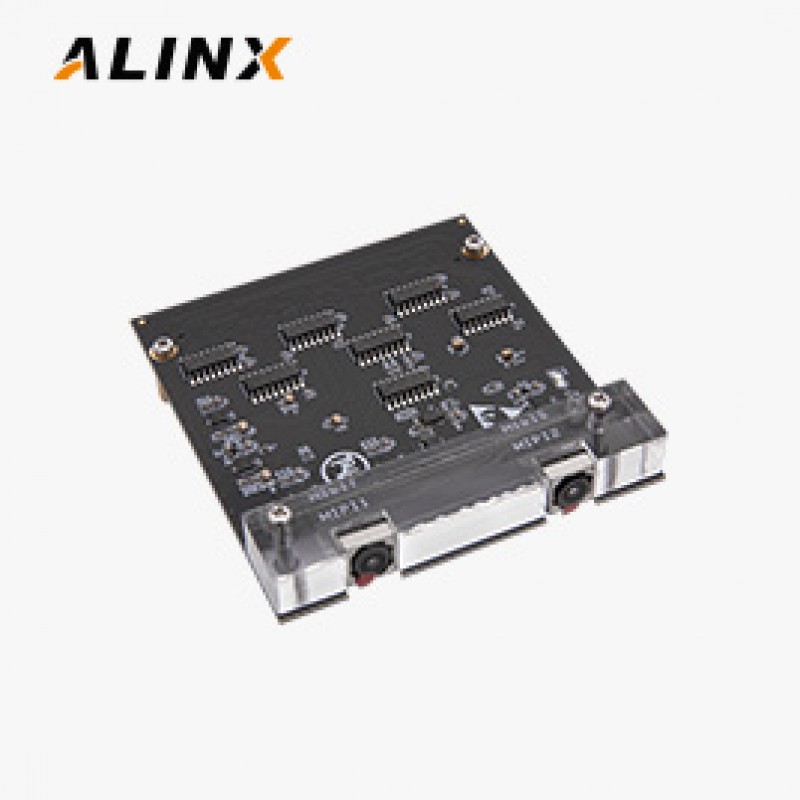

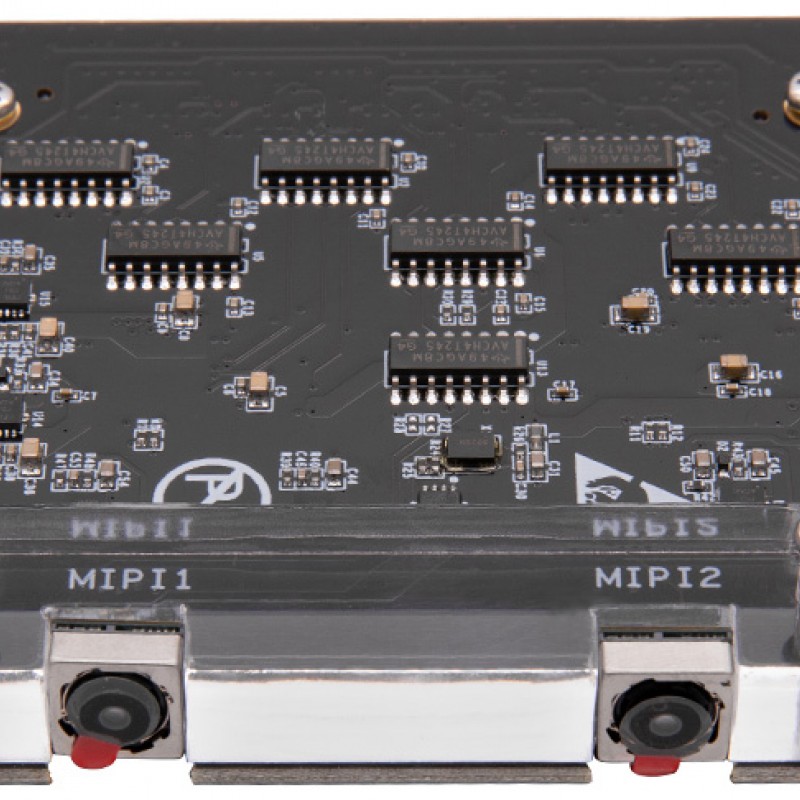

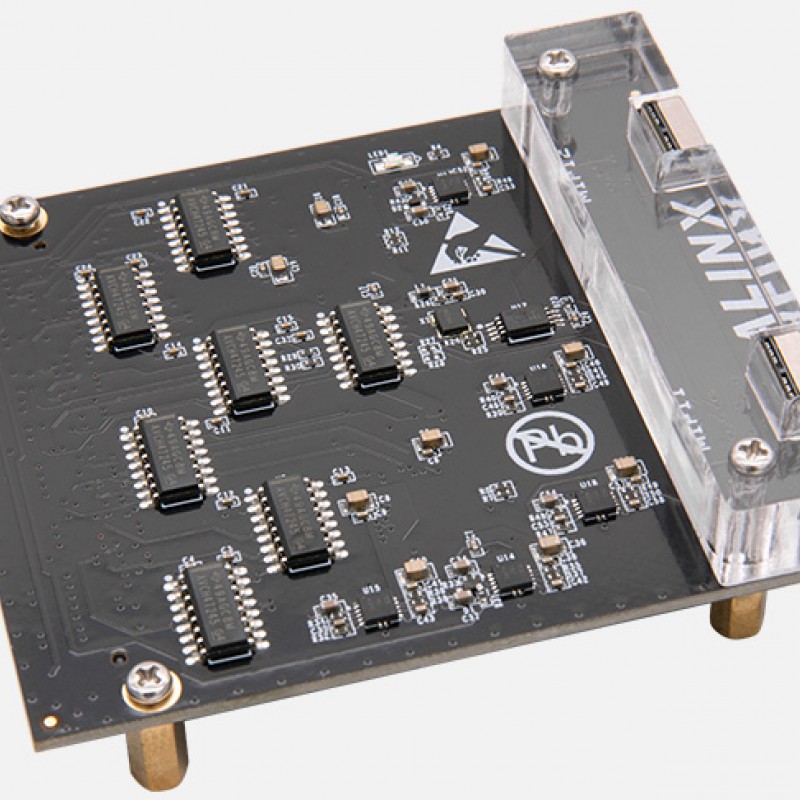

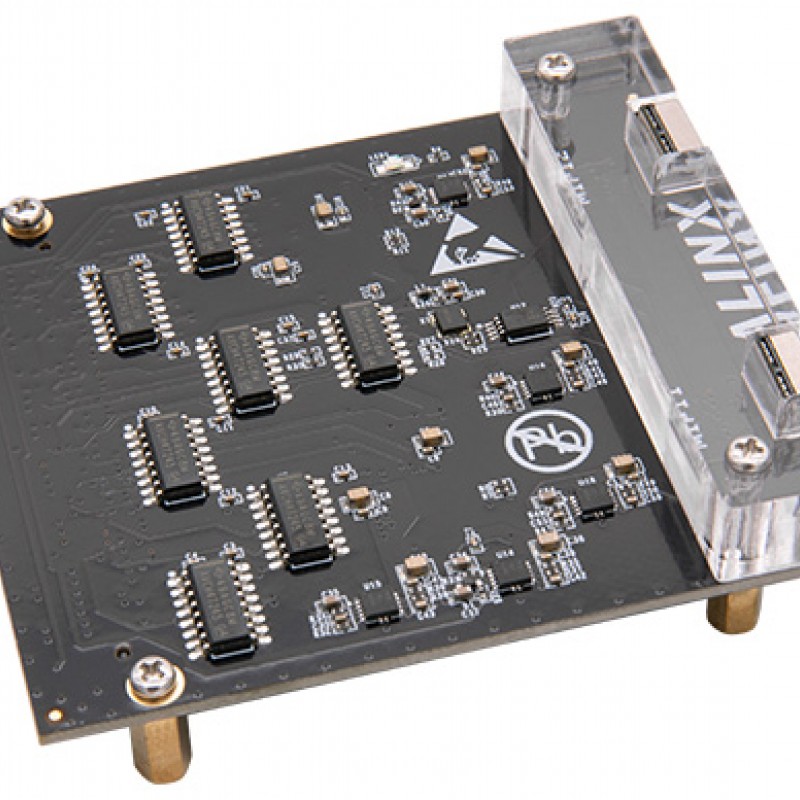

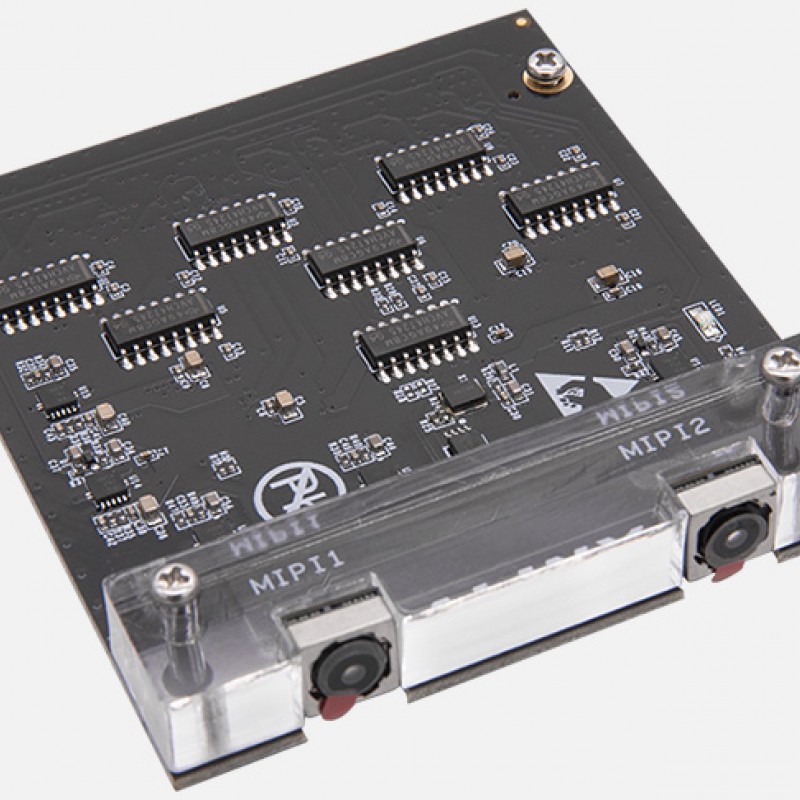

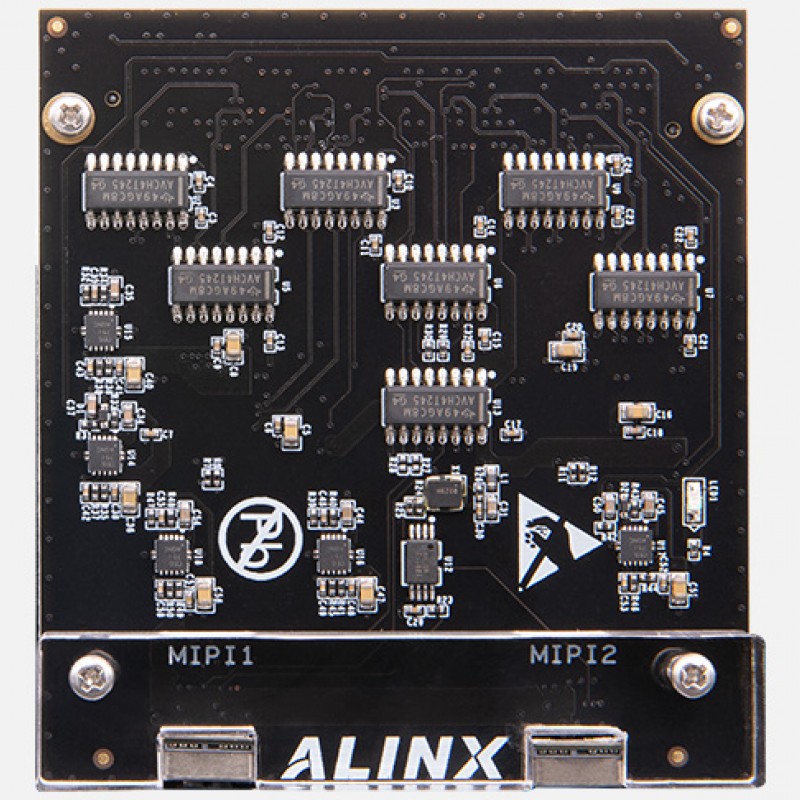

FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card

FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
FL0214 Dual MIPI IMX214 CMOS Camera LPC FMC Card
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FL0214
  • SKU: FL0214
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$329.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

FL0214 is a 2-way 13 megapixel CMOS camera module with MIPI interface. The camera module adopts a CMOS photosensitive chip IMX214.


FL0214 has a standard  FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.


Key Features

  • ● Photosensitive Chip: SONY IMX214
    ● Resolution Ratio: 4208 *3120/4K/2K@30fps, 1080P@60fps
    ● Output Format: RAW10/8, COMP8/6
    ● Viewing Angle: 80.7°± 3° (Diag)
    ● Focusing distance: 10CM~infinity
    ● Camera output: CSI-2 serial data output (MIPI 4 Lane, compatible with D-PHY standard V1.1)
  • ● Focusing method: The motor automatically focuses
    ● Camera configuration interface: I2C
    ● MC20901 driver chip: level conversion (MIPI D-PHY ->LVDS)
    ● FMC LPC connector
    ● Working Temperature: -20°C-65°C
    ● Dimensions: 76.5 x 69 mm form factor


Product Information

  • Specifications
  • What's Inside
Module Features


Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FL0214329

Documentations

  • FL0214 User Manual

    2023-04-26
    Download
