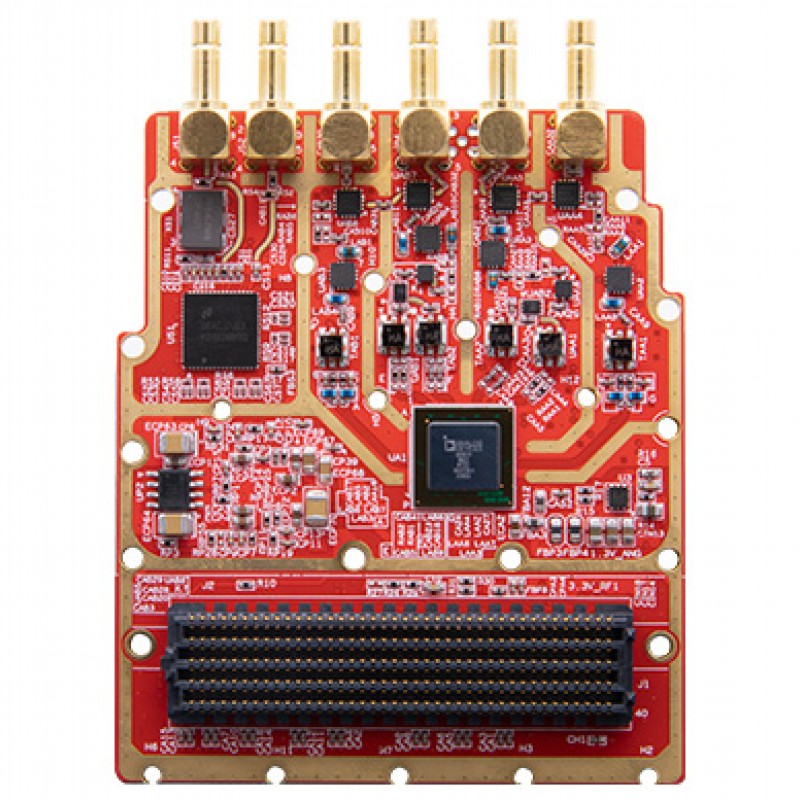

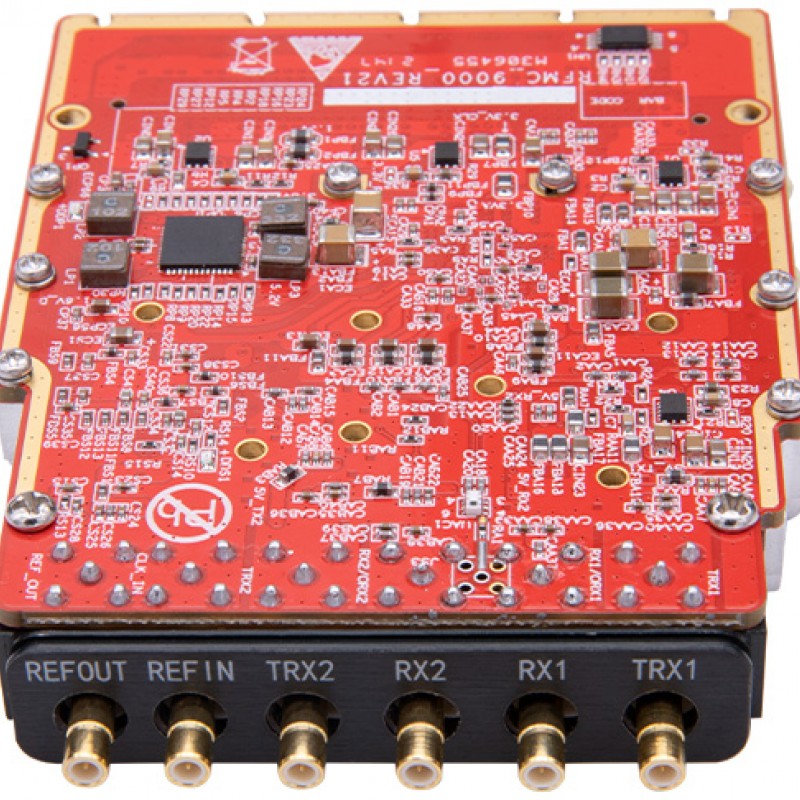

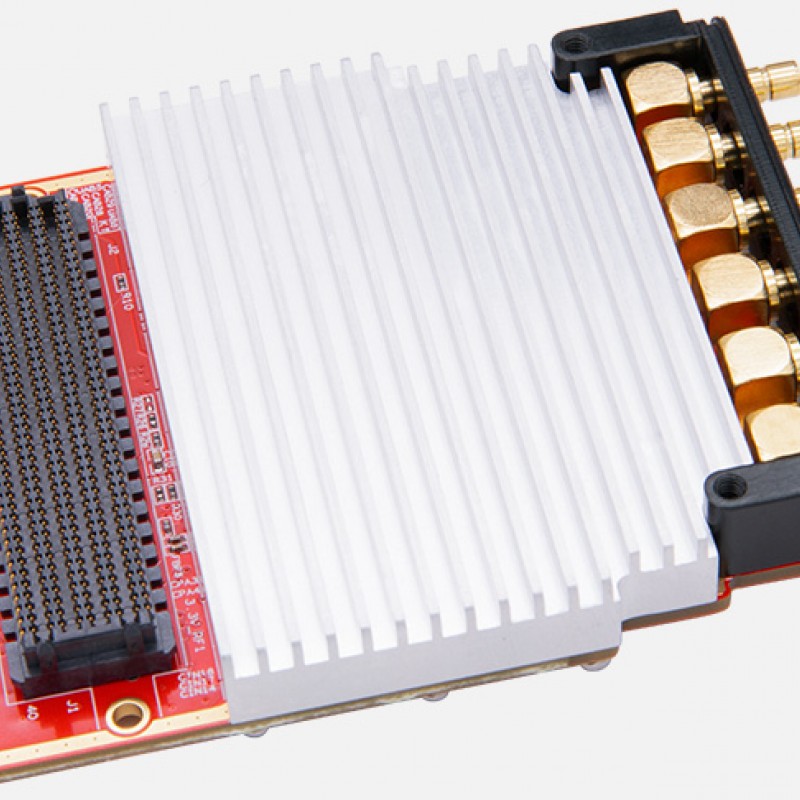

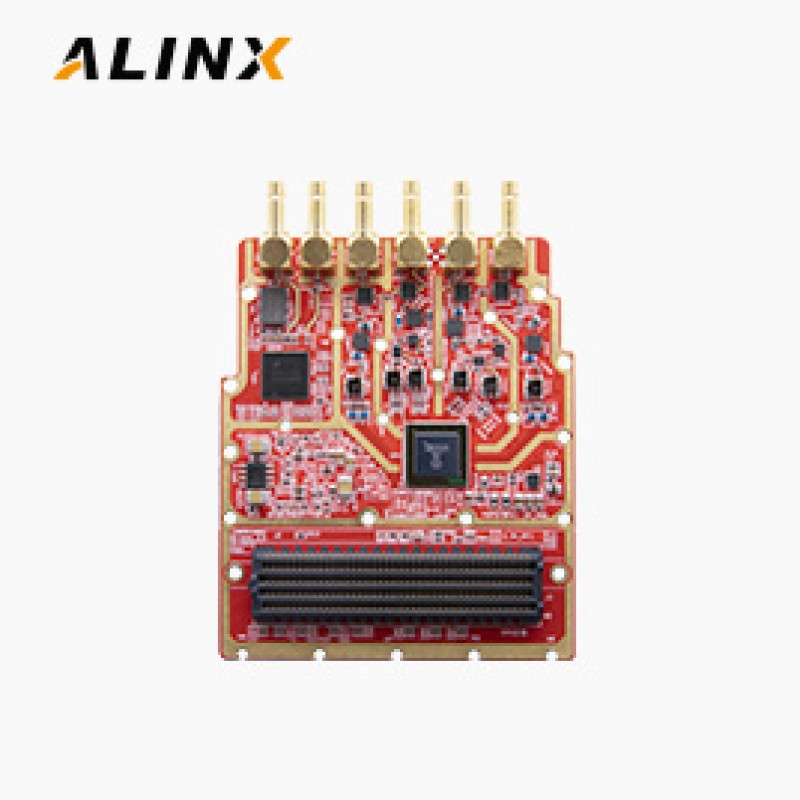

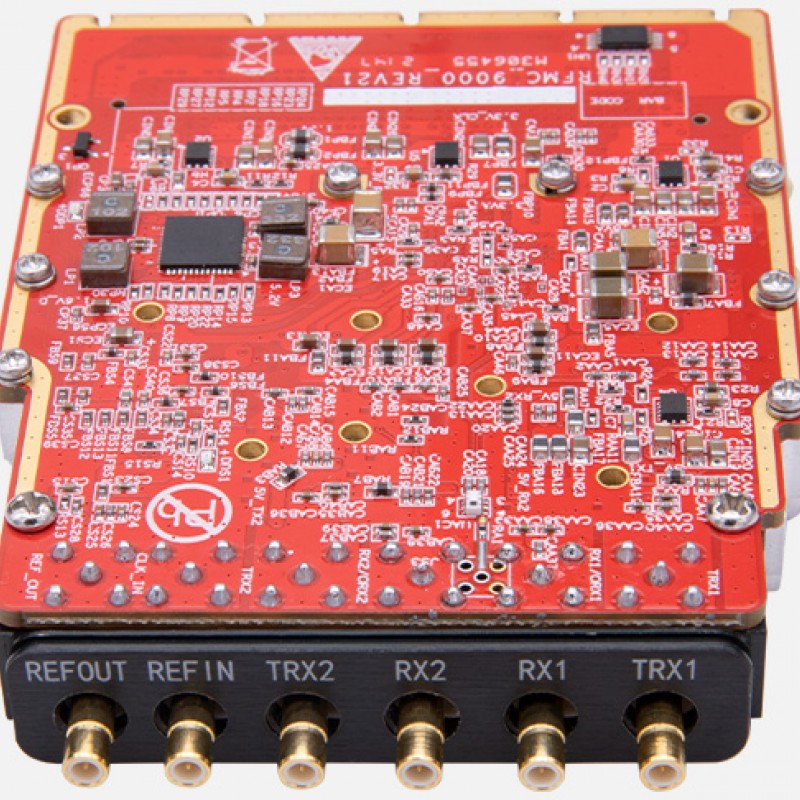

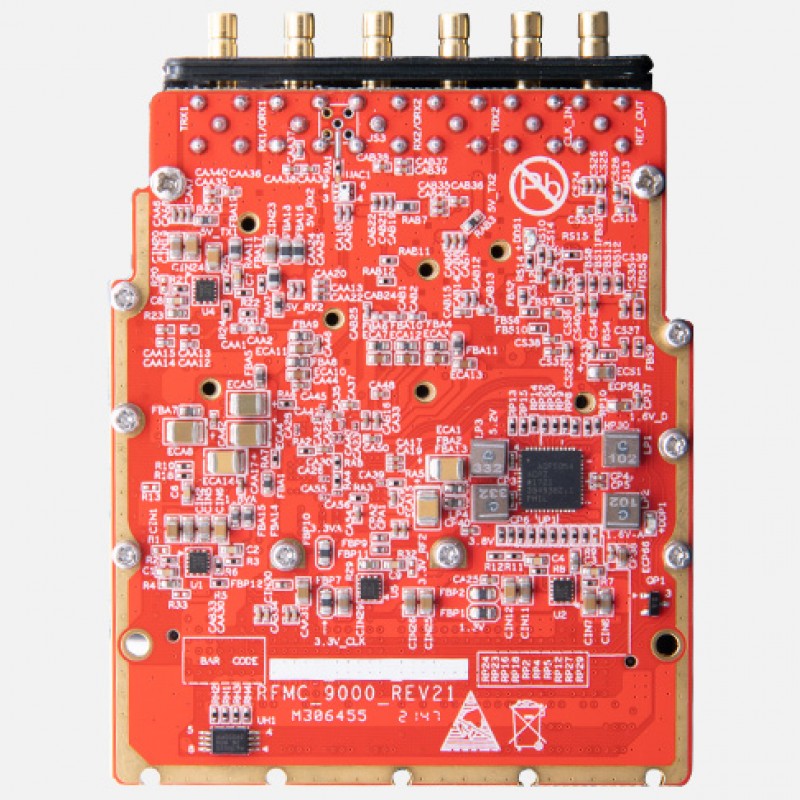

FH9000 is a high-performance, broadband, and highly integrated RF sub card based on the VITA57.1FMC architecture.The board is based on the agile transceiver ADRV9009 as the processing core, suitable for application in general software wireless Electric platform.


FH9000 has a standard  FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.

Applications

  • ● 3G,4G and 5G macrocell base stations

    ● Phased array radar

  • ● TDD active antenna systems

    ● Military communications

  • ● Microwave, nonline of sight (NLOS) backhaul systemsElectronic warfare

    ● Portable test equipment

  • ● Massive MIMO



Key Features

  • ● Chip Model: AD9009
    ● Overlay Band: 75MHz~6GHz
    ● 16bit ADC & 14bitDAC
    ● Supports TDD mode
    ● RF impedance matching 50 Ω
    ● Maximum RX bandwidth: 200MHz
    ● Maximum ORX observation channel bandwidth: 450MHz
  • ● Maximum TX synthetic bandwidth: 450MHz
    ● Integrated power amplifier(14dB@2GHz), supporting a maximum transmission power of 10dBm output
    ● Supports internal or external reference clocks
    ● JESD204B Digital Interface
    ● FMC HPC connector
    ● Dimensions: 76.5 x 69 mm form factor


Product Information

  • Specifications
  • What's Inside
Module Features


Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FH90003250

Documentations

  • FH9000 User Manual

    2024-02-29
