This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FH7000
  • SKU: FH7000
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$2,097.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

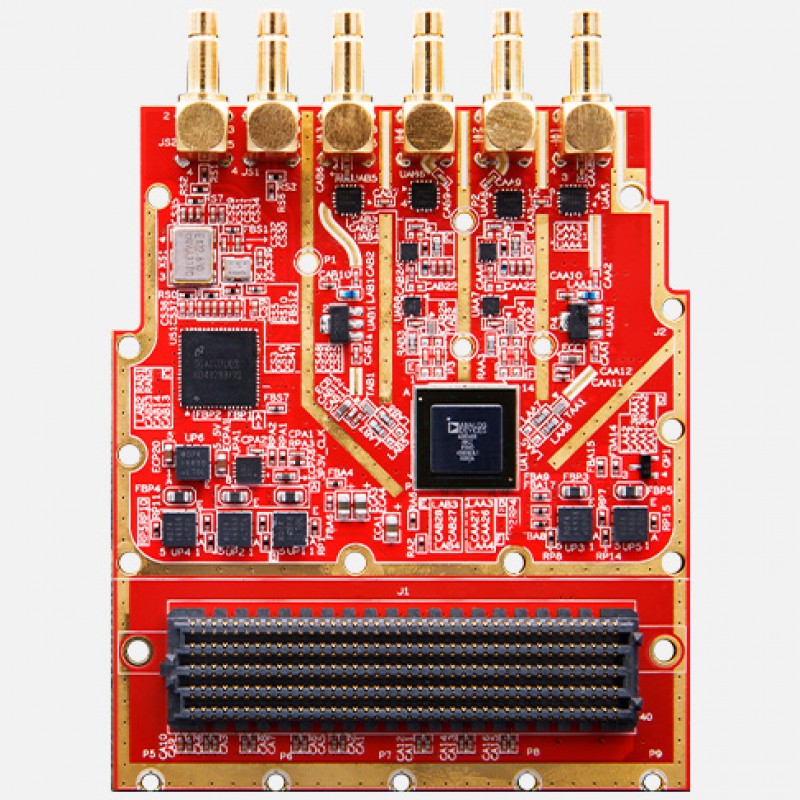

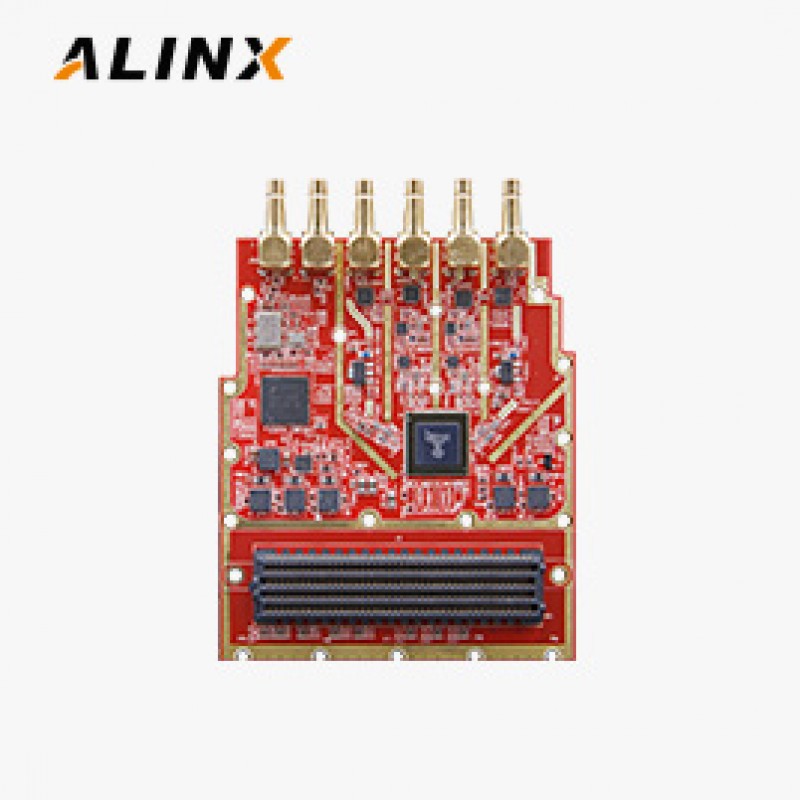

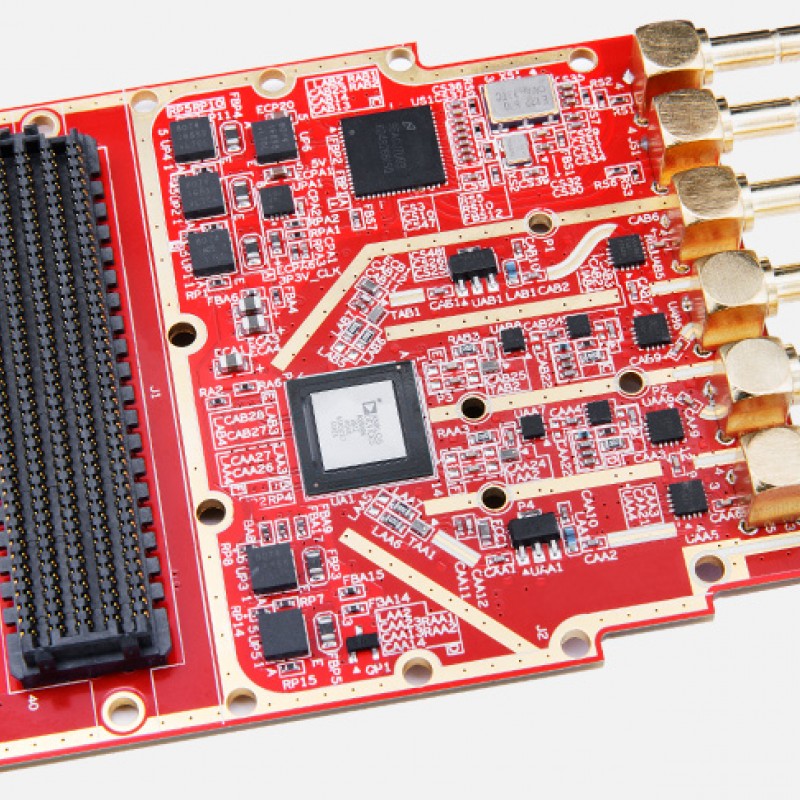

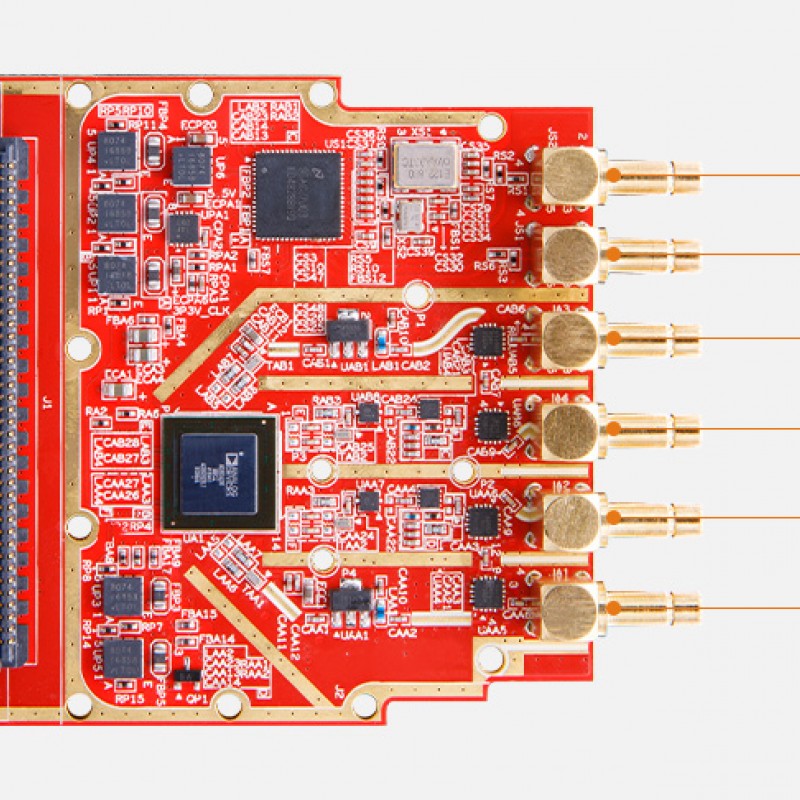

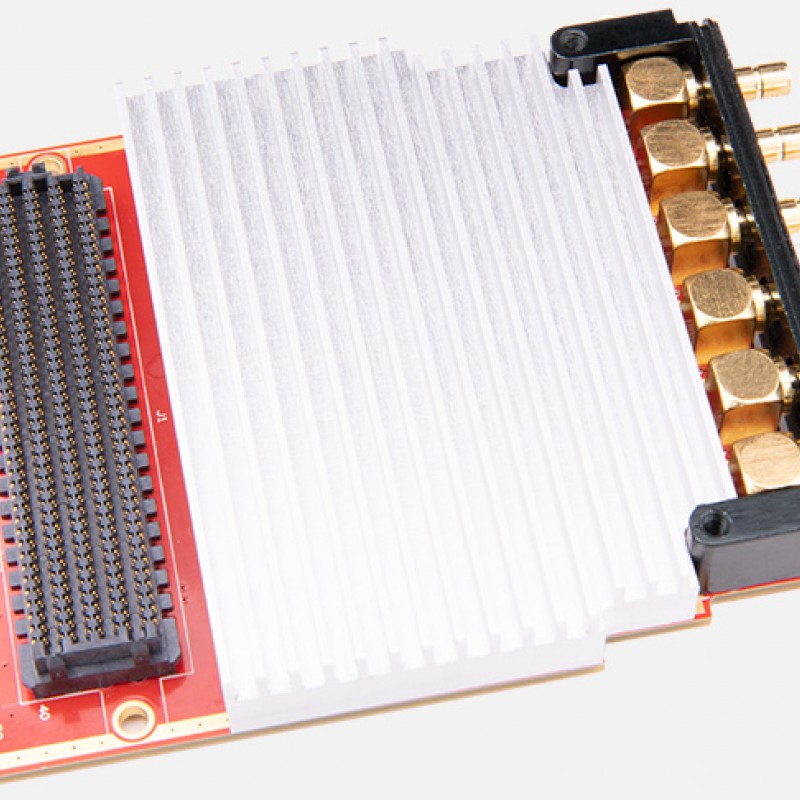

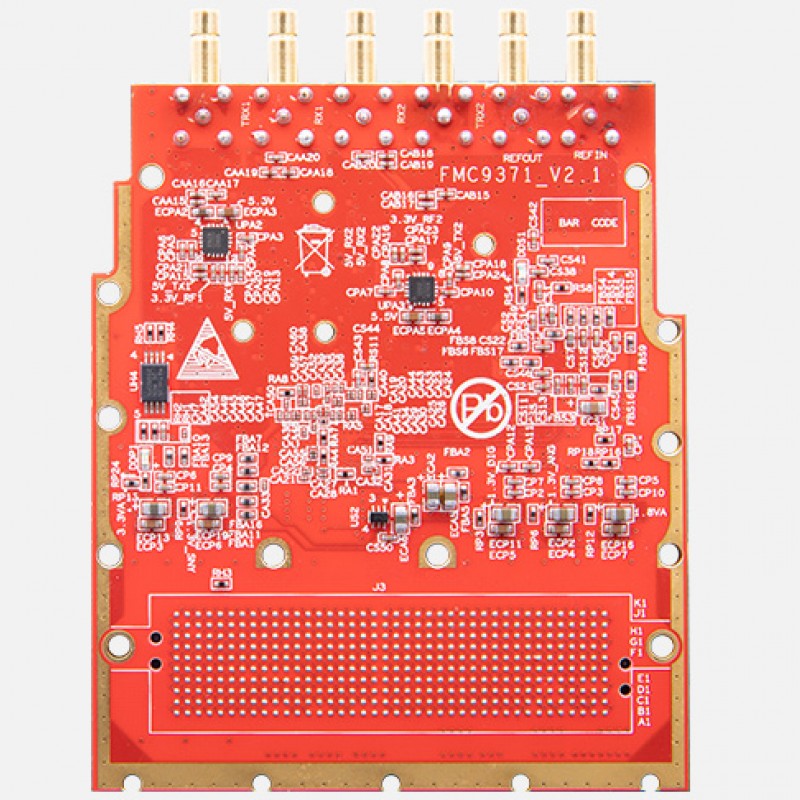

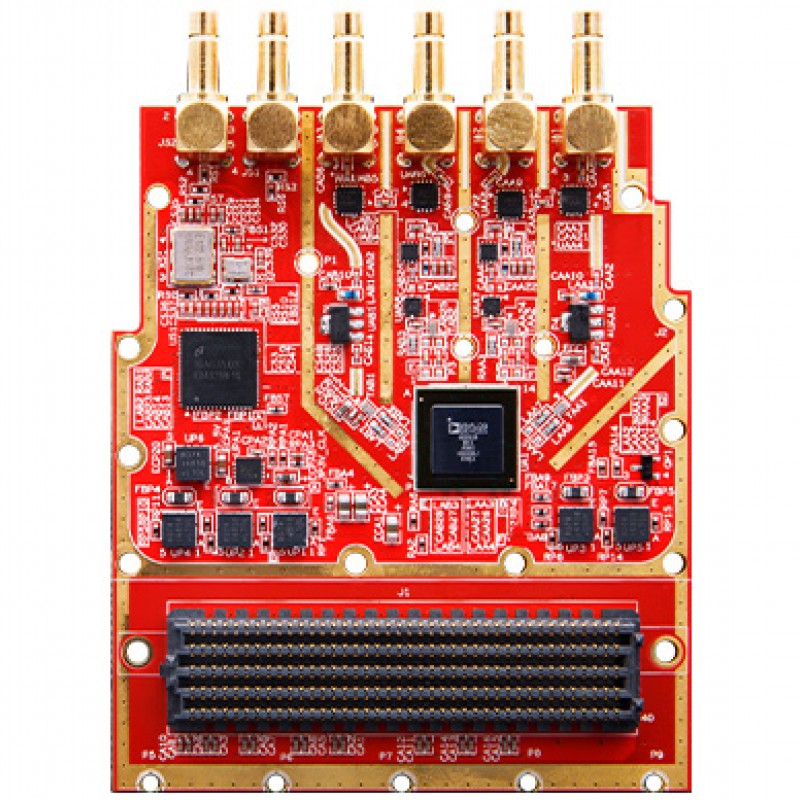

FH7000 is a high-performance, broadband, and highly integrated RF sub card based on the VITA57.1FMC architecture.The board is based on the agile transceiver AD9371 as the processing core, suitable for application in general software wireless Electric platform. Electric platform.


FH7000 has a standard  FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.

Applications

  • ● 3G,4G and 5G macrocell base stations

    ● Military communications

  • ● FDD and TDD active antenna systems

    ● Portable test equipment

  • ● Microwave, nonline of sight (NLOS) backhaul systemsElectronic warfare

  • ● Massive MIMO



Key Features

  • ● Chip Model: AD9371
    ● Overlay Band: 300MHz-6GHz
    ● 16bit ADC & 14bitDAC
    ● Supports half duplex, full duplex, TDD/FDD mode
    ● RF impedance matching 50 Ω
    ● Maximum RX bandwidth: 8MHz-100MHz
  • ● Maximum TX synthetic bandwidth: 250MHz
    ● Integrated power amplifier（ 14dB@2GHz ）, supporting a maximum transmission power of 10dBm output
    ● Supports internal or external reference clocks
    ● JESD204B Digital Interface
    ● FMC HPC connector
    ● Dimensions: 76.5 x 69 mm form factor


Product Information

  • Specifications
  • What's Inside
Module Features


Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FH70002097

Documentations

  • FH7000 User Manual

    2024-02-29
    Download
