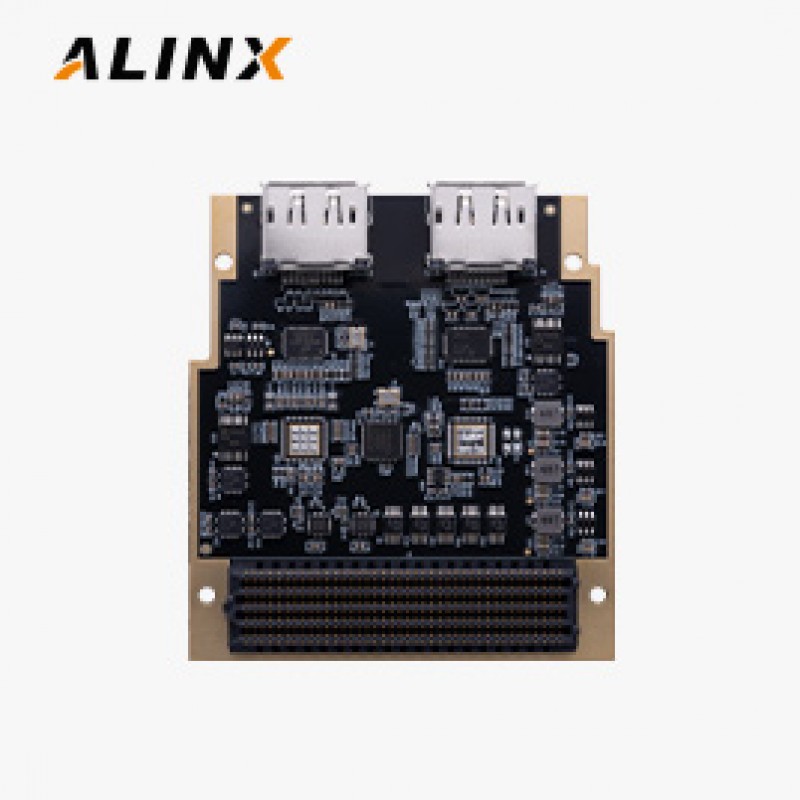

FH6141 4K DisplayPort1.4 Video Input/Output Module HPC FMC Card

FH6141 4K DisplayPort1.4 Video Input/Output Module HPC FMC Card
FH6141 4K DisplayPort1.4 Video Input/Output Module HPC FMC Card
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FH6141V1.0
  • SKU: FH6141V1.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$599.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The FH6141 is an FMC-compatible interface module designed to convert one DisplayPort (DP) input and one DisplayPort output, compliant with the DP1.4 standard. Featuring 4-lane configuration, this module supports data rates up to ‌8.1Gbps per lane‌, delivering high-bandwidth video signal transmission for applications requiring ultra-high resolution and refresh rates.


FH6141 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.


Key Features

  • ● Chip model: input MCDP6000, output SN65DP141
    ● DisplayPort: 2 x DP 1.4 (1 x DP input + 1 x DP output)
    ● Resolution: 4K@60 fps
  • ● Speed: Supports up to 8.1 Gbps
    ● FMC HPC connector
    ● Dimensions: 76.5x 69 mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features


Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FH6141599

Documentations

  • FH6141 User Manual

    2026-02-06
    Download
