FH4020 Dual OcuLink PCIe 3.0 FMC Card

FH4020 Dual OcuLink PCIe 3.0 FMC Card
FH4020 Dual OcuLink PCIe 3.0 FMC Card
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FH4020 V1.0
  • SKU: FH4020 V1.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$389.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

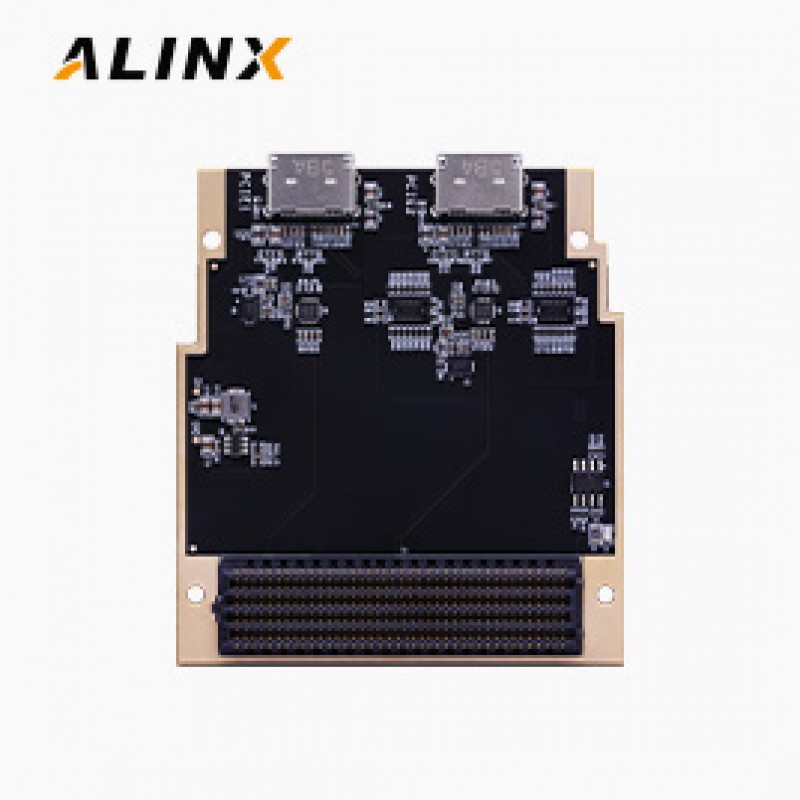

FH4020 is a high-performance OcuLink PCIe communication daughter card, specifically designed for FPGA development platforms, providing stable and high-speed data communication solutions. The product offers two standard SFF-8612 OcuLink interfaces, supports PCIe 3.0 protocol, and can connect to FPGA development boards via standard FMC HPC interfaces.


FH4020 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.


Applications

  • ● Data Acquisition Systems

  • ● Communication Test Equipment

  • ● Image Processing Systems

  • ● Prototype Verification Platforms


Key Features

  • ● 2x SFF-8612 OcuLink Interfaces
    ● PCIe 3.0 Communication Protocol
    ● FMC HPC Interface
    ● 8 Gbps Single Lane Rate
  • ● 32 Gbps Single Path Total Bandwidth
    ● 100MHz Differential Crystal Oscillator
    ● Supports Endpoint and Root mode switching
    ● Dimensions: 76.5 x 69mm form factor

Product Information

  • Specifications
  • What's Inside


Functional Block Diagram

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1
