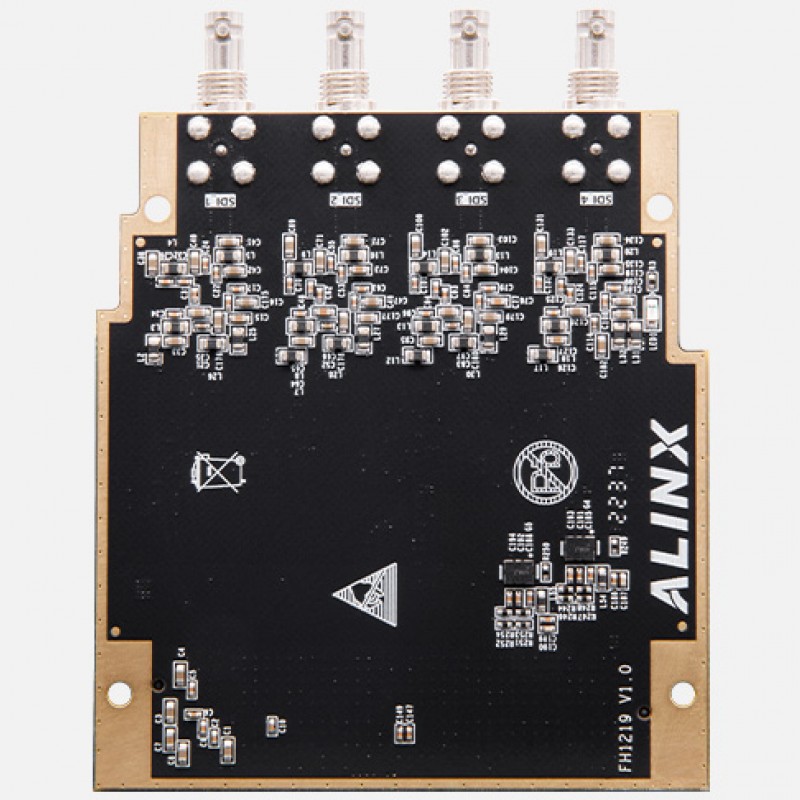

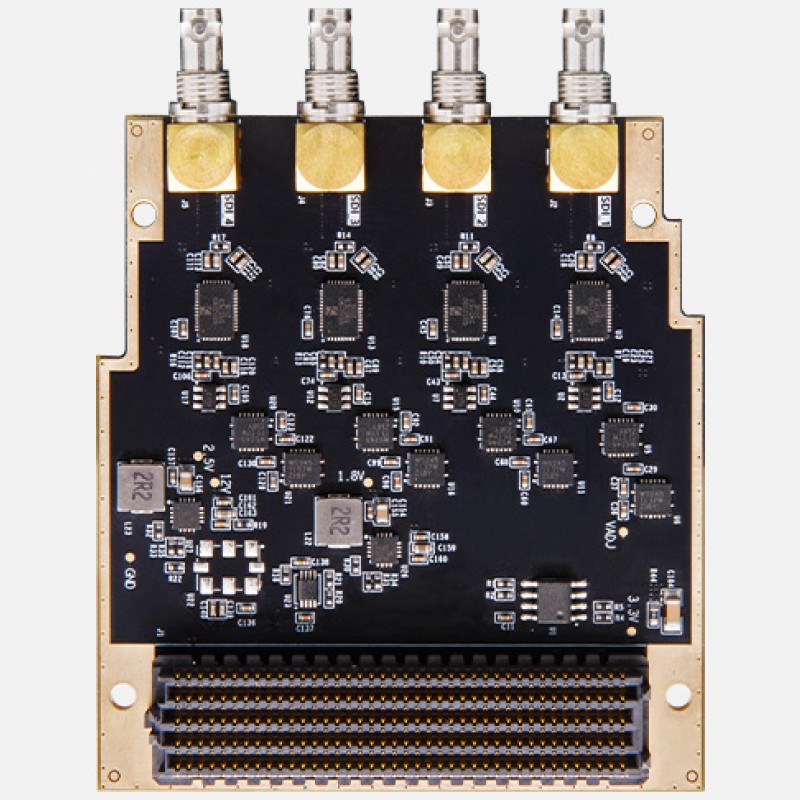

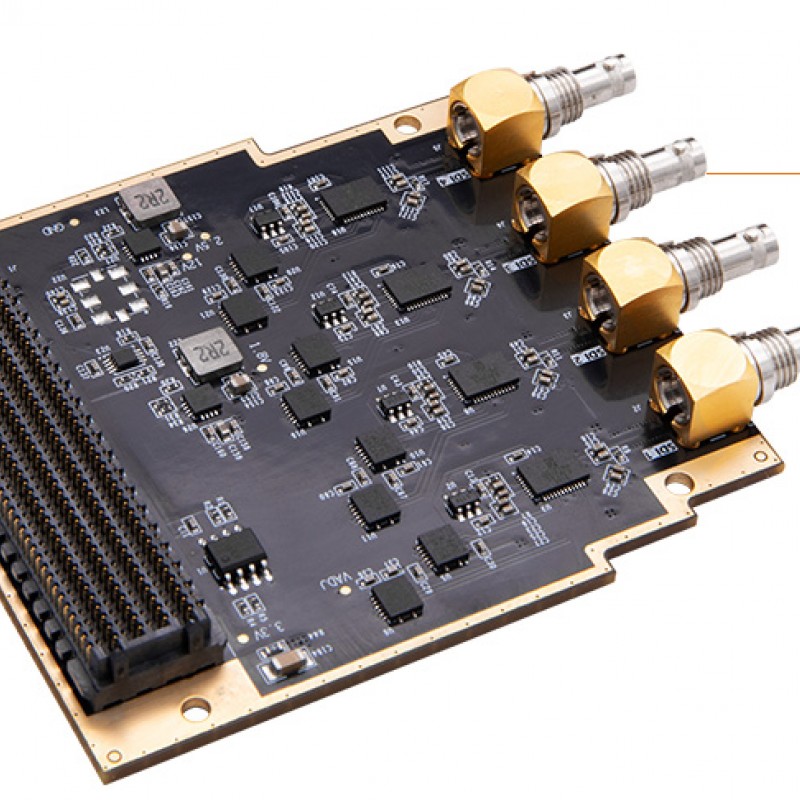

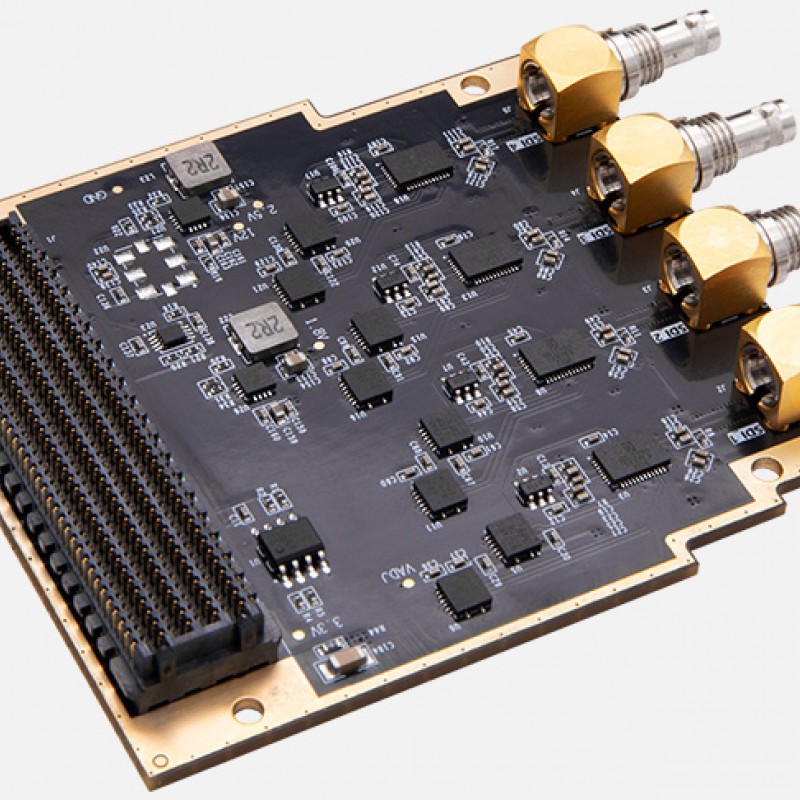

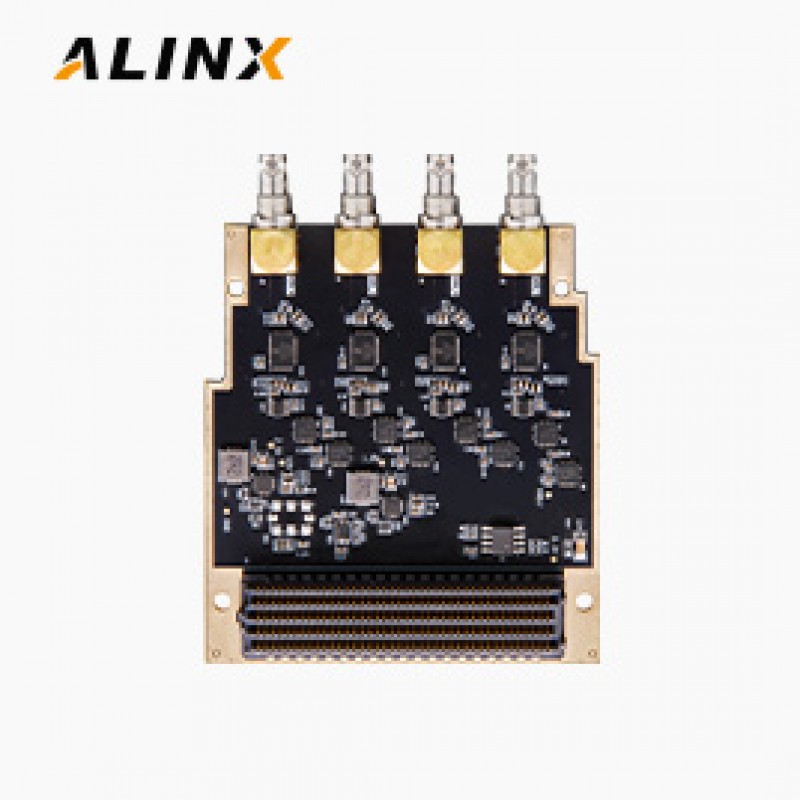

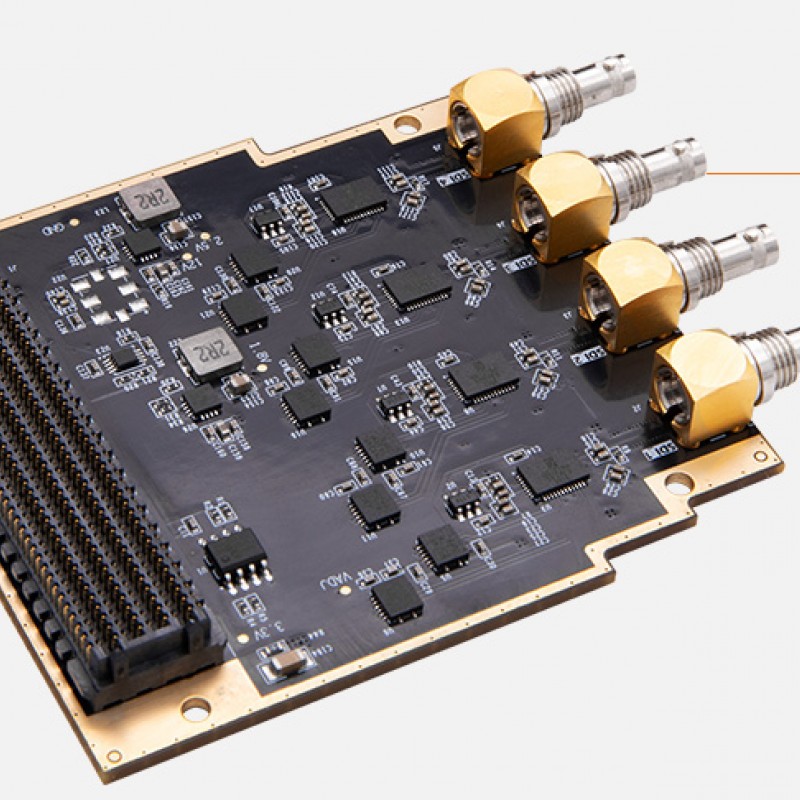

FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card

FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
FH1219 4 12G-SDI 4K@60 video input/output HPC FMC Card
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: FH1219
  • SKU: FH1219
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$749.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

FH1219 has 4 12G SDI interfaces, and each SDI can be configured as an input or output separately. Each SDI supports a maximum data rate of 11.88Gbps, and the input and output of four SDI video signals are connected to the HDBNC connector  through a 75 ohm wiring impedance. Adopting bidirectional 12G UHD-SDI chip GS12190.


FL1219 has a standard  FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.


Key Features

  • ● Supports 4-way bidirectional SDI, supports SD/HD/3G/6G/12G SDI rates, and supports up to 4K/60 frames of video input or output
    ● 4 x HDBNC SDI interface
    ● FMC HPC interface, compatible with ANSI/VITA57.1 FMC standard
  • ● Two reference clocks 148.5MHz and 148.35MHz
    ● Industrial grade, working temperature -40~85 ° C
    ● Dimensions: 76.5 x 69 mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features


Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box
FMC Cards1


Product Selection Matrix

Product Matrix

Product Model

USD Price

FH1219749

Documentations

  • FH1219 User Manual

    2024-02-29
    Download

  • FH1219 Schematic diagram

    2023-03-10
    Download
