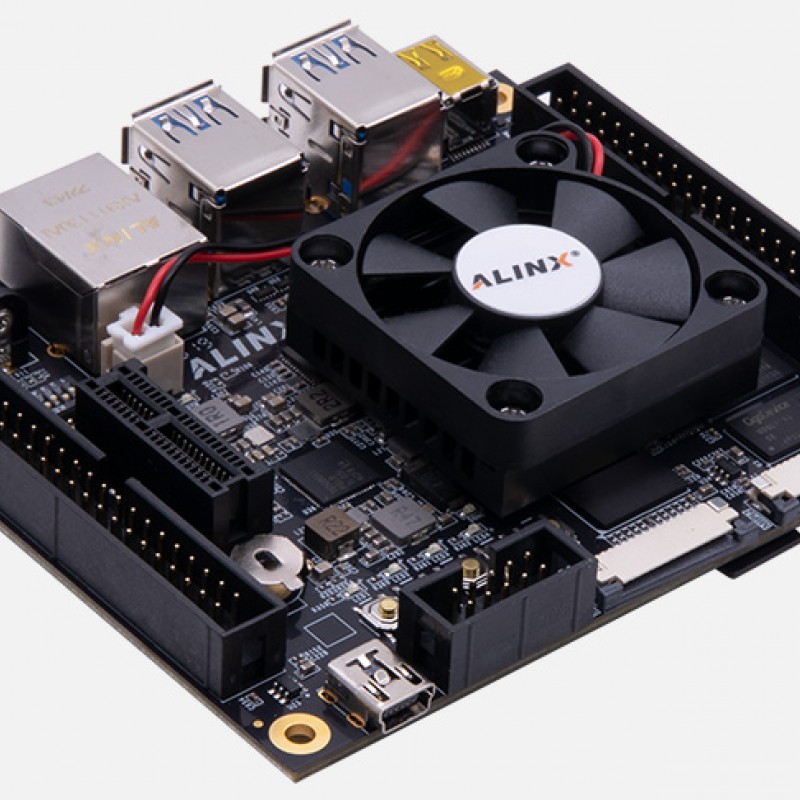

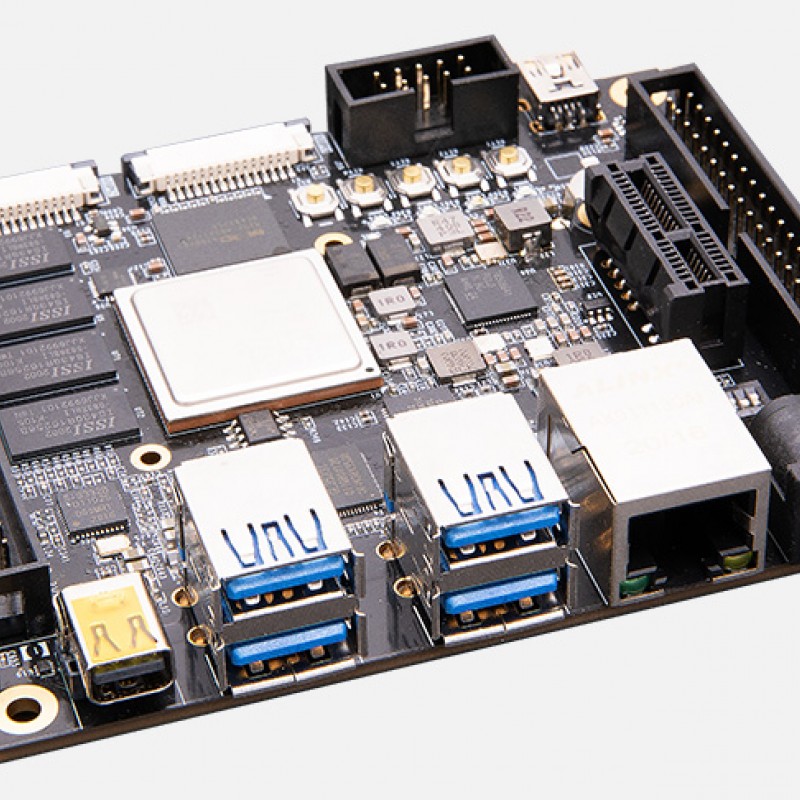

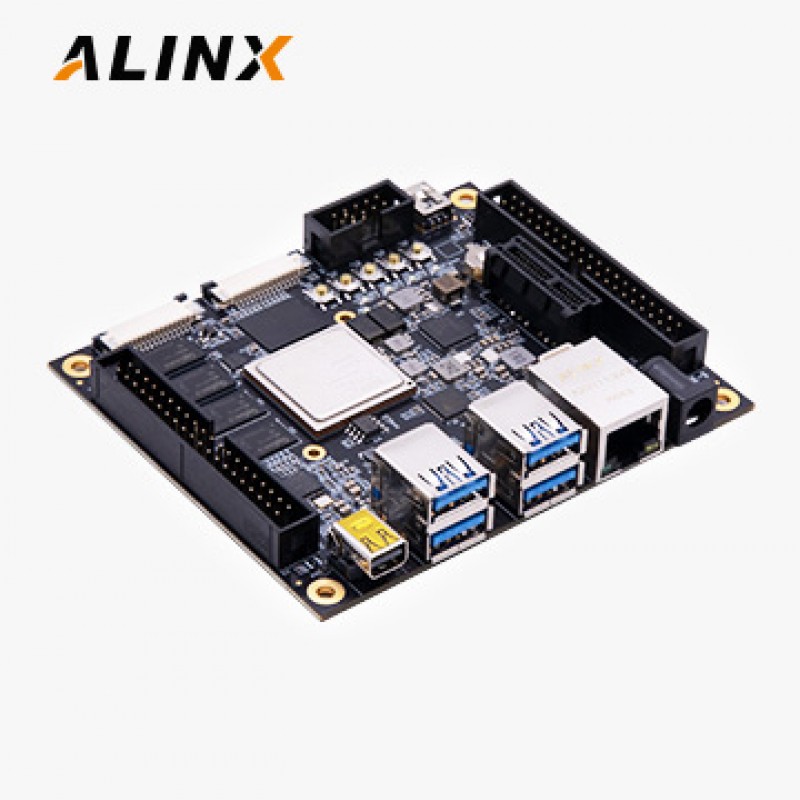

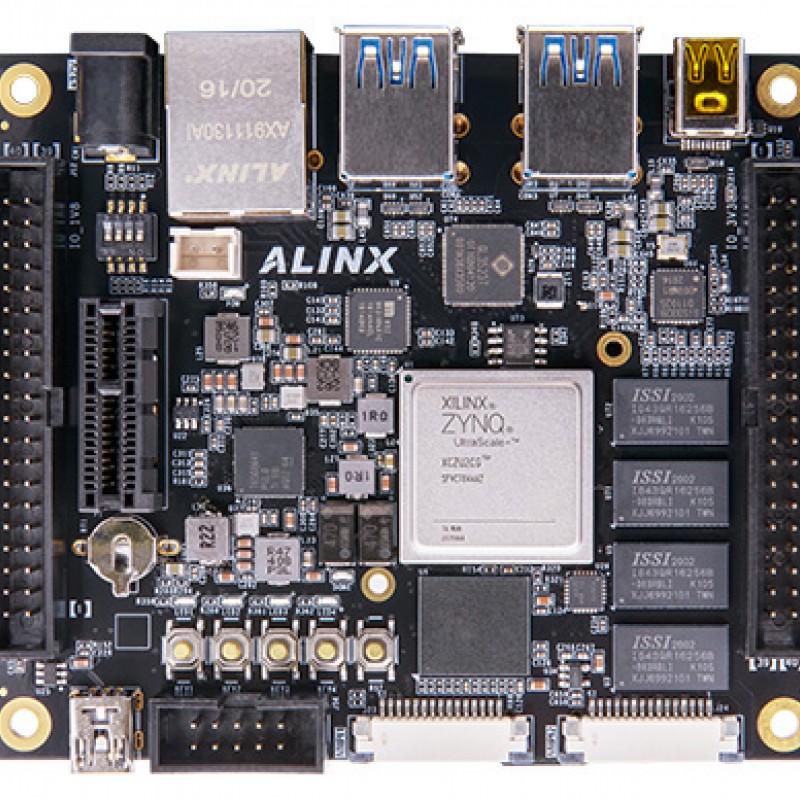

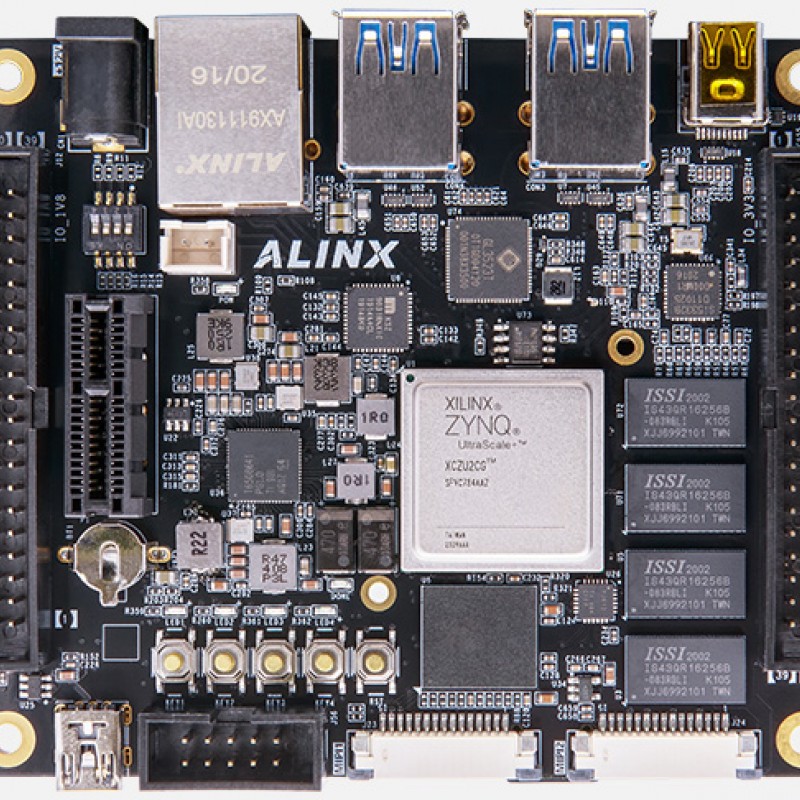

The AXU2CGA/B development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, DP, PCIe.
video applications (DP).
Applications
● Artificial Intelligence
● AV Broadcasting
● Industrial Internet of Thing
● Digital Signal Processing
● Drive / Motion Control
● Machine Vision
● Medical Endoscop
● Video and Image Processing
Key Features
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC: ◆ ARM® dual-core Cortex™-A53 up to 1.2 GHz ◆ ARM® dual-core Cortex™-R5F up to 533 MHz ◆ 16nm FinFET+ FPGA fabric ● 2 GByte (64-bit) DDR4 SDRAM on PS (AXU2CGA is 1GByte 32-bit) ● 32 MB QSPI Flash ● 8 GB eMMC Flash (only for AXU2CGB) ● 1 x PCIe® Gen2 ×1 (PS) ● 1 x Gigabit Ethernet (1 x PS) ● 1 x UART on PS ● 2 x USB3.0 on PS + 2 x USB2.0 on PS
● 1 x DP Interface on PS ● 2 x 2 lane MIPI on PL ● 2 x 40-pin Expansion Ports (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.) ● 1 x Micro SD ● 1 x EEPROM (24LC04) on PS ● LED (4 x PL) + KEY(1 x reset + 4 x PL) ● 12V single supply ● Dimensions: 100 x 85 mm form factor
Product Information
Specifications
What's Inside
Development Board Features
Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU2CG-1SFVC784E Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box. The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.
What's Inside the Box
ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XUZU2CG development board and Some accessories
Development Board
1
Heatsink Kit (preinstalled)
1
USB Downloader Cable / set
1
Mini USB Cable
1
12V Power Adapter
1
TF Card
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
MPSoC
DDR4 ECC SDRAM (PS)
QSPI Flash
eMMC Flash
GTR
USD Price
AXU2CGA
√
XCZU2CG-1SFVC784E
1 GB
32 MB
-
4
438
AXU2CGB
√
XCZU2CG-1SFVC784E
2 GB
32 MB
8GB
4
468
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
