● 1 x Gigabit Ethernet ● 2 x SFP+ (no transceivers, unavailable) ● 1 x VGA out ● 1 x USB2.0 ● 1 x Micro SD ● 1 x UART (USB to UART) ● 1 x RS232 ● 1 x 512 Byte EEPROM 24LC04 ● 1 x RTC DS1302 (Real-time Clock) ● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.) ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 X LED) KEY (4 x KEY) ● 12V single supply ● Dimensions: 150 x 110 mm form factor
Product Information
Specifications
What's Inside
Board Features
Featuring the AMD Spartan UltraScale+ XCSU35P-2SBVB625I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box. The ALINX FPGA development board help shorten time-to-market for any AMD Spartan UltraScale+ based application.
* The AXSU35 development board consists of a ACSU35 SoM and base board. If you want to purchase ACSU35 SoM separately. Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

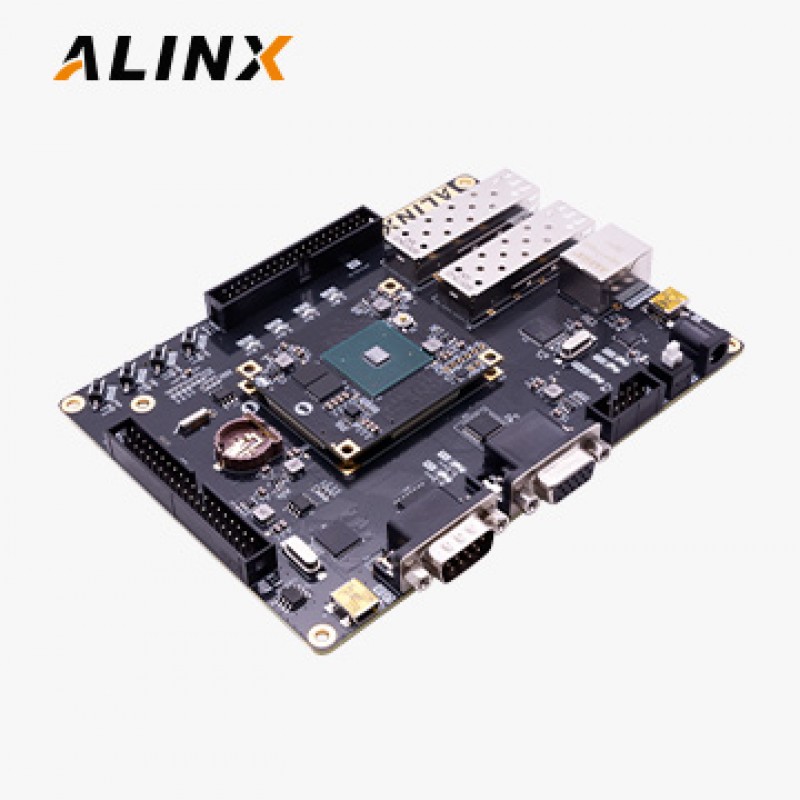

ALINX AMD Spartan UltraScale+ XCSU35P FPGA development board and Some accessories
System-on-Module
1
Base Board
1
Mini USB Cable
1
USB Downloader Cable / set
1
12V Power Adapter
1
Acrylic board
1
Heatsink
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
FPGA Devices
HYPERRAM
QSPI Flash
USD Price
AXSU35
√
XCSU35P-2SBVB625I
64Mbit
128Mbit
359
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
