AXP500F FPGA Dev Board & Kit with Pango Titan3 PG3T500

AXP500F FPGA Dev Board & Kit with Pango Titan3 PG3T500
AXP500F FPGA Dev Board & Kit with Pango Titan3 PG3T500
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AXP500F V1.0
  • SKU: AXP500F V1.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$973.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

AXP500F Development Board adopts a System-on-Module (SOM) + carrier board structure. The SOM is based on the PANGO Titan3 PG3T500 FPGA (242K LUT6 + 484K registers), and features 2GB DDR4 and two 256Mb QSPI Flash chips. The carrier board provides FMC+, Gigabit Ethernet, USB-UART, 40-pin expansion connector, Micro SD card slot, JTAG, user buttons and LEDs. Ideal for high-speed acquisition, video processing, industrial control, and communication protocol validation.

Applications

  • ● Communication

  • ● Image and video processing

  • ● High-speed Data Acquisition & Analysis

  • ● Network information security

  • ● Industrial Control



Key Features

  • System-on-Module

    ● PANGO Titan-3 PG2T390H
    ● Pluggable module with 2 x Panasonic board-to-board connectors
    ● 2 x 1 GByte (32-bit) DDR4 SDRAM
    ● 2 x 256Mb QSPI Flash

  • Base Board

    ● 1 x FMC+ HPC (34 LVDS pairs + 16 transceivers)
    ● 1 x Gigabit Ethernet
    ● 1 x USB to UART
    ● 1 x Micro SD
    ● 1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
    ● 1 x JTAG
    ● 4 x User buttons
    ● 7 x  LEDs
    ● 12V single supply
    ● Dimensions: 190 x 106 mm form factor

Product Information

  • Specifications
  • What's Inside
Development Board Features

Featuring the PANGOMICRO Titan3 PG3T500-6IFFBG676 Adaptive

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
       The ALINX development board help shorten time-to-market for any PANGOMICRO Titan3 based application.


* The AXP500F development board consists of a P500 SoM and base board. If you want to purchase P500 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

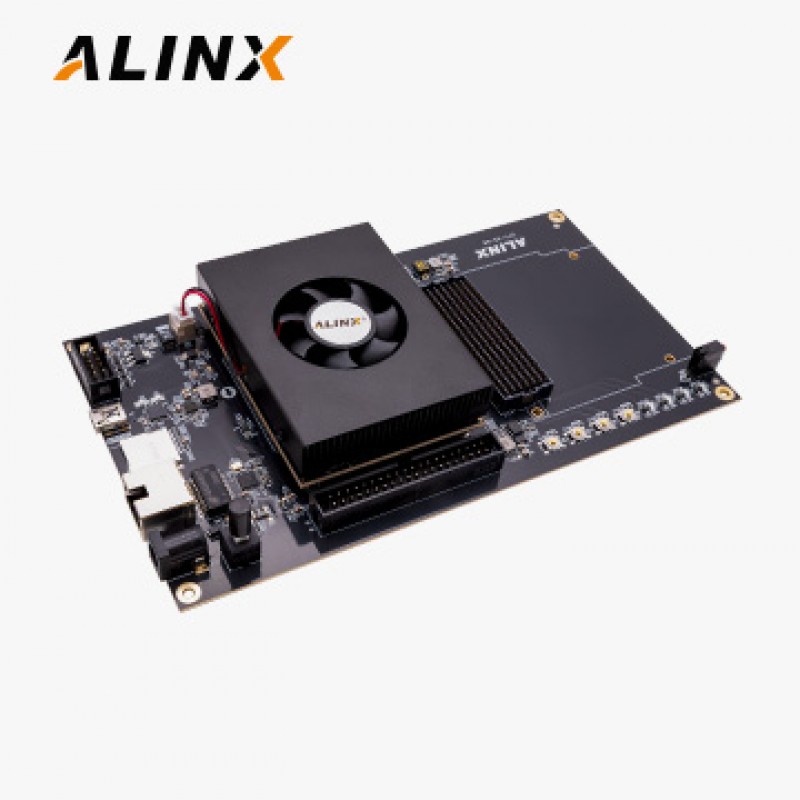

ALINX PANGO Titan3 PG3T500 development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and  modules – it is low-profile and covers the whole module surface.

System-on-Module1Base Board1
Mini USB Cable1Heatsink Kit (preinstalled)1
12V Power Adapter1USB Downloader Cable / set1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 ECC SDRAMQSPI FlashUSD Price
AXP500F√PG3T500-6IFFBG6762 GB512Mb973


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AXP500F V1.0 User Manual

    2026-05-08
