Product Description
The AVP50G FPGA Development Board is PANGO Logos series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, HDMI, SFP, Gigabit Ethernet.
Applications
● Communication
● Industrial control
Key Features
System-on-module
● PANGO Logos PGL50H:◆ 40 nm FPGA fabric
◆ HSST 6.375 Gbps Transceivers
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 16 MB QSPI FlashBase Board
● 1 x USB2.0
● 1 x HDMI out
● 1 x Gigabit Ethernet
● 2 x SFP(per line 6.375Gbps)
● 2 x Six-in-one digital tube
● 1 x UART(USB to UART)
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75A
● 1 x RTC(Real Timing Clock)
● 1 x Buzzer
● 1 x Relays
● 1 x Camera link
● LED (1 x PWR + 1 x RXD + 1 x TXD + 8 x LED) KEY (7 x KEY)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 12V single supply
● Dimensions: 280 x 180 mm form factor
- Specifications
- What's Inside
Development Board Features
Featuring the PANGO Logos PGL50H-6IFBG484 Adaptive
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGO Logos based application.
* The AXP50 development board consists of a P50 SoM and base board. If you want to purchase P50 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

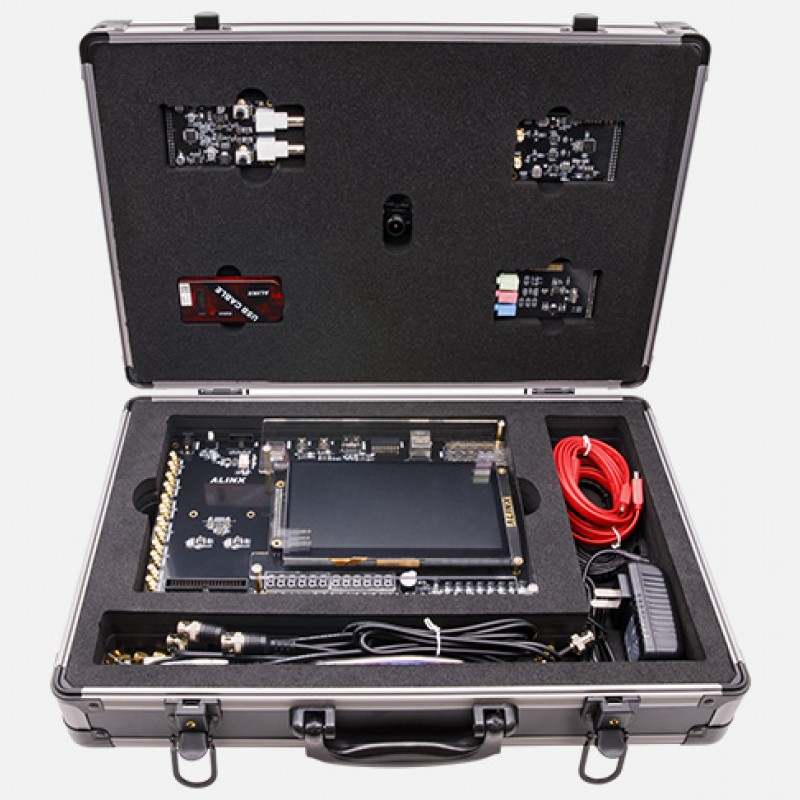

ALINX PANGO Logos PGL50H development board and Some accessories
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| AN9238 | 1 | AN970 | 1 |
| AN5640 | 1 | AN9767 | 1 |
| USB downloader | 1 | AN831 | 1 |
| optical cable | 1 | Ethernet cable | 1 |
| card reader | 1 | TF card | 1 |
| Mini USB line | 2 | SMA to BNC line | 2 |
| BNC line | 2 | 10 pin JTAG ribbon cable | 1 |
| 12V Power Adapter | 1 | SMA elbow connection line | 4 |
| Acrylic Plate | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 ECC SDRAM | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXP50 | √ | PGL50H-6IFBG484 | 1 GB | 16 MB | 749 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
