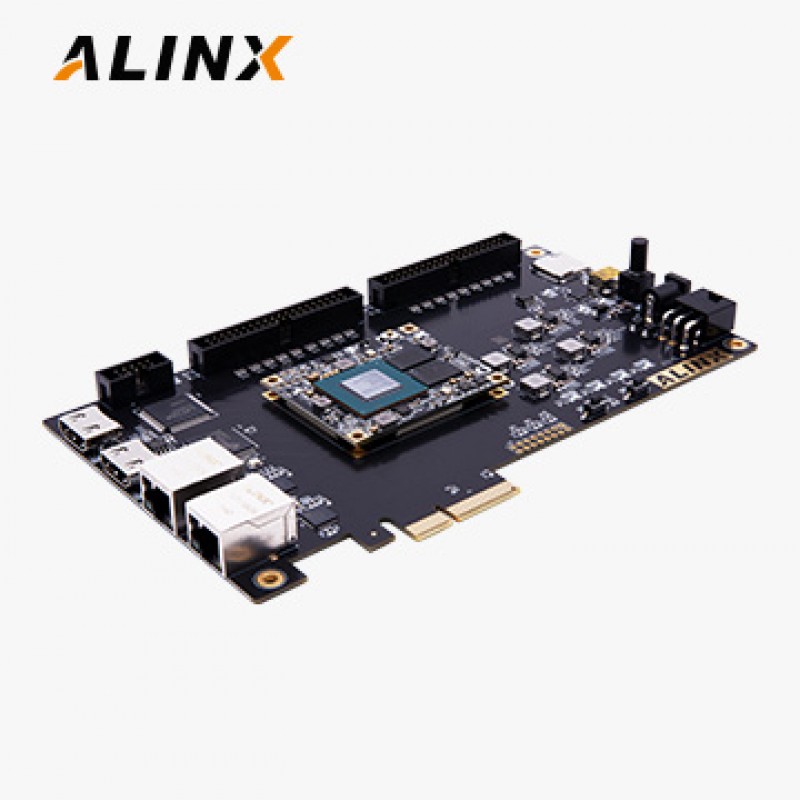

Product Description
The AXP203 FPGA development board equipped with the PANG Logos-2 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, PCIe, HDMI.
Provide high-speed communication (PCIe) and video applications (HDMI).
Applications
● communication
● Image and video processing
● Data analysis
● medical care
● Industrial control
● Network Information Security
Key Features
System-on-Module
● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
◆ HSST 6.6 Gbps Transceivers
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 16 MB QSPI FlashBase Board
● 1 x PCIe Gen2 x 4
● 2 x Gigabit Ethernet
● 2 x HDMI(1 x HDMI in + 1 x HDMI out)
● 1 x UART(USB to UART)
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY (2 x KEY)
● 12V single supply
● Dimensions: 188 x 111 mm form factor
- Specifications
- What's Inside

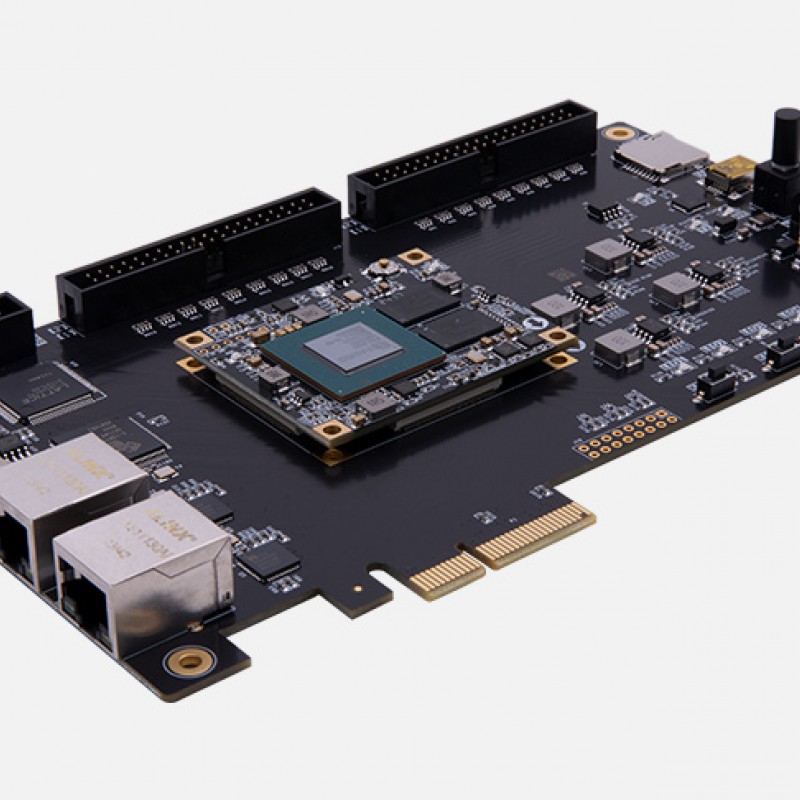

Board Features
Featuring the PANGO Logos-2 PG2L200H-6IFBB484
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any PANGO Logos2 based application.
* The AXP203 development board consists of a P200 SoM and base board. If you want to purchase P200 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX PANGOMICRO Logos-2 PG2L200H FPGA development board and Some accessories
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | PCle Fence | 1 |
| Heatsink | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 SDRAM | QSPI Flash | HSST | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXP203 | √ | PG2L200H-6IFBB484 | 1 GB | 16 MB | 4 | 374 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
