Product Description

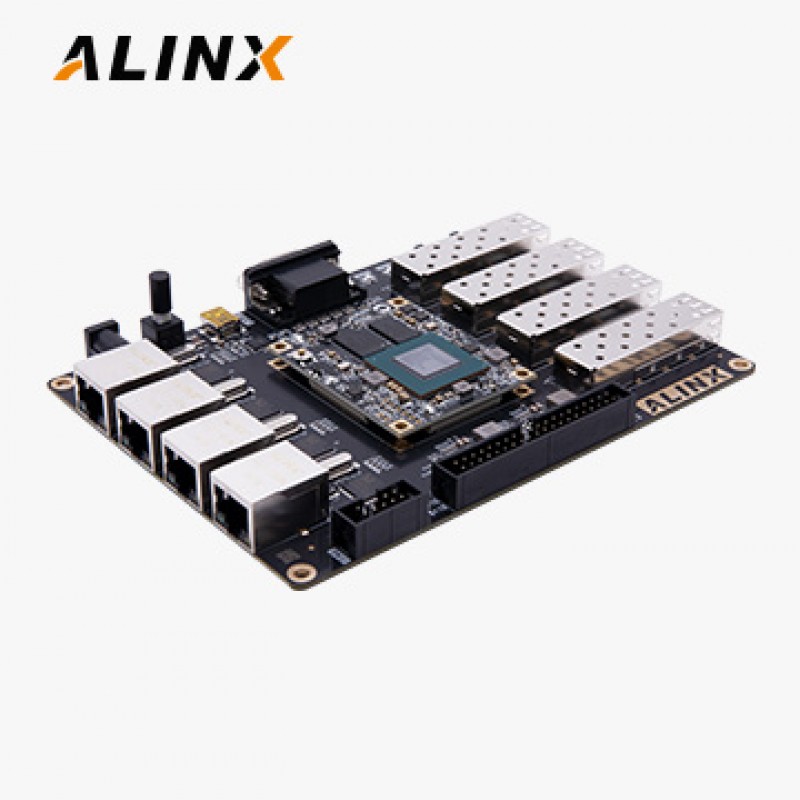

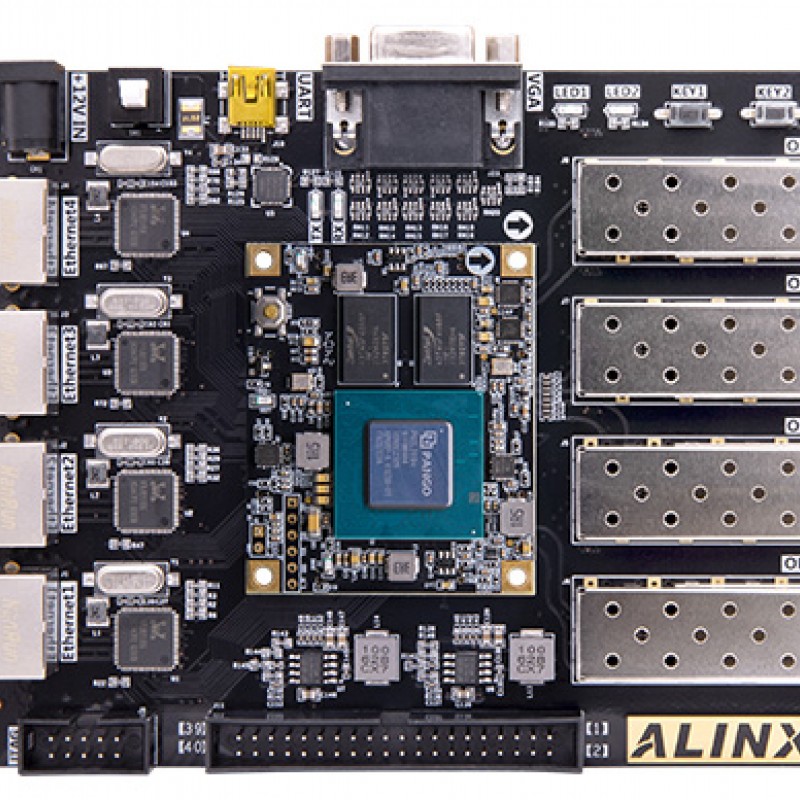

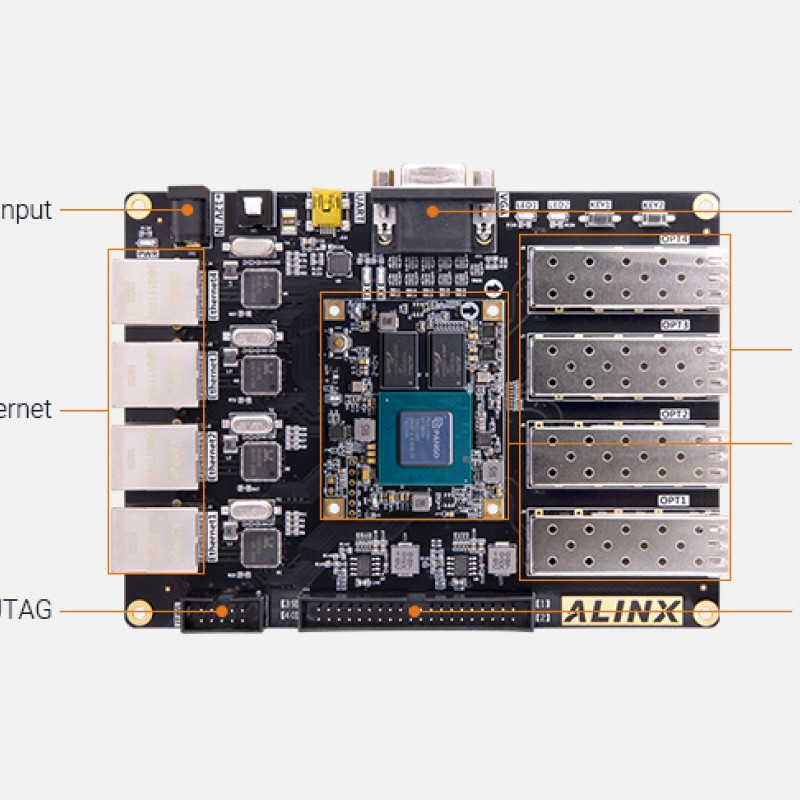

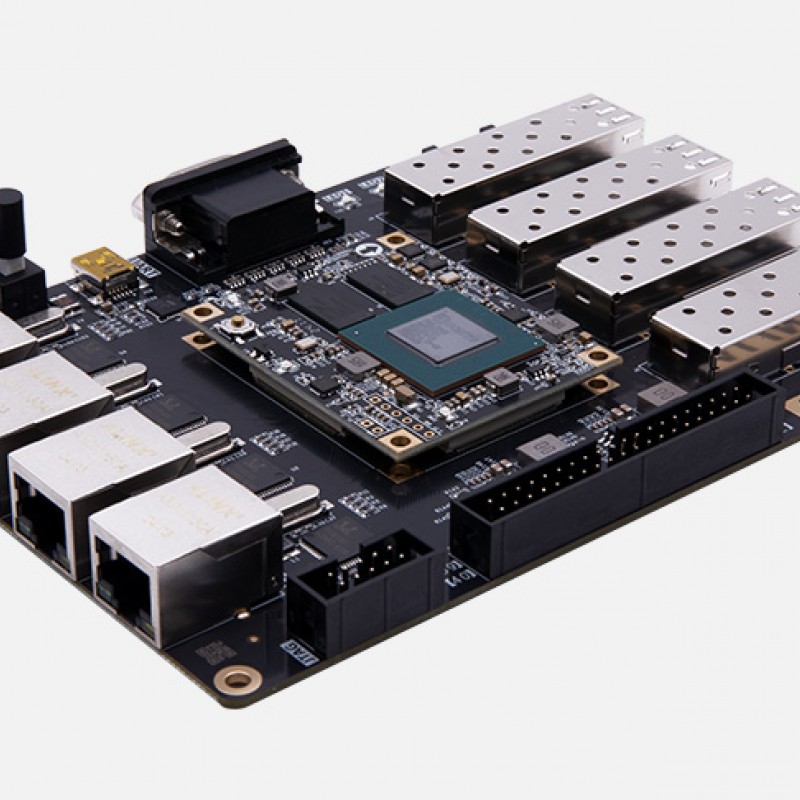

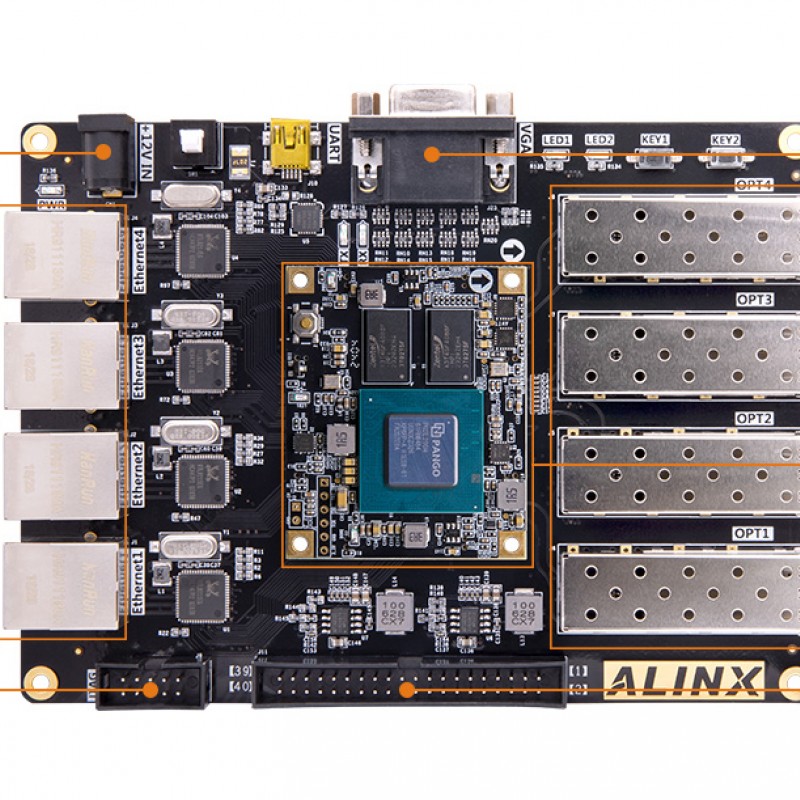

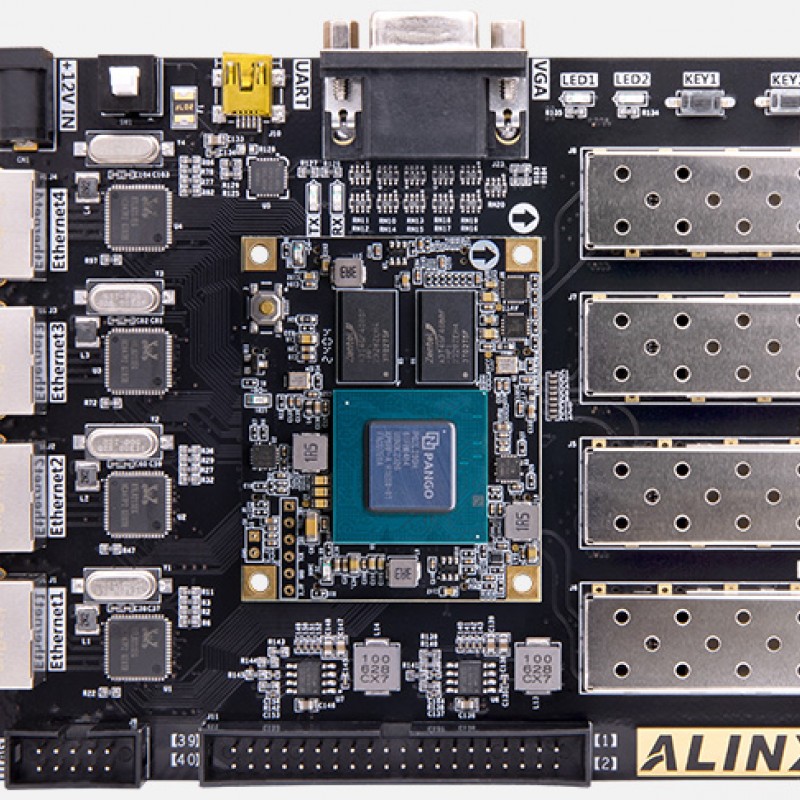

The AXP201 FPGA development board equipped with the PANGO Logos-2 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, SFP+, VGA out.
Provide high-speed communication (SFP+) and video applications (VGA).
Applications
● communication
● Image and video processing
● Data analysis
● medical care
● Industrial control
● Network Information Security
Key Features
System-on-Module
● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
◆ HSST 6.6 Gbps Transceivers
● Pluggable module with 4 x board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 16 MB QSPI FlashBase Board
● 4 x Gigabit Ethernet
● 4 x SFP+ (per line 6.6Gbps)
● 1 x VGA out
● 1 x UART (USB to UART)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 2 X LED) KEY (2 x KEY)
● 12V single supply
● Dimensions: 150 x 110 mm form factor
- Specifications
- What's Inside
Board Features
Featuring the PANGOMICRO Logos-2 PG2L200H-6IFBB484
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any PANGOMICRO Logos2 based application.
* The AXP201 development board consists of a P200 SoM and base board. If you want to purchase P200 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX PANGOMICRO Logos-2 PG2L200H development board and Some accessories
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Acrylic board | 1 |
| Heatsink | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 SDRAM | QSPI Flash | HSST | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXP201 | √ | PG2L200H-6IFBB484 | 1 GB | 16 MB | 4 | 374 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
